5.0 Inch IPS 800(RGB)*480 wide operating temperature lcd module with a PCAP, 1000 nits brightness

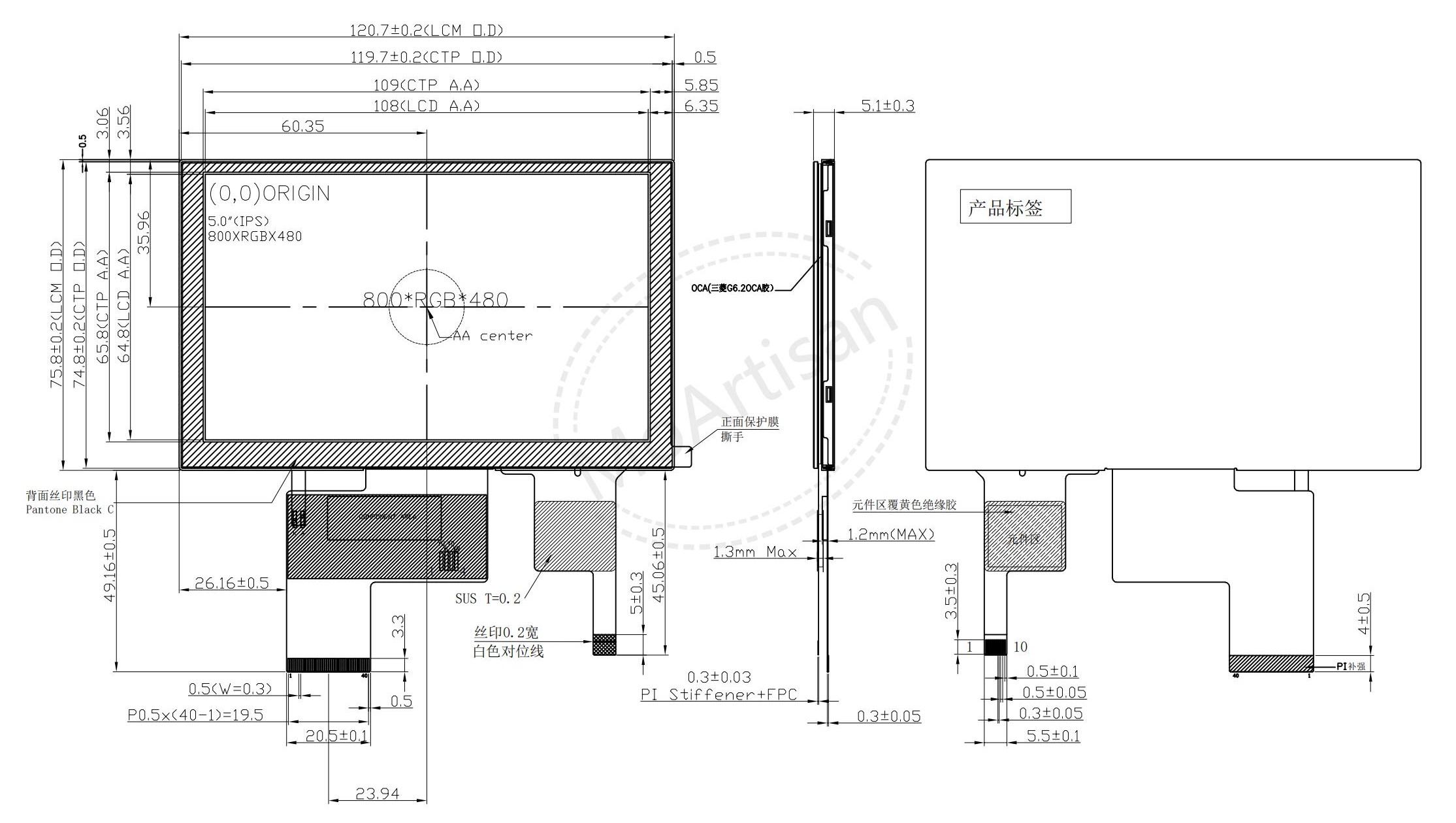

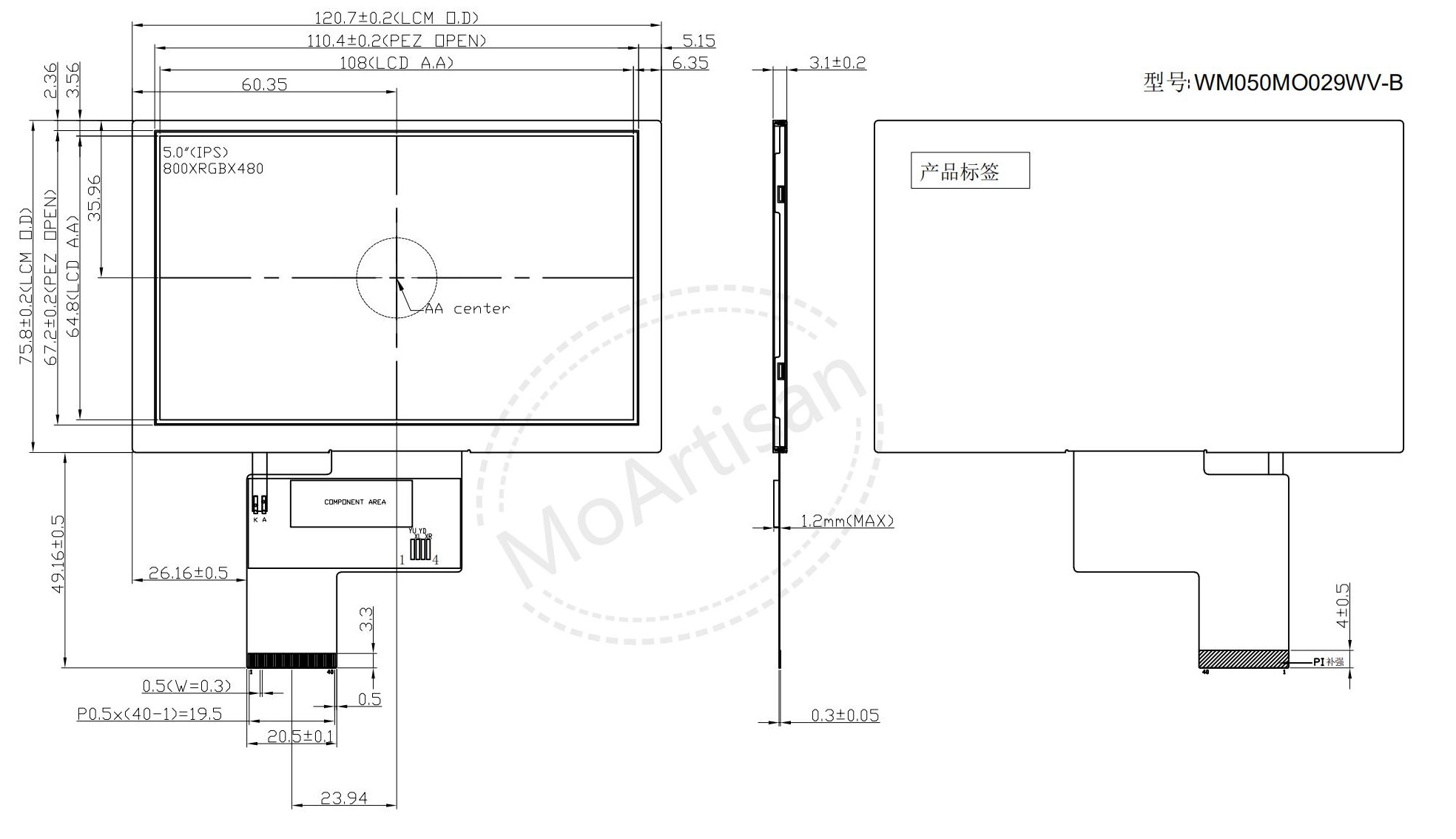

Production Drawings

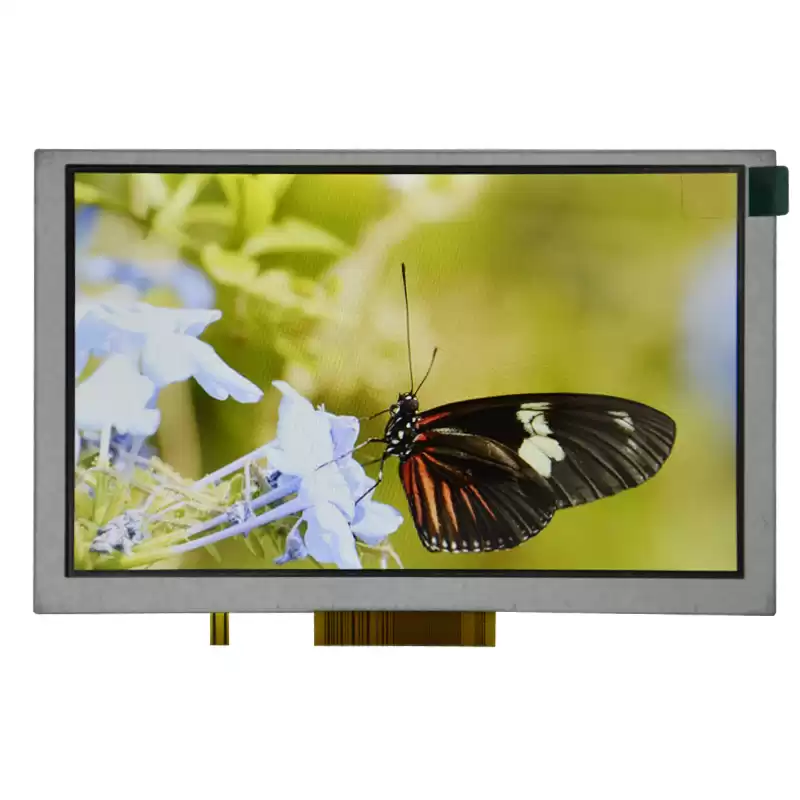

WM050MC029WV-B Introduction
-
5.0 (15:9) inch diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
5.0 inch LCD module with wide operating temprature.
-
1000 contrast ratio for the panel and 1000 nits brightness for the module.
-
40 PIN FPC, RGB interface.
-
This module can be added a PCAP.
-
Operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.0
|
WVGA, 800RGB*480, IPS, landscape view screen, wide temp, PCAP
|
120.8*76*5.25
120.8*76*3.1
|
3X6 LED (50K)
|
40 Pin FPC, 24-Bit, RGB
|
1000 nits/1000
|
Topa: -30~+80
Tstg: -30~+80
|
80/80/80/80
|
WM050MC029WV-B
WM050MO029WV-B
|
Production Applications
GPS,
Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4 weeks.
FAQ:
What are the features of this product?
ANSWER:
This product can be used in vehicles field.
