5,000L NPR Refueling truck Fuel Tank
Description:
Philippines Refueling truck Isuzu (also called Fuel bowser, oil tank truck, Mobile fuel trucks, oil tanker truck, Fuel bowser tanker, Fuel transport tank vehicle,Fuel oil tank truck, Petrol tank truck, gasoline tank trucks, Tank truck for oil) is used to transport oil, diesel, gasoline, kerosene, etc.
Our range of refueling tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.
The refueling tank truck manufactured by PowerStar Trucks is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.
Areas of Application and Use:
◆ Gasoline transport and
delivery
◆ Diesel transport and delivery
◆ Kerosene transport and
delivery
◆ Other liquid fuel material
◆ Mobile refueling vehicle of
Filling stations
Details of ISUZU Fuel Tank Truck:
 |
 |

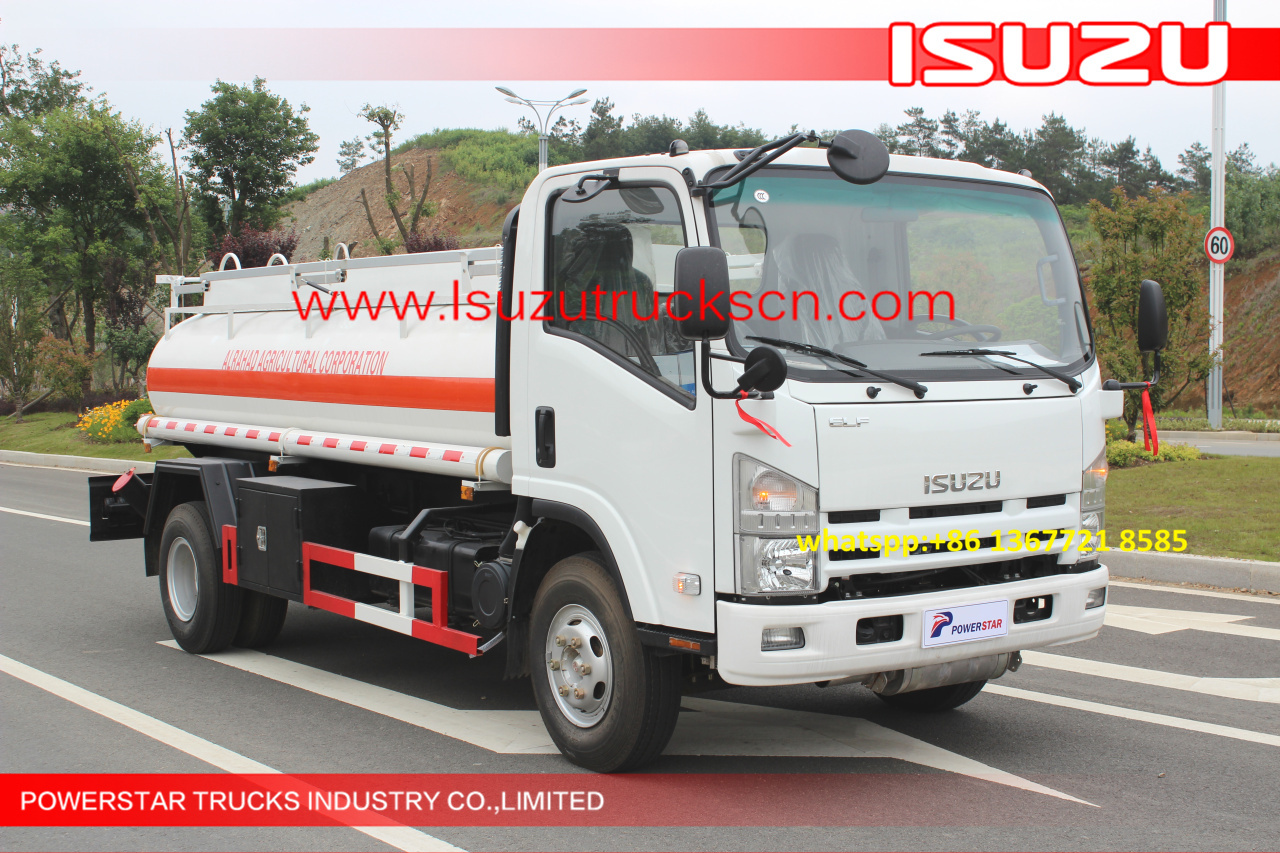

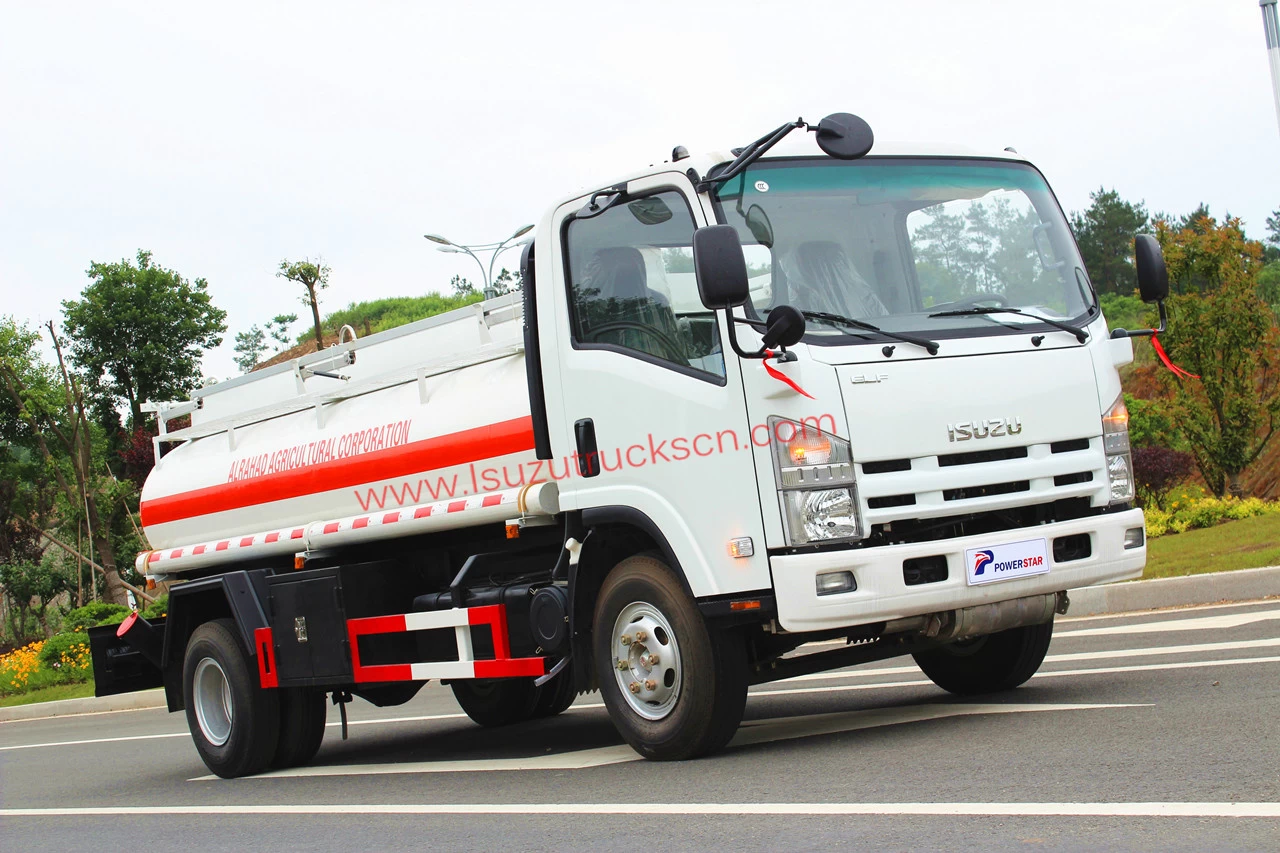

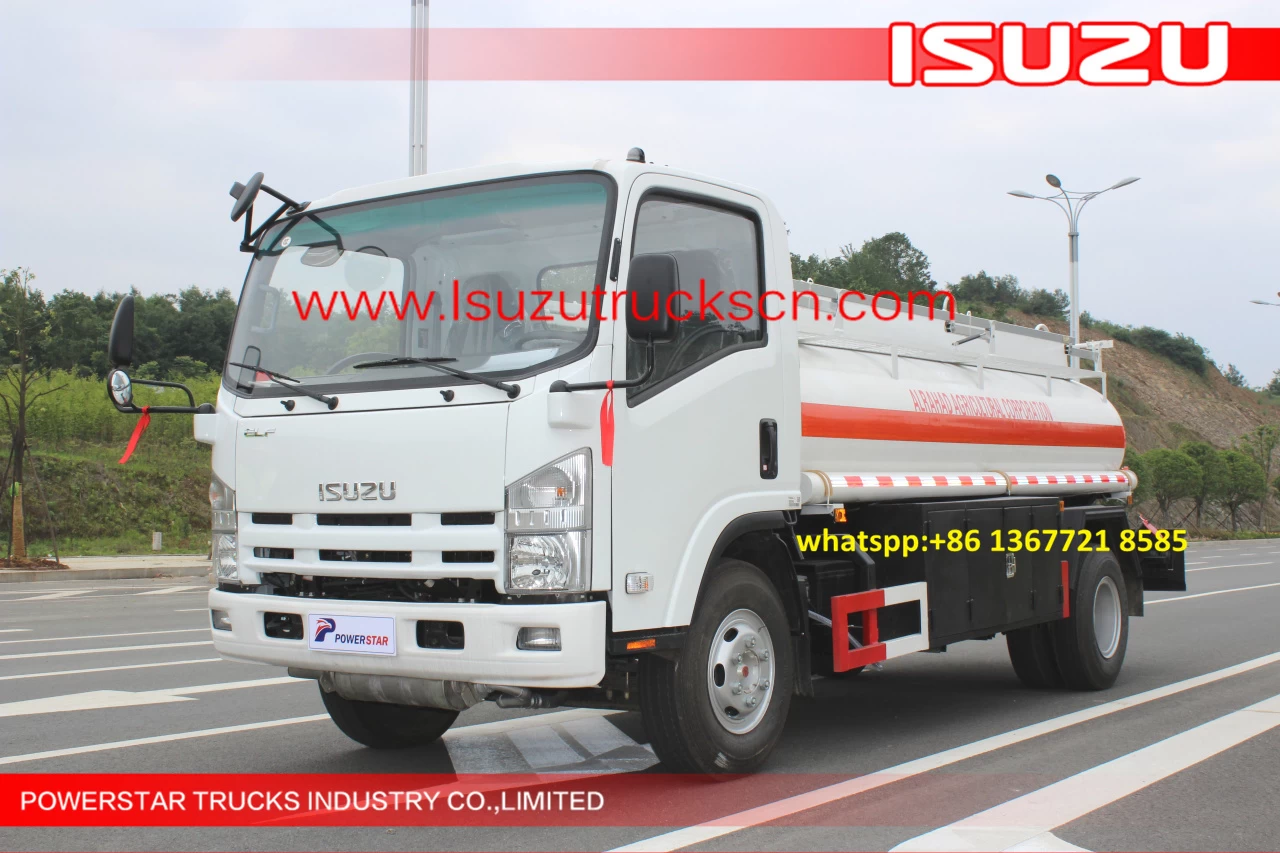

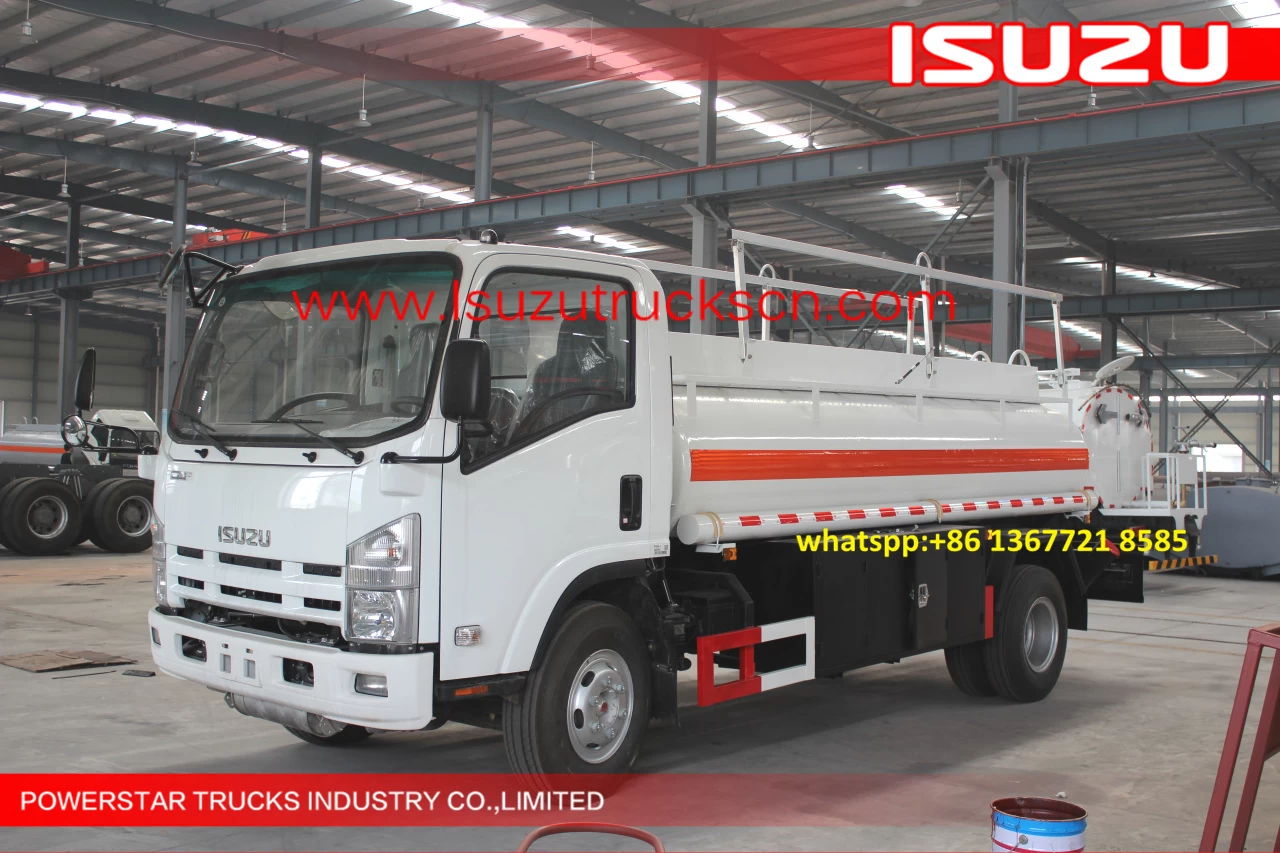

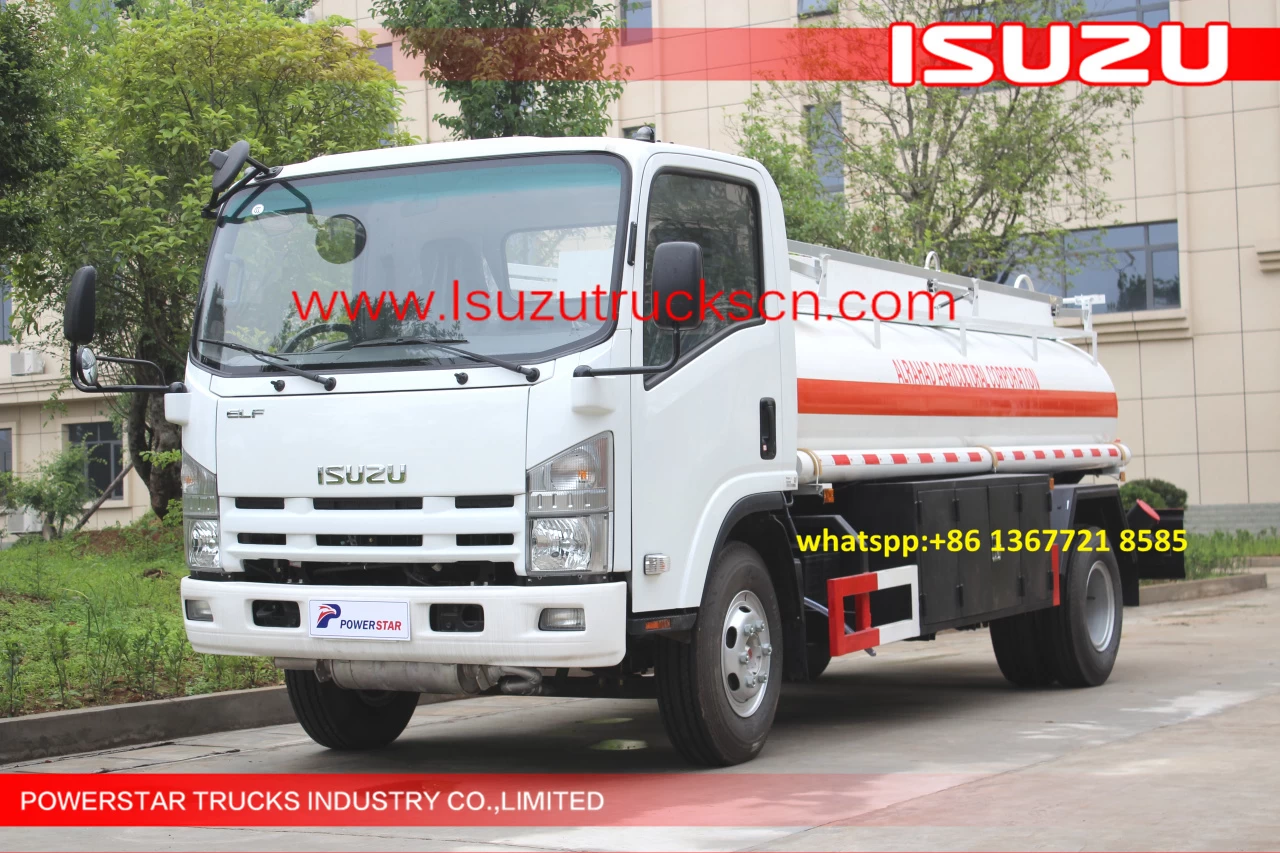

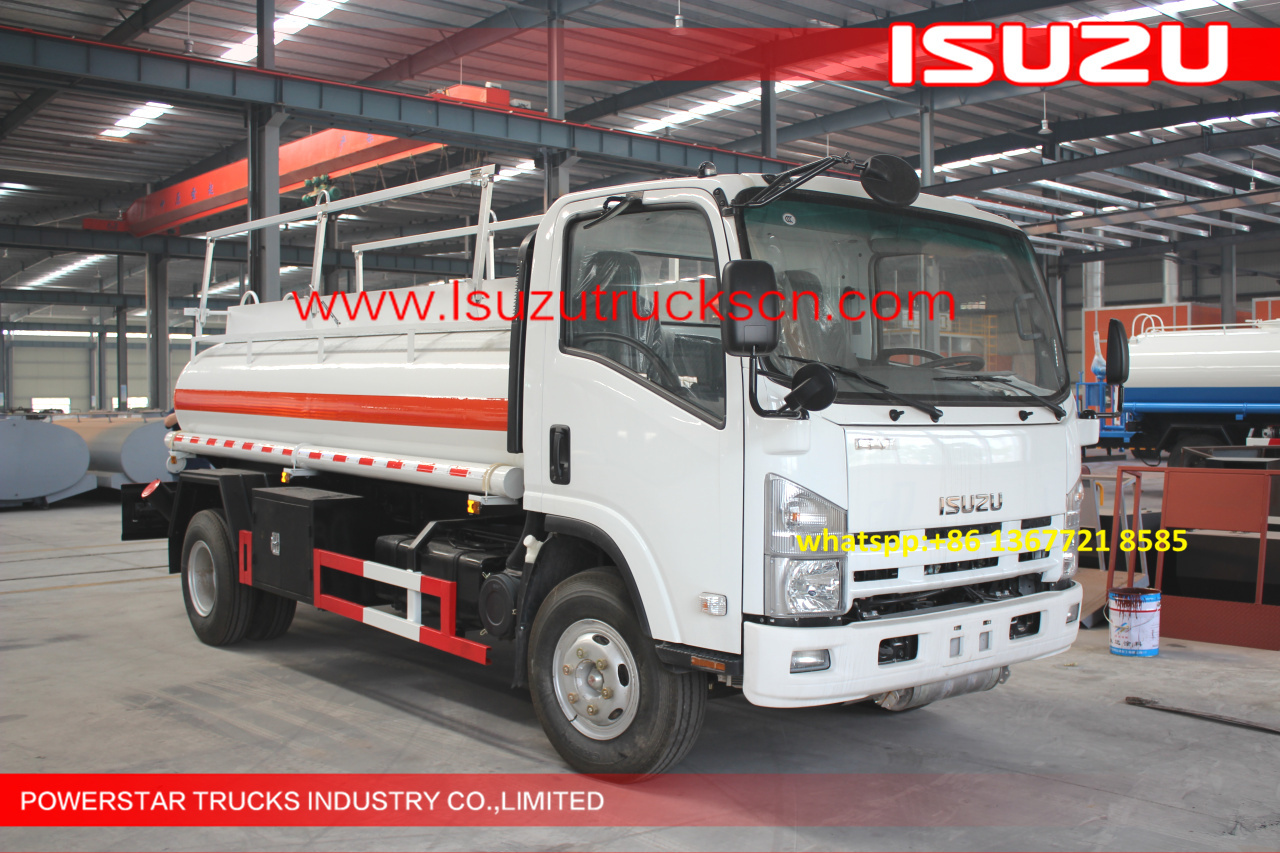

| Front left view |
Front right view |
 |
 |

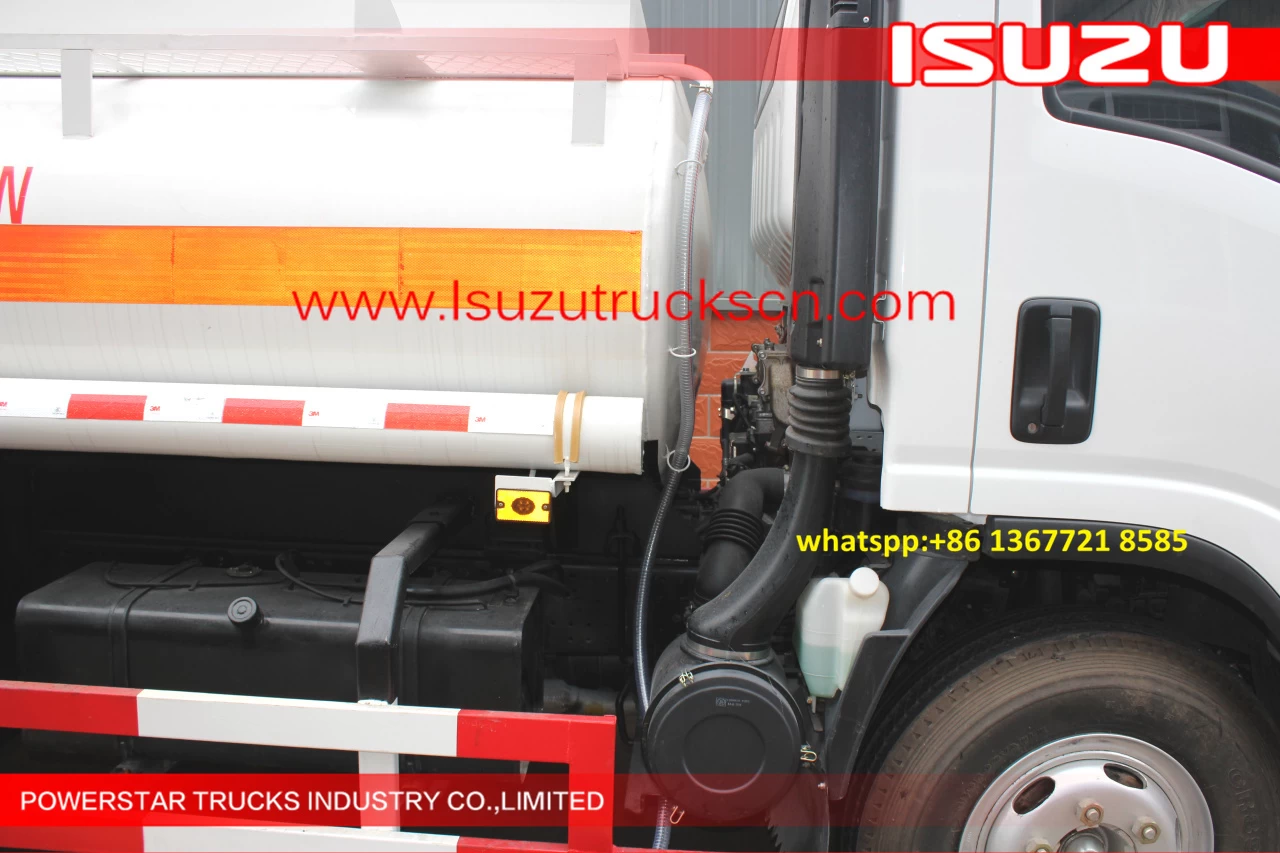

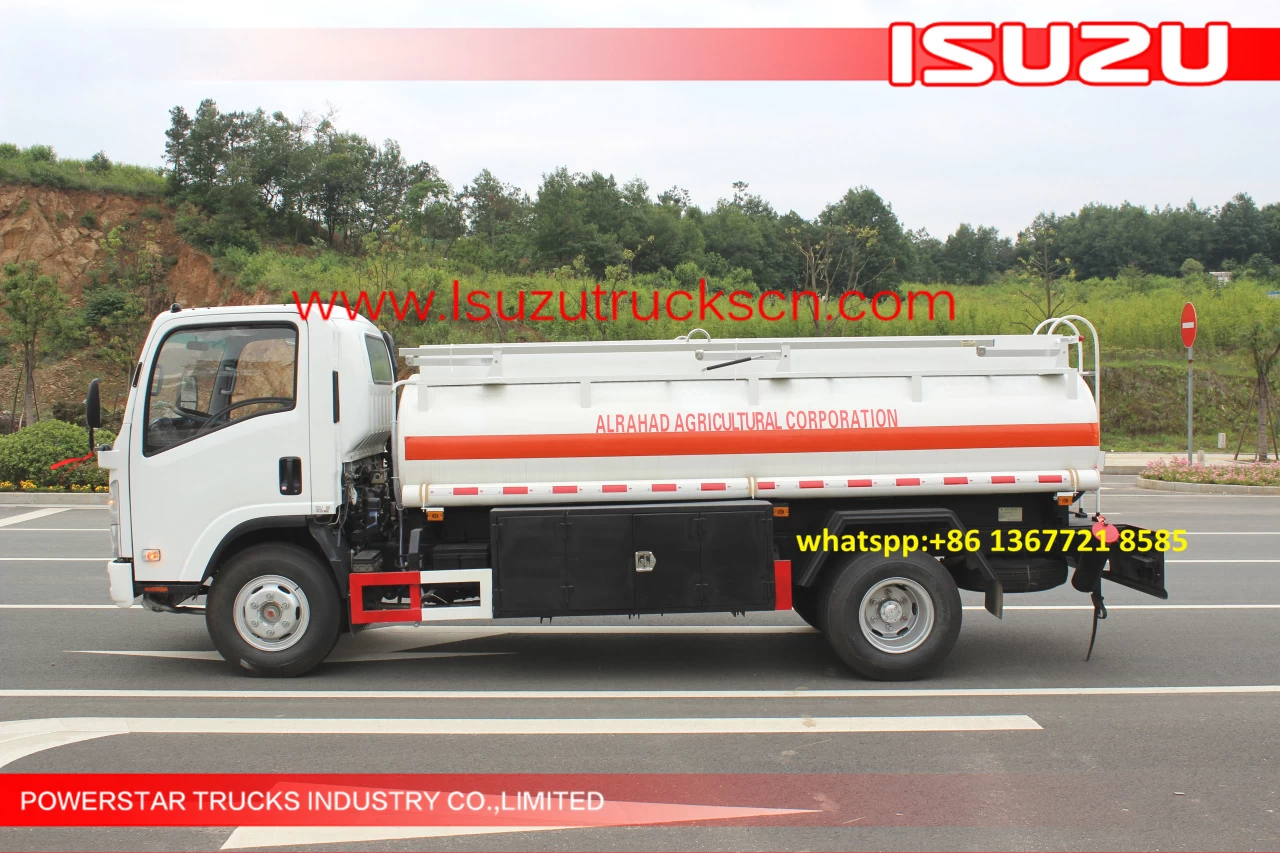

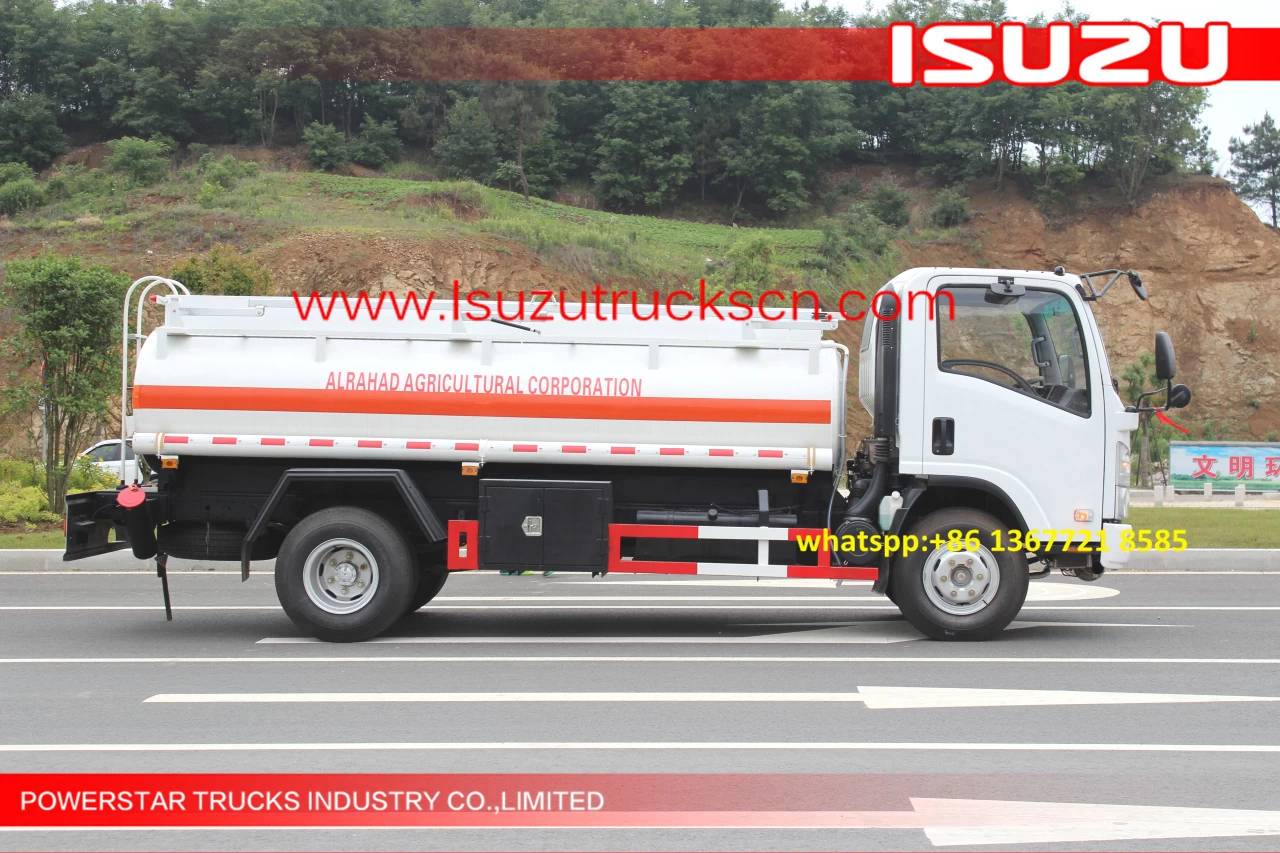

| Left side view |

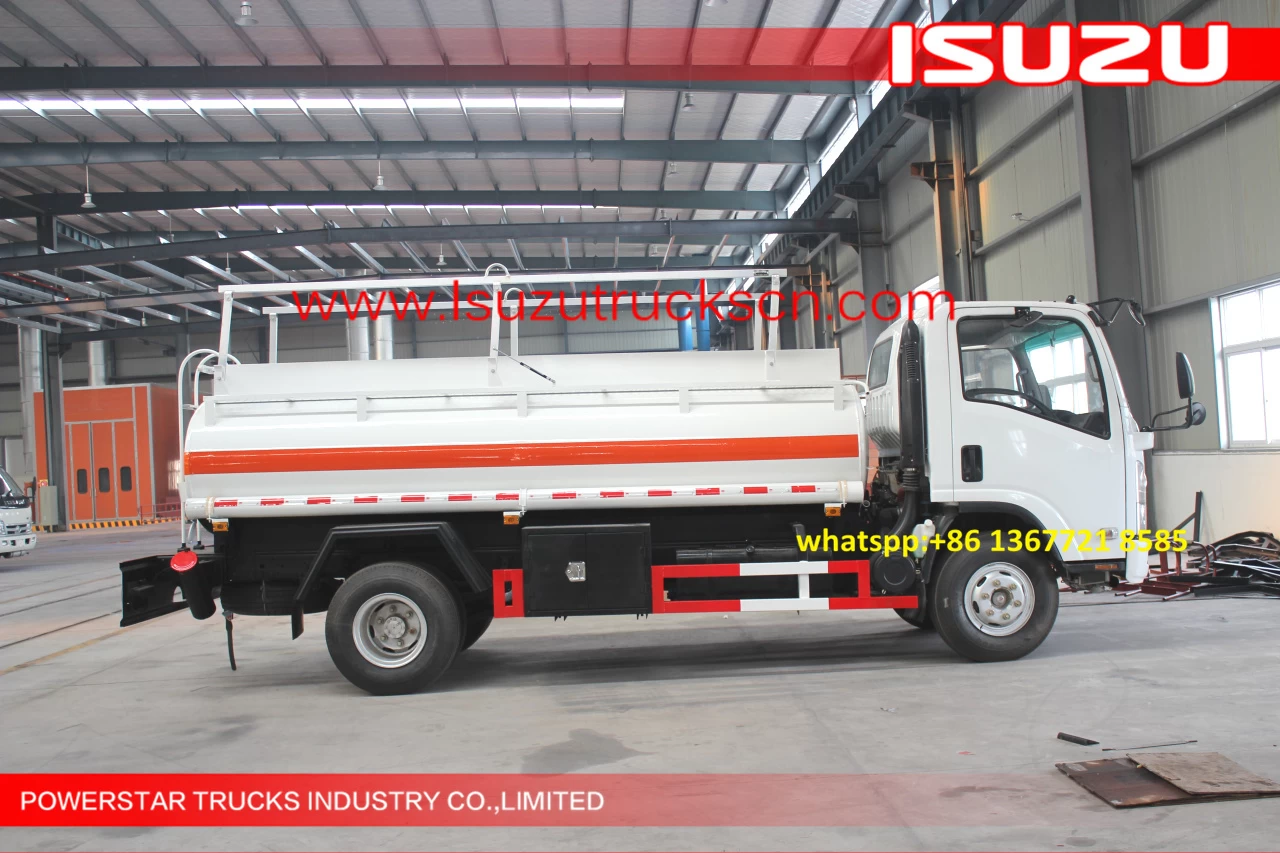

Right side view |
 |
 |

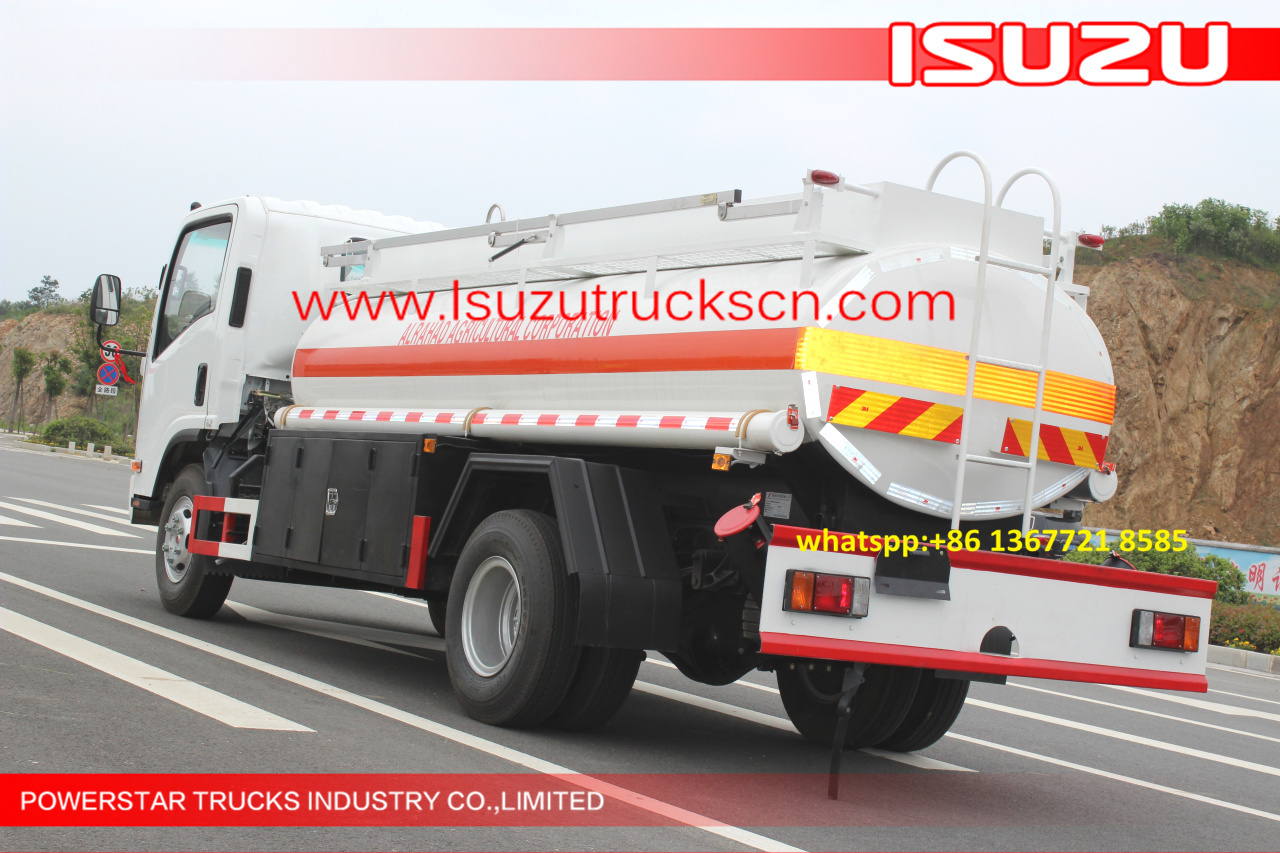

| Rear left view |

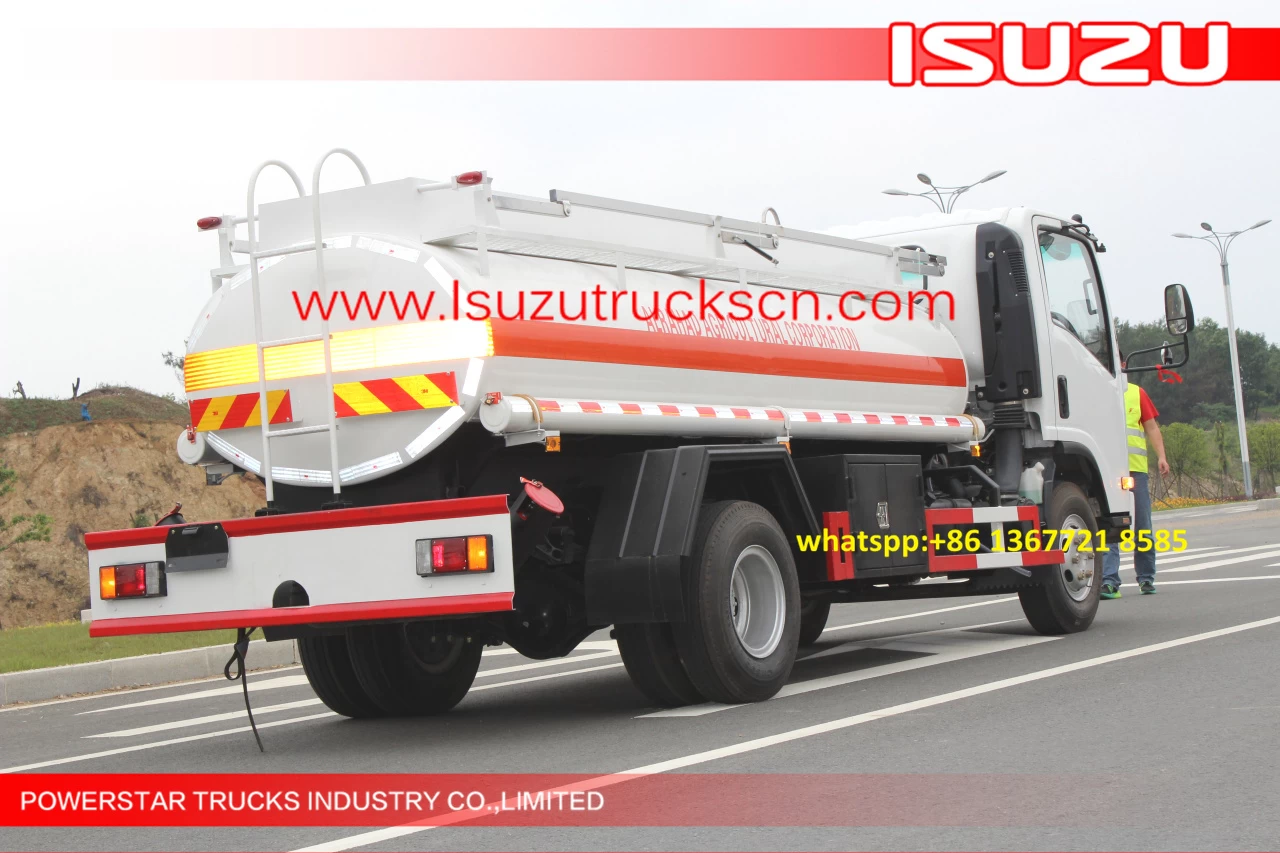

Rear right view |
 |
 |

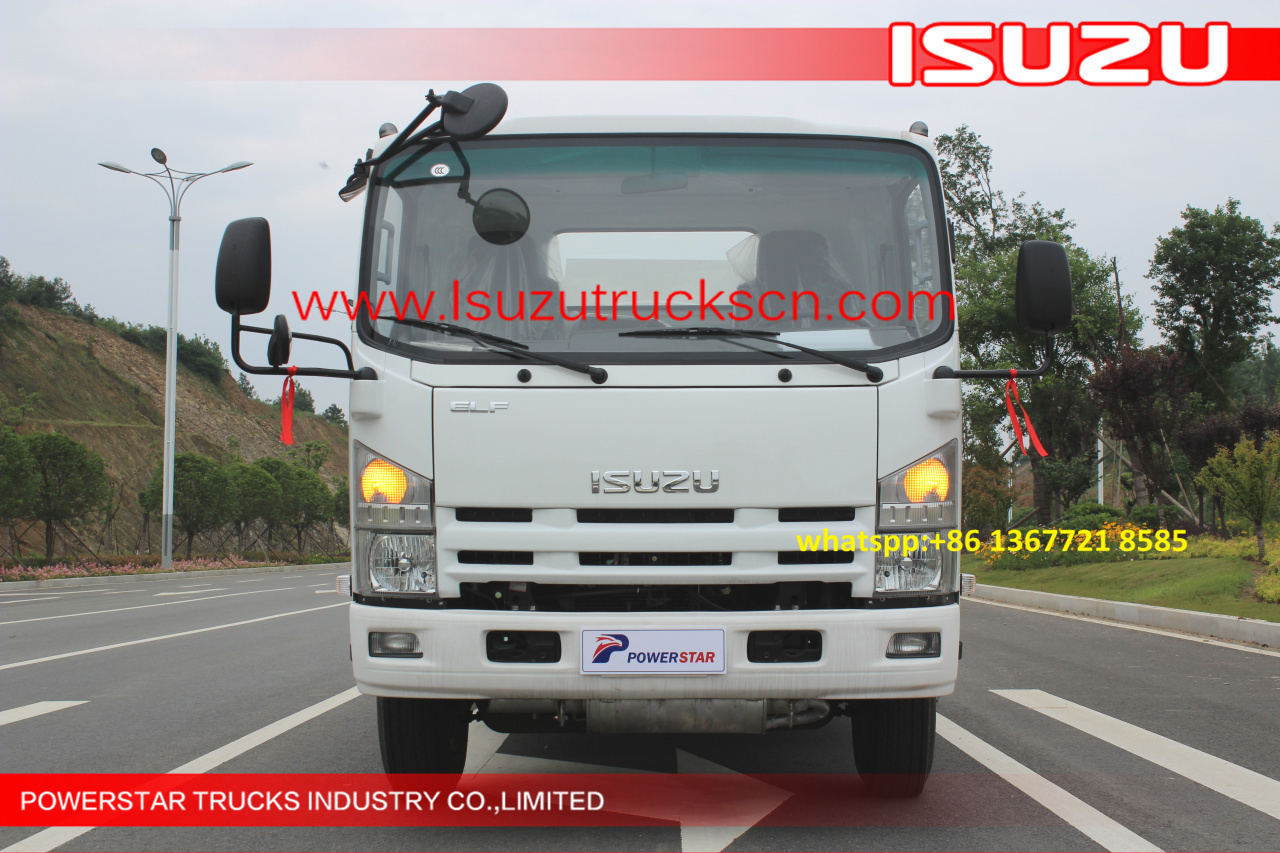

| Front view |

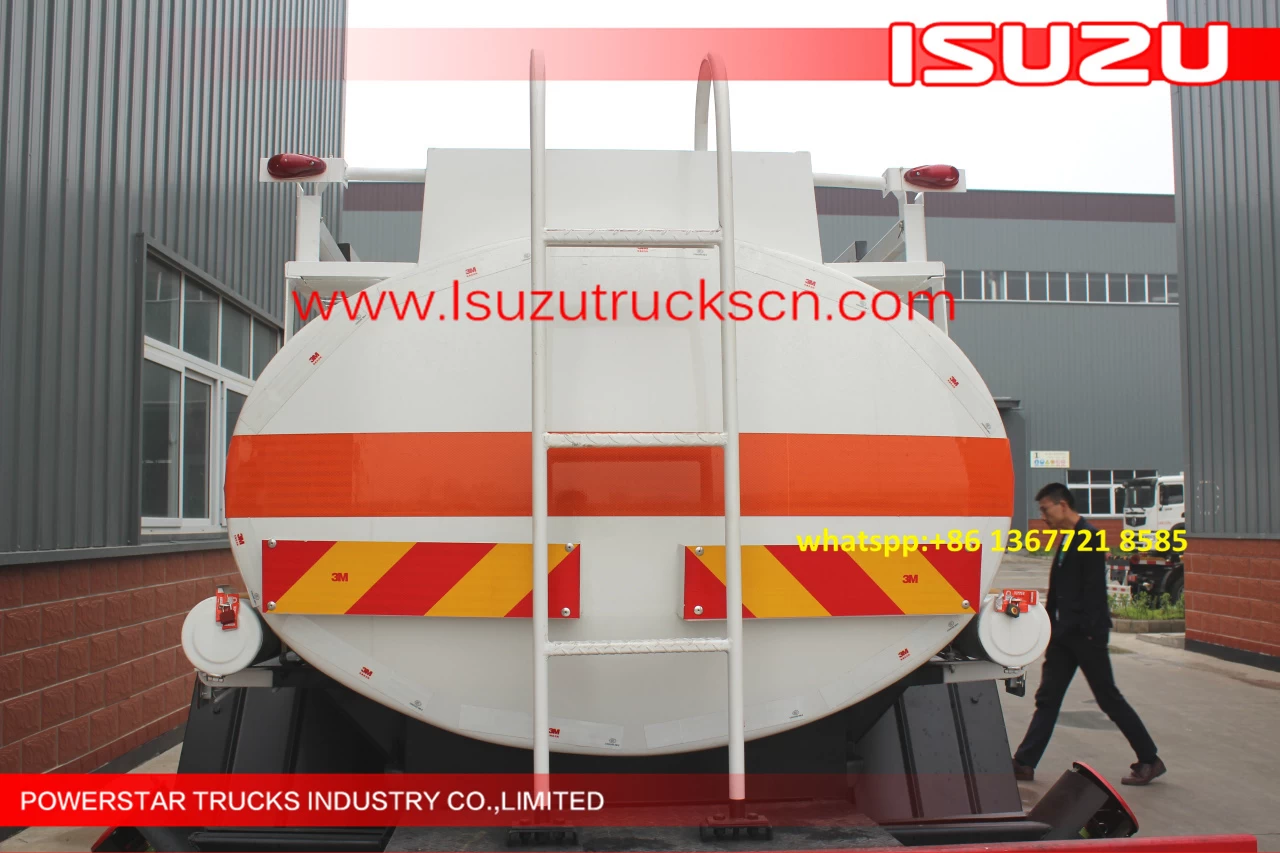

Rear view
|
Main specifications:
Model
|
PT5100GJY
|
Driving Type
|
4x2 (Left hand drive)
|
Wheelbase
|
4175 mm
|
Engine
|
139 kw (190hp)
|
Tyre
|
8.25-20
|
Tank
|
Material:
|
Carbon steel(Q345)
|
Shell Body
|
5 mm nominal thickness
|
Head
|
6 mm nominal thickness
|
Baffles
|
3mm nominal thick, wave shape, four pieces with Ø 500mm service port
|
Tank shape
|
Ellipse
|
Capacity
|
Full capacity 7000L
|
Compartment
|
No
|
Shell Finish
|
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
|
Testing Pressure
|
36kPa, Water pressure test
|
Tank Fittings
|
Top inlet port
|
2pieces
|
Manhole Cover
|
Aluminum alloy, 20” self-latching manhole cover, with air-van.
|
Outlet port:
|
One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.
|

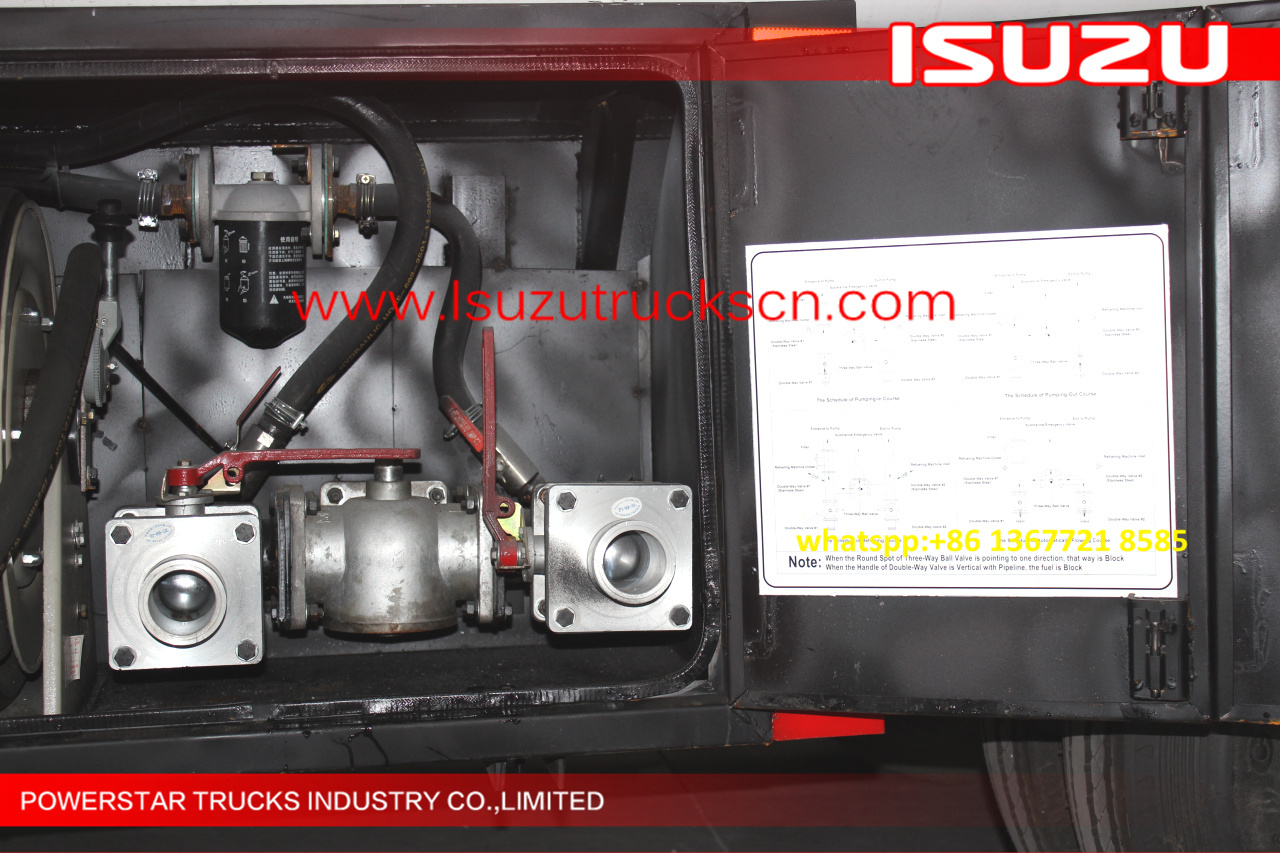

Pipe box:
|

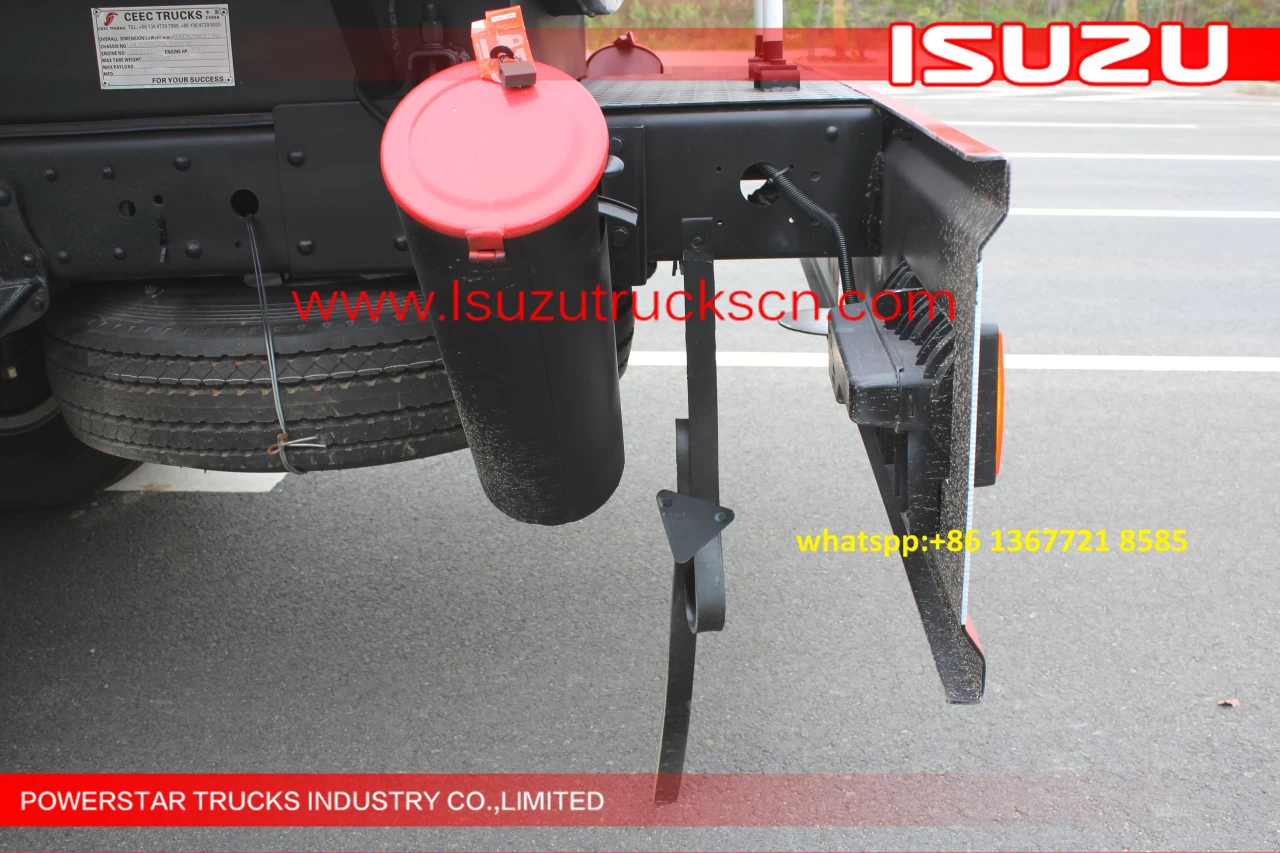

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)
|
Anti –Static System:
|
Static electricity plate , copper plate and earth cable reel
|
Tank Accessories
|

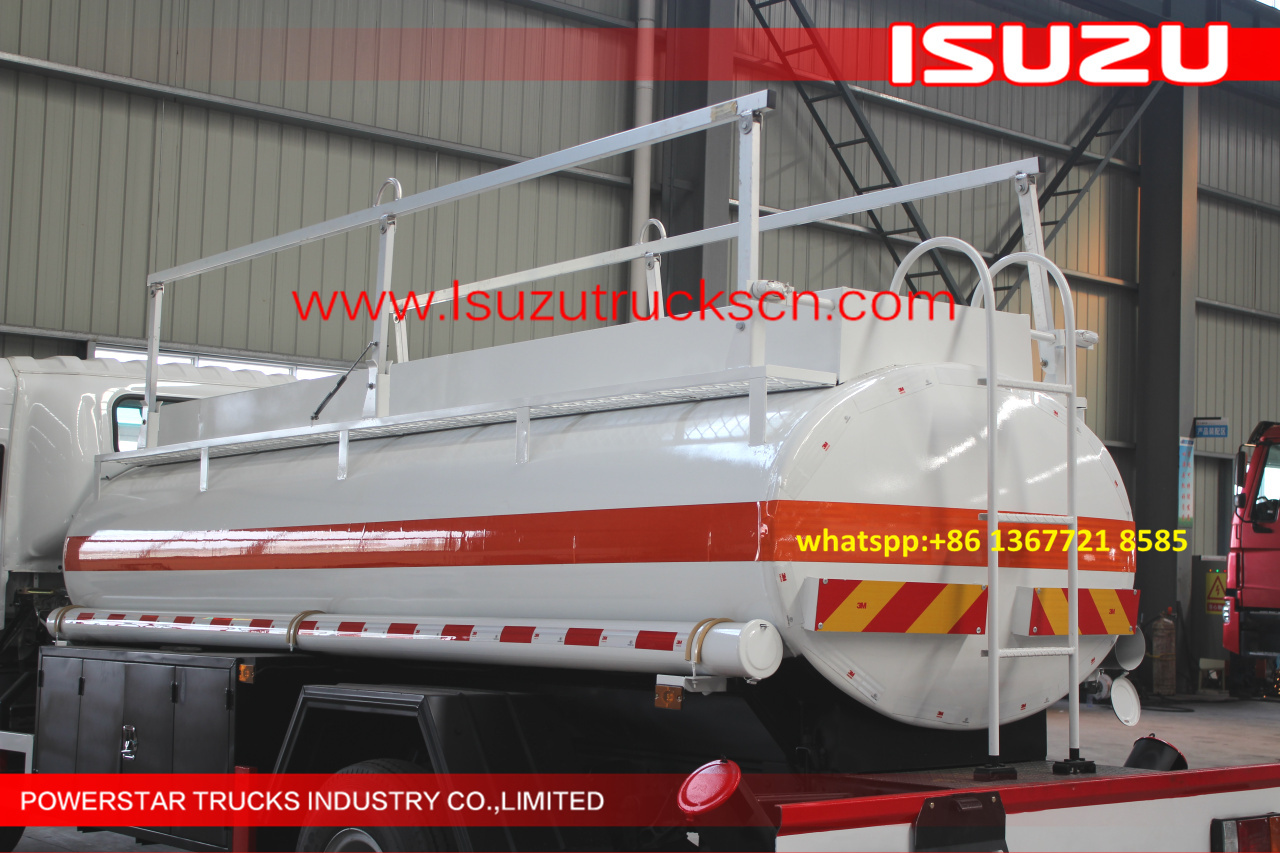

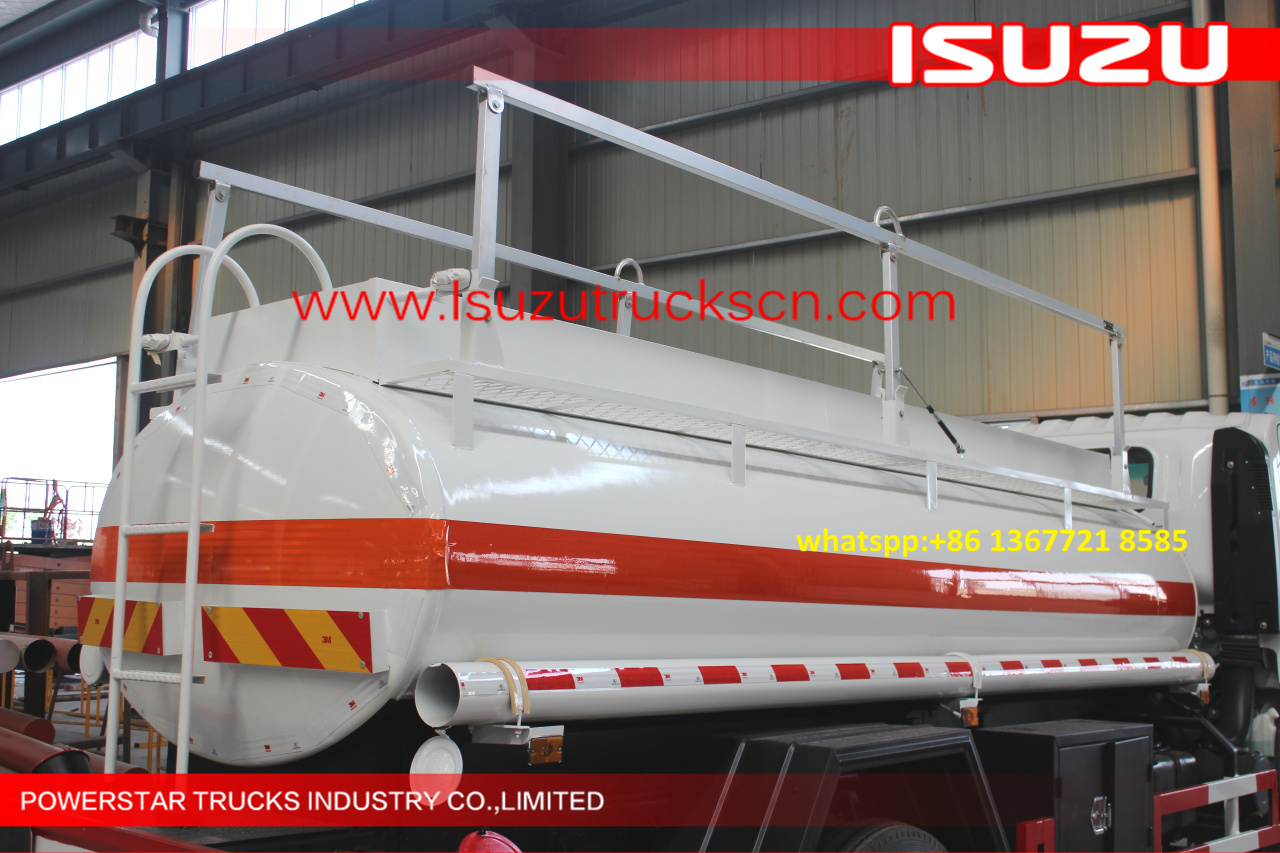

Ladder:
|
Stainless Steel ladder fixed at rear of tank
|

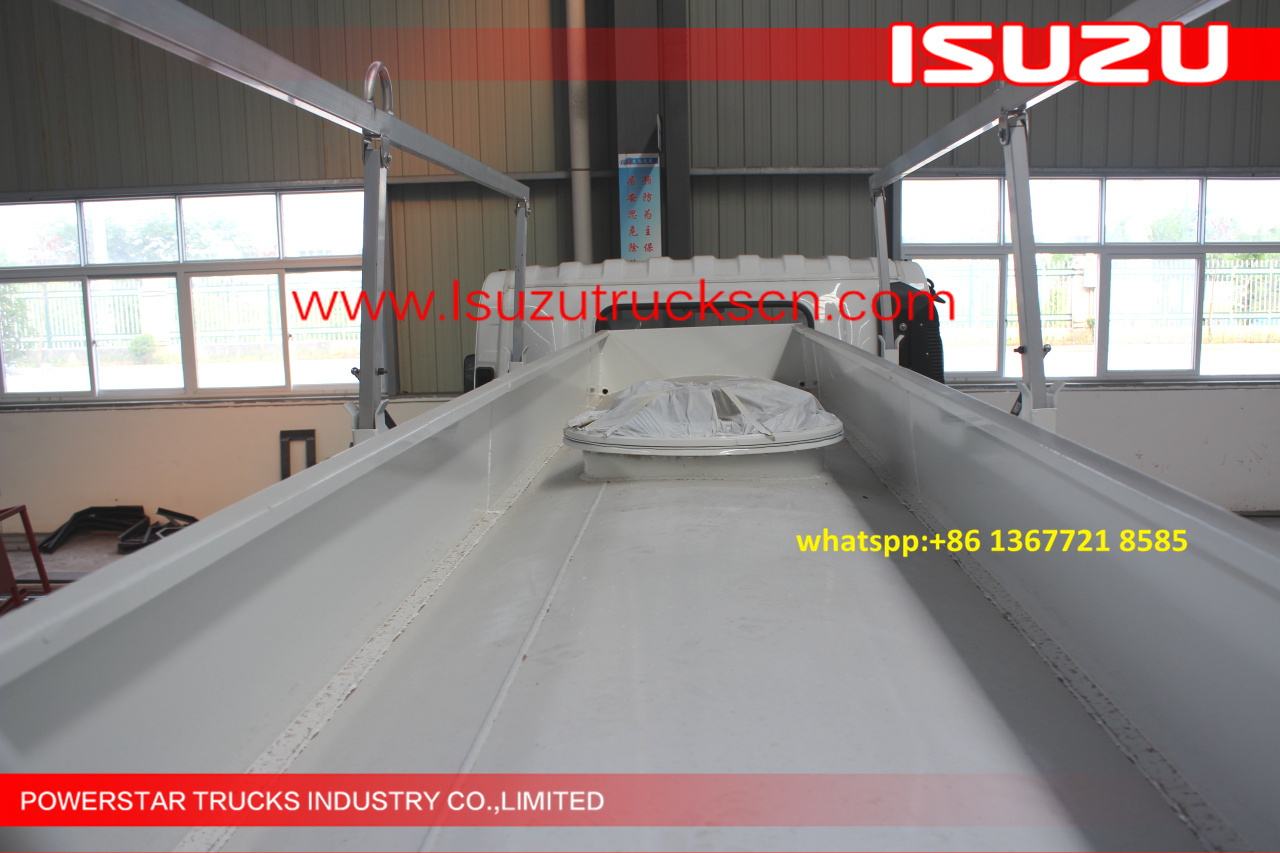

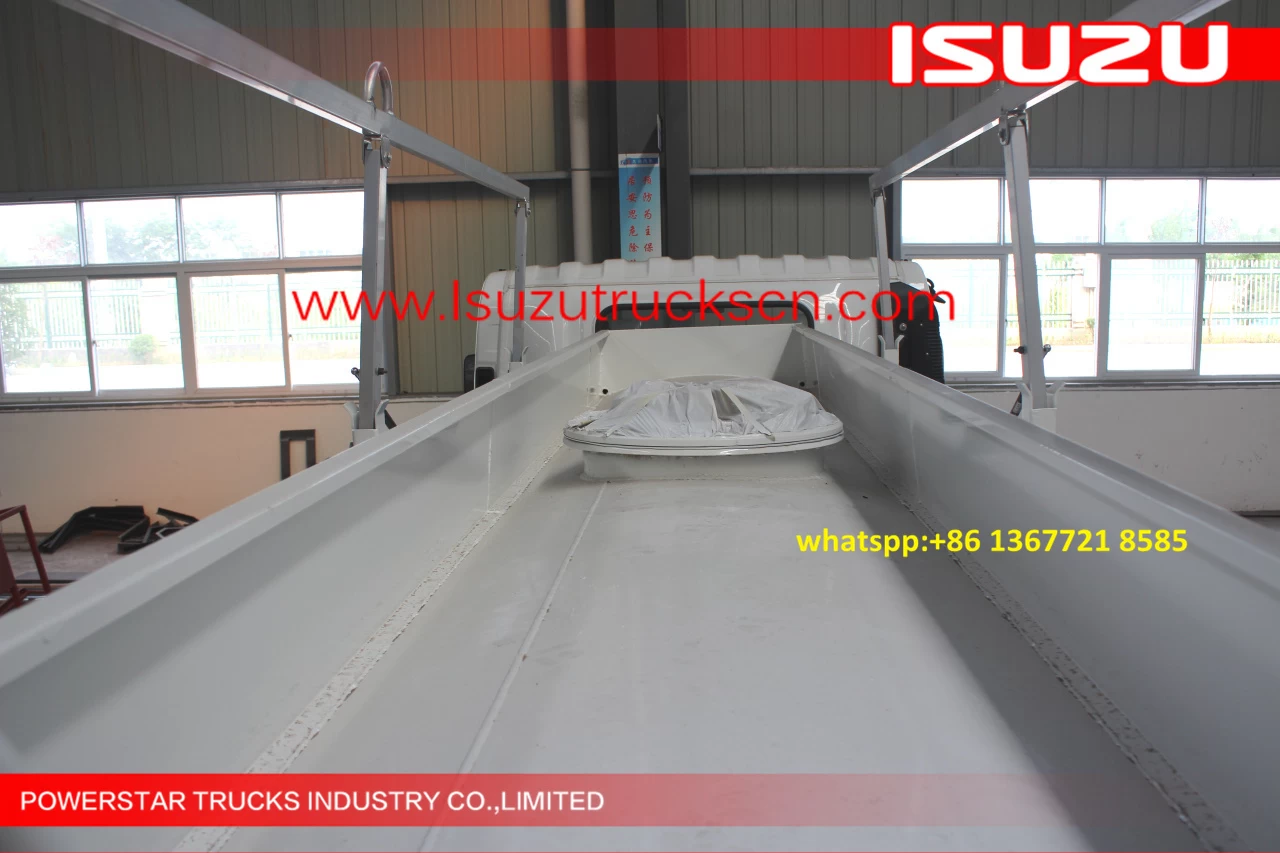

Walkway Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
Handrail:
|
No
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|

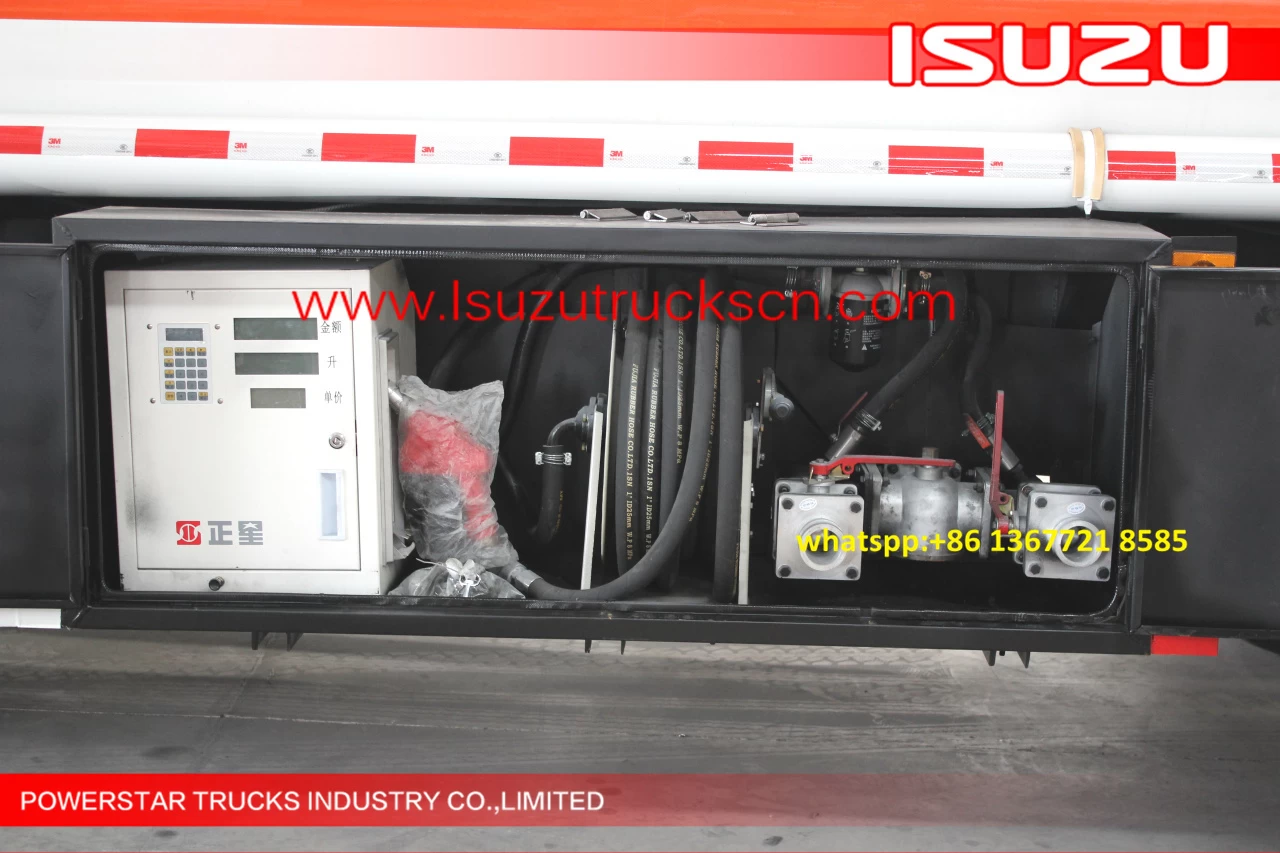

Pump Device
|
Yes
|
Flow meter
|
Yes
|

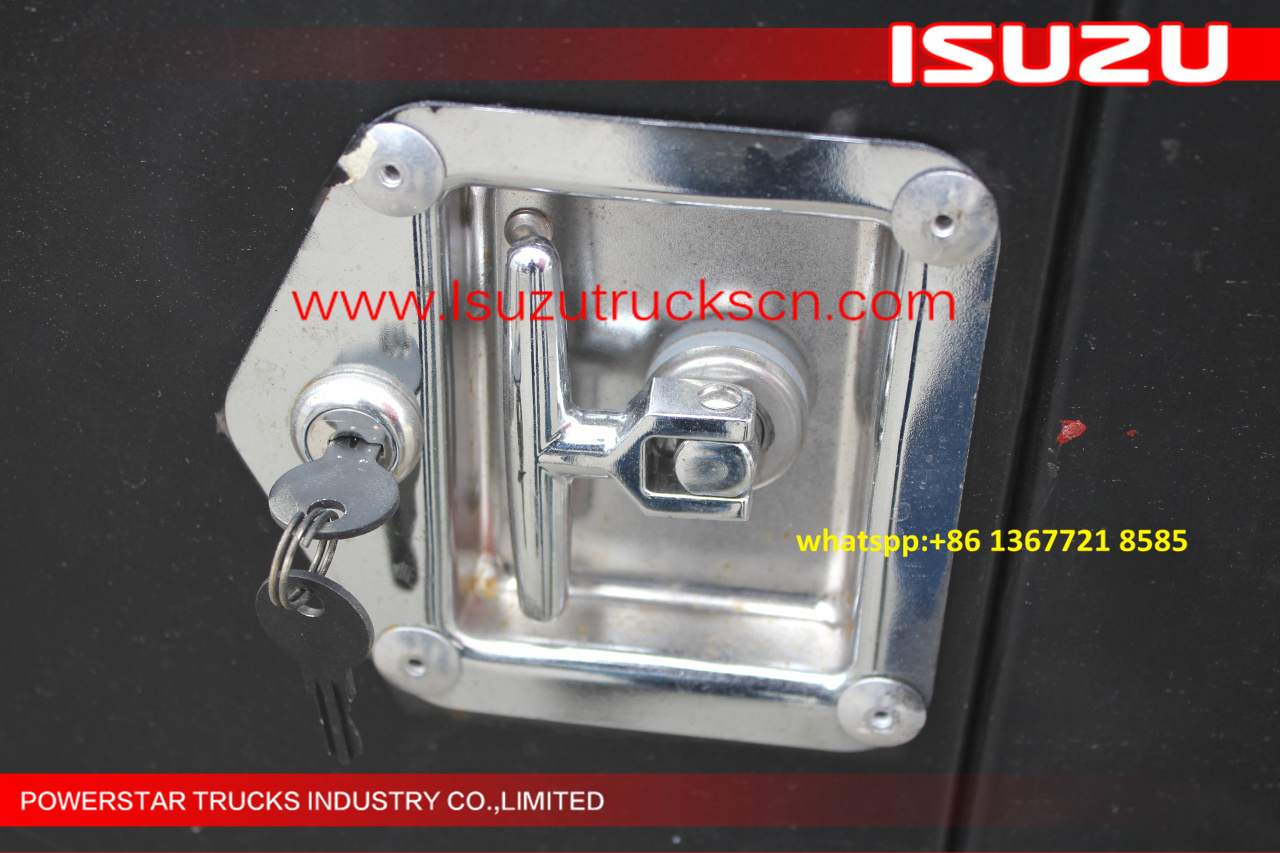

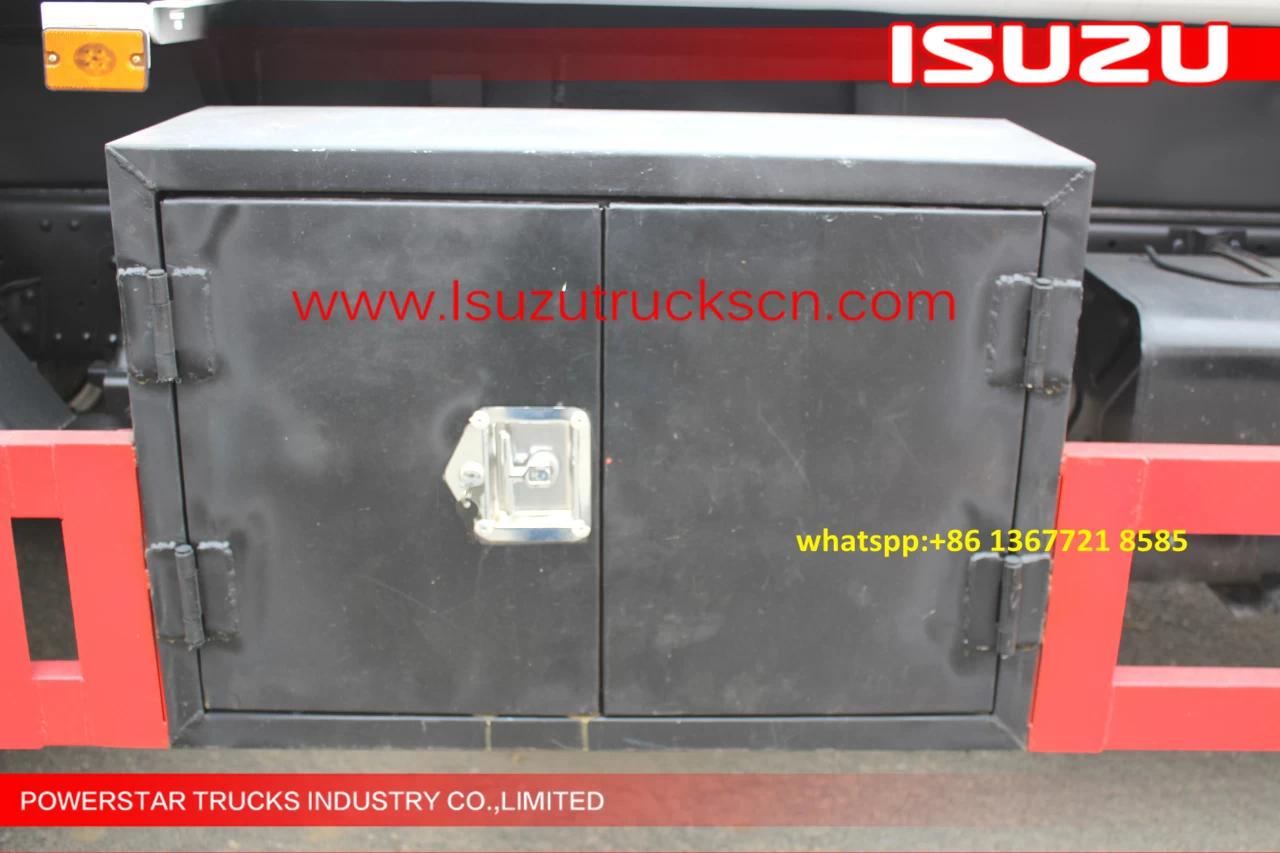

Tool box
|
Small box
|
Color
|
As option
|
HOT sale Isuzu Trucks
Optional Equipment of ISUZU Fuel Tanker Truck
 |
|
 |
|
 |
|
 |
| Computer Fuel Dispenser |
|
API Adaptor Valve |
|
Bottom Valve |
|
Manhole Cover |
 |
|
 |
|
 |
|
 |

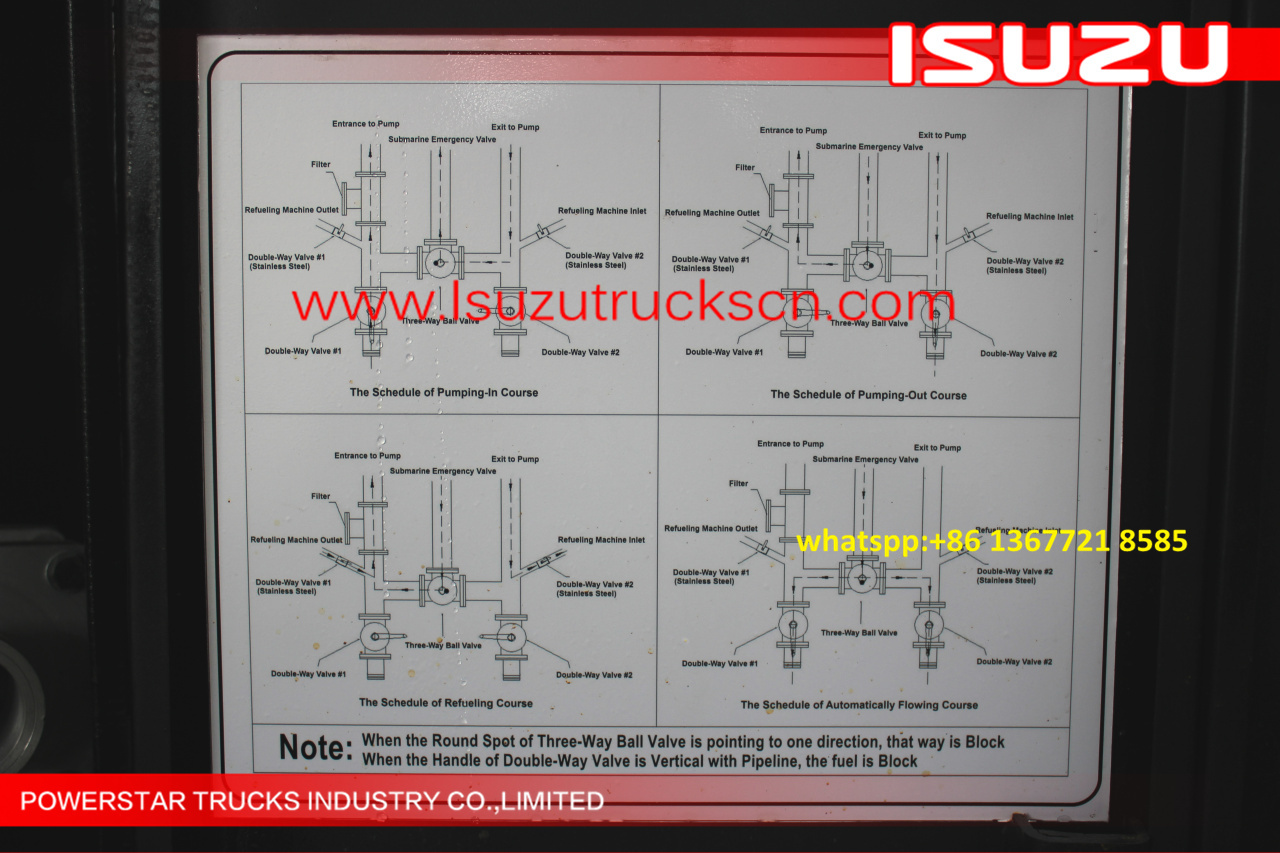

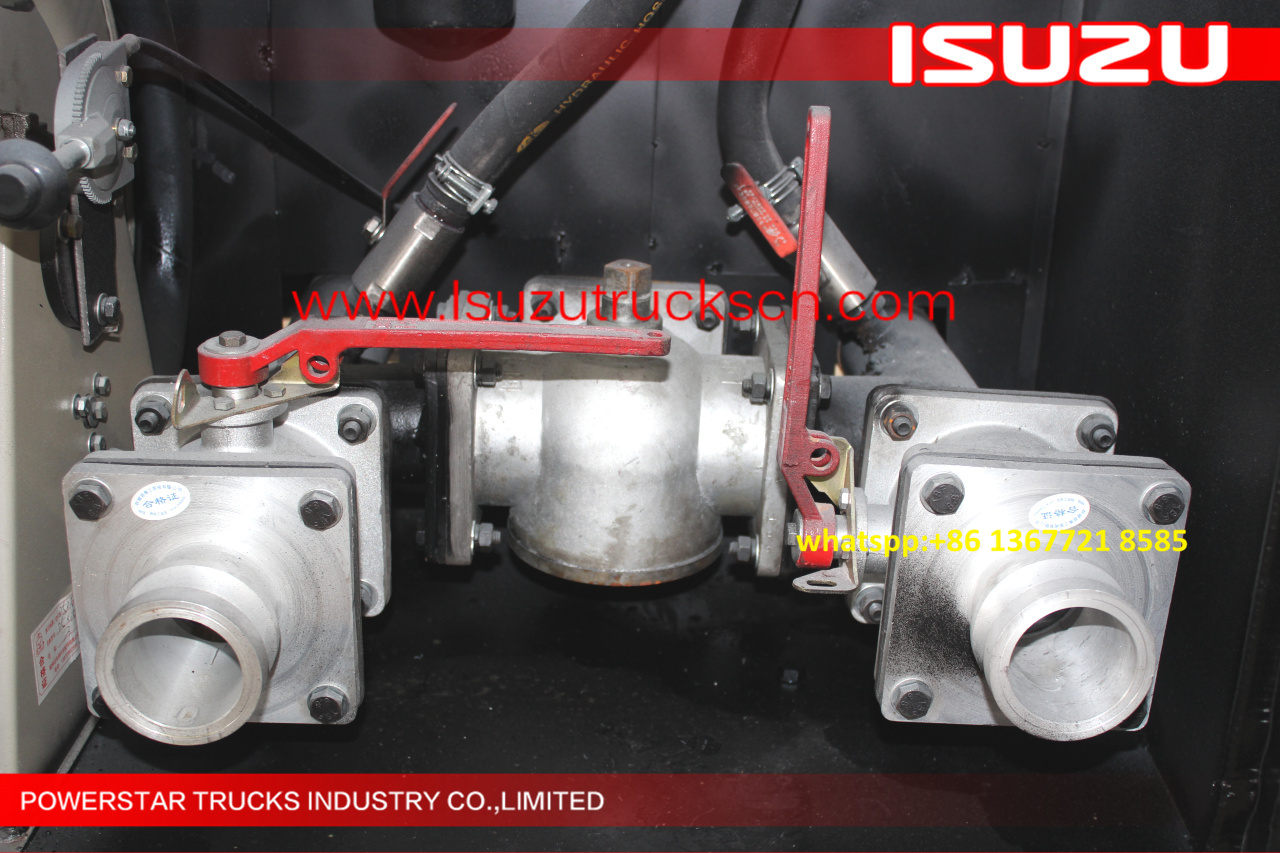

| Ball Valve |
|
Three Ways Set Ball Valve |
|
Level Gauge |
|
Oil and Gas Recovery Valve
|
