5.0mm rough top PVC conveyor belt China manufacturer

Rough top PVC fabric conveyor belt is a wear-resistant PVC conveyor belt,the popular colors are green and dark green,the fabric bottom can be common fabric or low noise fabric.

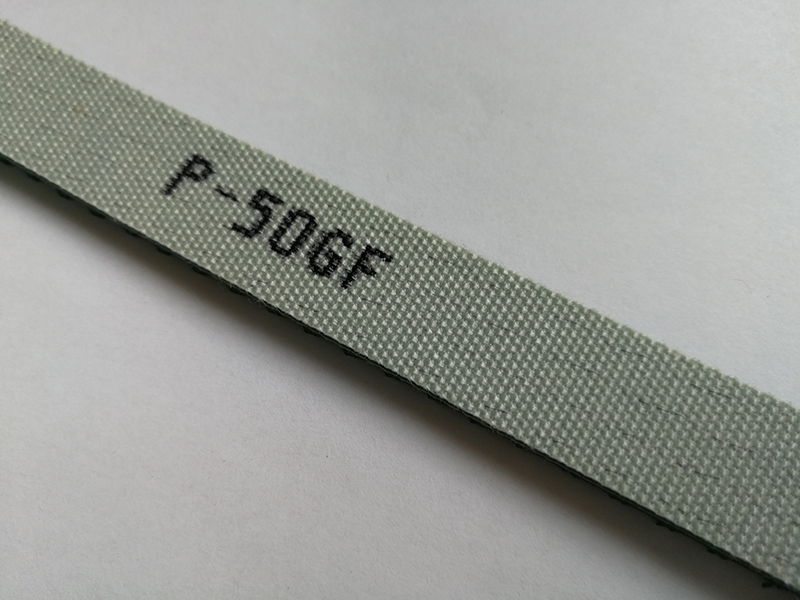

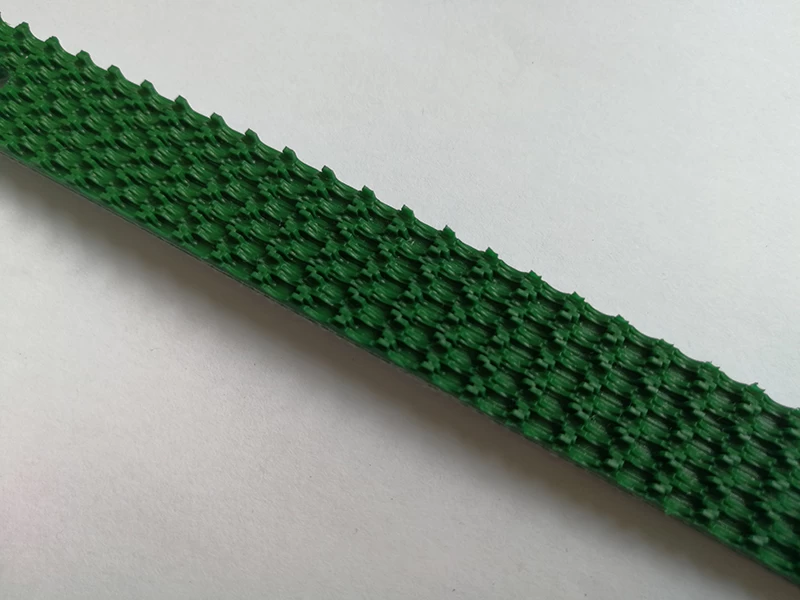

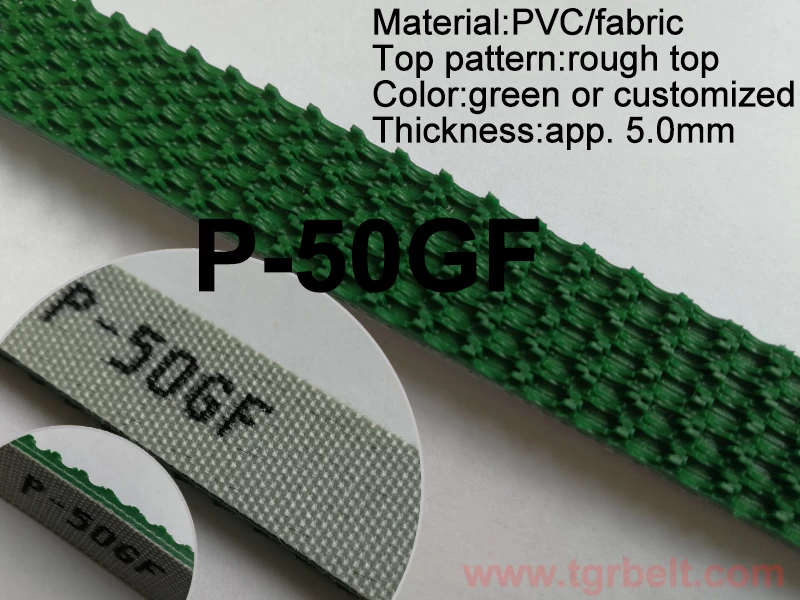

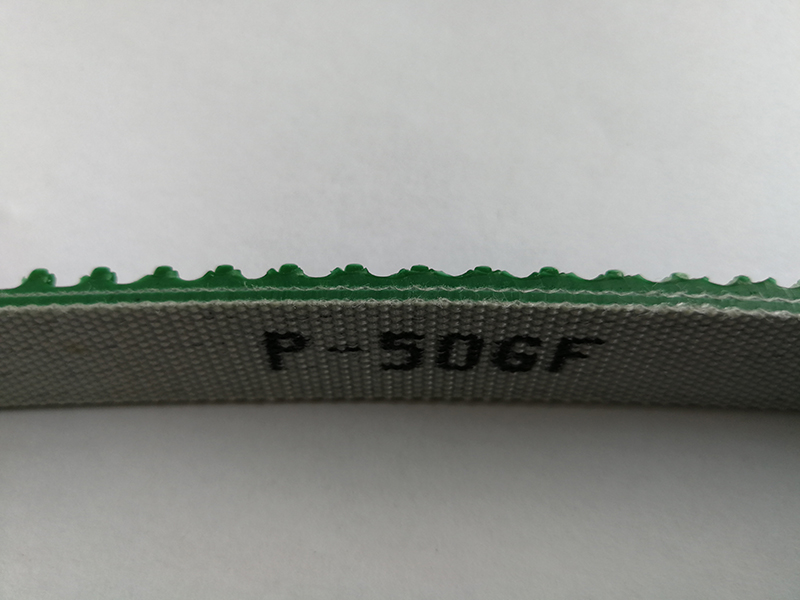

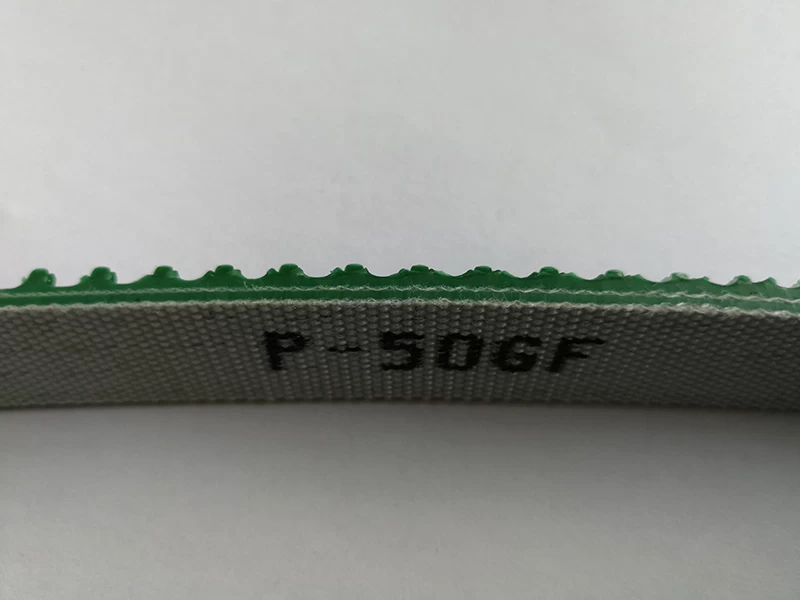

PRODUCT: rough top PVC fabric conveyor belt,P-50GF


Main Feature

5.0mm rough top PVC conveyor belt is 2 polyester of fabric,wear-resistant and soft top,the bottom can be common fabric or low-noise fabric.


Technical datas

Type

P-50GF

Belt thickness

5.0mm

Colorw

green

Surface

rough top

Weight

4.4kg/m2

0.90 lbs./ft.2

Force at 1% elongation

10N/mm

55.99 lbs./in.

Temperature range

-20 to 60°C

-4 to 140°F

Min. pulley diameter

80mm

3.15in.

Standard roll belt width

2000mm

78.74in.

Processing

cut to length or endless ,welded guides on the top or bottom, and other special processing requirement

Endless instructions

Hot splicing is always preferable, finger splice, overlap or fasteners are all done according to the application.


Joint system example


Processing example


Application in package sealing machine,inclined conveyors and other conveyors




Expert support of over 10 years belting experience.

95% 0f the online suppliers are trading companies, but we are a light-duty conveyor belt and timing belts manufacture specialty on designing, producing and processing the belting products.

Production lines-capacity

2

Facilities-machines conditions

50sets

Quality Assurance System

Tiger Standard

Sales staffs

10-20

Annual turnover

250-400USD

Telephone

86(0595)68883000,(0595)88811642

Fax

86(0595)83112333

E-mail

info@tgrbelt.com

Trademark

TGRBELT

Managing Director

Mr. Li


  • QUALITY ASSURANCE:Guarantee that the commodity hereof complies in all respects with the quality and specification stipulated in the contract.
  • DELIVERY GUARANTEE:Ship the goods within the shipment time from the port of shipment to the destination in the contract.
  • FACTORY PRICE:Prices refer to the cost of raw materials directly from factory.
  • TEAM OF PROFESSIONALS:Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
  • FABRICATION WORKSHOP:Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides,etc.
