5-12kW Deye Hybrid Storage Inverter | 2 MPPT & LV Battery | 97.6% Efficiency

Three Phase Hybrid Inverter | 5-12kW | 2 MPPT | LV Battery Supported



Model: SUN-5K-6K-8K-10K-12K-SG04LP3-EU
Max.Power: 5KW/6KW/8KW/10KW/12KW
Output Voltage: 400V Three Phase 50Hz
MPPT Voltage Range (V) 200-650
Battery Voltage: (V) 40-60
Dimension(mm): 422*658*254
Weight(kg): 38
Warranty: 5 Years(10 Years Optional)

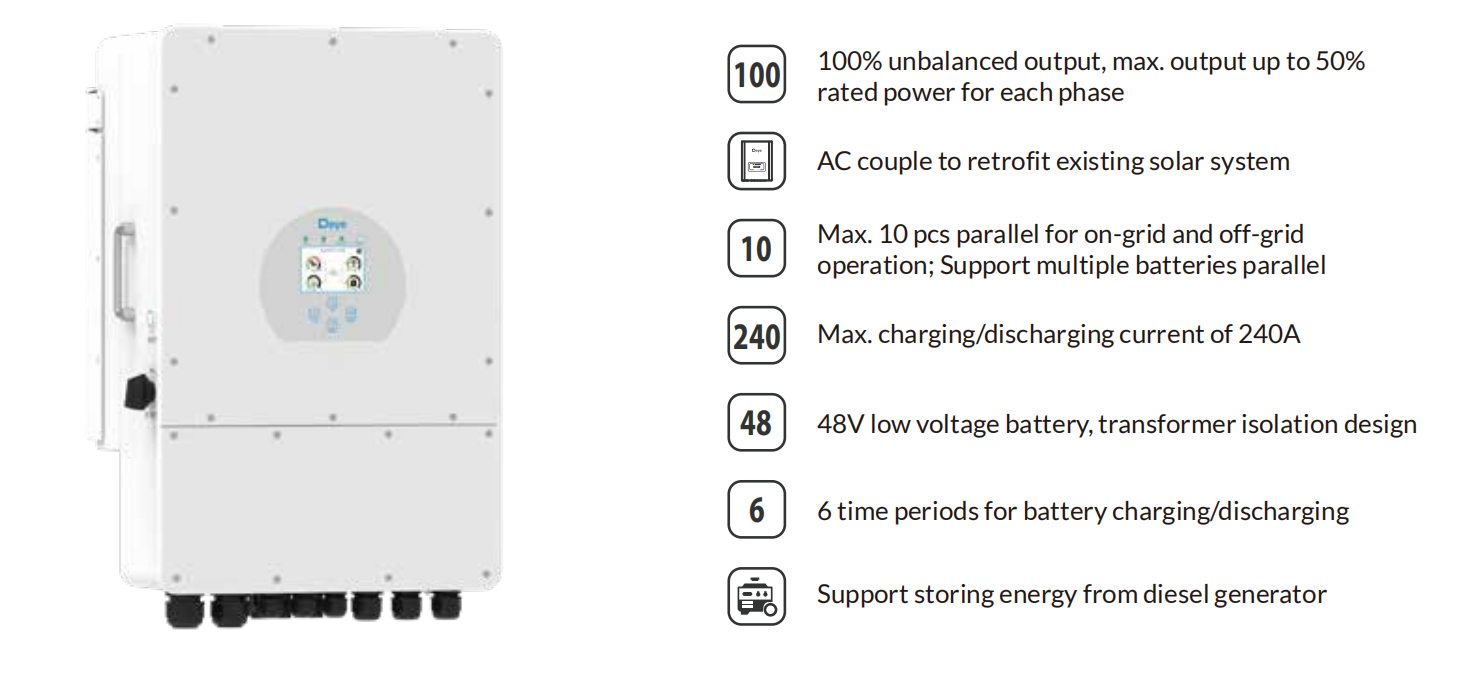

Sunrange Deye 5-12kW Three Phase Hybrid Inverter



Performance Parameter

Model SUN-5K
-SG04LP3-EU
SUN-6K
-SG04LP3-EU
SUN-8K
-SG04LP3-EU
SUN-10K
-SG04LP3-EU
SUN-12K
-SG04LP3-EU
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 120 150 190 210 240
Max. Discharging Current (A) 120 150 190 210 240
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 10000 12000 16000 20000 24000
Max. PV Input Power (W) 7500 9000 12000 15000 18000
Max. PV Input Voltage (V) 800
Start-up Voltage (V) 160
MPPT Voltage Range (V) 200-650
Rated PV Input Voltage (V) 550
Max. Operating PV Input Current (A) 13+13 26+13
Max. Input Short-Circuit Current (A) 17+17 34+17
No. of MPP Trackers/
No. of Strings MPP Tracker
2/1+1 2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power (W) 5000 6000 8000 10000 12000
Max. AC Input/Output Apparent Power (VA) 5000 6000 8000 10000 12000
Rated AC Input/Output Current (A) 7.6/7.2 9.1/8.7 12.1/11.6 15.2/14.5 18.2/17.4
Max. AC Input/Output Current (A) 8.4/8 10/9.6 13.4/12.8 16.7/15.9 20/19.1
Max. Continuous AC Passthrough (grid to load) (A) 45
Peak Power (off-grid) (W) 2 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Grid Connection Form 3L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range () -40 to +60, >45 Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 2000m
Noise (dB) ≤55
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm) 422×658×254 (Excluding Connectors and Brackets)
Weight (kg) 38
Type of Cooling Intelligent Air Cooling
Warranty 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2



Partner Brands List





Sunrange Compatible Inverters List

FAQ

1. Why should my business upgrade from a standard inverter to a three-phase hybrid system?

A three-phase hybrid inverter transforms your business from an energy consumer to an energy manager. It intelligently balances power across all three phases, provides critical backup to keep operations running, and maximizes solar ROI—turning energy into a strategic business asset, not just a monthly bill.



2. Can this system handle the high startup surge from industrial equipment?

Yes. Deye inverters feature 200% surge power capacity for 3 seconds, meaning a 5kW model can temporarily deliver 10kW to handle the intense startup demands of motors, compressors, and pumps—ensuring smooth operation without tripping.



3. What's the biggest financial benefit for a business using this system?

Beyond bill savings, the key advantage is operational continuity. A single one-hour outage can cost thousands. This system provides seamless backup power to keep lights, servers, and critical processes online, protecting revenue and productivity when the grid fails.



4. Is this system compatible with backup generators?

Absolutely. The inverter features a dedicated generator input port with smart synchronization. It can use generator power to recharge batteries efficiently or supplement solar power, creating a robust three-layer energy security system: solar first, batteries second, generator third.



5. How scalable is this system for a growing business?

Completely modular. Start with a 5kW unit and batteries, then add more inverters in parallel up to a 30kW system as your business grows. The same intuitive monitoring platform manages everything—your energy system scales with your ambitions.



6. What advanced battery management features support commercial use?

Beyond basic charging, our system offers scheduled commercial profiles. Program the system to ensure batteries are 100% charged before your peak operating hours, or to participate in demand charge reduction programs automatically.
