5-15kW Complete Solar Energy System for Residential

The complete solar energy system is an efficient and reliable independent solar energy storage system suitable for homes and other places, designed to store solar energy and use it for power supply when needed.

This system is based on advanced battery energy storage technology and intelligent control system, providing self-sufficient electricity without the need for grid power.

Facebook Twitter Pinterest LinkedIn 分享

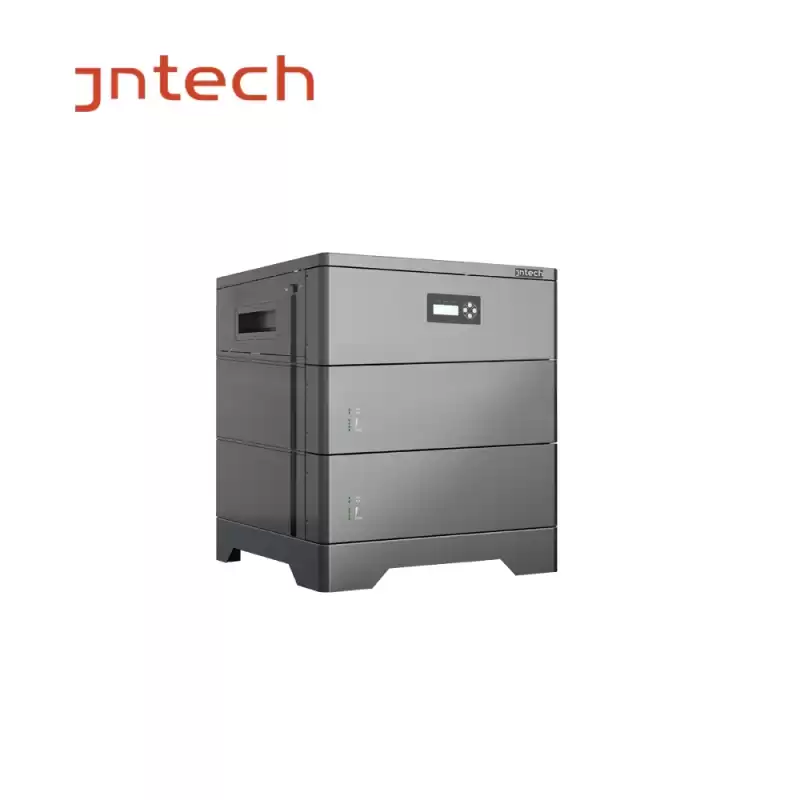

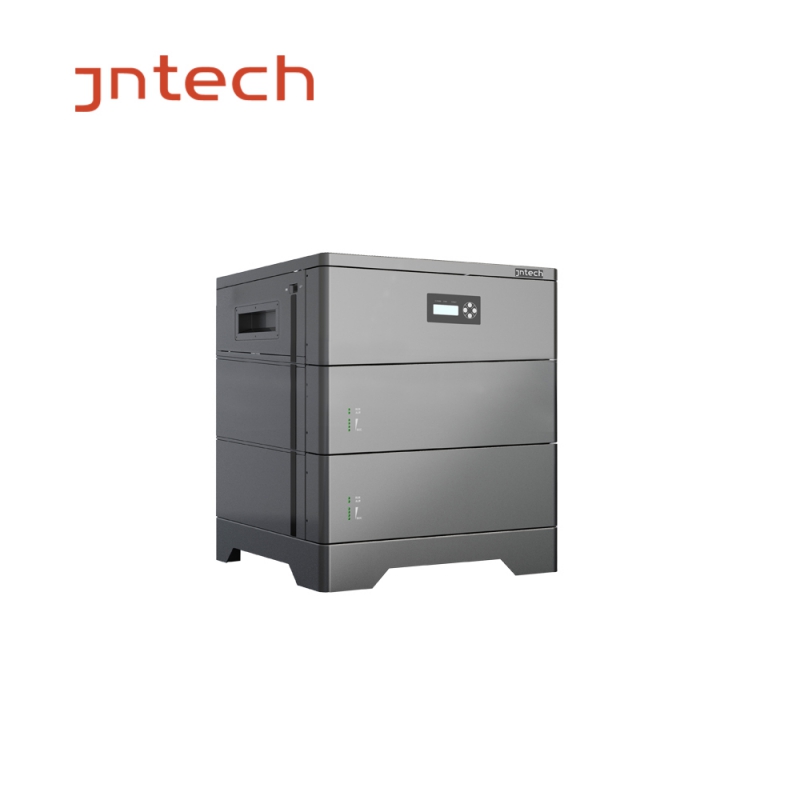

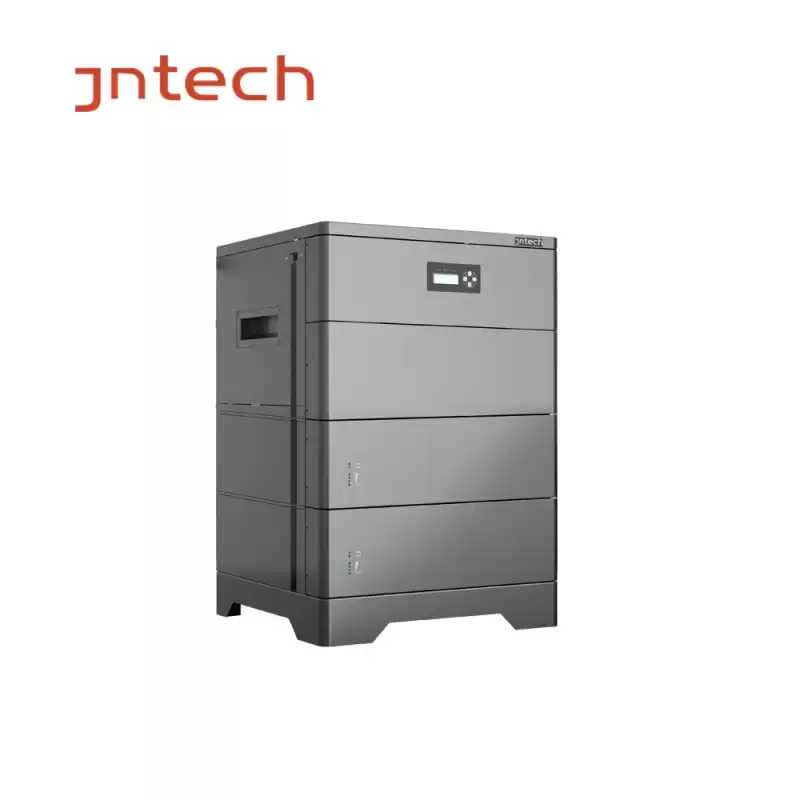

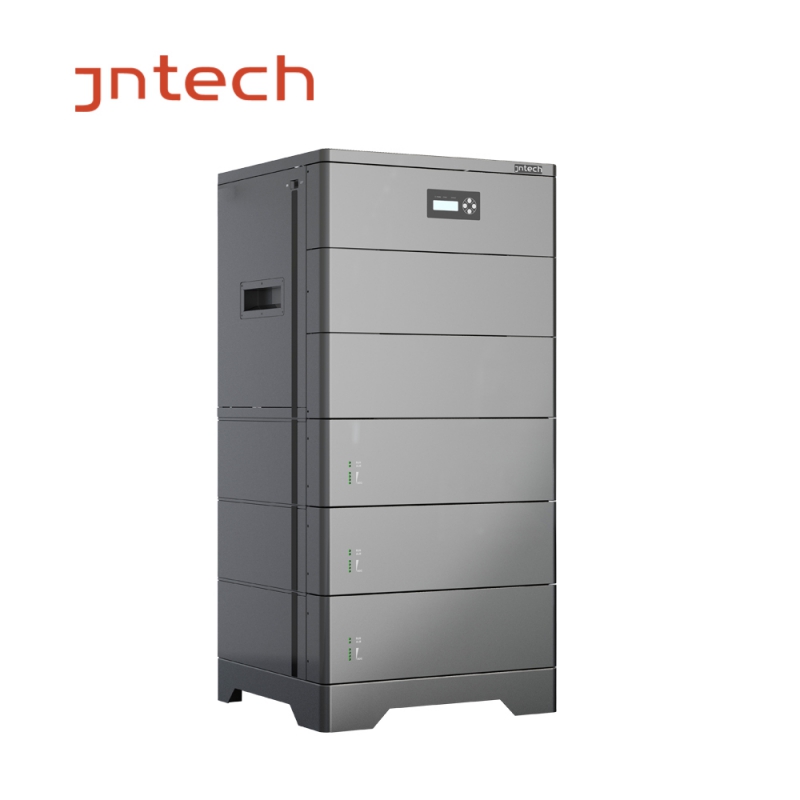

5-15kW  Complete Solar Energy System for Residential

The Solar home battery system includes solar panels, inverters, batteries, and intelligent controllers, all of which have undergone rigorous testing and debugging to ensure stable and reliable system operation.The Home Solar Storage Solutions is easy to install and use. It is not only a system that converts solar energy into electricity, but also a way to protect the environment. It can meet people's demand for a pollution-free, low-carbon and environmentally friendly life.

Complete Solar Energy System for Residential


Product advantages
1. Pure sine wave inverter;
2. AC input source is compatible with power grid and diesel engine, with intelligent control;
3. Advanced energy management system to adapt to different application scenarios;
4. There are power saving mode (ECO) and standby power supply (UPS) mode;
5. The switching time between bypass and inverter is less than 10ms to realize fast switching;
6. Wide range of PV input voltage (120 ~ 450VDC);
7. Built in MPPT charging controller, MPPT efficiency > 99%;
8. The maximum photovoltaic charging current is 80A / 160A / 240A, and the photovoltaic utilization rate is higher;
9. The charging current can be set to protect the battery and prolong the service life of the battery;
10. Various battery configurations, 10kwh \ 15kwh \ 20kwh optional;
11. The equipment is equipped with WiFi / GPRS module, and users can monitor the status of photovoltaic system anytime and anywhere through mobile app;
12. Removable power supply

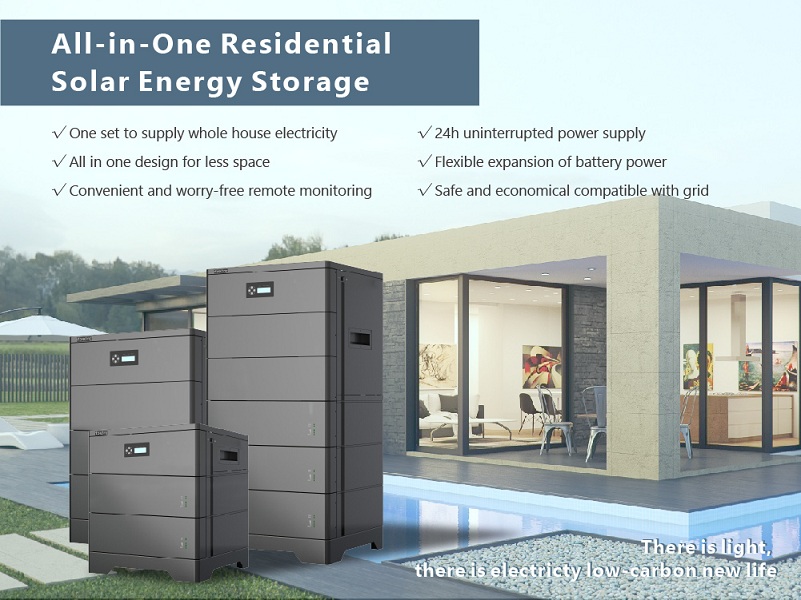

all in one Solar Energy Storage System For Residential

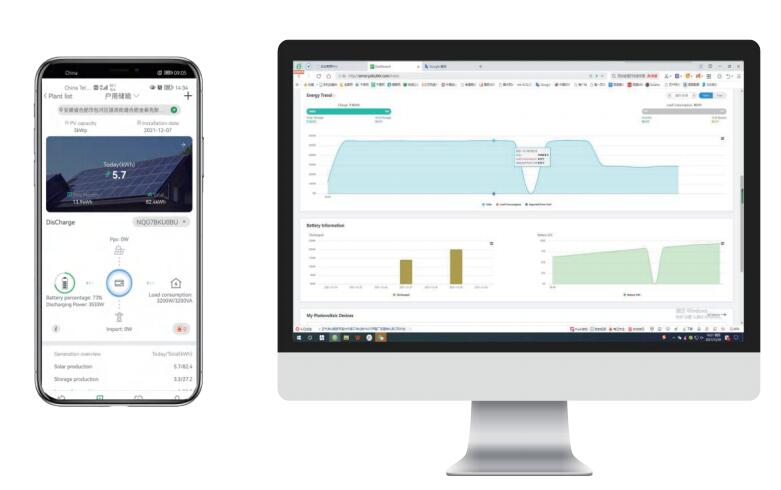

Smart control by mobile APP/Web





Real-time online understanding of project and equipment information on the mobile APP/PC terminal, fast. comprehensive. Through this software, you can easily understand the power generation, battery storage, online equipment, faulty equipment, fault information,solar energy storage output, charge and discharge data, etc.

Intelligent battery management
1. The battery adopts BMS management system to improve the utilization rate of the battery, prevent the battery from overcharging and overdischarging, and prolong the service life of the battery.

2. The battery and the inverter use BMS communication to monitor the battery SOC at all times to ensure that the SOC is within a reasonable range. When the SOC of each battery group is found to be unbalanced, changing the inverter parameters can automatically balance the battery power





Model
JNSG5KHF4810-V1
JNSG5KHF4815-V1
JNSG5KHF4820-V1
PV Input

Max.PV input voltage
450Vdc
450Vdc
450Vdc
Recommended input power
7000W
7000W
7000W
MPPT voltage range
120~430Vdc
120~430Vdc
120~430Vdc
Battery

Rated voltage
48Vdc
48Vdc
48Vdc
Max.charge current
80A
80A
80A
Efficiency
≥97%
≥97%
≥97%
Type & Rated capacity
Gel/lithium & 10kWh
Gel/lithium & 15kWh
Gel/lithium & 20kWh
AC Input、Bypass output

Voltage and frequency
230Vac±20%,50/60Hz (±3%)
230Vac±20%,50/60Hz (±3%)
230Vac±20%,50/60Hz (±3%)
Max. charge current
60A
60A
60A
Switching time
≤10ms
≤10ms
≤10ms
Inverter Output

Rated output capacitor
5000VA
5000VA
5000VA
Rated output power
5000W
5000W
5000W
Output voltage
220Vac/230Vac
220Vac/230Vac
220Vac/230Vac
Rated frequency
50/60Hz (±3%)
50/60Hz (±3%)
50/60Hz (±3%)
Standby loss
≤10W
≤10W
≤10W
Max. efficiency
93%
93%
93%
Waveform
Sine wave
Sine wave
Sine wave
Total harmonic distortion (THD)
<3%
<3%
<3%
Overload
5s@≥150% load;10s@ 110%～150% load
5s@≥150% load;10s@ 110%～150% load
5s@≥150% load;10s@ 110%～150% load
Others

Protecition level
IP21
IP21
IP21
Autible noice
<60dB
<60dB
<60dB
Cooling method
Forced cooling
Forced cooling
Forced cooling
Operate temp.
-20～+50℃
-20～+50℃
-20～+50℃
Storage temp.
-25～+70℃
-25～+70℃
-25～+70℃
Status indicator
LCD+LED
LCD+LED
LCD+LED
Interface
RS485/CAN
RS485/CAN
RS485/CAN
Altitude
2000m( >2000m derating operate)
2000m( >2000m derating operate)
2000m( >2000m derating operate)
Dimension(W*D*H)
674*698*480mm
674*895*480mm
674*1093*480mm
Weight
143kg
202kg
260kg





Model
JNSG10KHF4810-V1
JNSG10KHF4815-V1
JNSG10KHF4820-V1
PV Input
Max.PV input voltage 450Vdc 450Vdc 450Vdc
Recommended input power 14000W 14000W 14000W
MPPT voltage range 120~430Vdc 120~430Vdc 120~430Vdc
Battery
Rated voltage 48Vdc 48Vdc 48Vdc
Max.charge current 160A 16A 160A
Efficiency ≥97% ≥97% ≥97%
Type & Rated capacity Gel/lithium & 10kWh Gel/lithium & 15kWh Gel/lithium & 20kWh
AC Input、Bypass output
Voltage and frequency 230Vac±20%,50/60Hz (±3%) 230Vac±20%,50/60Hz (±3%) 230Vac±20%,50/60Hz (±3%)
Max. charge current 120A 120A 120A
Switching time ≤10ms ≤10ms ≤10ms
Inverter Output
Rated output capacitor 10000VA 10000VA 10000VA
Rated output power 10000W 10000W 10000W
Output voltage 220Vac/230Vac 220Vac/230Vac 220Vac/230Vac
Rated frequency 50/60Hz (±3%) 50/60Hz (±3%) 50/60Hz (±3%)
Standby loss ≤20W ≤20W ≤20W
Max. efficiency 93% 93% 93%
Waveform Sine wave Sine wave Sine wave
Total harmonic distortion (THD) <3% <3% <3%
Overload 5s@≥150% load;10s@ 110%～150% load 5s@≥150% load;10s@ 110%～150% load 5s@≥150% load;10s@ 110%～150% load
Others
Protecition level IP21 IP21 IP21
Autible noice <60dB <60dB <60dB
Cooling method Forced cooling Forced cooling Forced cooling
Operate temp. -20～+50℃ -20～+50℃ -20～+50℃
Storage temp. -25～+70℃ -25～+70℃ -25～+70℃
Status indicator LCD+LED LCD+LED LCD+LED
Interface RS485/WIFI RS485/WIFI RS485/WIFI
Altitude 2000m( >2000m derating operate) 2000m( >2000m derating operate) 2000m( >2000m derating operate)

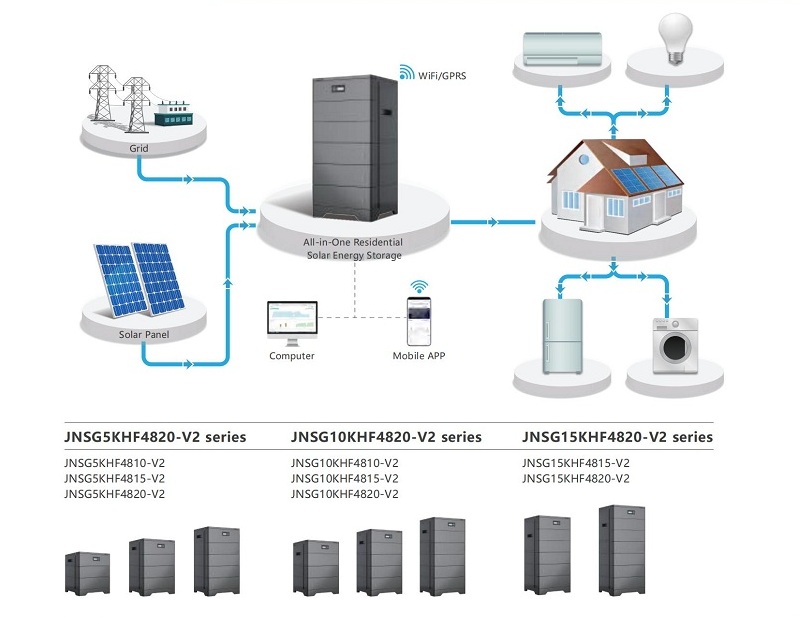

Off Grid Solar Energy Storage System Demonstration
