5.7 Inch TFT 320(RGB)*240 module 500 nits brightness

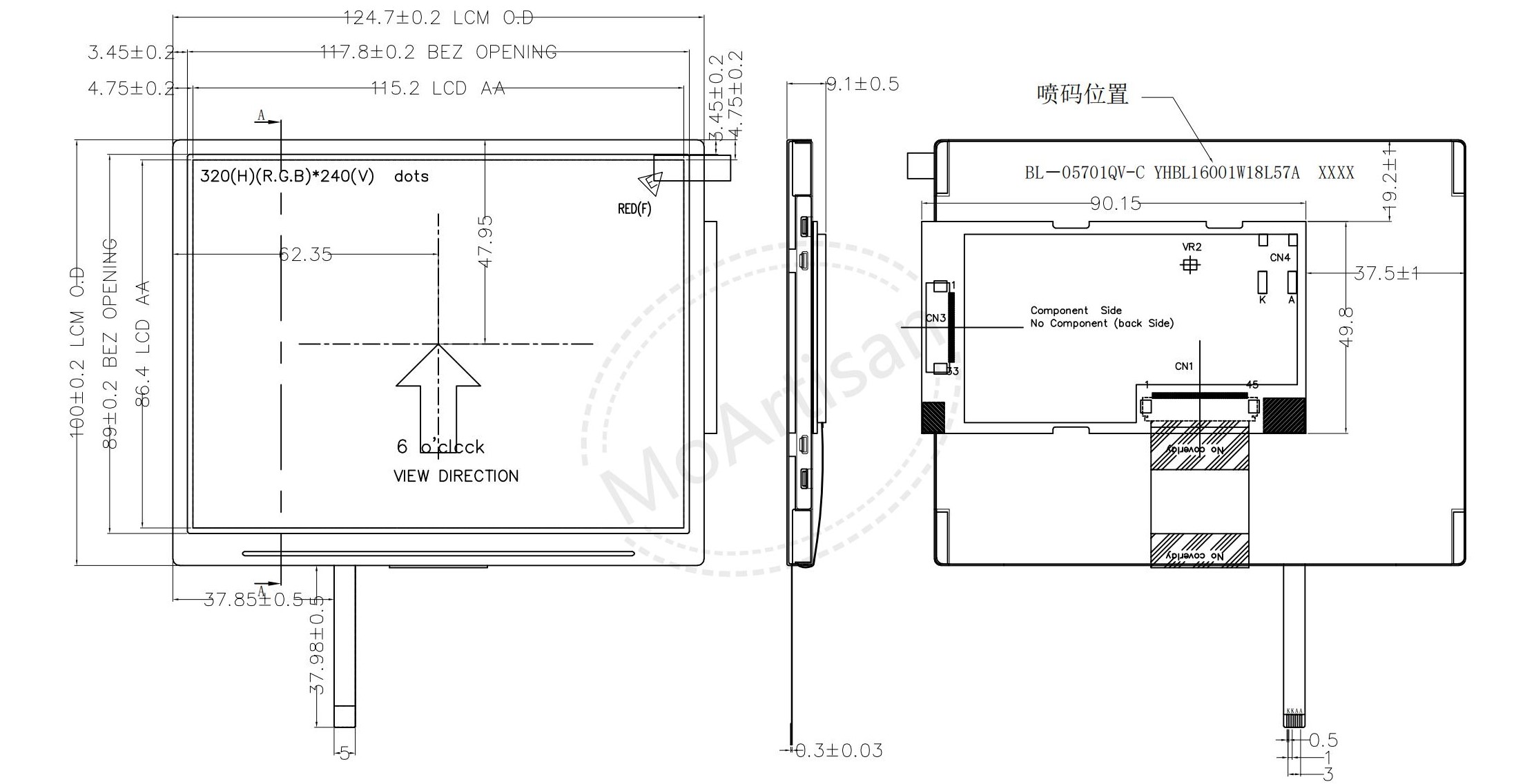

Production drawings
WM057MP001QV-D Introduction
-
5.7 inch diagonally measured active display area.
-
QVGA (320 horizontal by 240 vertical pixel) resolution.
-
5.7 Inch TN module with power board.
-
This module's surface brightness is 500 nits.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.7
|
QVGA, 320*RGB*240, TN, 6 -O'CLOCK, 4:3 LCD Screen
|
124.7*100*9.1
|
2*9 LED (50K)
|
33 PIN Con,18 Bit, RGB
|
500 nits/300
|
Topa: -20~+70
Tstg: -30~+80
|
50/65/65/65
|
WM057MP001QV-D
|
Production Applications
Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
Is this LCM selling well?
ANSWER:
This LCMS is a very traditional display. It has been designed since the early days of the LCD industry.
It belongs to the era of black/ white screens and replaces the CRT.
There is still to have demand for both black/ white and colour screens.
