EC-CP01-5.8G Long Range Outdoor Wireless Client Bridge
300Mbps 5GHz Wireless Bridge/AP built in15 dBi directional antennas and the transmittion distance is up to 3 kilometres.
Hardware Features
Chipset:American Quaicomm AR9334 Industrial Processor
Wireless Technology:802.11N, 2T2R MIMO
Memory:64MB DDR2 RAM
Flash:8MB

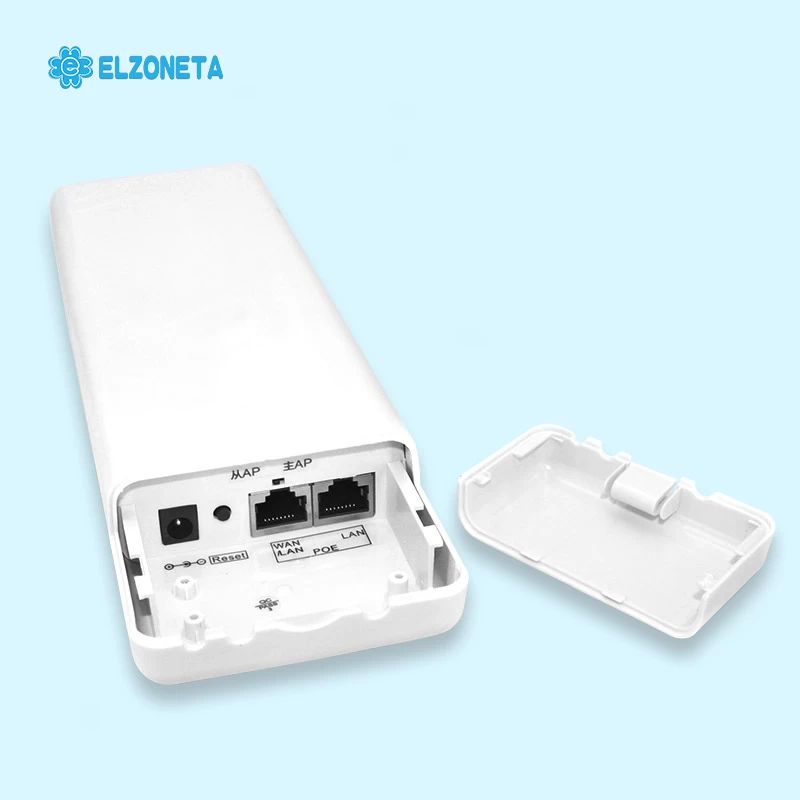

Interface:
2*10/100Mbps Adaptive wired network interface（Support 12-24V power supply, the longest distance is 70 meters）
1*Reset button
1*DC interface, support 12V DC power supply
RF parameter
Wireless:300Mbps
Wireless Standard:IEE802.11a/n
Frequency:5.725~5.85GHz
Transmission Distance:3 Kilometres
Modulation mode:802.11n/802.11a: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
Maximum transmit power:27dBm/500mw
Antenna:15dBi directional antenna
Antenna coverage angle:horizontal direction:45° ;
vertical direction:30°
Software Features
Operation Mode:Gateway mode / AP mode
Channel configuration:Intelligent selection channel
Signal analysis:Support signal strength display and analysis
Transmitted power:Support transmit power adjustment and distance control
Wireless security:WPA2 PSK/AES
WPA/WPA2 PSK+TKIP/AES
Radio broadcast:SSID,SSID/ Tag VLAN
Regular reboot:Support timing restart function
System settings:WEB
Software upgrade:WEB page or TFTP upgrade
User rights:username and password can be configured
Physics Features
Level of protection:IP55
Power Supply:24V 1A POE or 12V 1A DC
Operating Temperature:-30℃~+70℃
Operating Humidity:10%~90%
Power Consumption:10W
Material:ASA Engineering plastic shell
Size(W x H x D)(mm):257*87*38
Weight(g):400
