Applications:

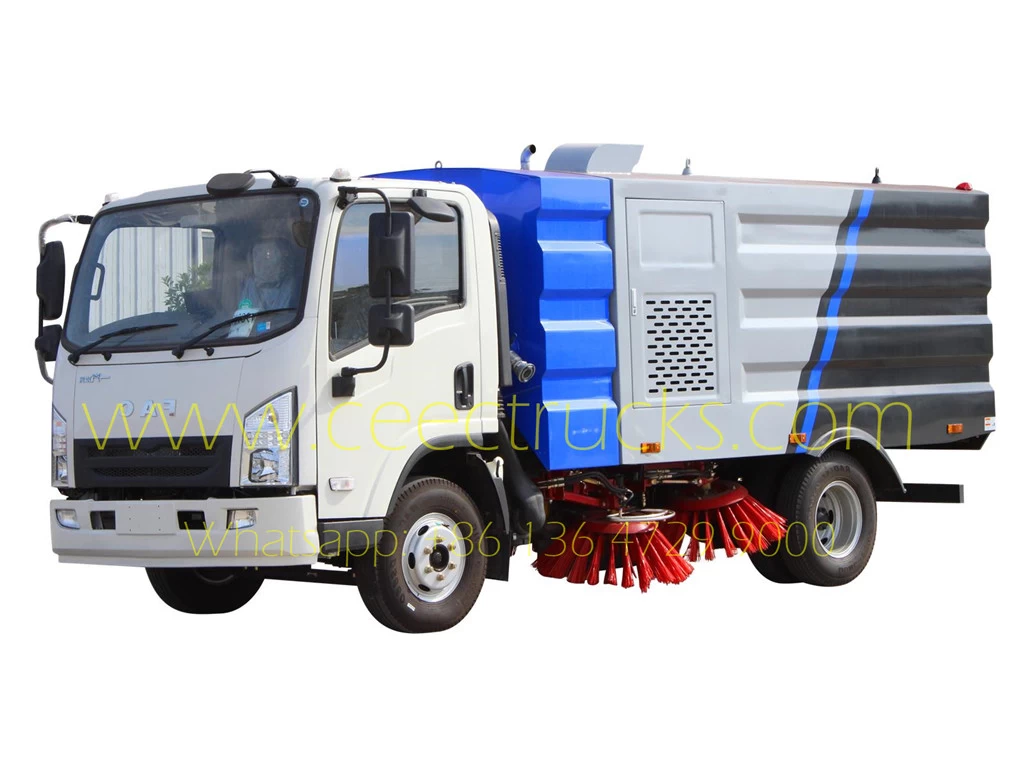

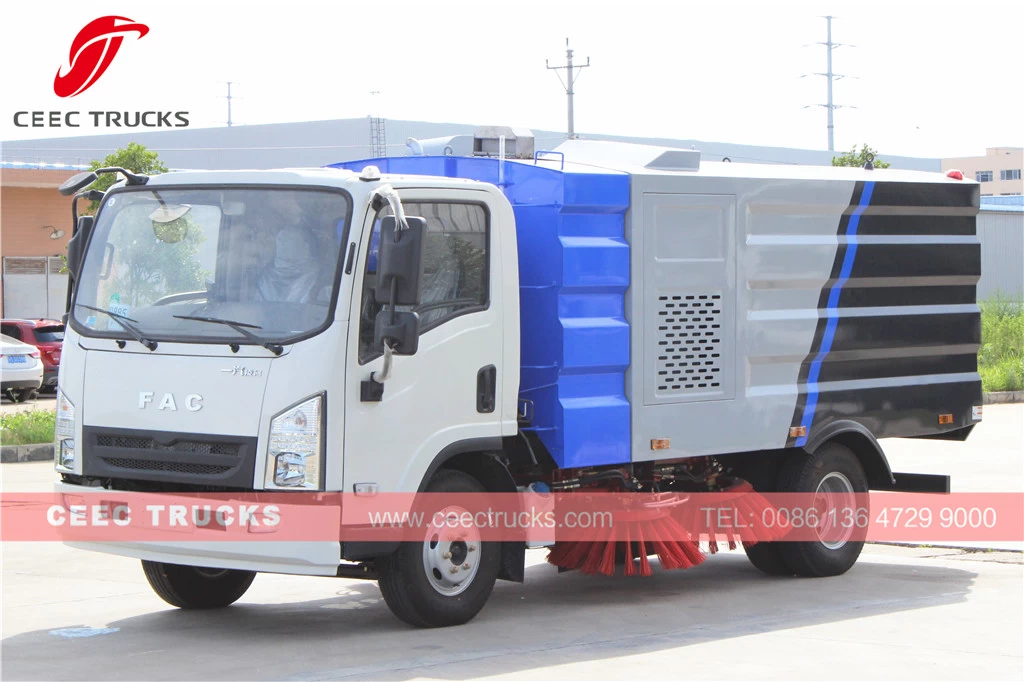

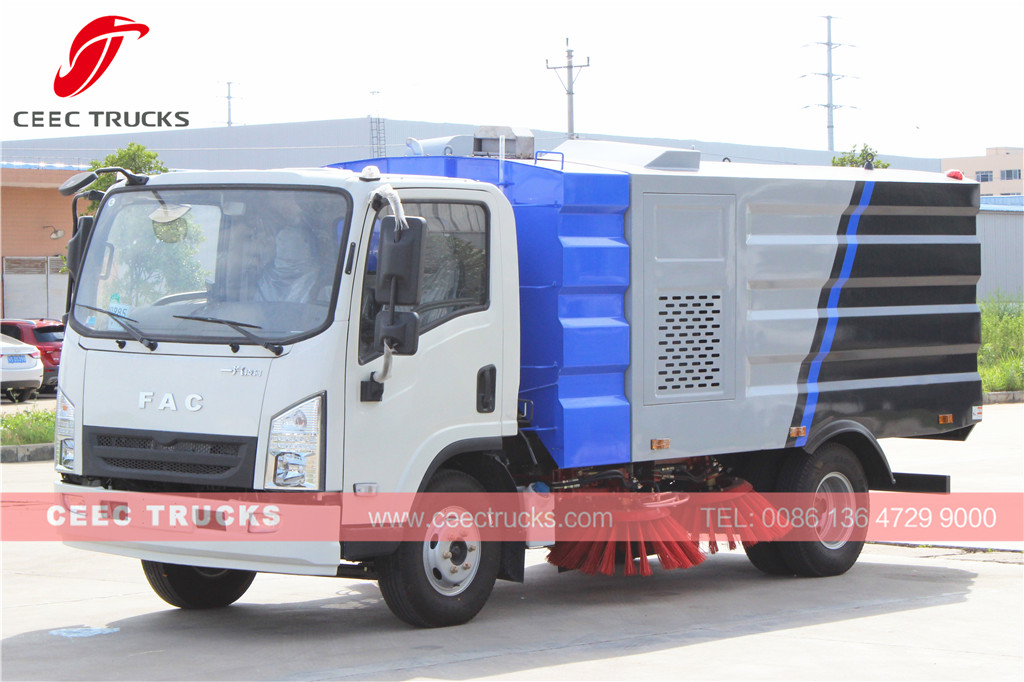

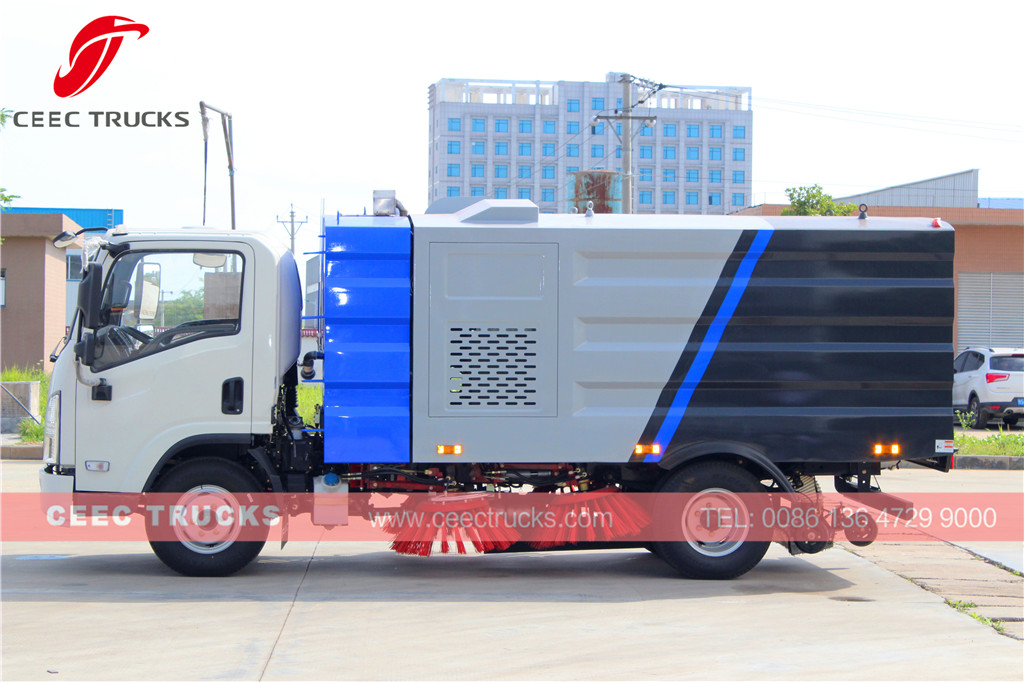

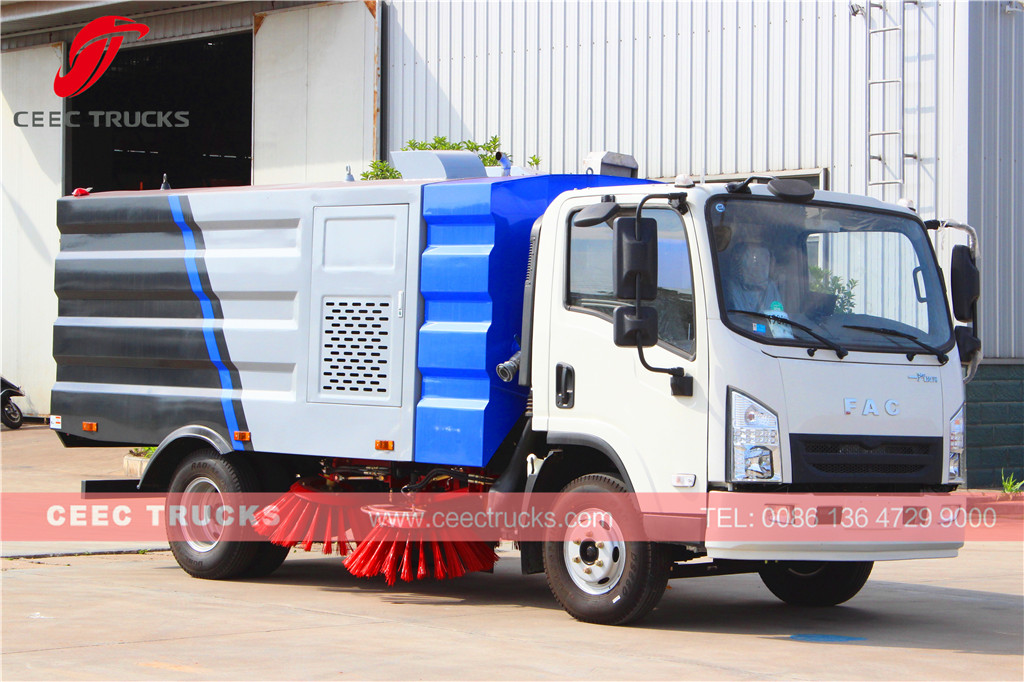

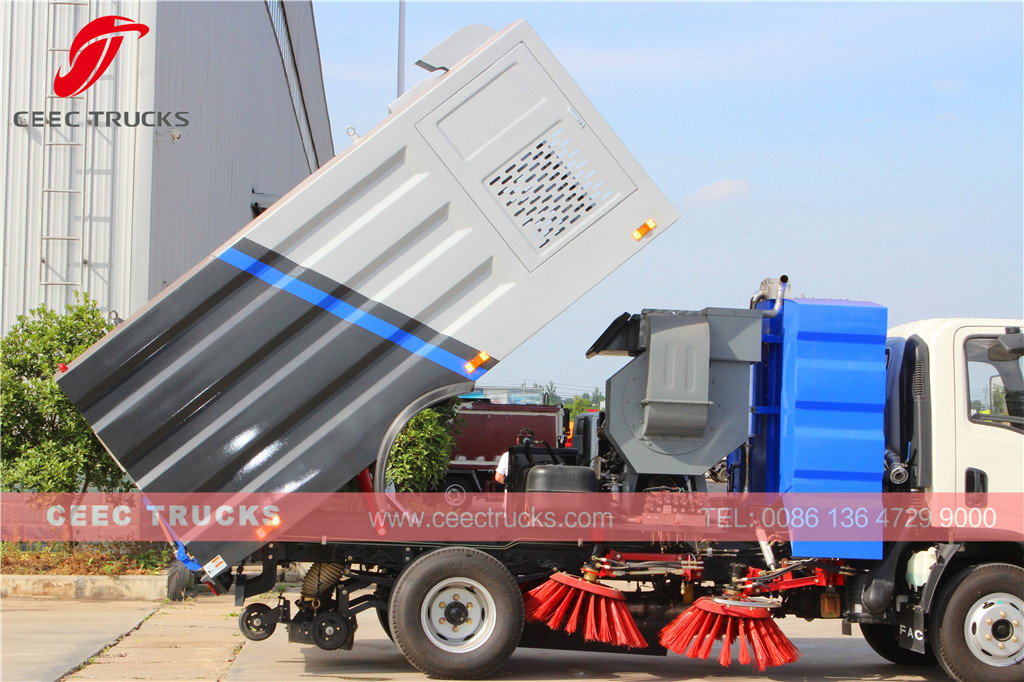

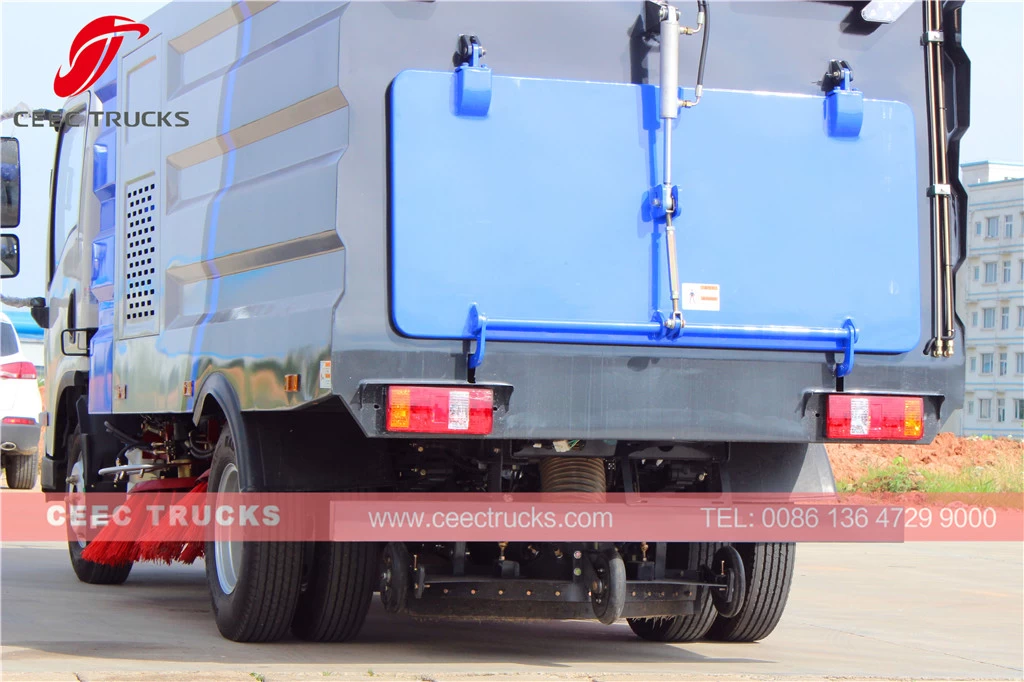

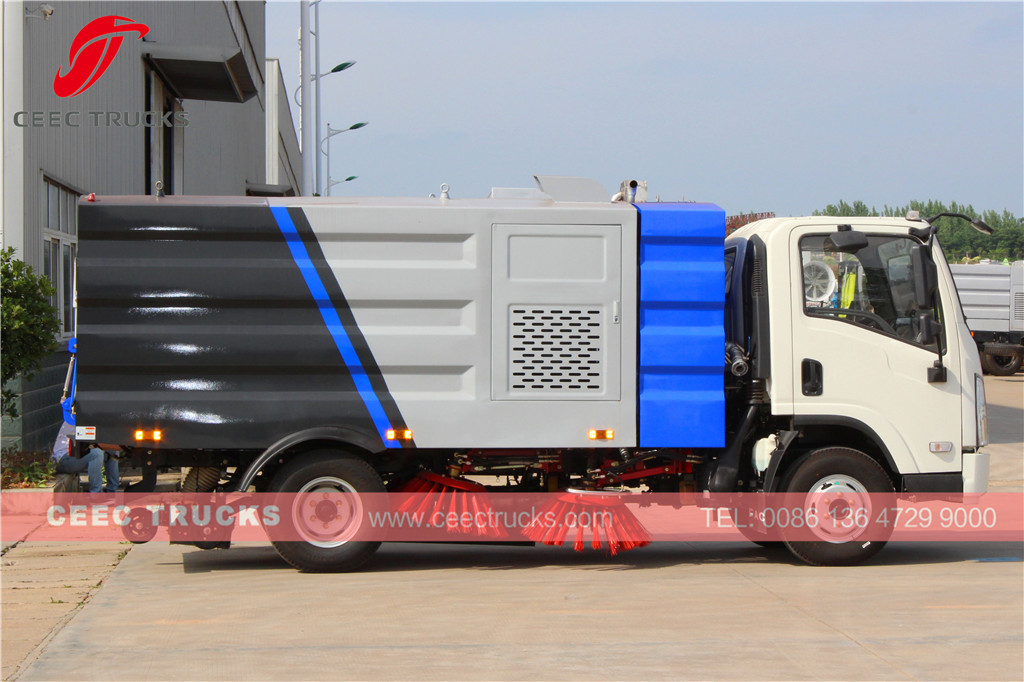

Road Sweeper truck 5cbm FAW (also called vacuum road sweeping truck, trash collection truck, road cleaning vehicle, vacuum road sweeper, FAW road sweeper) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.
CEEC TRUCKS 5000L road sweeper truck is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57KW auxiliary engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- FAW chassis, perfect performance
---- FAW brand diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
| FAW Vacuum Road Sweeper (5,000L)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
FAW
|

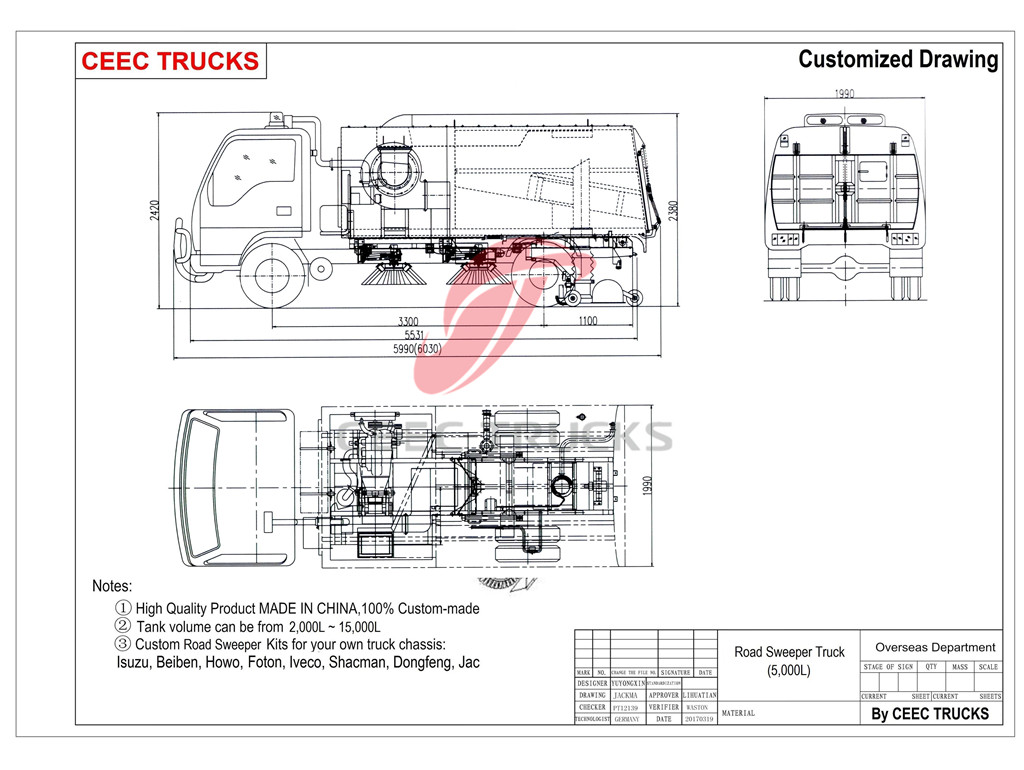

| Overall Dimension
|
5990*1990*2600 mm
|
| GVW / Kerb Weight
|
7,300kg / 4,900 kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
FAW
|
| Power
|
117 HP (86 KW)
|
| Displacement
|
3707 ml
|
| Emission Standard
|
Euro IV or V
|
| Chassis
|
Drive Type
|
4X2, (left hand drive)
|
| Transmission
|
5 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3308 mm / 2
|
| Tire Specification
|
7.00-16
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body capacity
|
4 cbm dust tank & 1 cbm water tank
|
| Tanker material
|
Stainless steel
|
| Vacuum sweeping capacity
|
31,000 cbm/h
|
| Vacuum sweeping speed
|
3-15 km/h
|

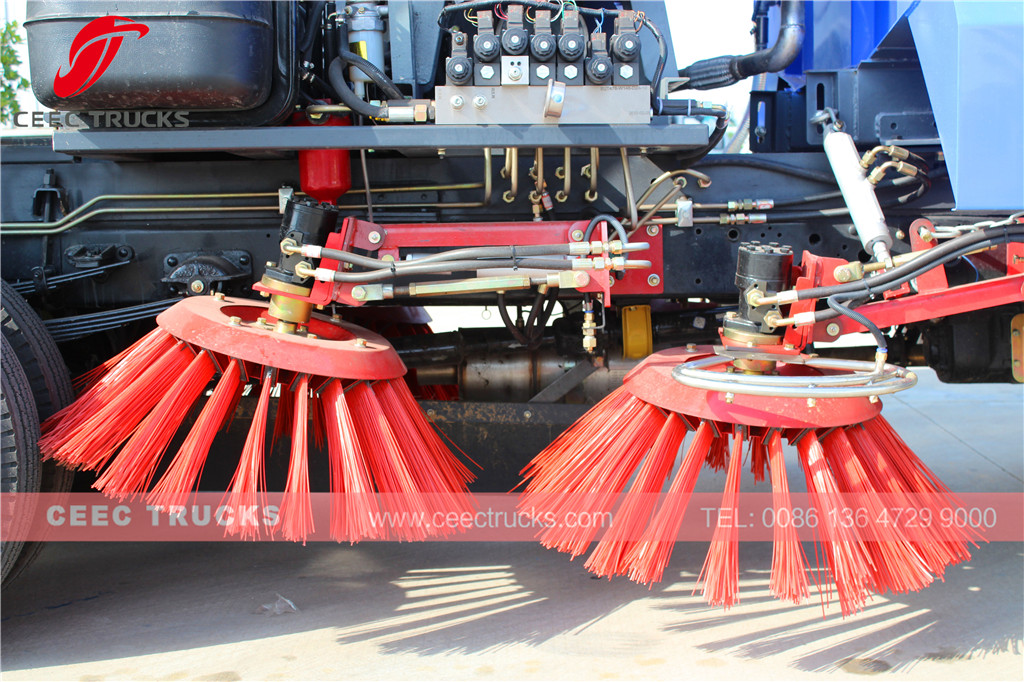

| Max. sweeping width
|
2200 mm
|

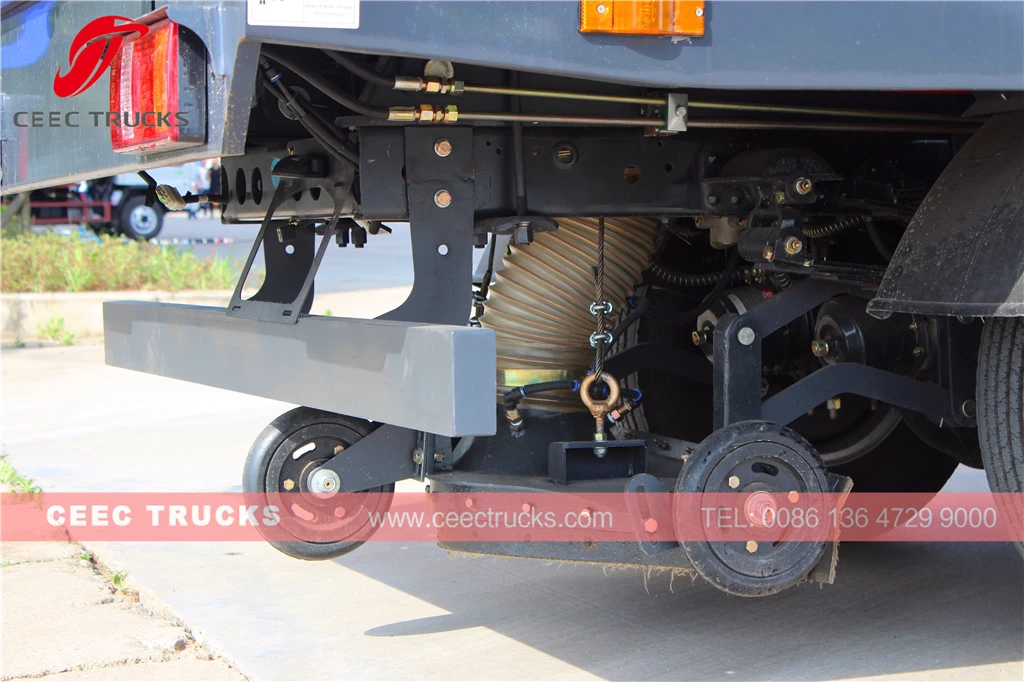

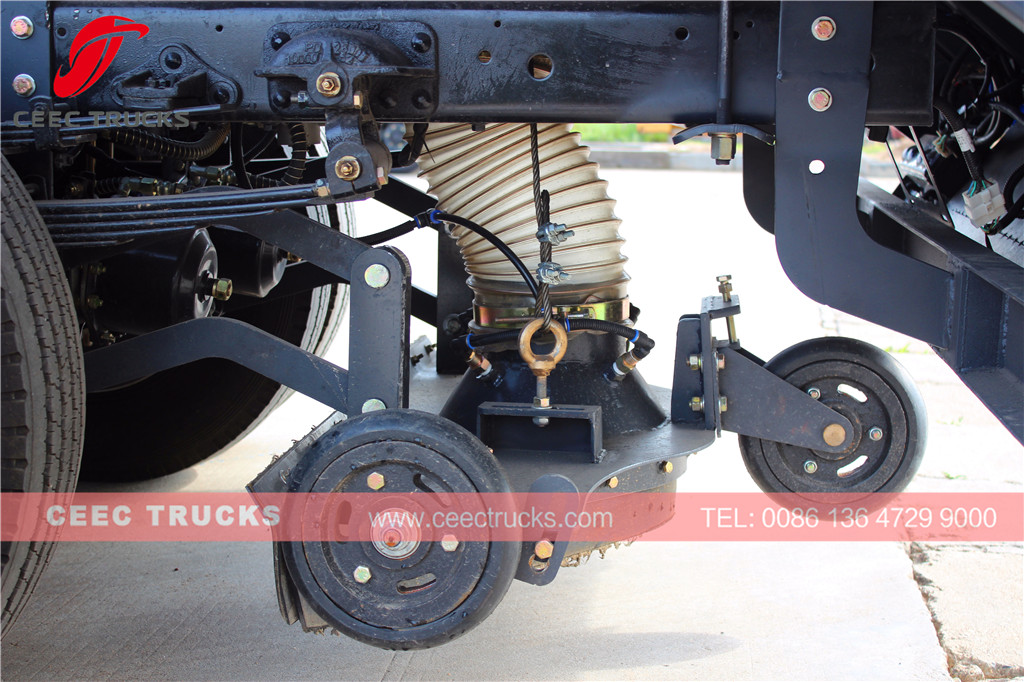

| Vacuum suction plate
|
Under the road sweeper tanker
|

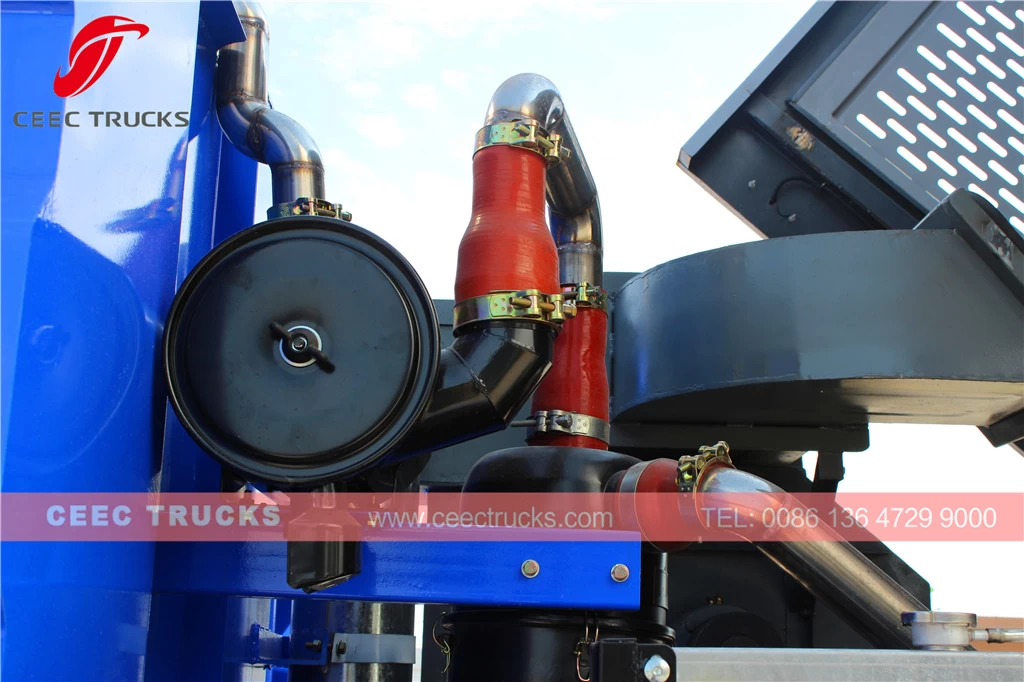

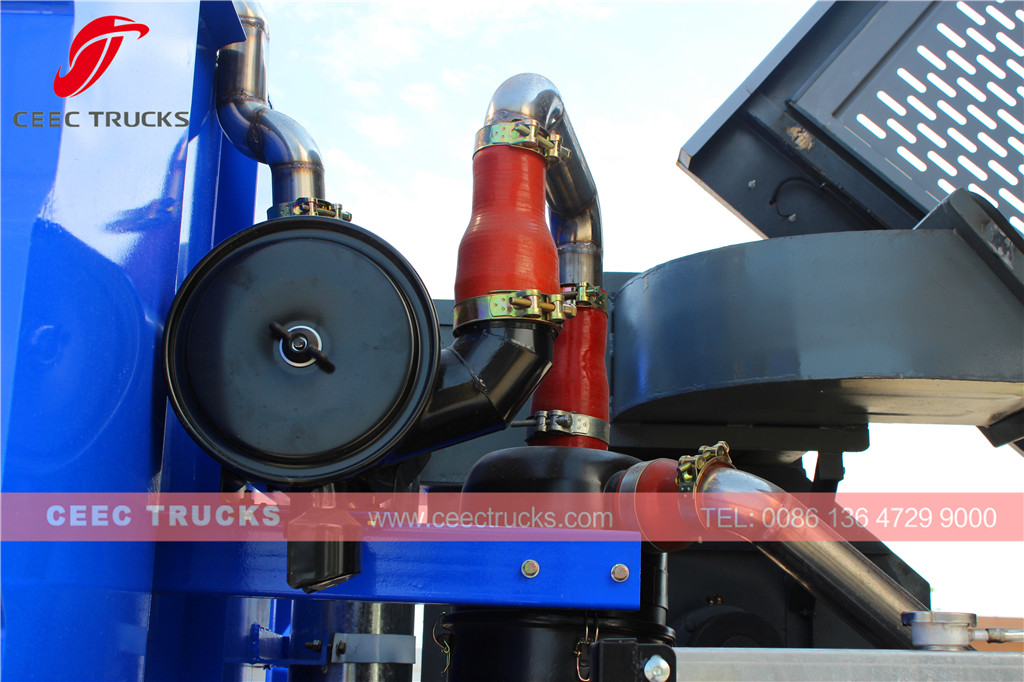

| Auxiliary engine
|
ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
| Optional
|
** Back alarm and Camera can be equipped.
** Italy Brevini motor can be optional.

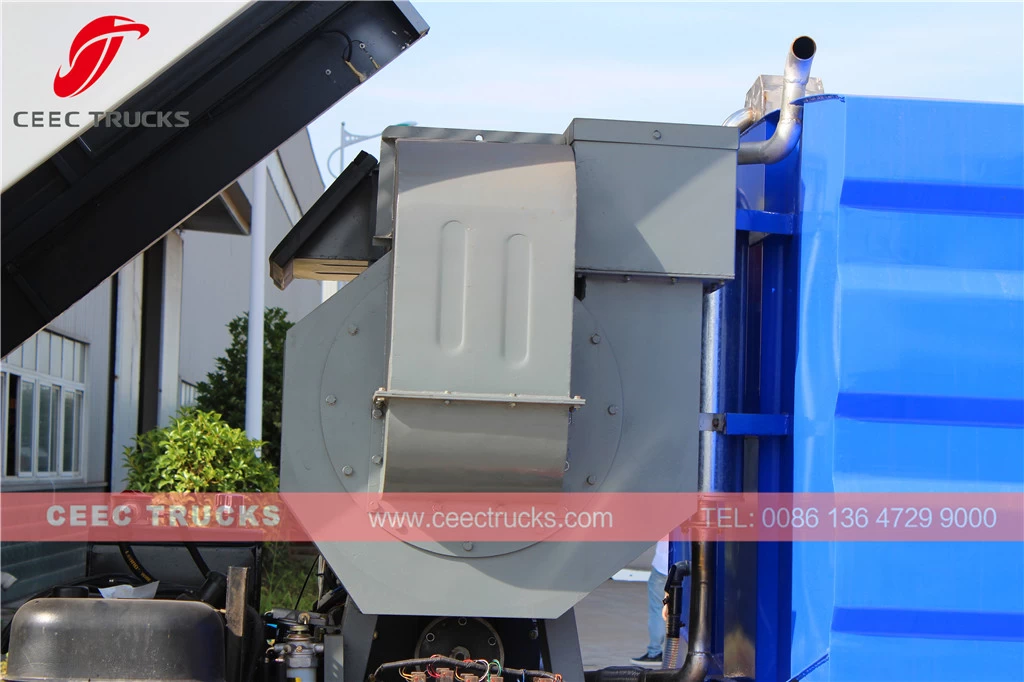

** Air blower can be of stainless steel
|
