5 CBM Fuel Tanker ISUZU

Dubai ISUZU 5000liters fuel tanker truck, 4HK1-TCG40 engine with 190HP, Isuzu tech MLD 6-shift manual gearbox, carbon steel material fuel tanker with 5 CBM capacity, all painting and logos are optional, oil dispenser are for choose



ISUZU 5,000 Liters Fuel Tanker Truck export Dubai



ISUZU 5000L Fuel tanker truck

ISUZU Fuel Tank Trucks (also called Isuzu 5 CBM oil refueling truck, 5000L diesel truck, Isuzu petrol fuel tank, oil refueler truck Isuzu trucks, oil tank for truck) is used to transport oil, diesel, gasoline, kerosene. Authorized ISUZU trucks exporter CEEC TRUCKS has over 10 years ISUZU fuel tanker truck manufacturer and export experience. And our ISUZU petrol tanker trucks widely export Africa kenya, Djibouti, Guinea, Rwanda, Zimbabwe, and Asia, Myanmar, Phillippine, Malaysia, Laos, Dubai, Maldives, etc

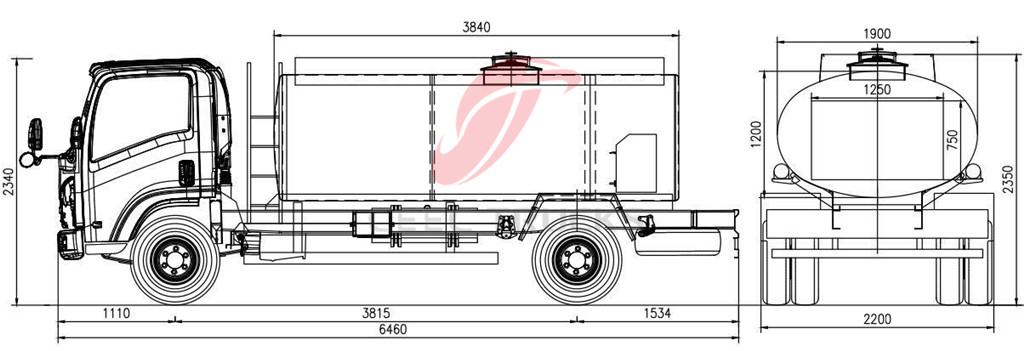

ISUZU 5000L Fuel tanker truck drawing



Dubai ISUZU 5000 liters fuel tanker truck advantages:

★ ISUZU 4*2 Left Hand Drive chassis, Japanese technology, perfect performance.

★ ISUZU 190HP engine, strong performance, easy cover all road condition

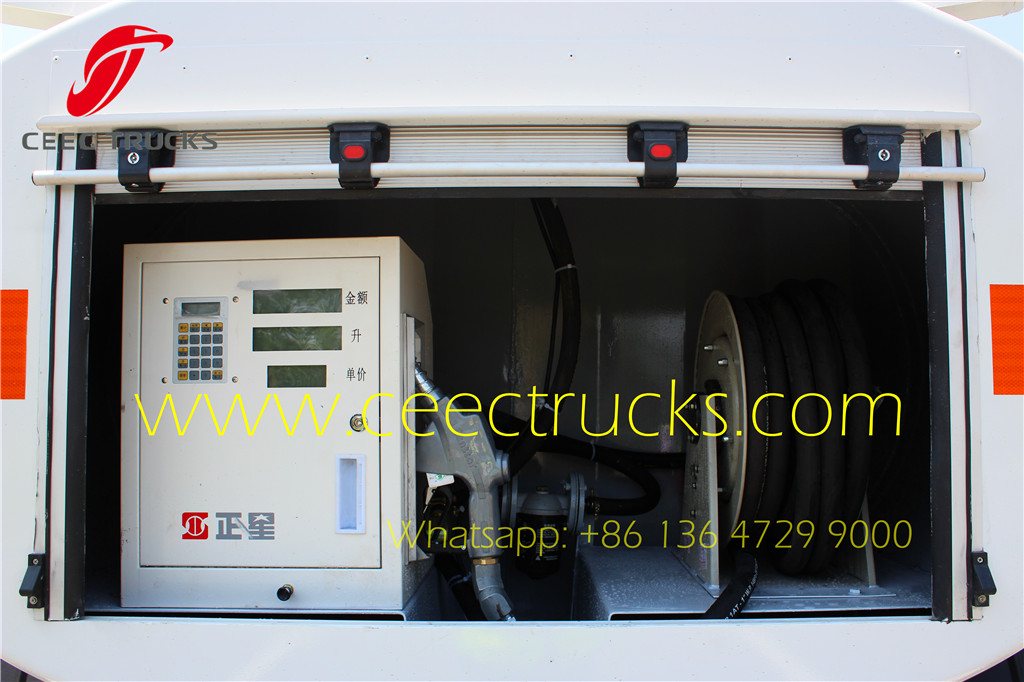

★ Famous Chinese ZHENGXING brand fuel dispenser, suitable for all kinds of trucks refueling job, larger flow rate and nice quality

★ Standard carbon steel material Q235 material, oval shape with 3 compartment, rational structure.

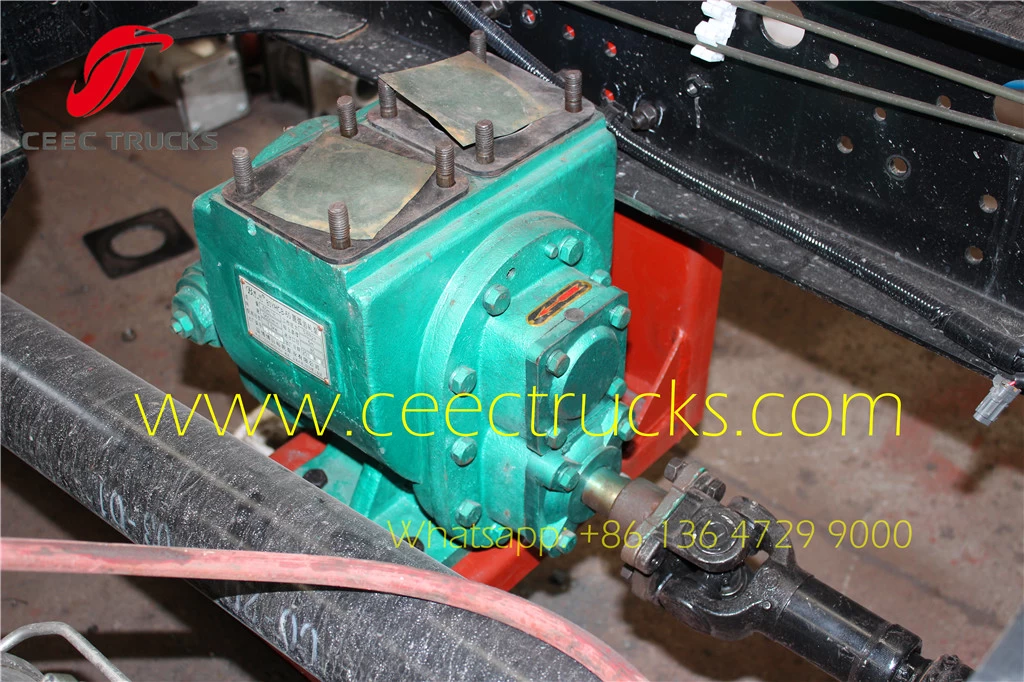

★ Fuel pump 80YHCB-60 model, super powerful, highly efficient, with pump in pump out function.

★ Massive, durable, long service life.

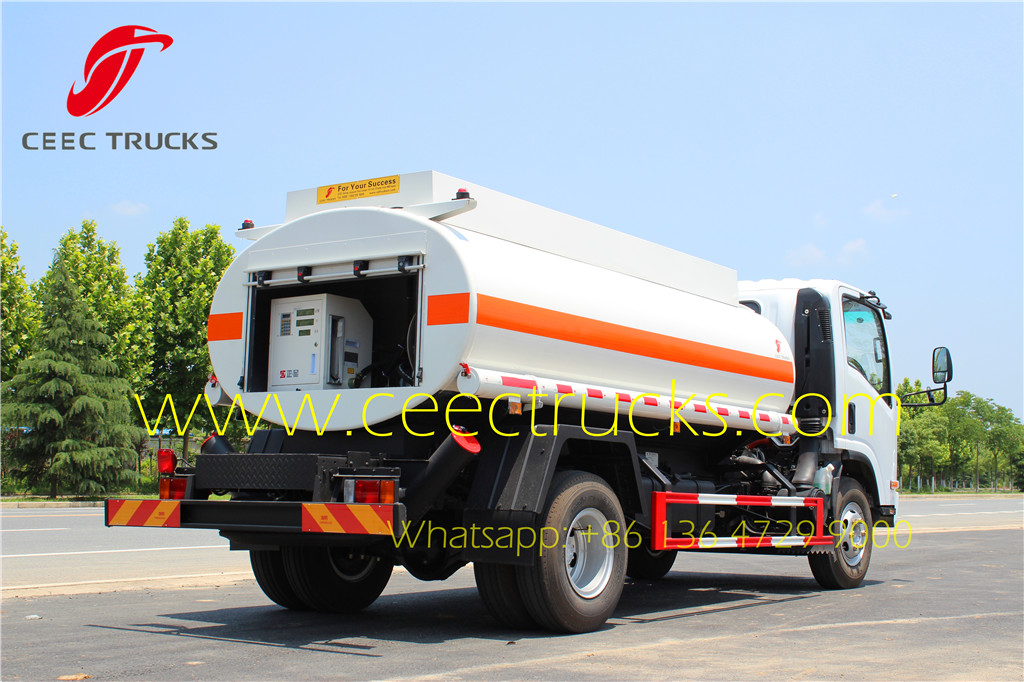

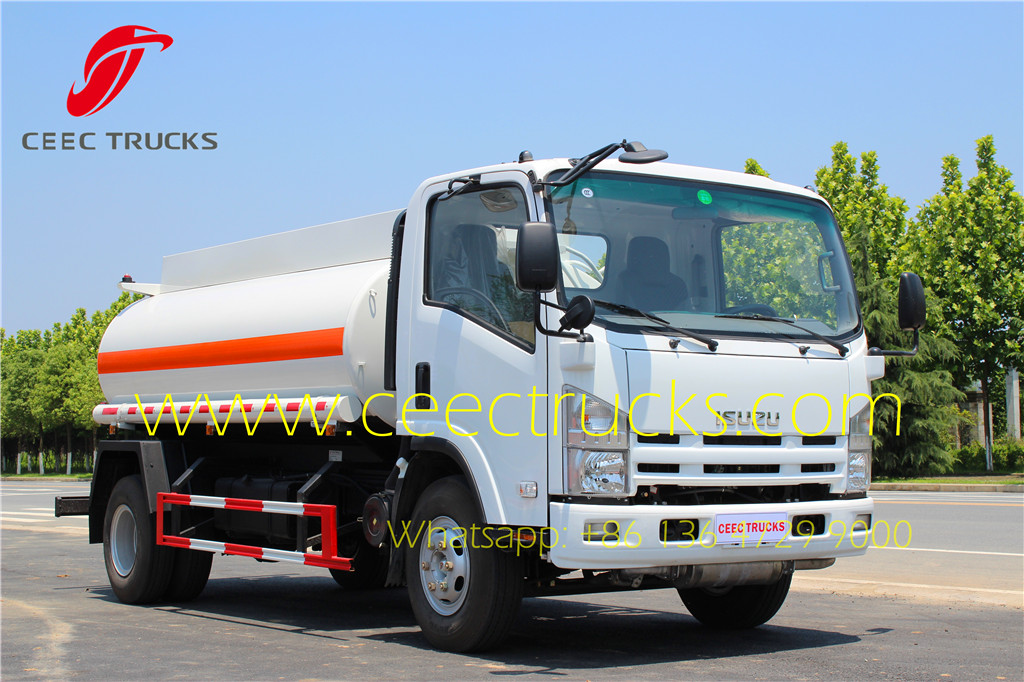

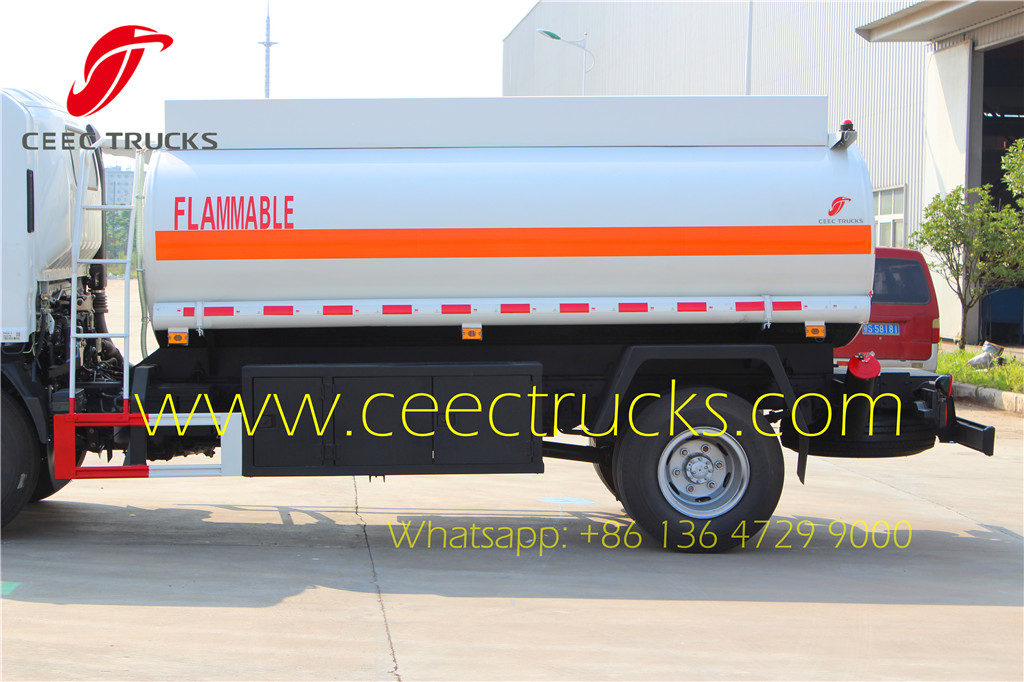

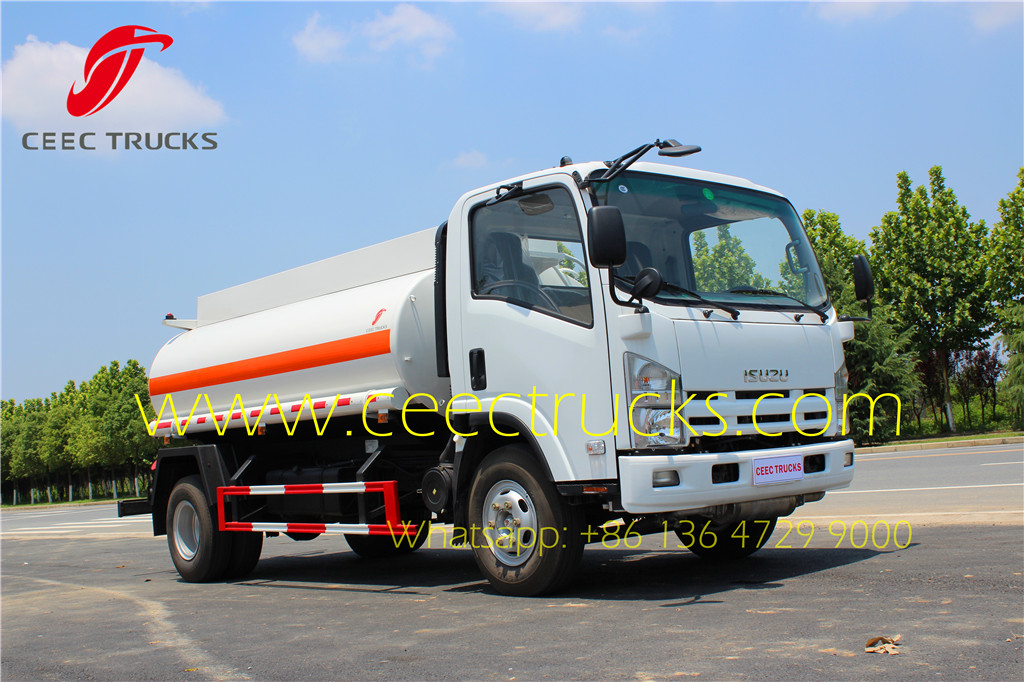

ISUZU 5000L Fuel tanker truck     ISUZU 5000L Fuel tanker truck

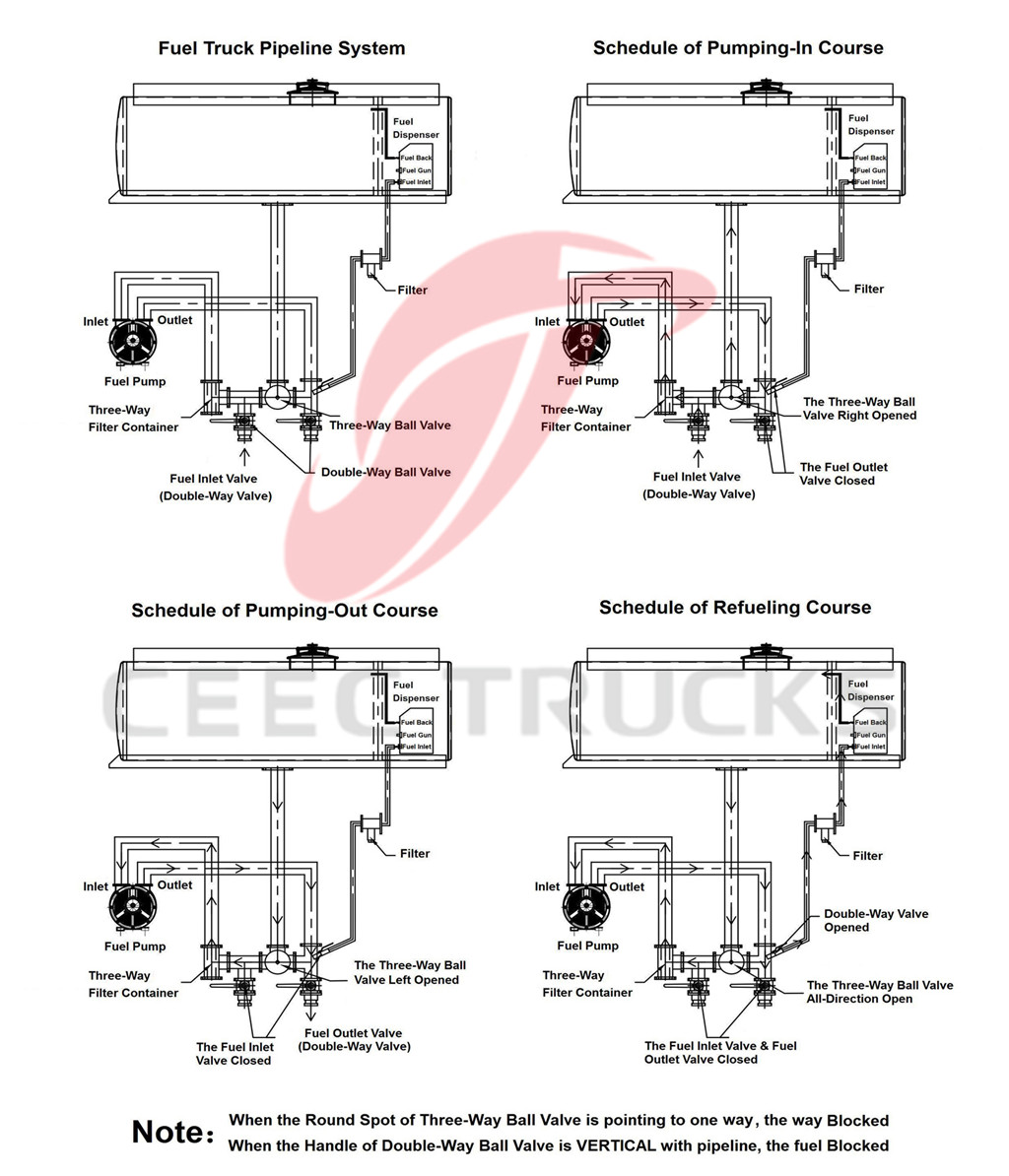

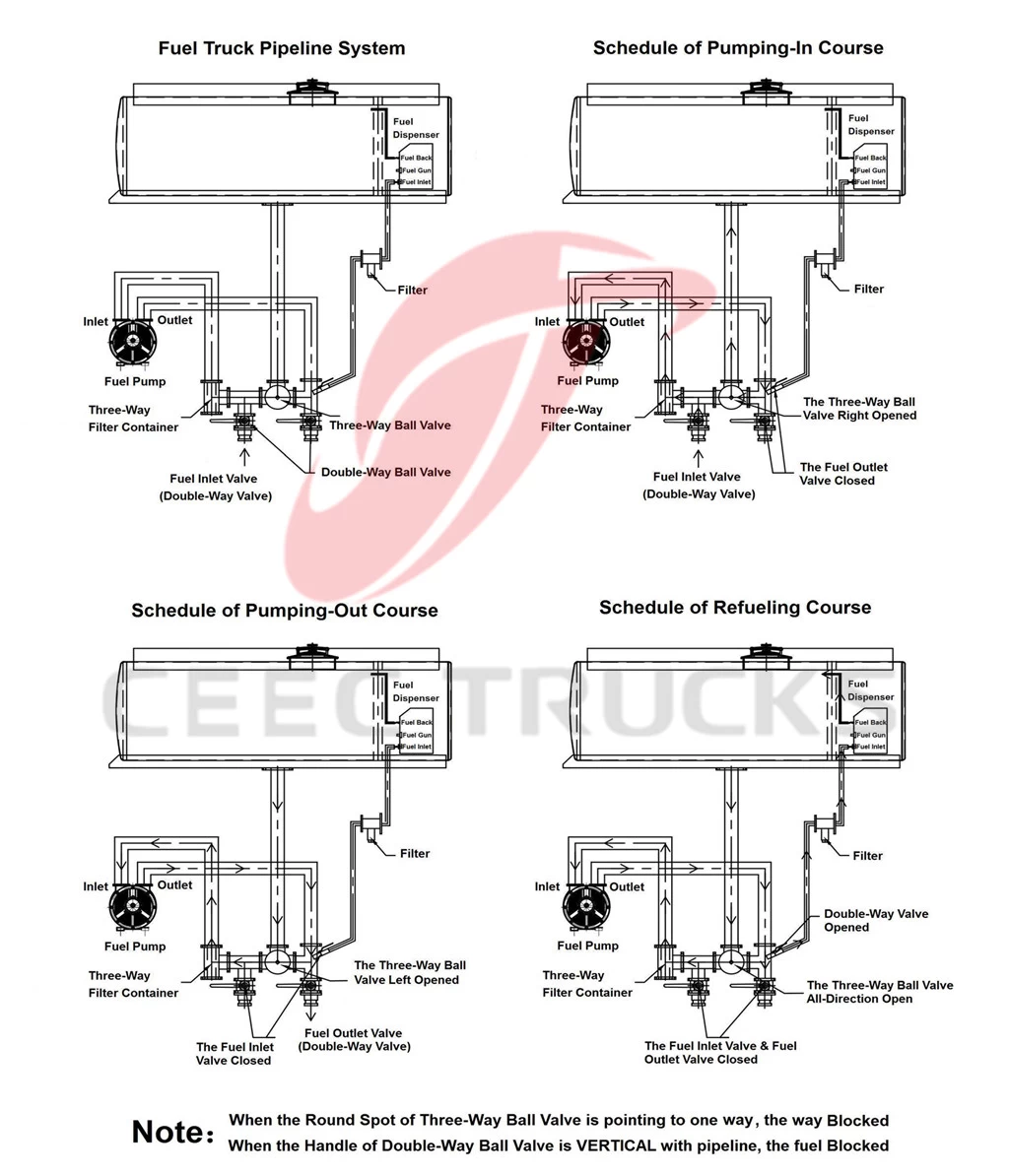

How does ISUZU 5 CBM refueling oil tanker truck work?



Dubai ISUZU 5000 liters fuel tanker truck working introduction

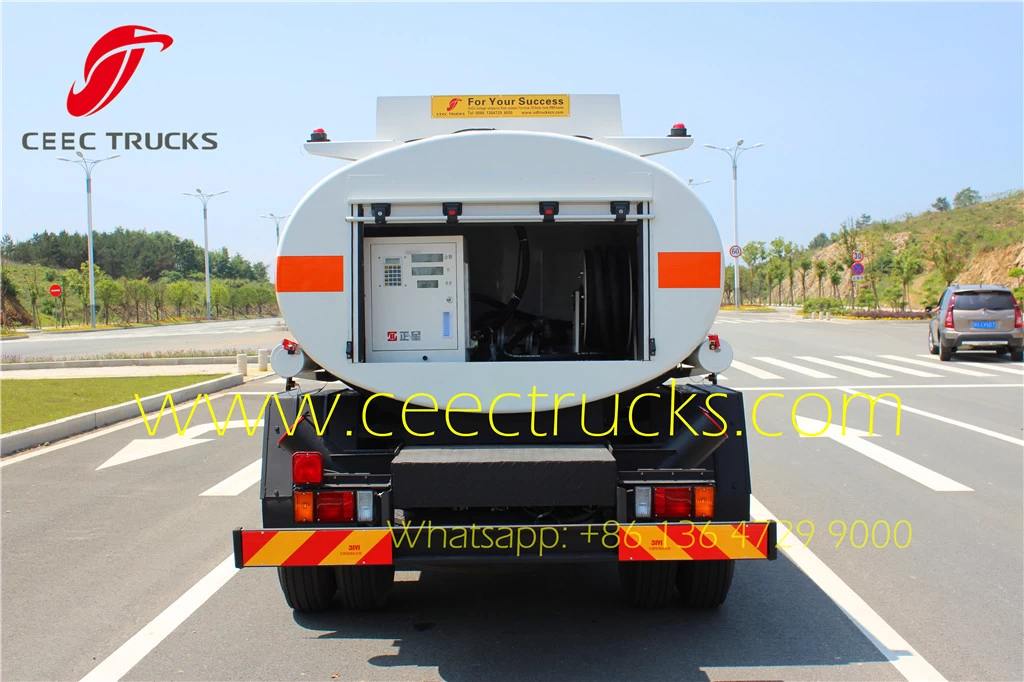

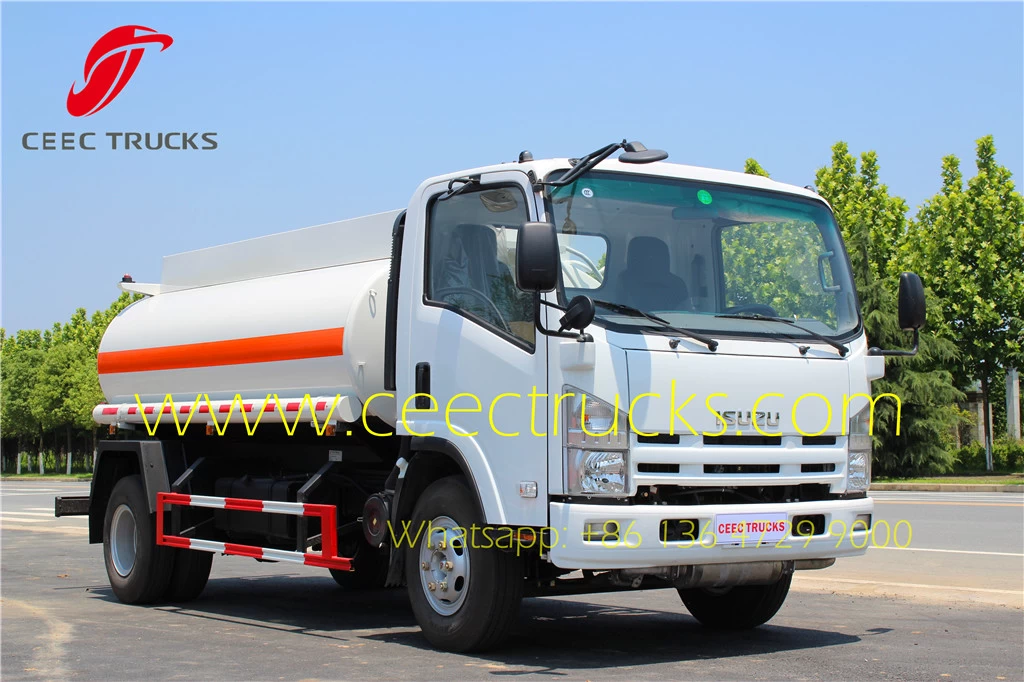

ISUZU 5000L Fuel tanker truck



ISUZU 5000L Fuel tanker truck



ISUZU 5000L Fuel tanker truck

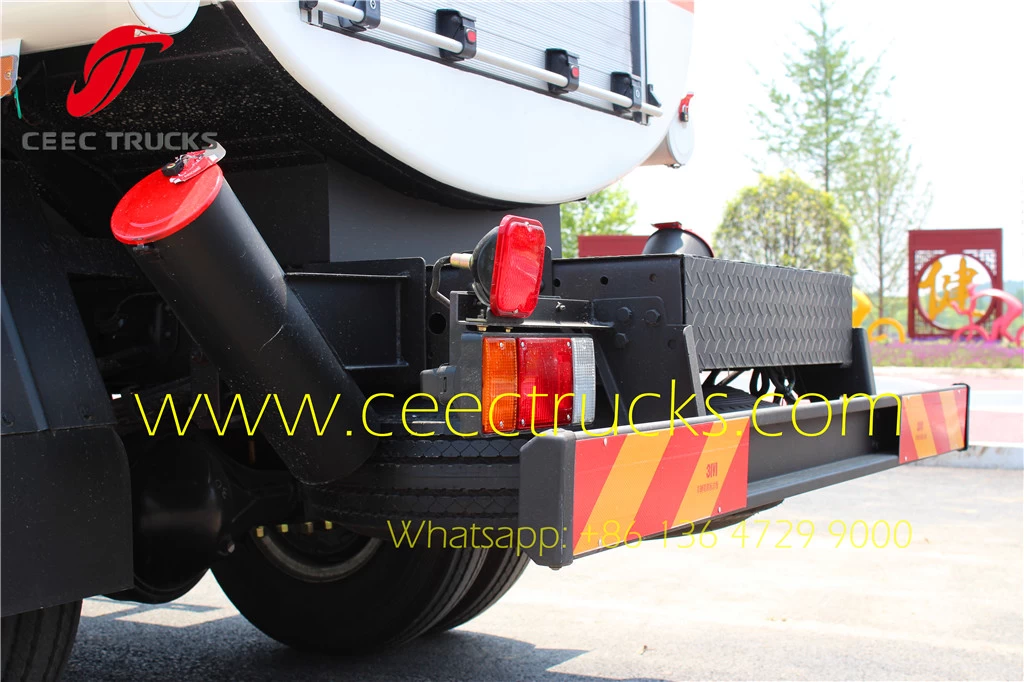

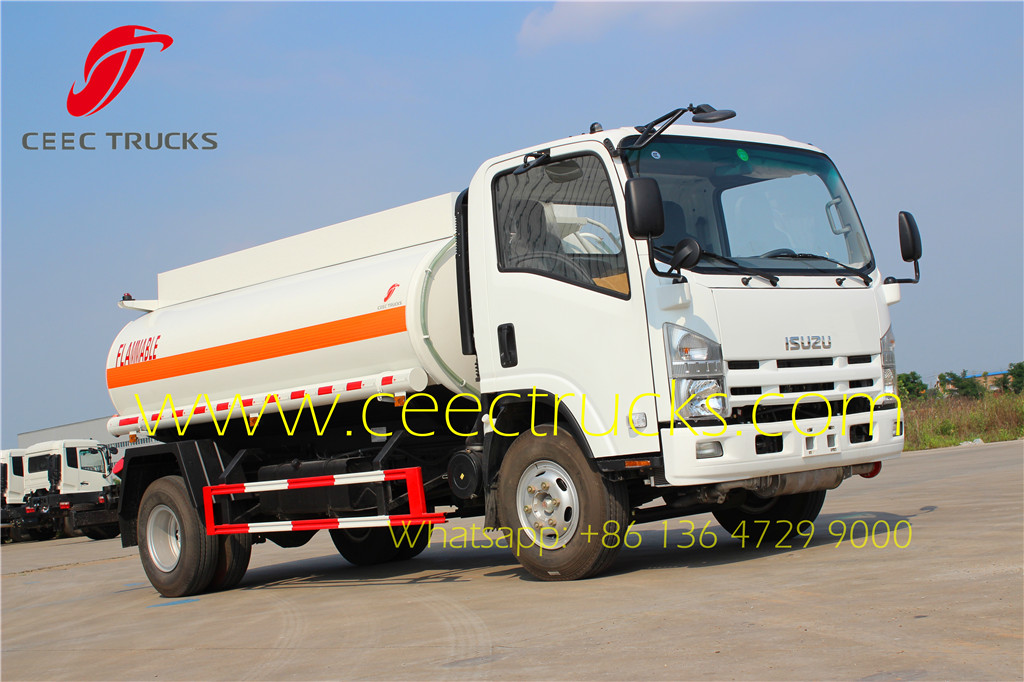

ISUZU 5000L Fuel tanker truck    ISUZU 5000L Fuel tanker truck



ISUZU 5000L Fuel tanker truck    ISUZU 5000L Fuel tanker truck



ISUZU 5000L Fuel tanker truck    ISUZU 5000L Fuel tanker truck



Similar Key Words: Isuzu oil refueling truck, diesel truck, Isuzu petrol fuel tank, NPR fuel dispensing tanker, oil refueler truck Isuzu trucks, light fuel tank truck, Isuzu fuel oil tanker, oil tank for truck



ISUZU 5,000 liters fuel tanker truck for Dubai

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Engine

139 kw (190hp)

Tyre

8.25-20

Tank

Material:

Carbon steel(Q345)

Shell Body

5 mm nominal thickness

Head

6 mm nominal thickness

Baffles

3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape

Ellipse

Capacity

Full capacity 7000L

Compartment

No

Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port

2pieces

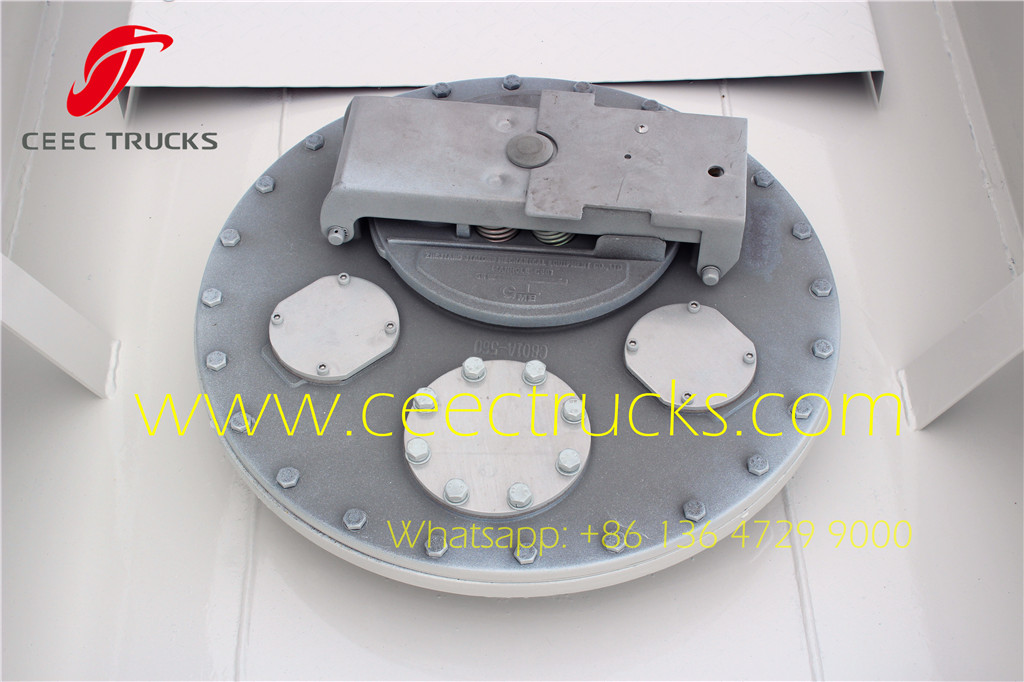

Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

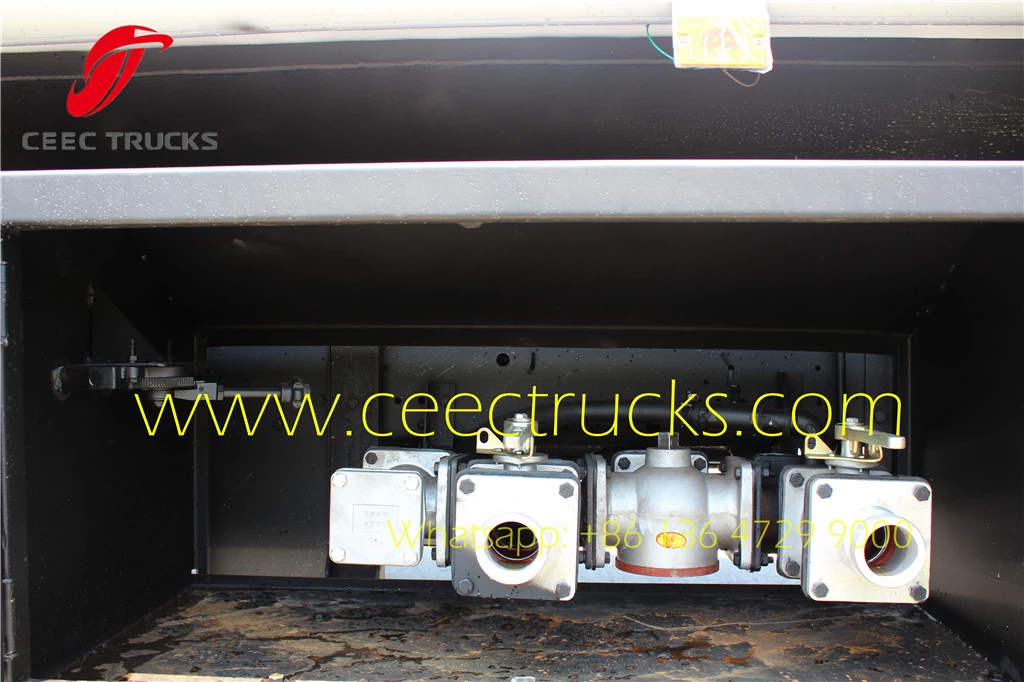

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories

Ladder:

Stainless Steel ladder fixed at rear of tank

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.

Handrail:

No

Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

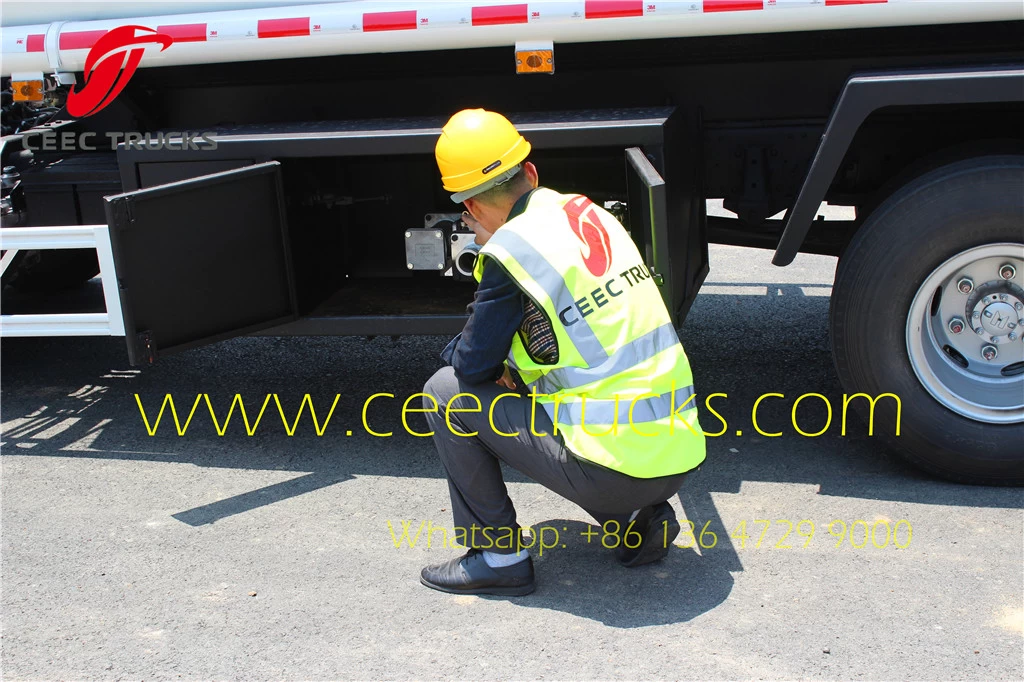

Pump Device

Yes

Flow meter

Yes

Tool box

Small box

Color

As optional

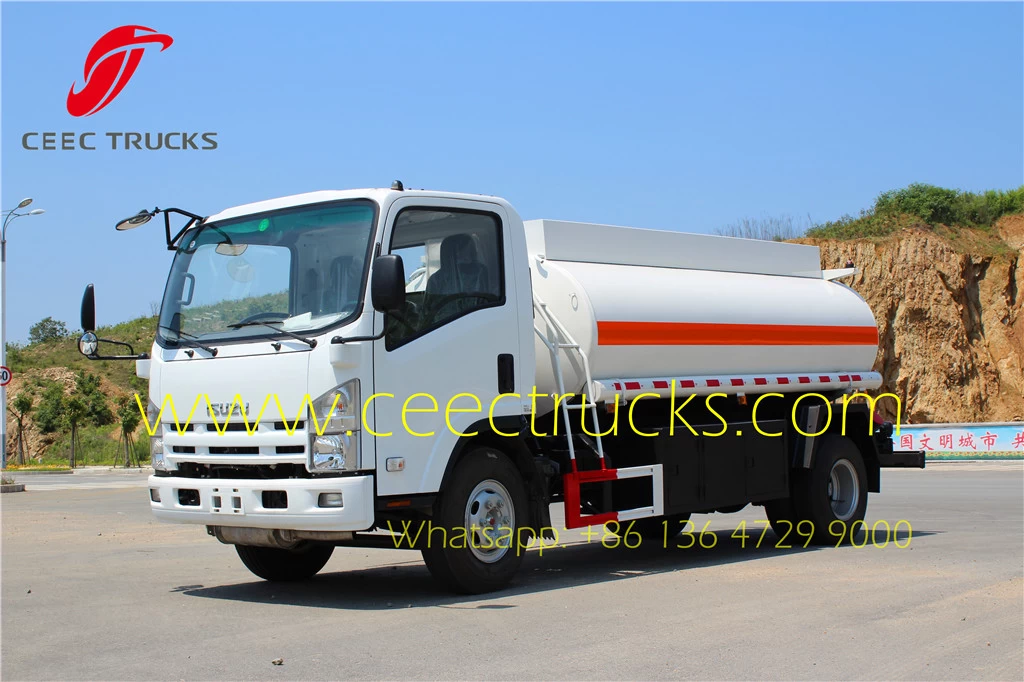

ISUZU 5000L Fuel tanker truck
