5 CBM refuse compactor trucks

China best ISUZU 5cbm garbage compactor truck use Japanese ISUZU 120HP engine and MSB 5-shift manual gearbox, as for compactor system, use Italy opertaion joysticks and SIMENS PLC system. all performed good



ISUZU 5 CBM Garbage Compactor Truck also can be called Trash Compressor Truck, Refuse Compression Truck, Refuse Collection Truck, Rubbish Compactor Truck, Bin Lorry Truck etc. China NO.1 isuzu refuse compressor trucks are mainly designed and produced to collect, compress and transport municiple solid waste.

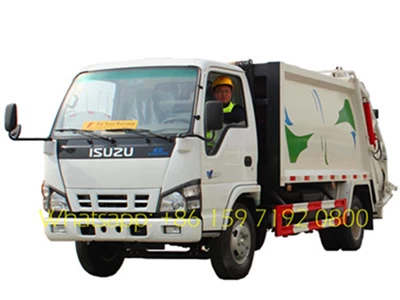

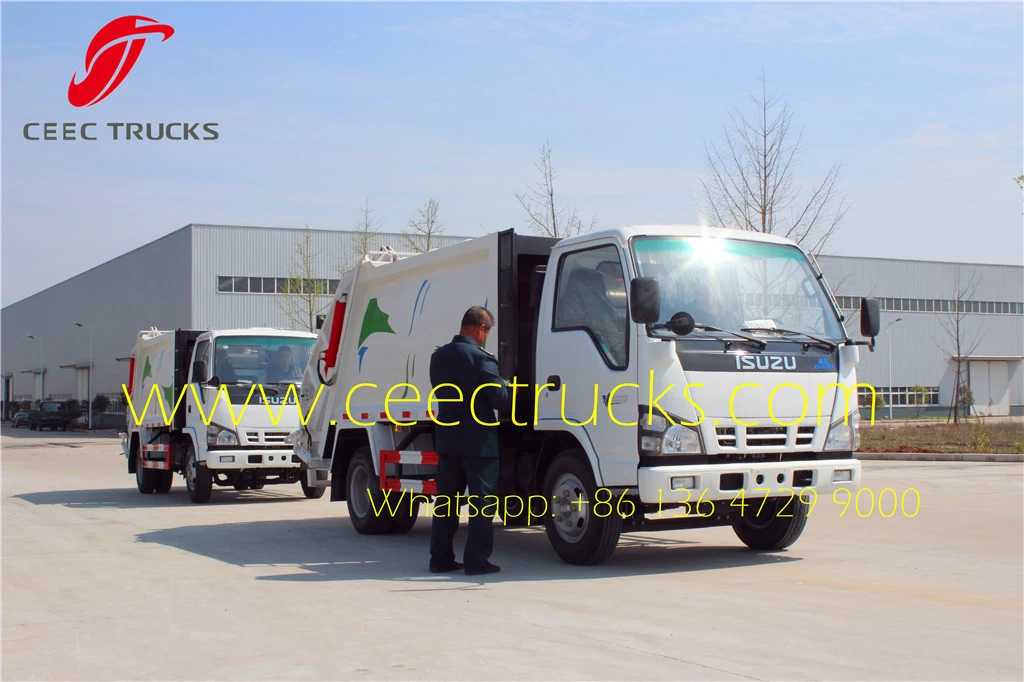

ISUZU 5CBM refuse compression truck

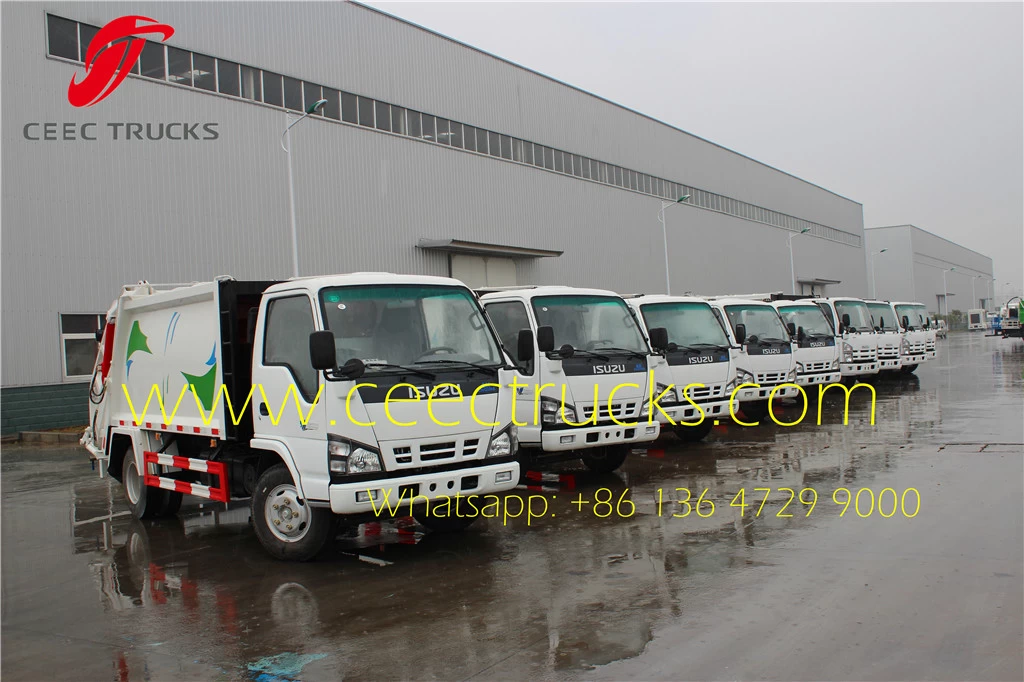

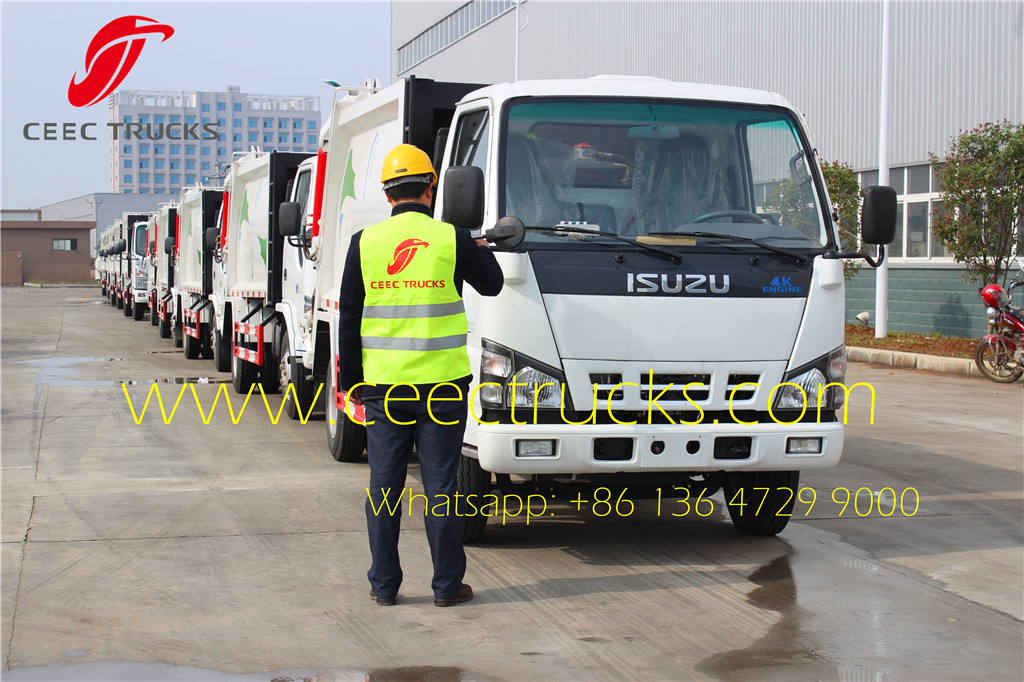

ISUZU 5cbm garbage compactor trucks



Below details will help know what is ISUZU 5 CBM Garbage Compactor Truck:

----Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.

----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.

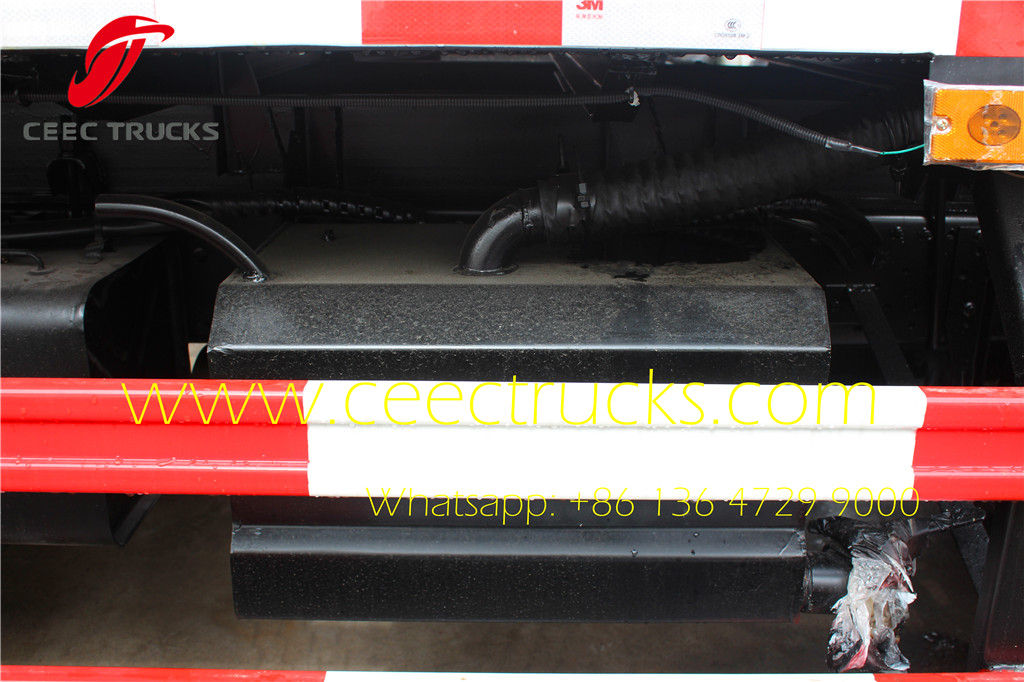

----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution. ----When arriving at destination, thegarbage can be discharged completely.

----The operation system could be manual or electrical control

----It is ideal solution for all kinds of solid wastecollection.

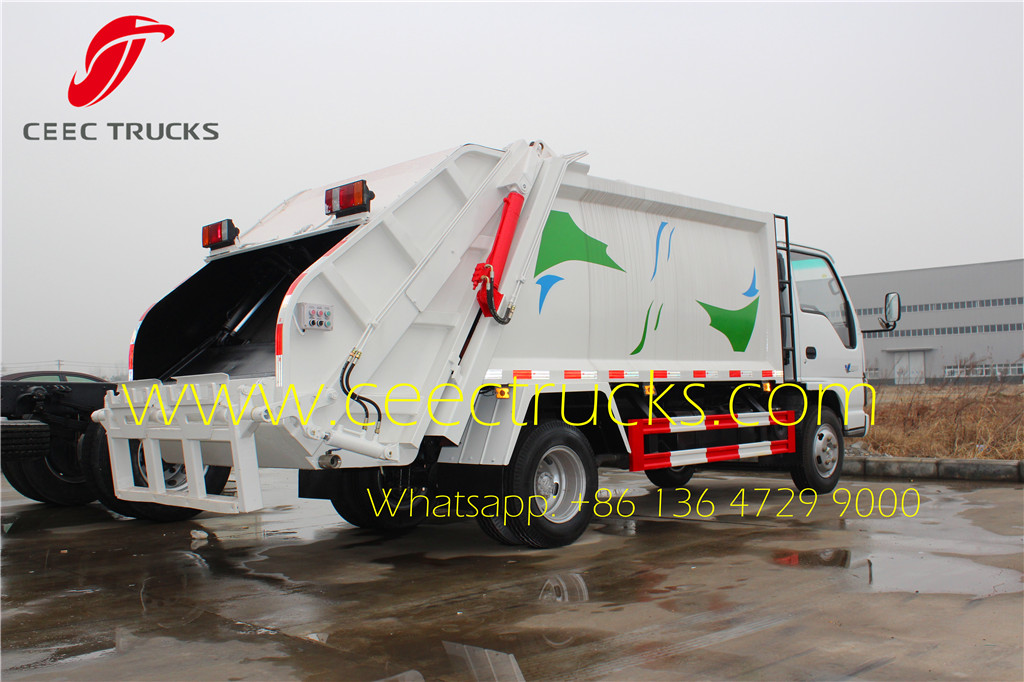

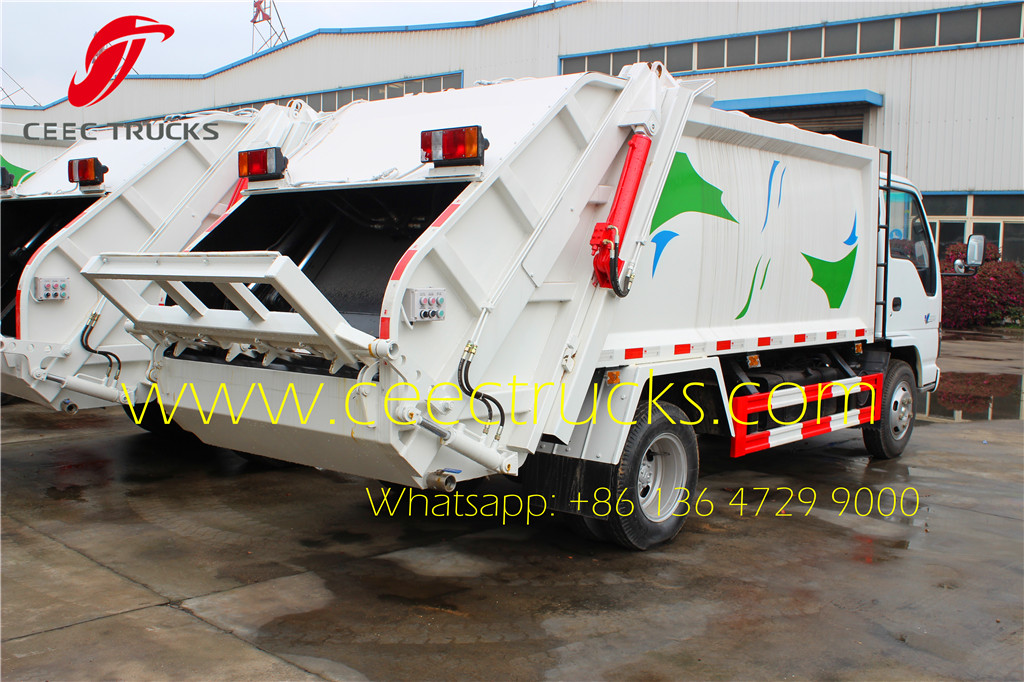

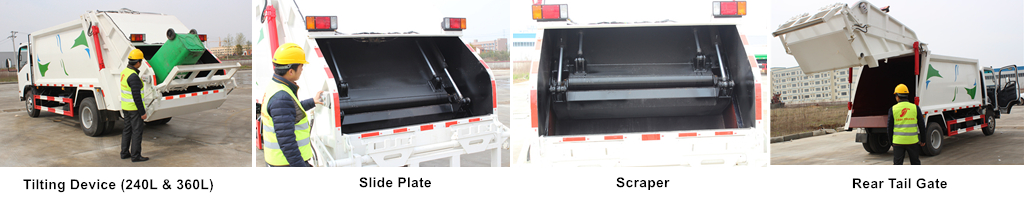

CEEC garbage compactor truck loading system

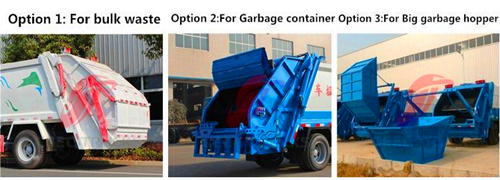

Above show CEEC produced ISUZU 5CBM trash compressor truck Compact System, which mainly consist of Tilting Device (optional for 240L & 360L, 660L & 1100L rubbish bins); Slide Plate; Scraper; Push Plate & Rear Tail Gate. All parts are well-designed, strong structure and light self-weight.

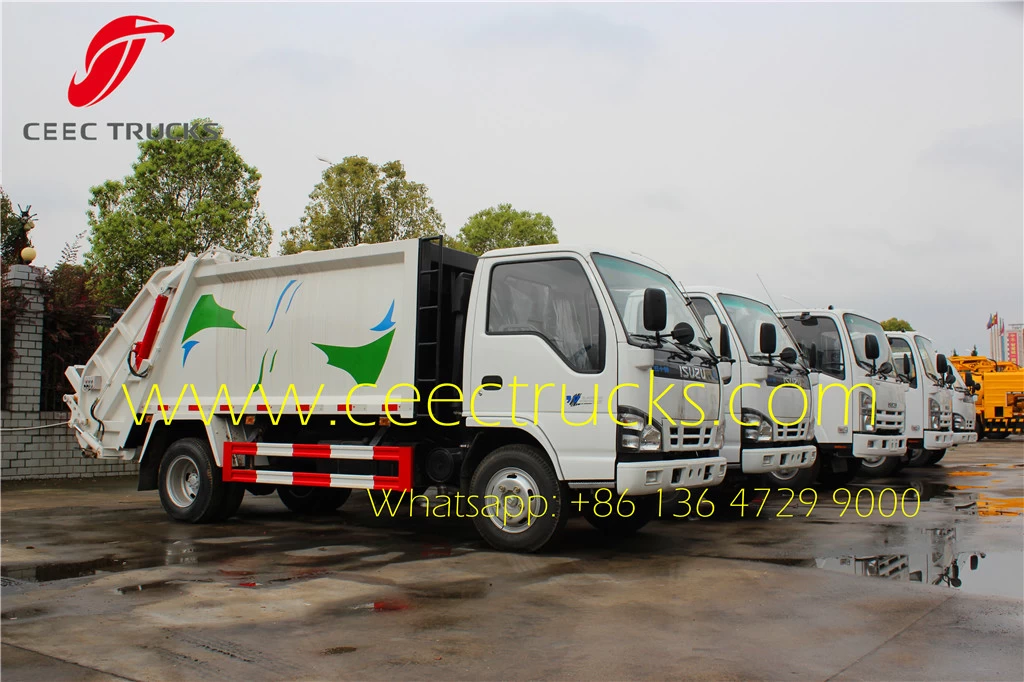

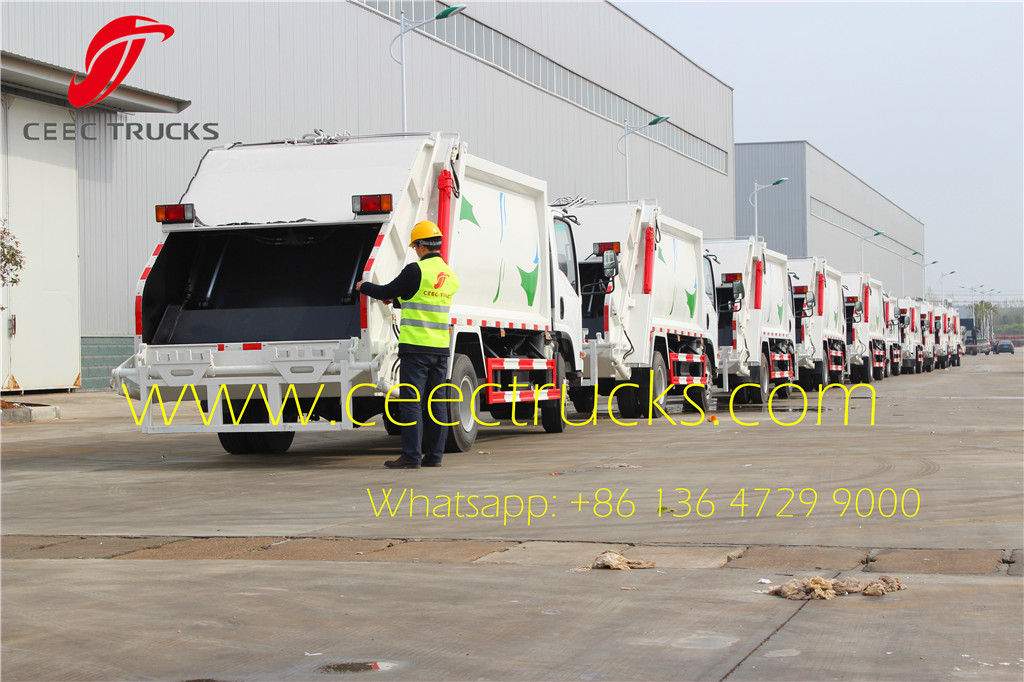

ISUZU 5cbm garbage compactor truck

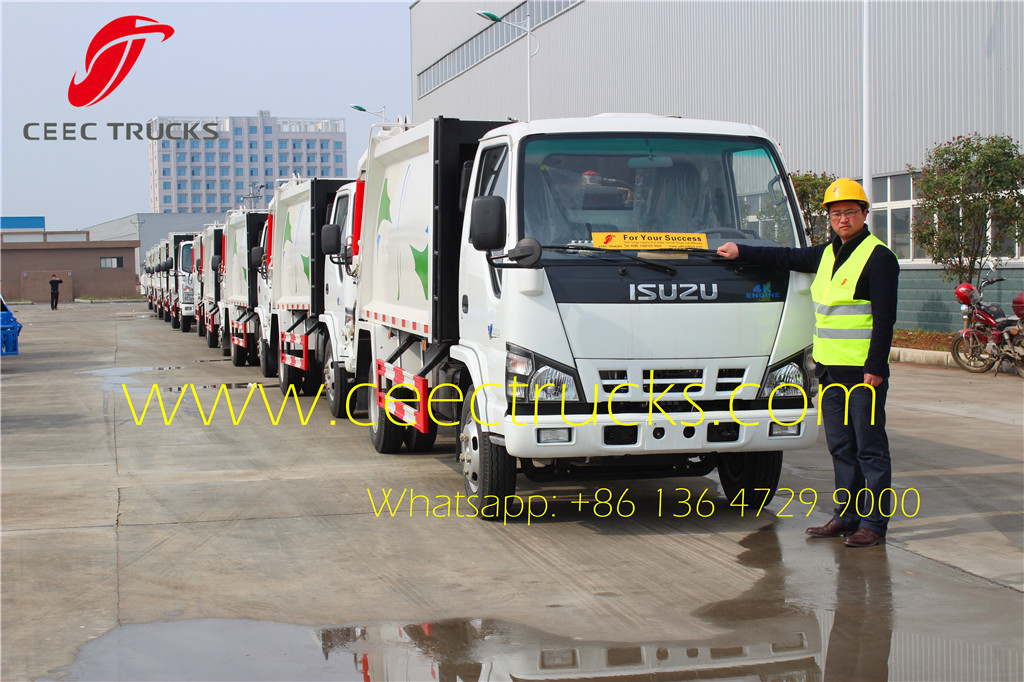

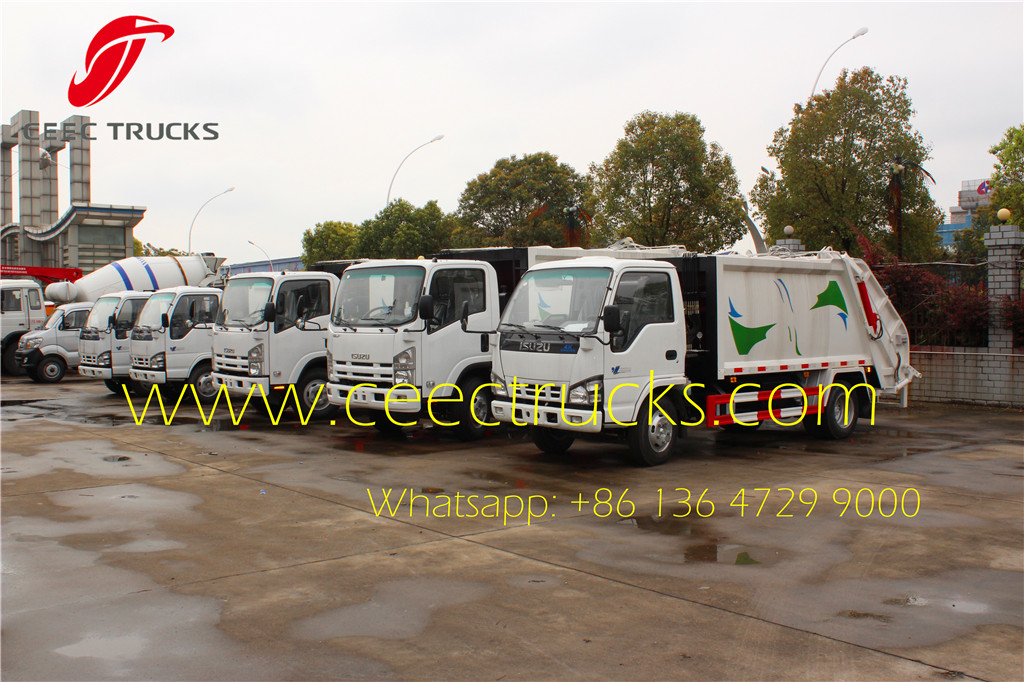

ISUZU 5cbm garbage compactor trucks

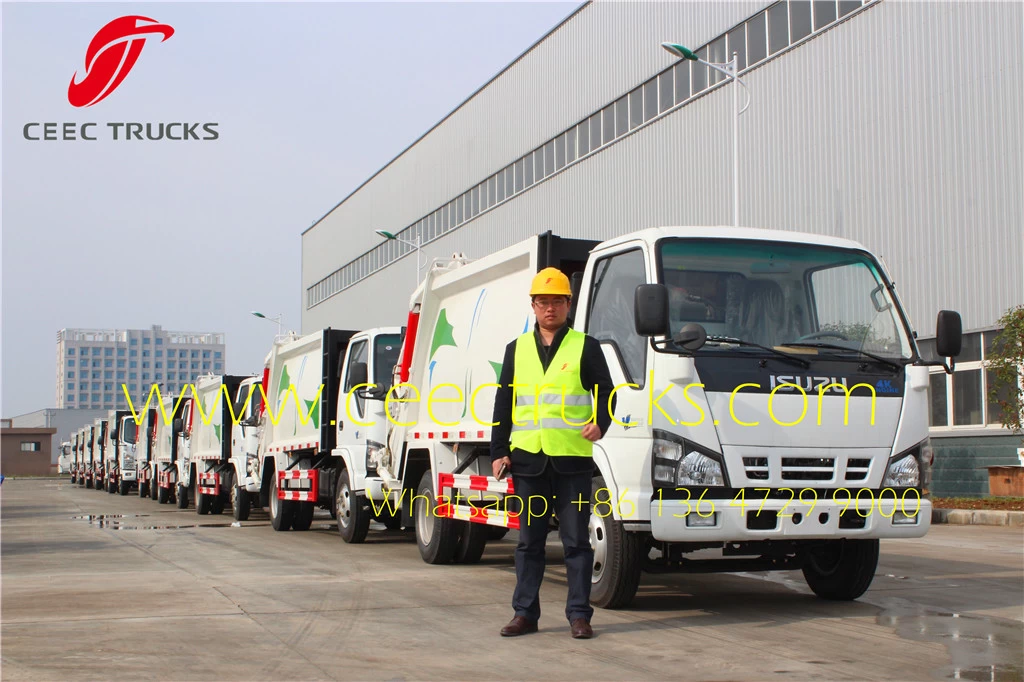

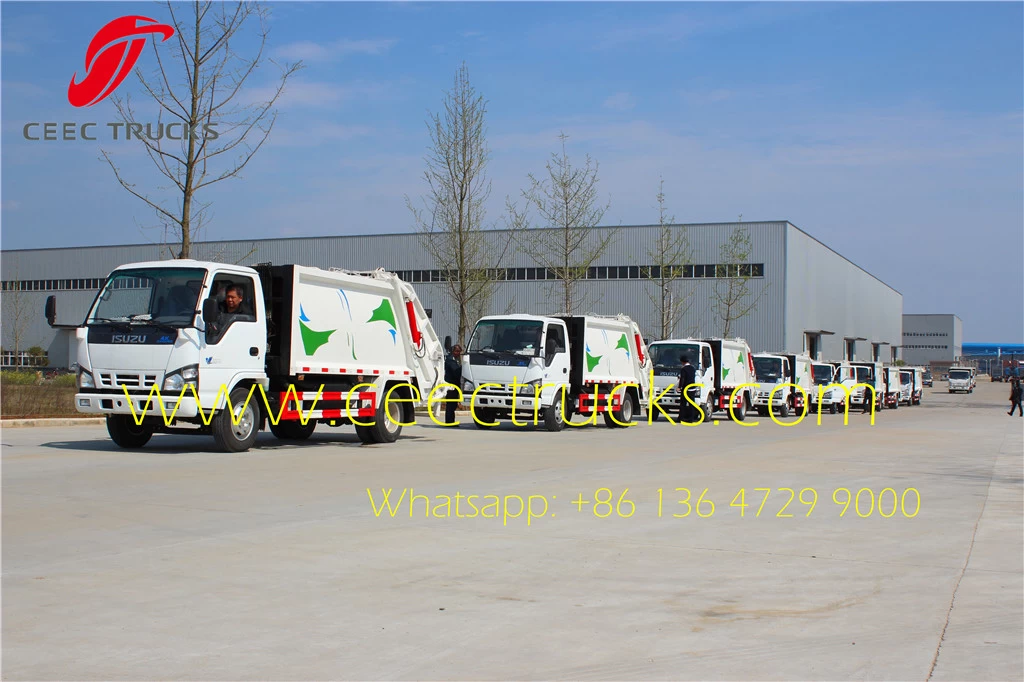

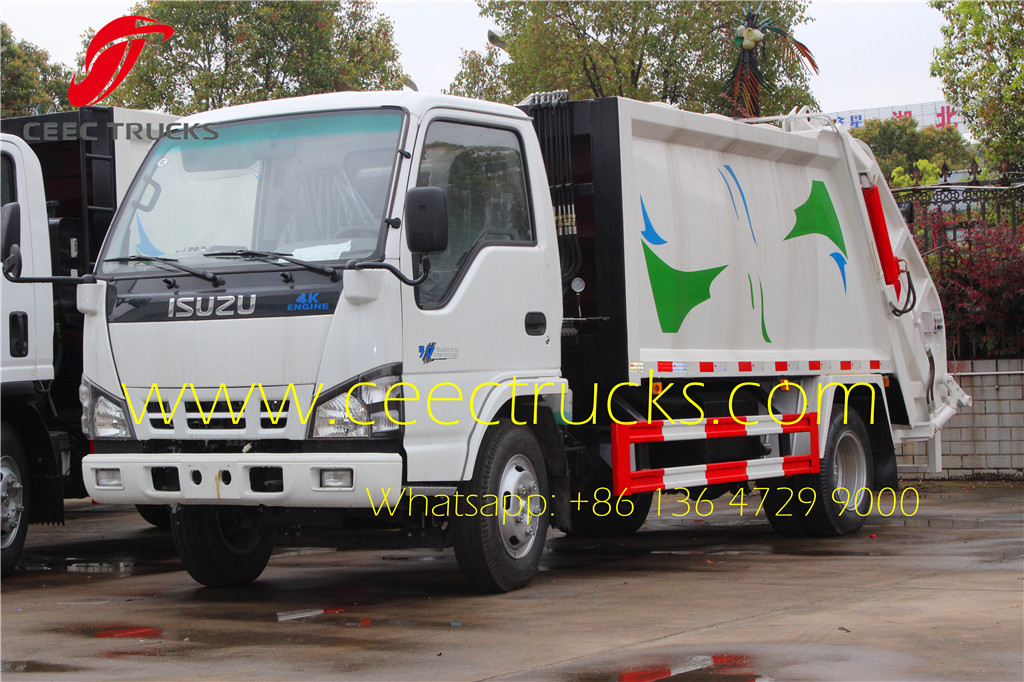

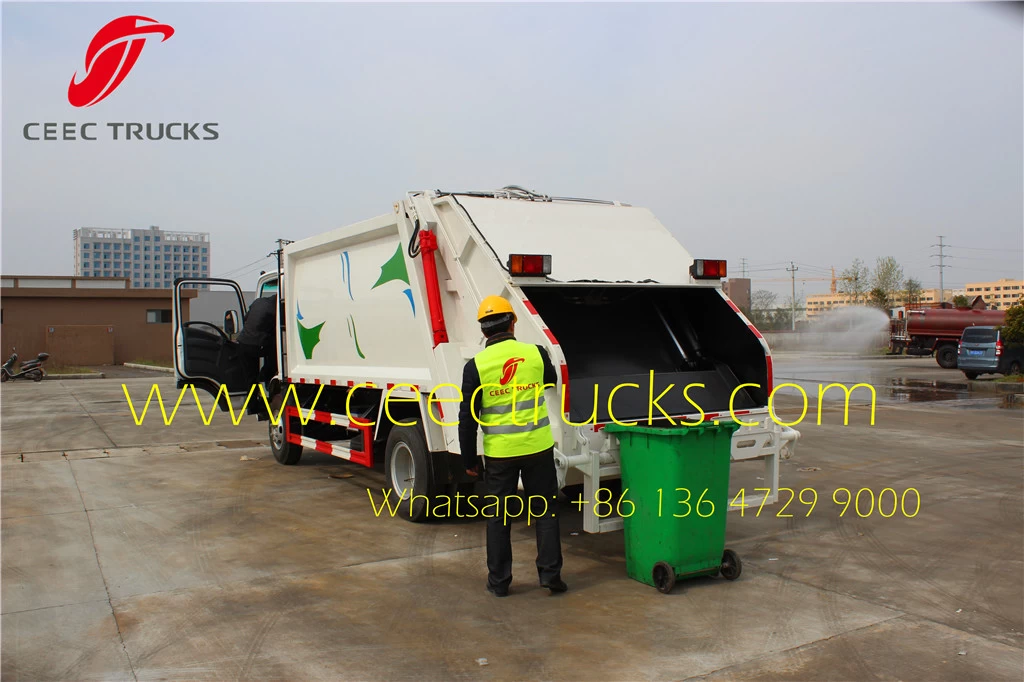

ISUZU 5cbm garbage compactor truck     ISUZU 5cbm refuse compression truck

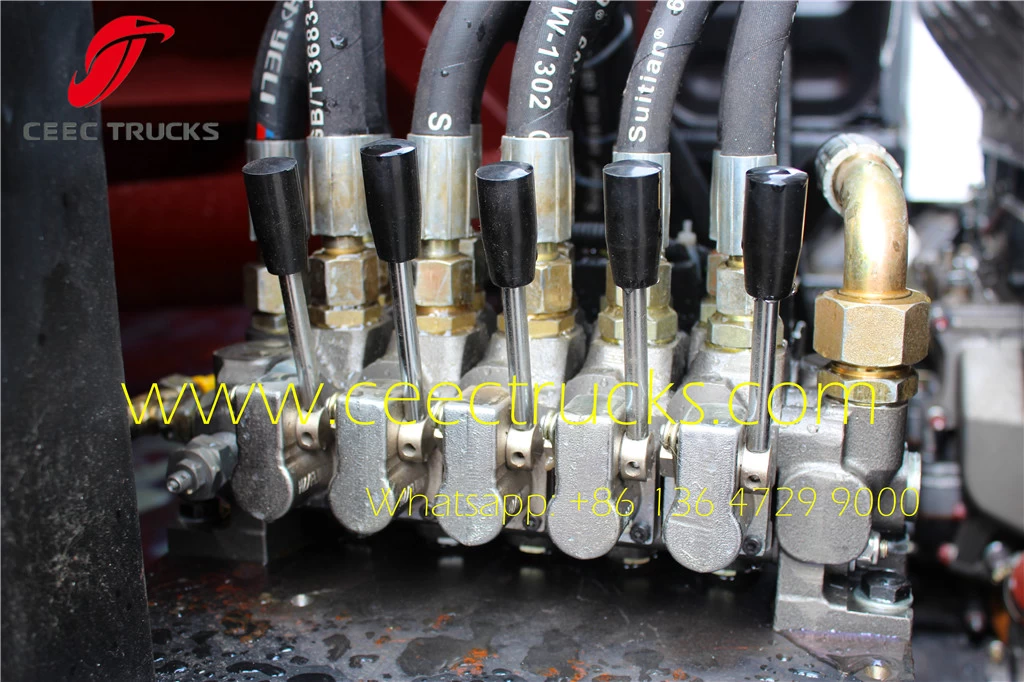

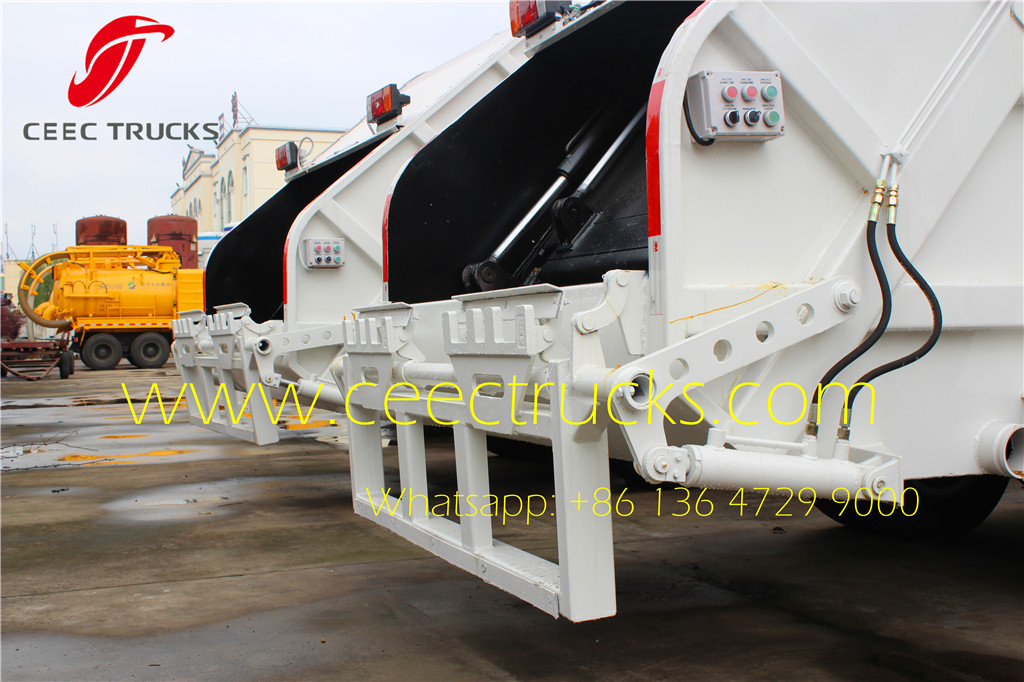

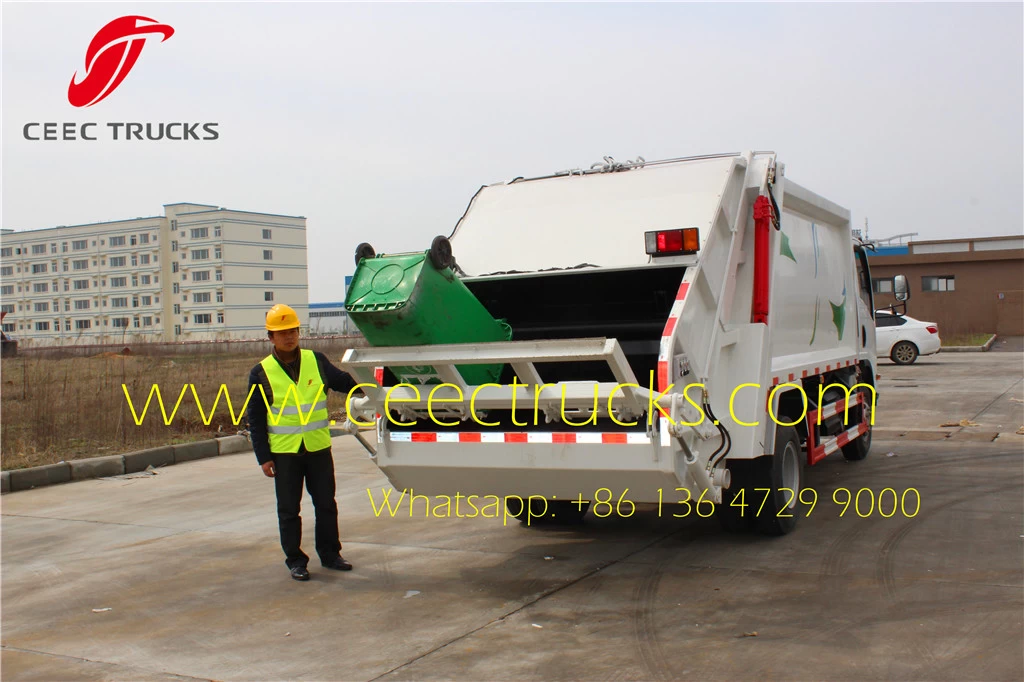

ISUZU 5cbm refuse compression truck tilting device     ISUZU 5cbm refuse compression truck operation joysticks



Similary Key Words: ISUZU 5 CBM garbage compactor truck, waste management trucks, isuzu refuse compression truck, professional rubbish compactor, 5000 L compressed garbage trucks



Items

Parameter

Truck Model

CEEC5060ZYS

Compression Tank Parameter

Tank Capacity

5CBM

Tank Material

Carbon Steel Q235 (Q345 for optional)

Tank Shape

Curved Shape Tank

(Square shape for optional)

Overall dimension (mm)

Length

6150

Width

1950

Height

2550

Tank Thickness

Side

4mm

Floor

4mm

Chassis

Chassis Brand

ISUZU

Drive Mode

4x2

Tire type

7.00-16 tire

Tire No.

6+1 units

Max speed

90 km/h

Cab

1.    Flat roof, All-steel-welded construction

2.    spring suspensions with hydraulic shock absorbers

3.    Air condition

4.    2 seats 1-DIN AM/FM CD/MP3 Player

Engine

Power

70 kw / 95hp

Fuel type

diesel

Emission Standard

Euro 3 & Euro 4

Gearbox

Control type

Manual

Gear

5 forward & 1 reverse

CEEC Compactor Trucks

 Loading Introduction

rear loading system

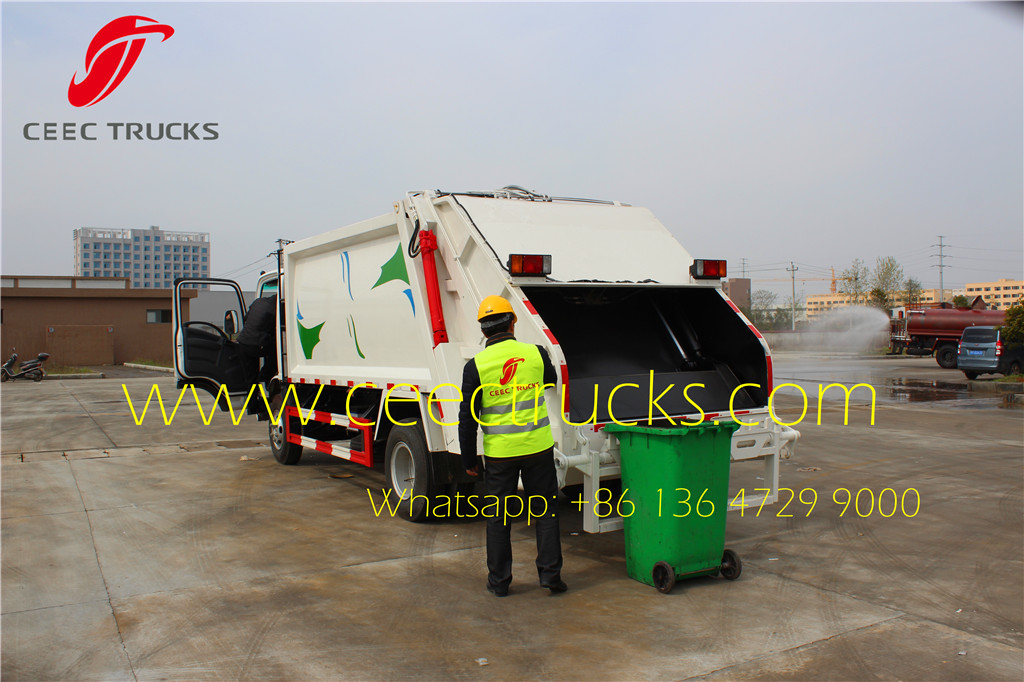

ceec engineer testing isuzu 5cbm garbage compactor truck
