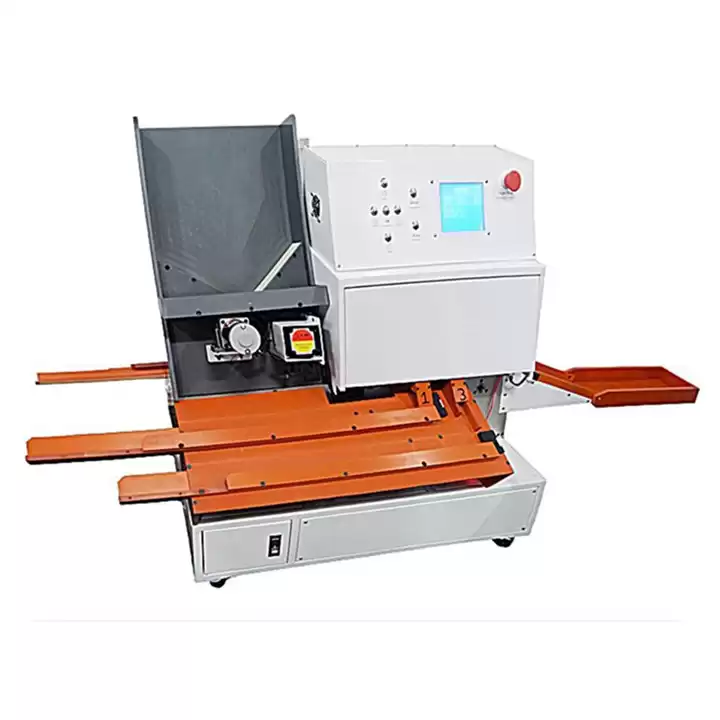

5 Channels Automatic Battery Sorter/ Selector For 18650, 26650 And 21700 Cell

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com

MSK-BS-LD is a high throughput automatic Battery Sorter/Selector for sorting cylindrical 18650, 26650 and 21700 battery cells by voltage and impedance upto 5 groups.

Feature

· A must have equipment for Battery Pack Manufacturer!

· 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells

· Sort by cell's voltage and impedance up to 5 groups

· Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)

· Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale)

· Automatic sorting control

· Fast sorting speed (3000 batteries/hr)

· Easy to refill cells during the process

· Long post test cell trail

· 4 wheels design, easy to move the machine to any operating place.

Input Power

· Voltage: 220 VAC (50Hz/60Hz)

· Power ≤ 150W

LCD Control Panel Screen

· 5.7"

Operation Temperature

· 0-50℃

Compliance

· MET, UL or TUV certificate is available at extra cost

Warning

· Avoid putting objects other than 18650 batteries in pretest battery space

· Be careful not to pinch fingers in operating conveyor

· Do not open the machine when it is operating

· Remove bracelets or any other jewelries before operation

· Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.

Warranty

· One-year limited warranty with lifetime support

Battery Sorter/ Selector

Product Tags cylindrical cells cylindrical load cell cylindrical lifepo4 cells cylindrical battery cells equipment lab the lab equipment cylindrical cell grooving machine cylindrical screen printing equipment electrolytic cell lab

Feature	· A must have equipment for Battery Pack Manufacturer! · 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells · Sort by cell's voltage and impedance up to 5 groups · Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale) · Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) · Automatic sorting control · Fast sorting speed (3000 batteries/hr) · Easy to refill cells during the process · Long post test cell trail · 4 wheels design, easy to move the machine to any operating place.
Input Power	· Voltage: 220 VAC (50Hz/60Hz) · Power ≤ 150W
LCD Control Panel Screen	· 5.7"
Operation Temperature	· 0-50℃
Compliance	· MET, UL or TUV certificate is available at extra cost
Warning	· Avoid putting objects other than 18650 batteries in pretest battery space · Be careful not to pinch fingers in operating conveyor · Do not open the machine when it is operating · Remove bracelets or any other jewelries before operation · Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
Warranty	· One-year limited warranty with lifetime support
