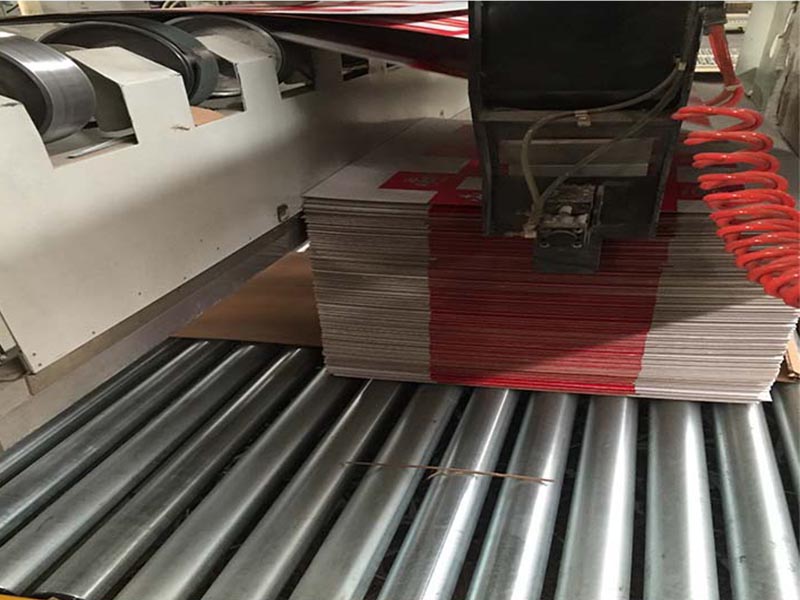

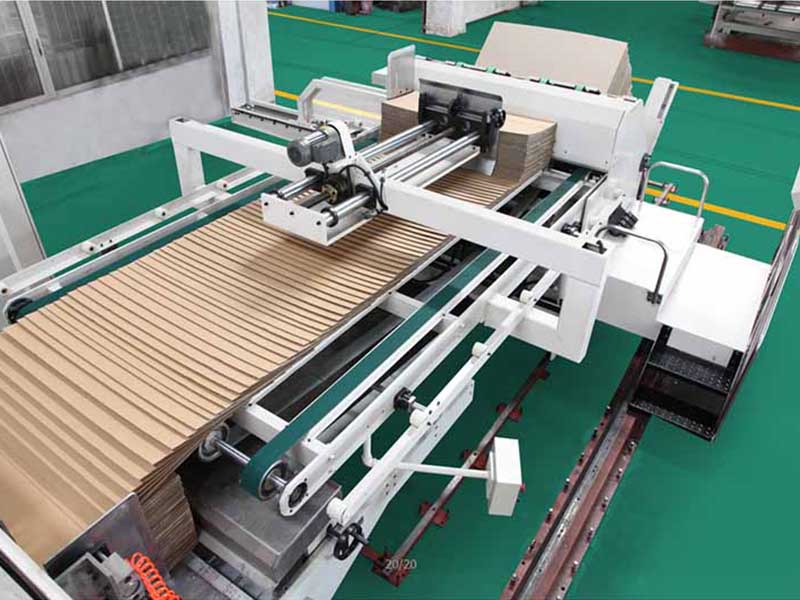

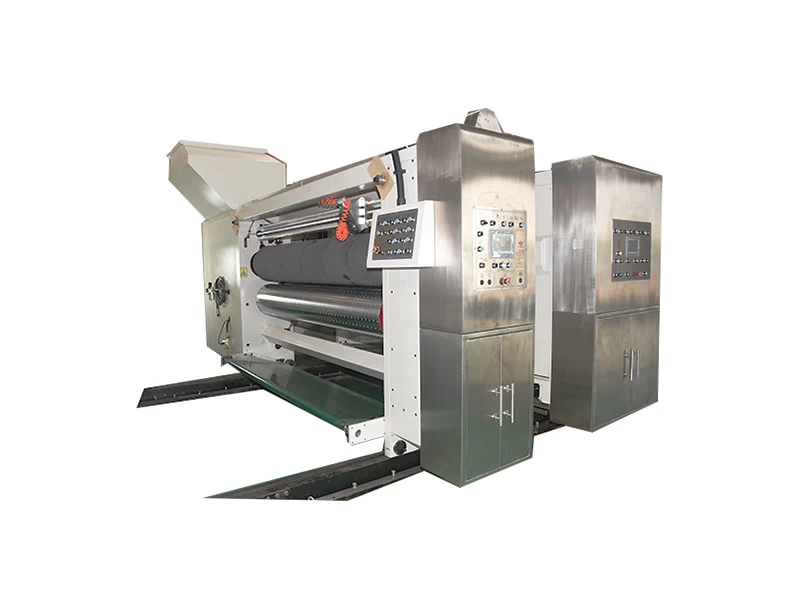

5 Colors Slotter Die Cutter and Stacker

China flexo printer slotter die cutter machine of Model K6 "6+1" high precision printing slotting die cutting, your best choice in China.



5 Colors Slotter Die Cutter and Stacker


Corrugated Printer Slotter Features:

·This corrugated carton pizza printer machinery is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Auto zero return and auto reset.

·All gaps between cylinders and rollers are computerized and/or motorized control.

·Vacuum transfer system used in all printing sections.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·All cylinders and rollers are chromed plated for ideal hardness.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to facilitate the production management.


Feeder Machine for Flexo Printer Specification:

Data/Model
900x2000 900x2400 1200x2000 1200x2400 1200x2800 1400x2400 1400x2800 1600x2800 1600x3200
Printing Speed(m/min)
200 200 200 200 200 200 200 200 200
Max Machine Speed(pcs/min)
300 300 250 250 220 220 200 200 180
Max Feeding Size(mm)
880x2000 880x2400 1180x2000 1180x2400 1180x2800 1380x2400 1380x2800 1540x2800 1570x3200
Min Feeding Size(mm)
280x640 280x640
320x700 320x700
320x700
350x700 350x700 420x760 420x760
Skip Feeding(mm)
1100x2000 1100x2400 1500x2000 1500x2400 1500x2800 1700x2400 1700x2800 1900x2800 1900x3200
Max Printing Area(mm)
800x2000 800x2400 1150x2000 1150x2400 1150x2800 1320x2400 1320x2800 1540x2800 1540x3200
Thickness of Printing Plate(mm)
7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2
Min Panel(mm) Slot Type L.
240x80x240x80 240x80x240x80
260x90x260x90
260x90x260x90
260x90x260x90
260x90x260x90
260x90x260x90
280x100x280x100
280x100x280x100
Max Slotting Depth(mm)
250 250 320 320 320 320 320 560 560
Max Thickness of Sheet(mm)
8 8 12 12 12 12 12 12 12
Dimension(LxWxH)
T
F

T:11659X4240X3200

F:12079x4240x3200

T:11659X4800X3200

F:12079x4800x3200


T:13015X4400X3500

F:13550x4400x3500


T:13015X4800X3500

F:13550x4800x3500


T:13015X5220X3500

F:13550x5220x3500


T:13570X4830X3500

F:14028x4820x3500


T:13570X5220X3500

F:14028x5220x3500


T:14021X5220X3500

F:14071x5220x3500


T:14021X5719X3500

F:14071x5719x3500



Flexo Printer Slotter Rotary Die Cutter Advantages:

1.CNC control system (Intelligent Control)

2.Environmental protection and energy saving, use washable ink;

3.Printing accuracy can be ±0.15-±0.3mm;

4.Printing plate can be 90-130LPI;

5.Varnishing and die-cutting unit are available.


Packaging Details:

Package/piling: Good hard steel pallet strengthen and fixed, packing with transparent plastic-film, class and numbering, cannot extrusion and stacker.
