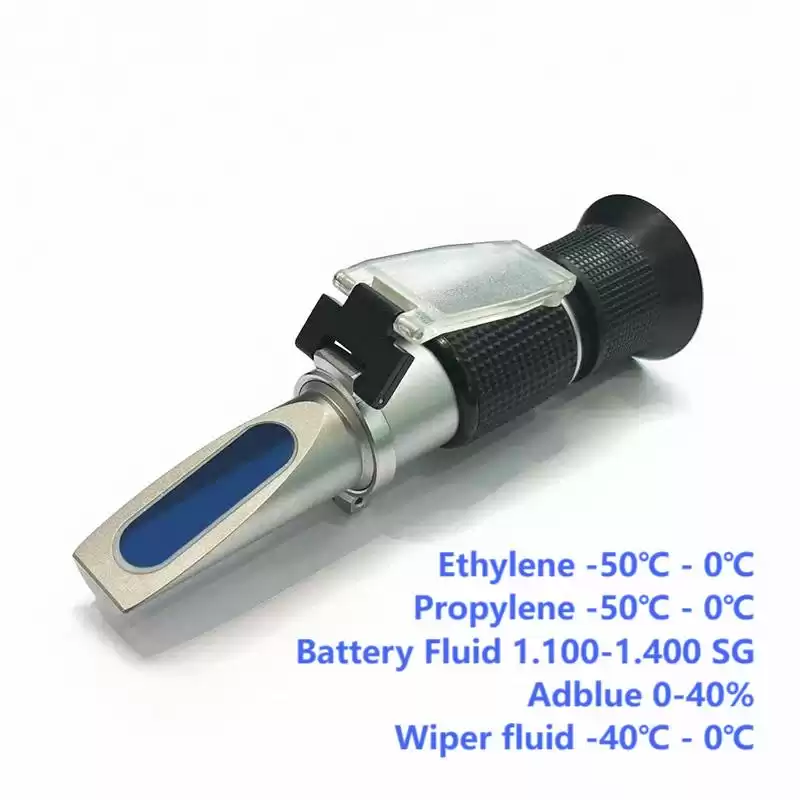

5 in 1 Coolant DEF(Adblue) Refractometer ATC, Automotive Coolant Tester for Battery Fluid Windshield Cleaner

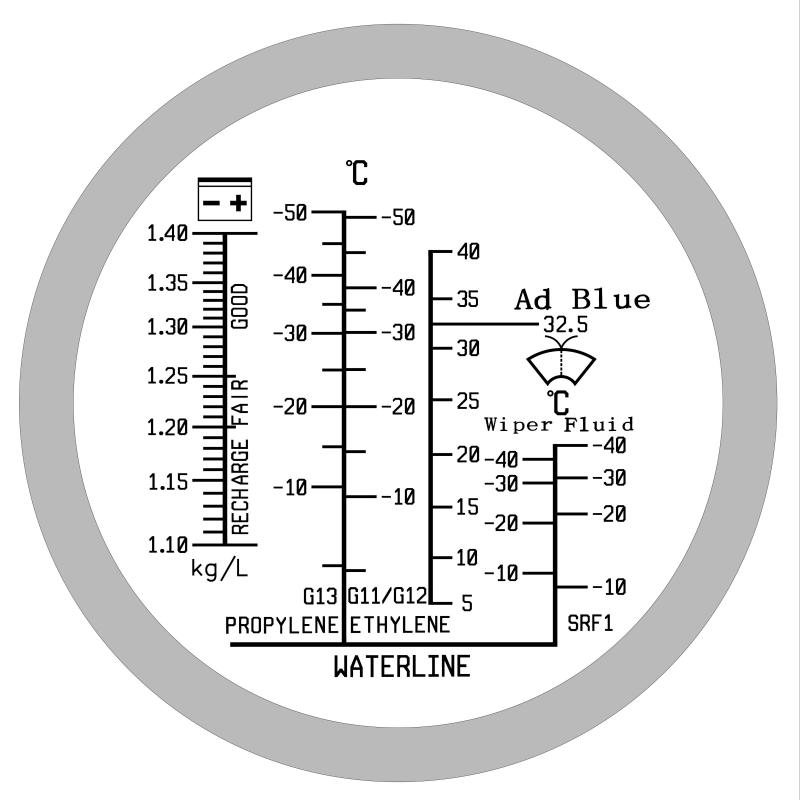

The RHAN-504A model handheld antifreeze, Adblue and battery acid refractometer has four functions:

1. It measures the freezing point temperature of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the tested solution begins to freeze.
2. It measures the freezing point temperature of windshield cleaning fluid.
3. It measures the urea concentration in Diesel Exhaust Fluid (DEF) to determine whether the solution meets the required standards.
4. It measures the specific gravity (SG) of battery fluid, to determine battery health.
5. This model is excellent for automotive maintenance professionals, fleet service providers, and manufacturers who require a versatile, reliable tool for monitoring multiple fluid systems in vehicles. Its compact design, ease of use, and multi-functionality make it a valuable instrument in both workshop and field environments.

Product Features

Versatile 5-in-1 Fluid Tester

 Measures coolant freezing point, DEF (AdBlue) urea concentration, windshield washer fluid freezing point, and battery fluid SG—ideal for full vehicle fluid diagnostics.



Copper Alloy Construction

 Durable and thermally stable for accurate readings in tough workshop or field conditions.

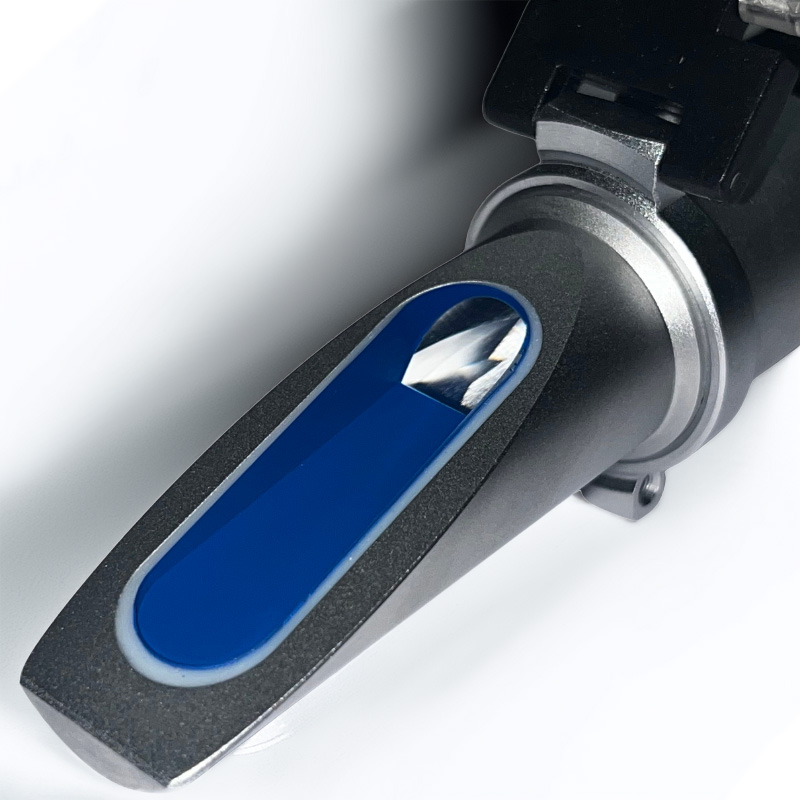

Crown Glass Prism

 Reduces refractive deviation and improves optical accuracy for clear, reliable measurements.



Automatic Temperature Compensation (ATC)

 Provides consistent, accurate results across varying ambient temperatures.







Typical Applications

- Comprehensive Vehicle Servicing

 Used by automotive technicians for full fluid inspection during routine maintenance or seasonal preparation.

- DEF (AdBlue) Concentration Testing

 Verify urea concentration in diesel exhaust fluid to maintain emission system performance and prevent injector damage.

- Coolant System Checks

 Measure freezing points of ethylene and propylene glycol coolants to ensure proper engine protection in all weather conditions.

- Fleet and Equipment Maintenance

 Ideal for managing fluid performance across trucks, buses, agricultural machinery, and industrial vehicles.





Product Parameters

Model	RHAN-504A
Net Weight	0.24kg
Length	153mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC
