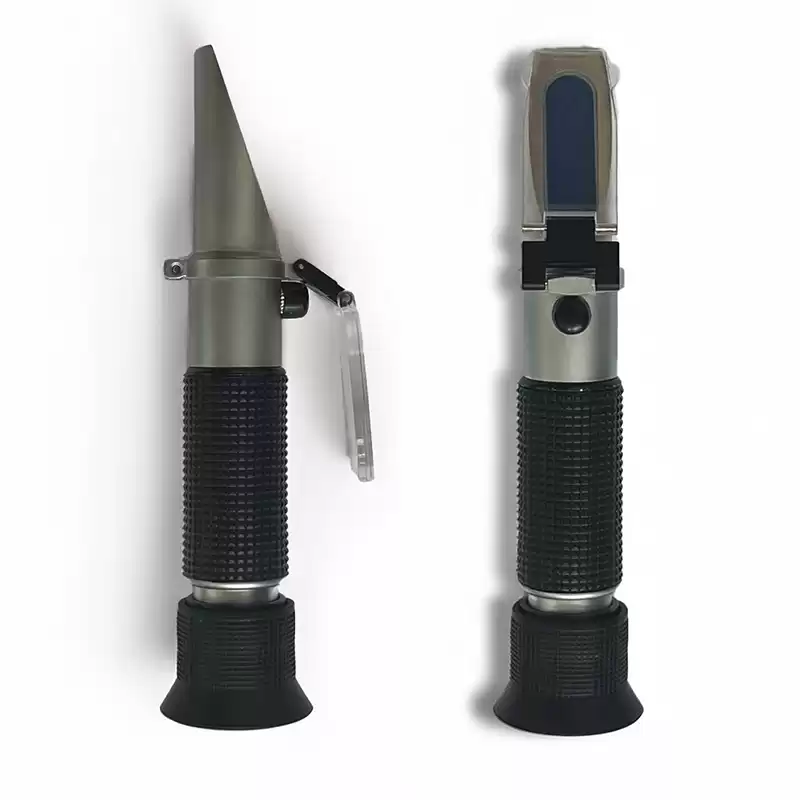

5-in-1 Coolant DEF(Adblue) Refractometer ATC, Coolant Freezing Point Tester for Ethylene Propylene Battery Fluid Adblue Windshield Cleaner

The handheld coolant DEF(Adblue) and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant and cleaning fluid protection in cold climates , proper DEF concentratiln monitoring, and accurate assessment of lead-acid battery charge levels.

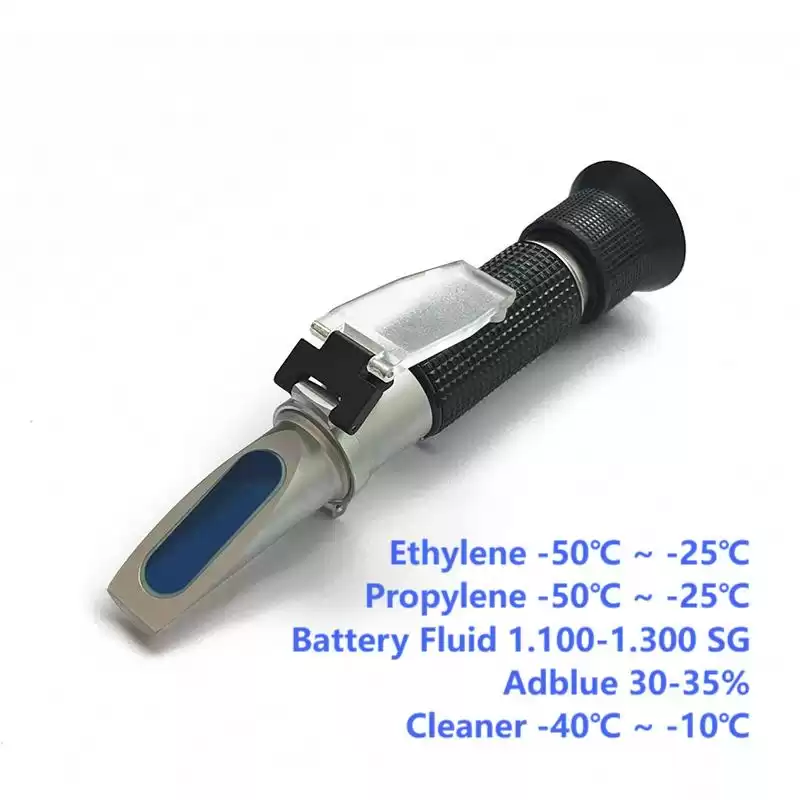

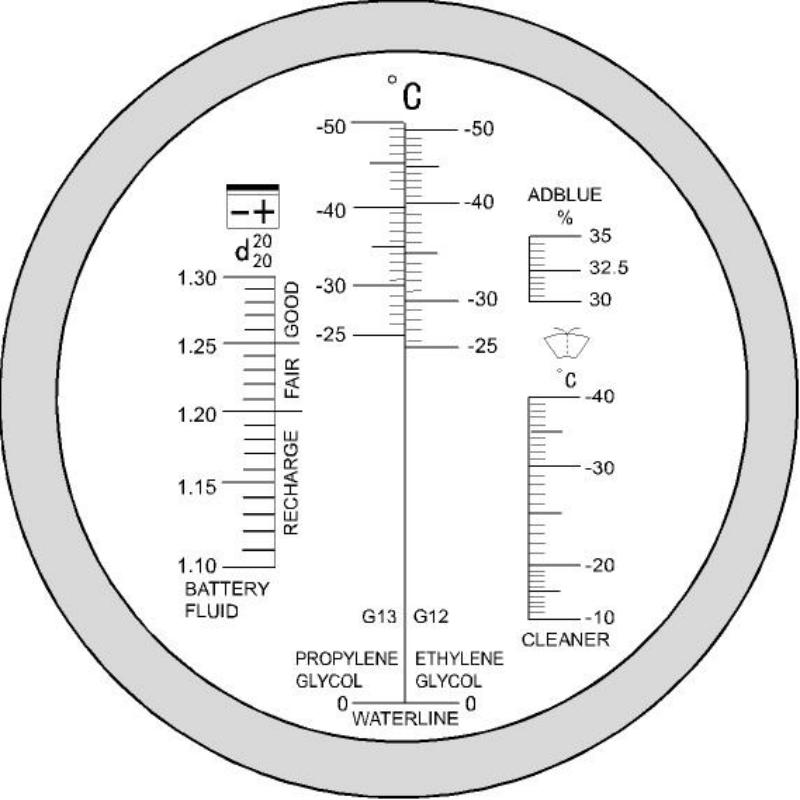

The RHAN-605A model handheld antifreeze, DEF and battery acid refractometer has four functions:

1. It measures the freezing point temperature of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the tested solution begins to freeze.
2. It measures the freezing point temperature of windshield cleaning fluid.
3. It measures the urea concentration in Diesel Exhaust Fluid (DEF) to determine whether the solution meets the required standards.
4. It measures the specific gravity (SG) of battery fluid, to determine battery health.

Product Features

5-in-1 Diagnostic Tool

 Combines multiple fluid tests into one device—ideal for full vehicle servicing with a single instrument.



Copper Alloy Body

 Durable, thermally stable housing ensures long-term accuracy and resistance to workshop wear.

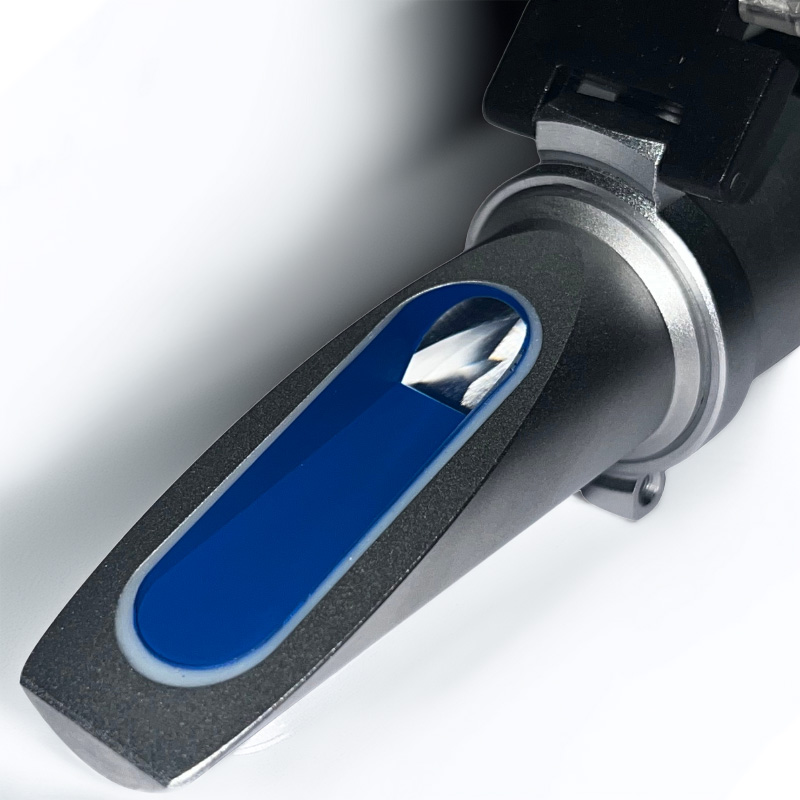

Crown Glass Prism

 Improves optical clarity and reduces distortion for sharper, more accurate readings.



Automatic Temperature Compensation

 Delivers consistent readings without manual adjustment across varying ambient conditions.





Typical Applications

- Vehicle Maintenance and Inspection

 Used during routine service to verify the condition and performance of essential automotive fluids.

- Fleet and Equipment Servicing

 Ideal for maintaining coolant, DEF, battery, and washer fluid standards across trucks, buses, and heavy-duty machinery.

- Mobile Technician and Garage Use

 Perfect for service vans and repair shops needing a compact, multi-purpose fluid tester.

- Regulatory Compliance and DEF Monitoring

 Verify urea concentration in DEF systems to maintain emissions compliance in diesel vehicles.





Product Parameters

Model	RHAN-605A
Net Weight	0.25kg
Length	170mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC

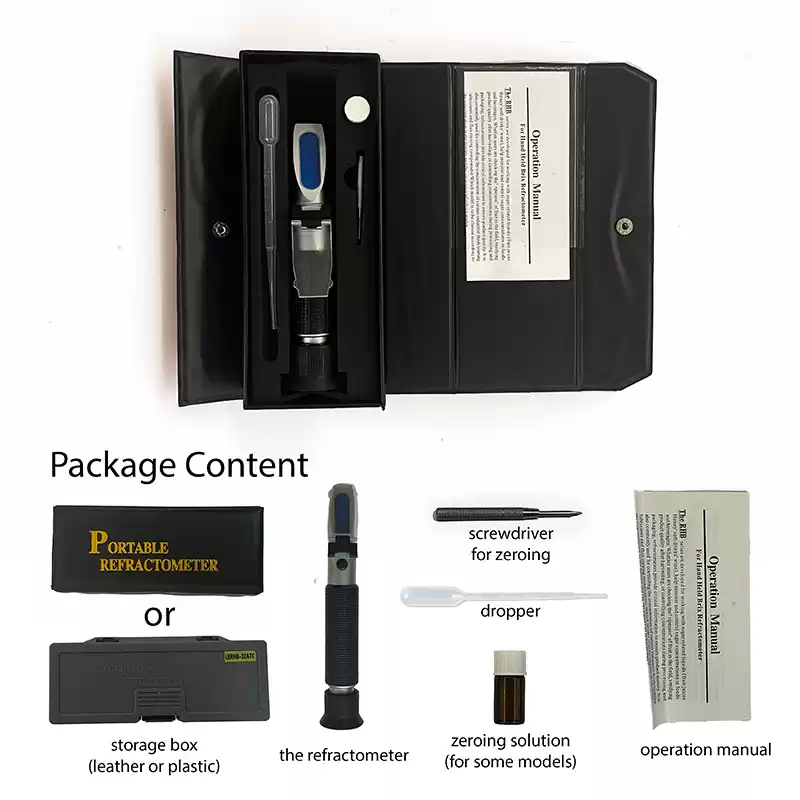

Packaging

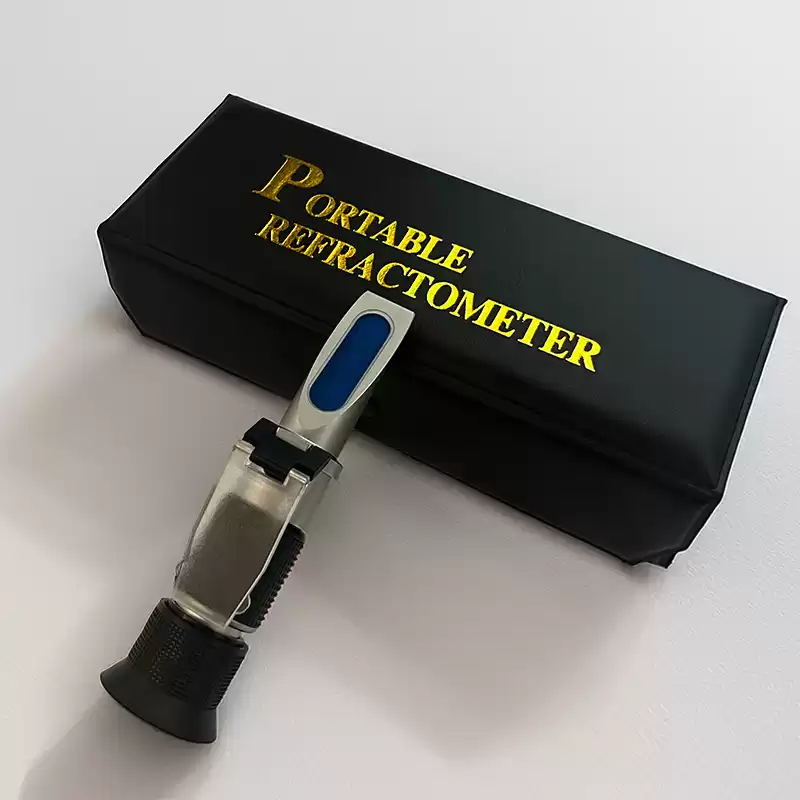

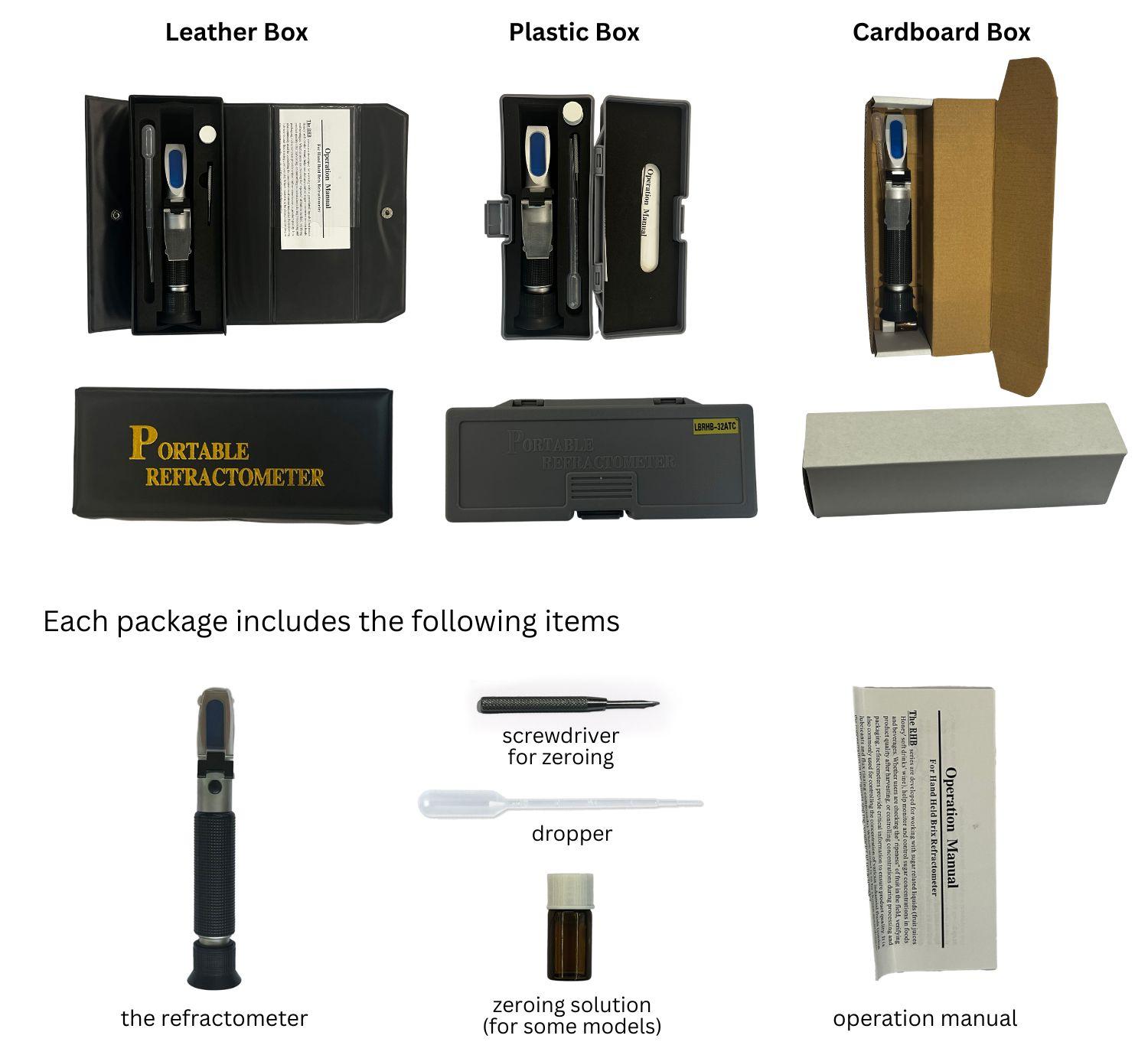

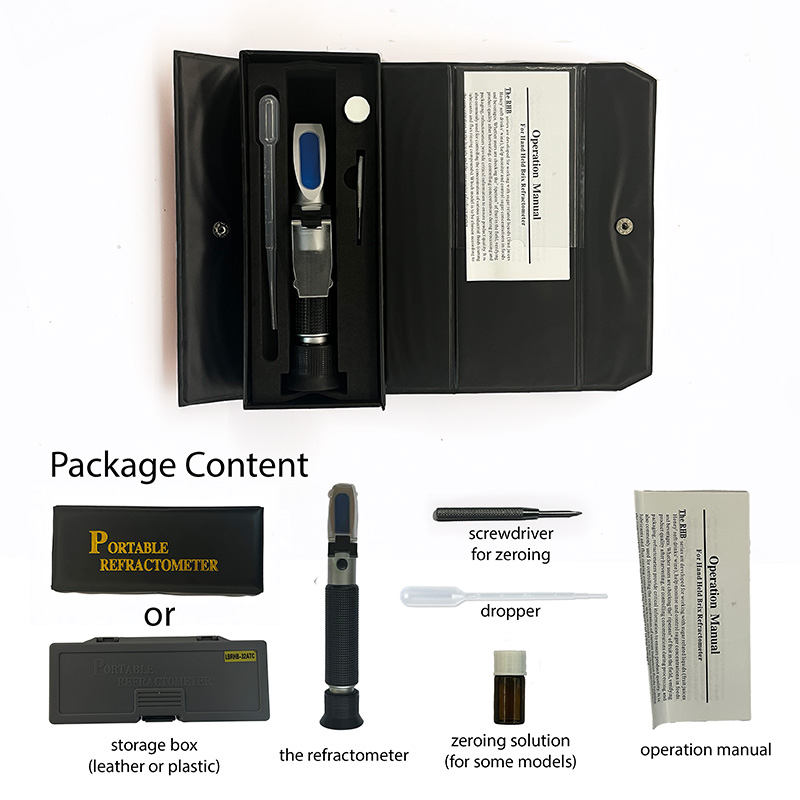

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.
