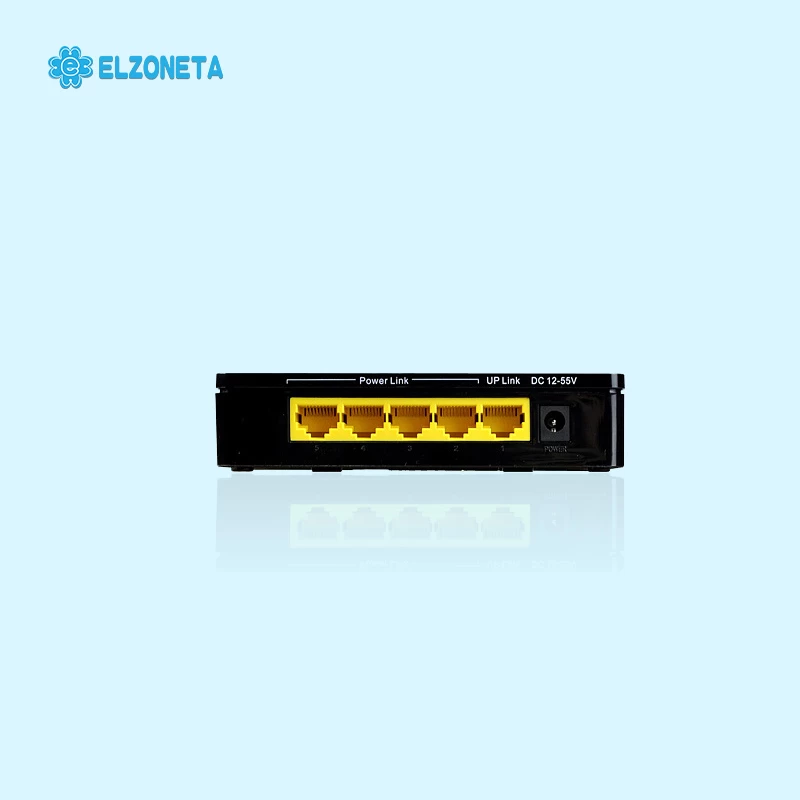

EC-JNS01-5CH 5 Ports S PoE Switch
5 ports 15V 4A PoE Switch has 1 uplink port is used for Modern or NVR,and other 4 ports is power supply transmission port.
Specifications
Standards and Protocol:IEEE 802.3 10Base-T，IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
Backboard bandwidth:1G
Mac Address Capacity:2K
Network Interface:5 RJ45 ports (10/100Mbps),Support auto MDI / MDIX
Interface:port 1 is uplink port(without power),it is used for Modern or NVR, Port 2,3,4,5 is power supply transmission port
RJ45 core:1,2,3,6 is date transmission port, 4 & 5 is positive electrode, 7 & 8 is negative electrode
Transmission distance:Uplink is 100 meters, power port can reach 70-100 meters with 0.5 oxygen-free copper cable
Power Supply:DC 15V 4A
Operating temperature:0 to +40℃
Operating Humidity:10 to 90%
Color/Material:Black / Plastic
Size:125×77×31cm
Weight:0.3KGS
Accessories in package:
15V 4A Power Supply X 1
Power cable X 1
RJ45 POE splitter X 4
User Manual X 1
