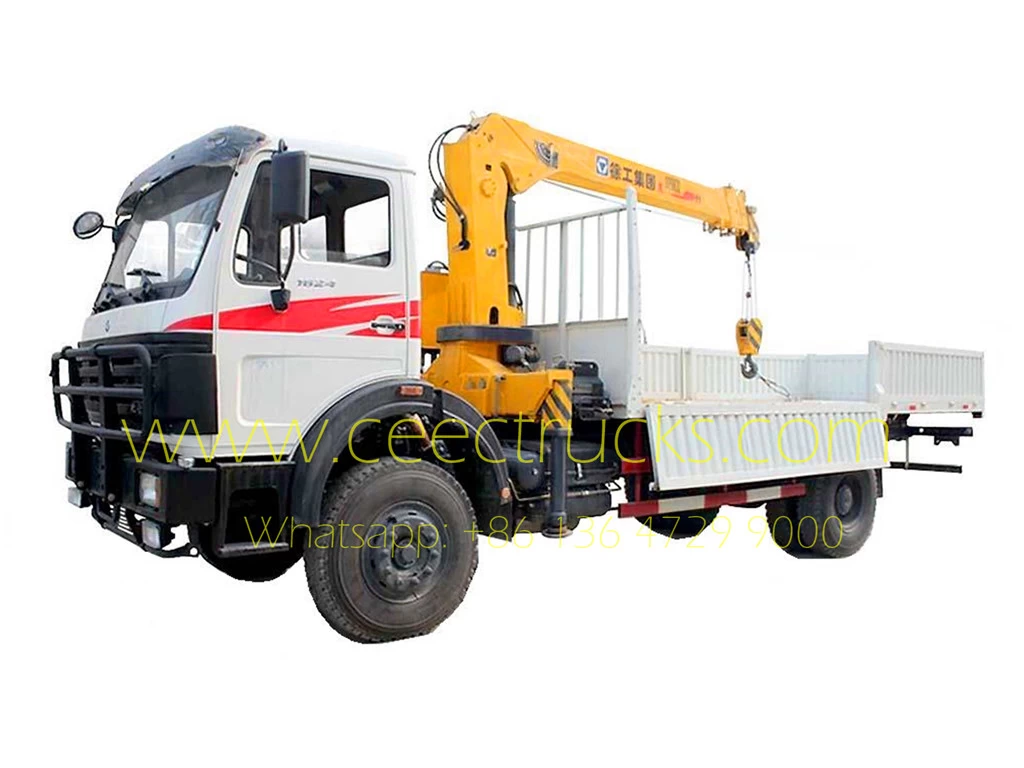

5 T BEIBEN crane truck

Beiben brand 5T telescopic boom crane trucks for sale, WEICHAI brand diesel engine WP10.300 model with 300HP, FAST Manual 9-shift gearbox for hot sale, 9-forward & 1 reverse, with Left hand drive and Right hand drive model for optional. Equipped with 5T telescopic boom crane, also have Remote Control for choose

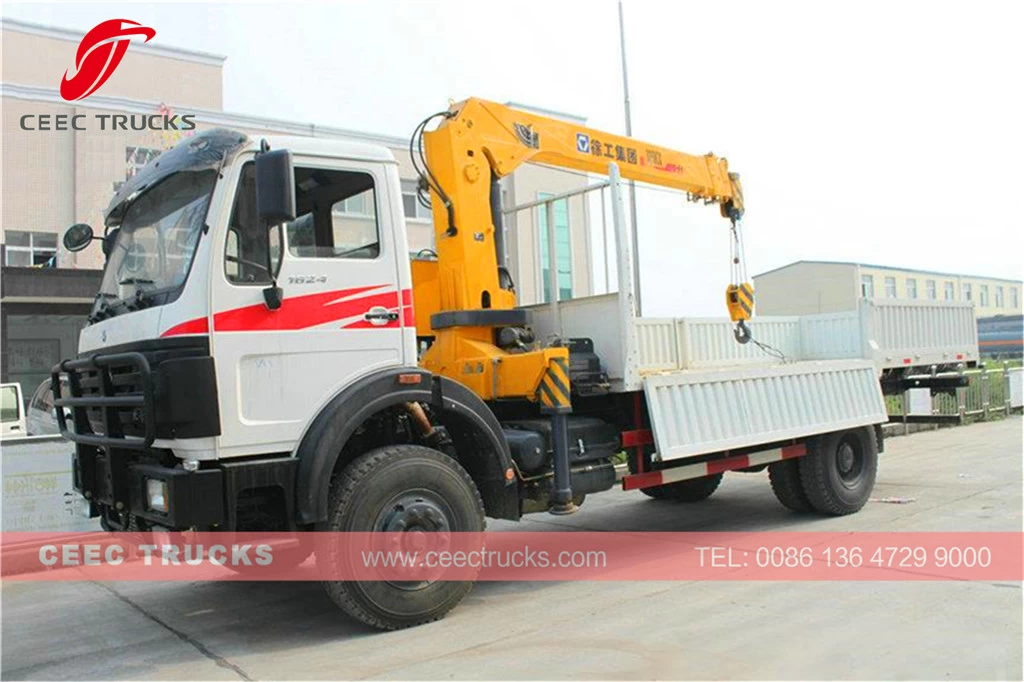

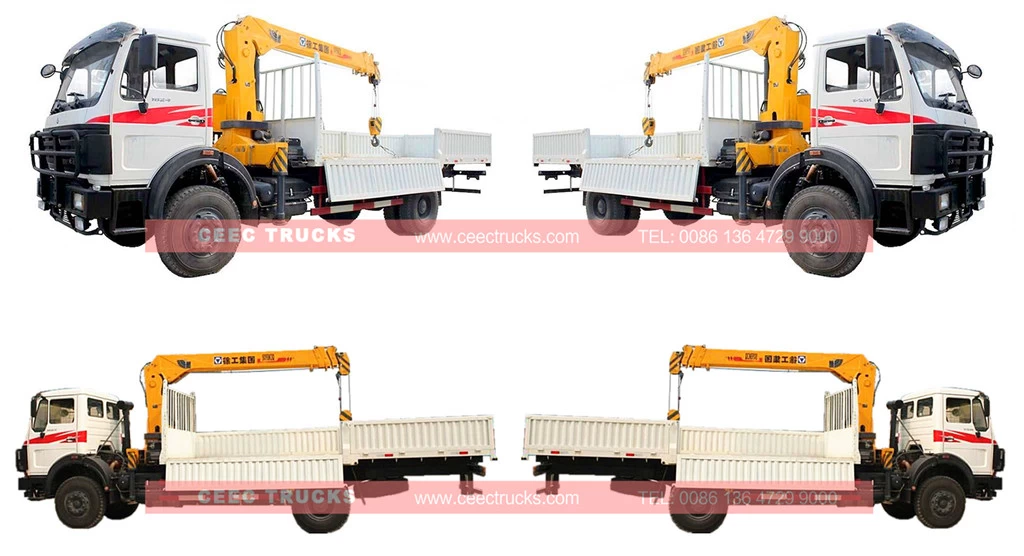

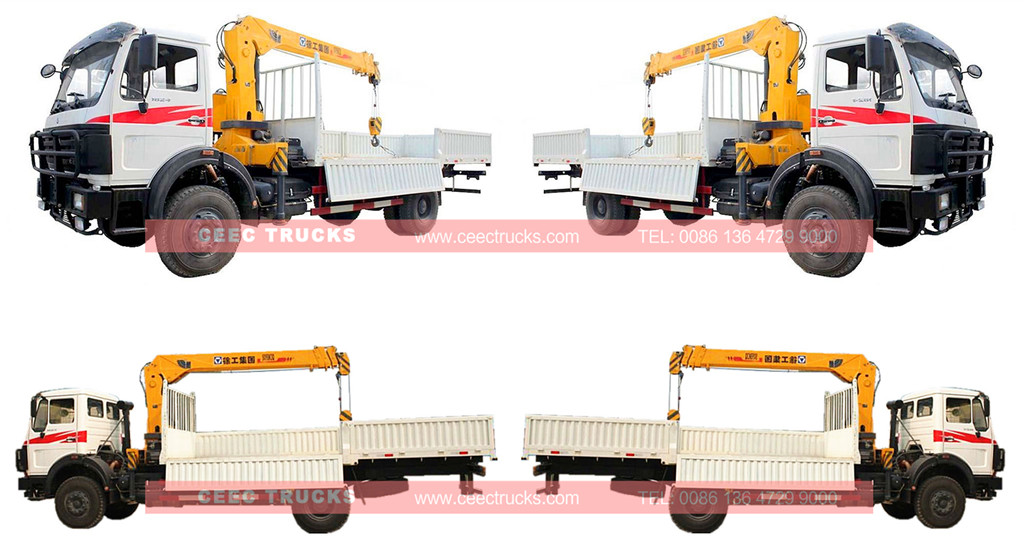

BEIBEN 5T mounted crane trucks for sale



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- BEIBEN chassis ensures perfect performance on driving

---- WEICHAI technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:

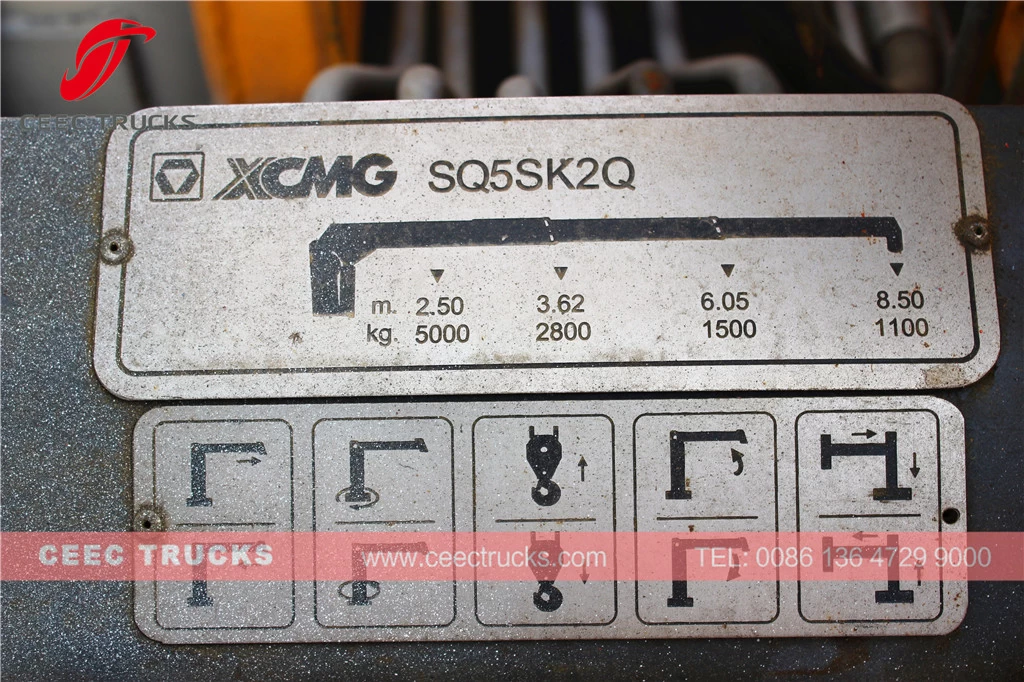

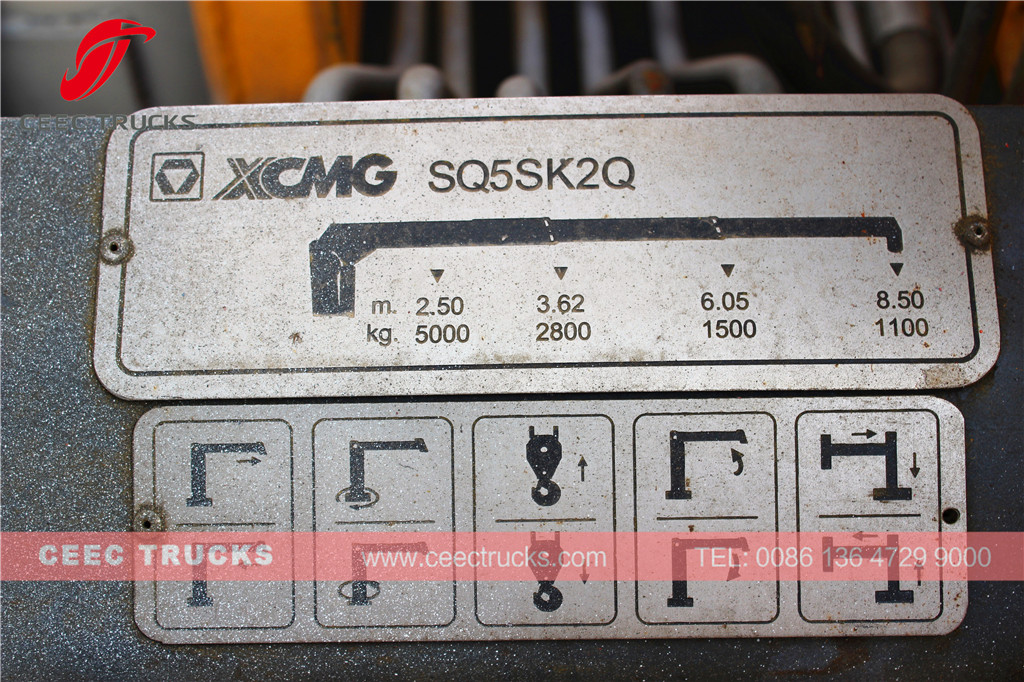

BEIBEN Mounted Crane truck (5Ton boom crane SQ5SK2Q)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

BEIBEN

Overall Dimension

8380 * 2500 * 3680 mm

GVW / Kerb Weight

16,000kg / 9,700kg

Cab

Cab Capacity

2+1 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

SINOTRUK

Power

300 HP (220 KW)

Displacement

9726 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (Left hand drive or Right hand drive)

Transmission

FAST Manual 9 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

11.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4500*2300*600 mm

Crane Type

Telescopic boom crane

Max Lifting Capacity

5000 kg

Slewing Angle

360° All rotation

Crane Weight

2120 kg

Installation Space

900 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional



SINOTRUK HOWO 5T truck mounted crane drawing
