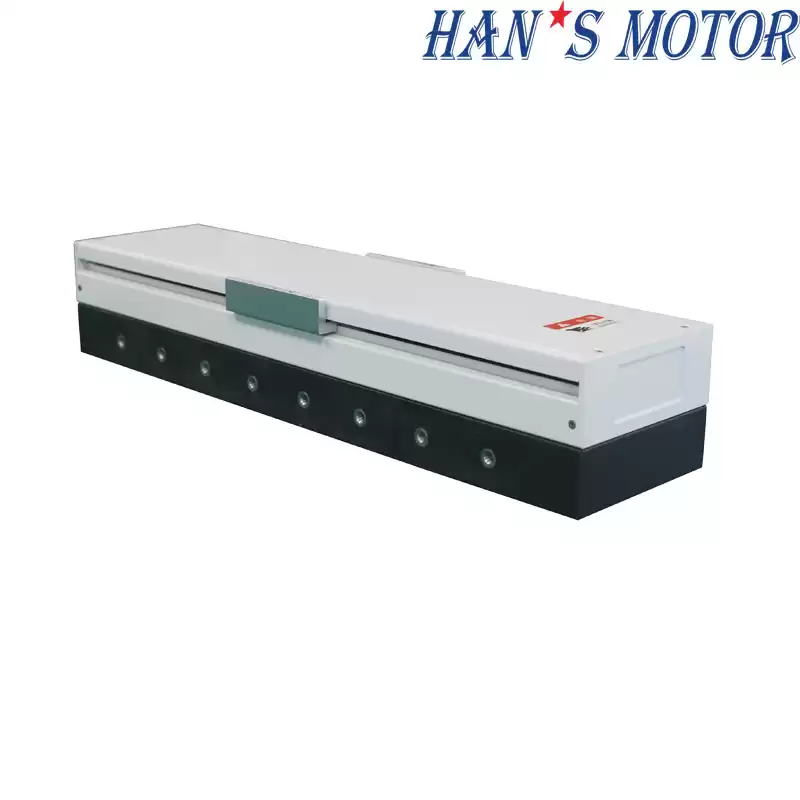

Products Name: 50-1200mm stroke ball screw linear motion platform （LMP90 Series)
Product Specifications
Motor Model/Parameter
|
Parameter\ Motor Model
|
Unit
|
F521
|
|
Continuous Force (Tmax）
|
N
|
96.5
|
|
Peak Force
|
N
|
441.2
|
|
Motor Constant
|
N//SqrtW
|
10.9
|
|
Max.Continuous Power Dissipation
|
W
|
77.8
|
|
Continuous Current (Tmax）
|
Arms
|
4.2
|
|
Peak Current (1S)
|
Arms
|
19.2
|
|
Force Constant (25℃，±5%）
|
N/Arms
|
23.1
|
|
Back EMF Constant (25℃，±5%）
|
Vrms/rad/s
|
7.7
|
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
1.9
|
|
Inductance(25℃，±20%）P-P
|
mH
|
4.4
|
|
Max Coil Temperature
|
℃
|
120
|
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
20
|
|
Magnetic Attraction
|
KN
|
0.67
|
|
Mover Mass
|
Kg
|
1.05
|
Linear Motor Stages Selection
|
LMP90-F521-xxx-xxx-A
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
6
|
10
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
405
|
505
|
605
|
705
|
805
|
905
|
1005
|
1105
|
1205
|
1305
|
1405
|
1505
|
|
Stage Weight (kg)
|
7.4
|
8.5
|
9.7
|
10.9
|
12.0
|
13.2
|
14.4
|
15.5
|
16.7
|
17.9
|
19.0
|
20.2
|
|
Sliding Table M (mm)
|
175
|
|
Motion Parts Weight (kg)
|
3.1
|
Product advantages:
Kindly instruct us your requirements, and we would assist you in the product selection. Some parameters you can provide:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
6. Stages structure
Free product manual and 3D model and good quality with a reasonable price can be provided.
