50-150mm Thickness Rock Wool Sandwich Panel For Metal Wall Cladding System

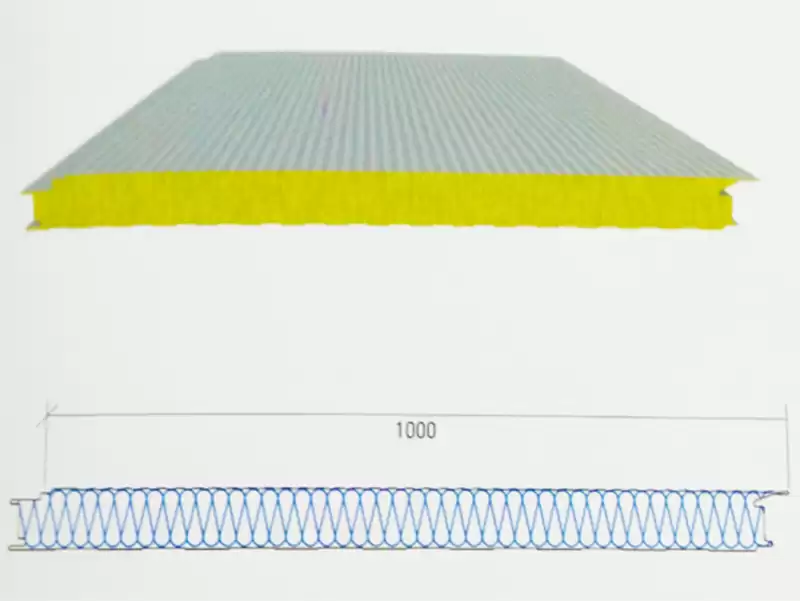

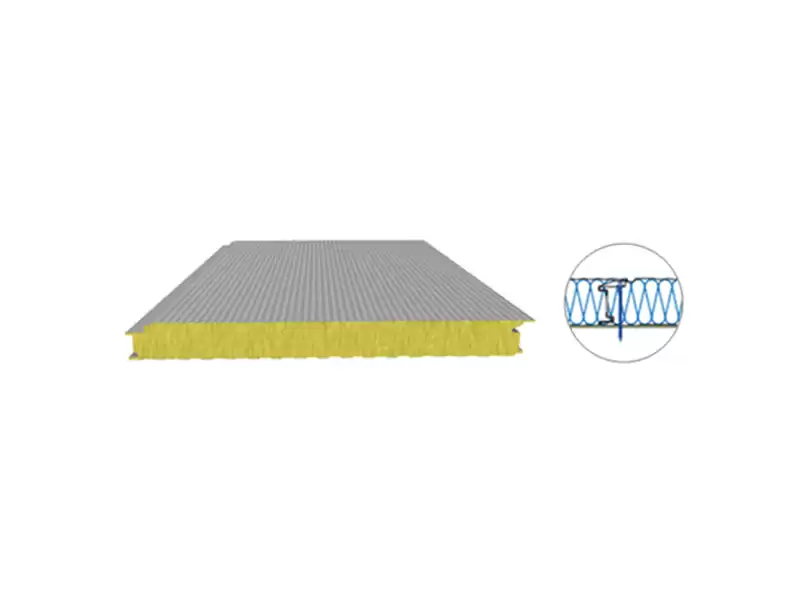

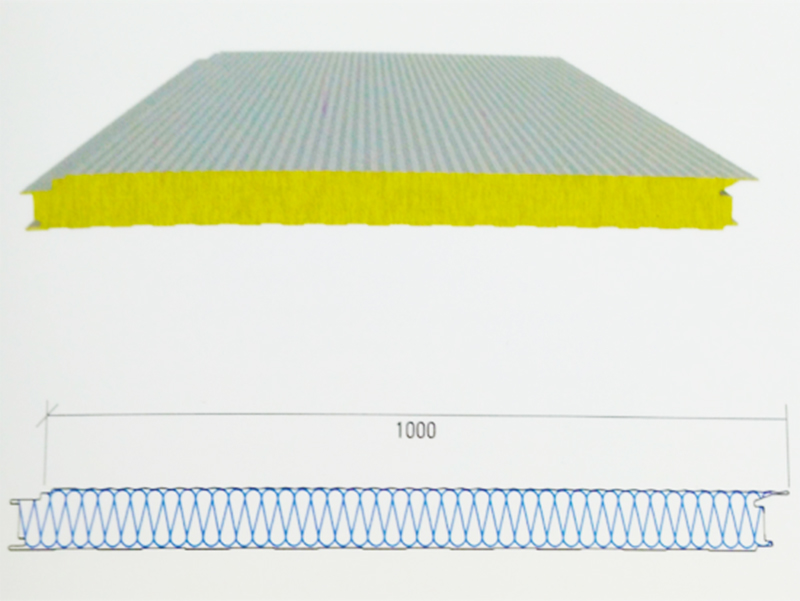

Rock wool sandwich composite panel is a commonly used composite building material. The same as other types of structural insulated panels, it is also made up of two layers of structural board and one insulation core. The steel plates as outer skins offer this composite panel great strength, and the rock wool insulation material provides it with great thermal insulation.



50-150mm Thickness Rock Wool Sandwich Panel For Metal Wall Cladding System


Product Introduction

In order to meet the higher fire-proof requirement of buildings, Wiskind has launched the high-quality rock wool sandwich composite panel. The product uses high-quality water-proof rock wool as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.


Product Parameters

Brand of steel plates

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates

0.4mm-0.6mm.

Thickness of core

50mm/75mm/100mm/120mm/150mm.

Density of core

64kg/m³

Effective width

950mm

Panel Length

According to customers’ request
