Features and benefits
Dependable power
Individual 4 valve cylinder heads giving optimised gas flows
Unit fuel injectors ensure ultra fine fuel atomisation and hence controlled rapid combustion
Commonality of components with other engines in the 4000 Series family for reduced stocking levels
Capable emissions of 1/2 TA Luft (1986)
Features and benefits
Low operating costs
Oil change service intervals are set at 500 hours as standard
Designed to provide low cost of ownership, simple maintenance and reduced downtime
Class leading warranty
Prime power - 12 months unlimited hours.
For engines that operate less than 6,000 hours the warranty is available for two years or until the application reaches 6,000 hours
(whichever is sooner).
Standby power - three years or 1,500 hours (whichever is sooner).
See Perkins Warranty Policy for further details
Perkins Platinum Protection - comprehensive cover from as little as 5 percent* of the cost of your engine
Talk to your local distributor or visit www.perkins.com/platinum protection for more details
Output Ratings
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AP1100
|
230/400
|
50
|
3
|
0.8
|
1000
|
800
|
1100
|
880
|
Dimension & weight
|
Generator set model
|
Type
|
L*W*H(mm)
|
Weight(kg)
|
|

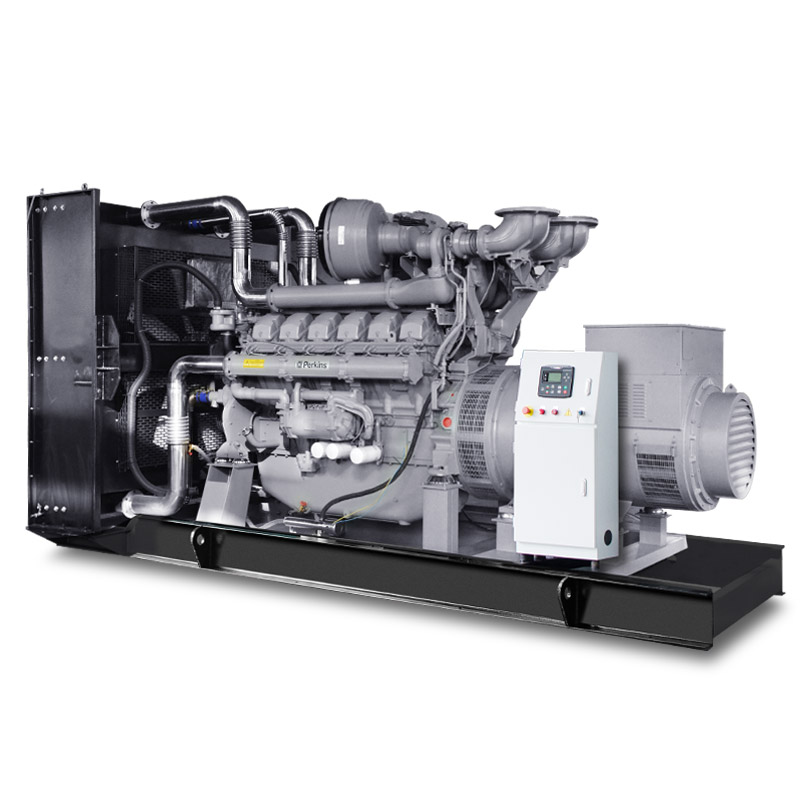

AP1100
|

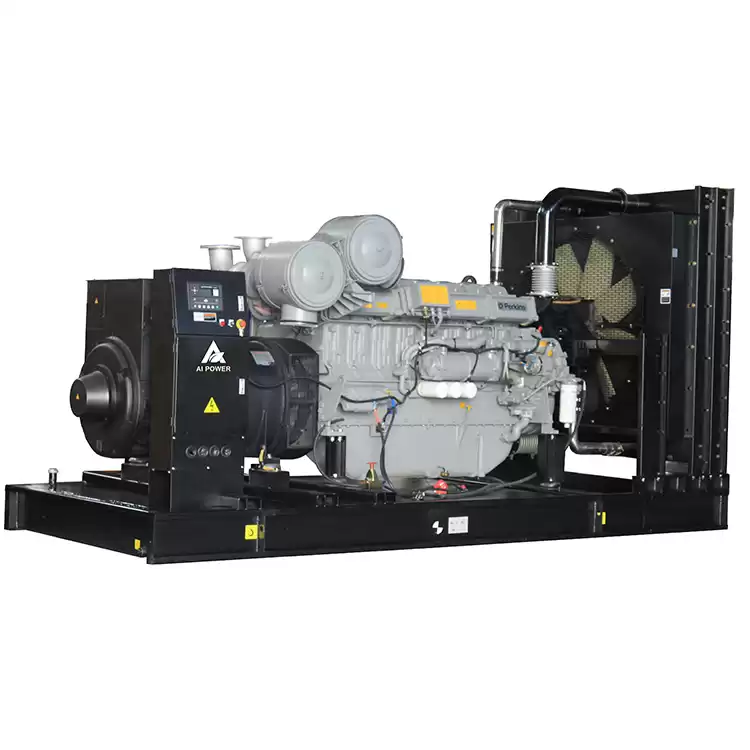

Open
|
4630*2030*2400
|
8100
|
|

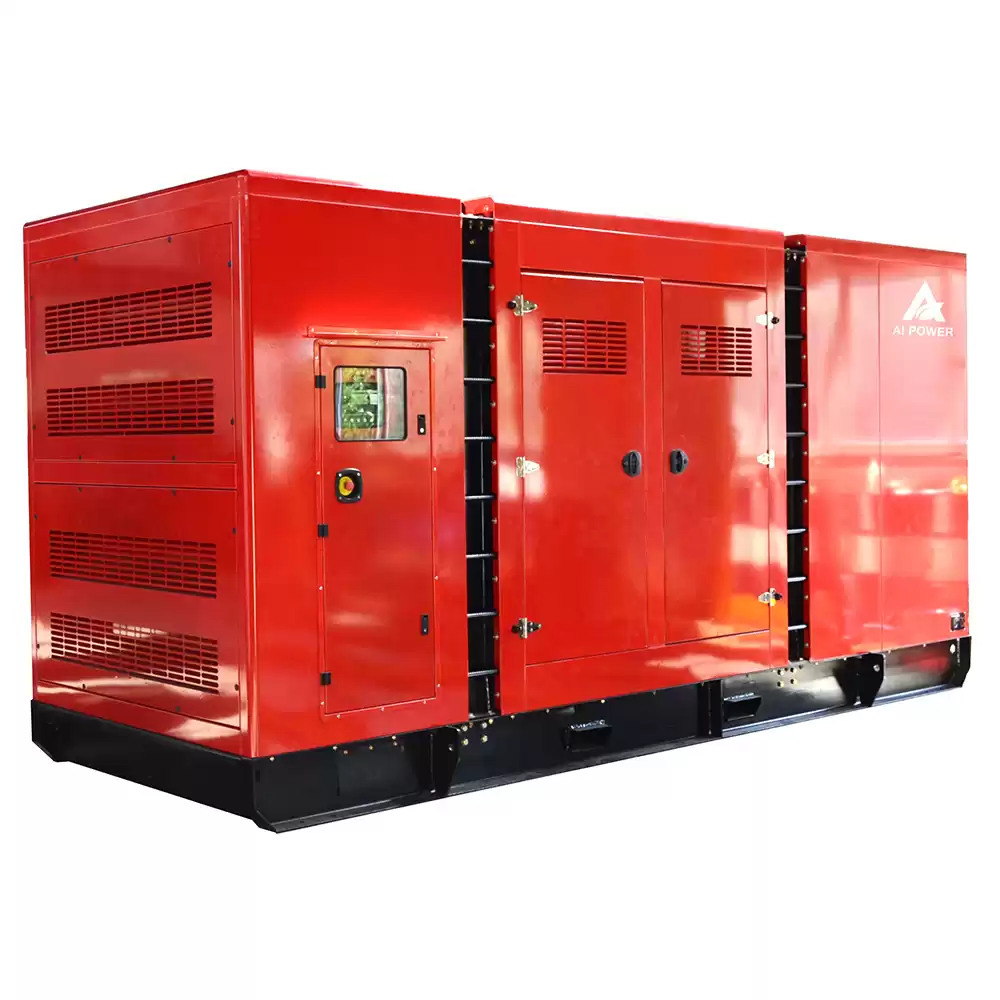

Silent
|
5700*2280*2500
|
10200
|
Other datas
|
Circuit Breaker capacity (A)
|
1600
|
|
Battery brand
|
Varta
|
|
Base Fuel Tank Capacity(L)
|
N/A
|
GENERAL ENGINE DATA
|
Engine manufacture
|
Perkins Engines Company Limited
|
|
Engine brand
|
Perkins
|
|
Engine model
|
4008TAG2A
|
|
Engine speed (rpm)
|
1500
|
|
Baseload power
|
Prime power
|
Standby power
|
|
Gross engine power (kWb)
|
719
|
899
|
985
|
|
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
|
657
|
828
|
910
|
|
Cylinders
|
8-cylinder, in line
|
|
Cycle
|
4 stroke
|
|
Induction system
|
Turbocharged
|
|
Combustion system
|
Direct injection
|
|
Compression ratio
|
13.6:1
|
|
Bore * Stroke (mm)
|
160 * 190
|
|
Cubic capacity (Litre)
|
30.561
|
Alternator Specs
|
Alternator
|
Famous brand
|
Leroy somer, Stamford, Marathon,Meccalte
|
|
China Brand
|
Ai Power, Kaijieli
|
|
Power Range
|
5kw to 3000kw
|
|
Insulation class
|
H
|
|
Phase/Wire
|
3 phase/ 4 wire
|
1 phase/ 2 wire
|
Control panel:Deepsea,Comap
|
Brand
|
Deepsea/ComAp/Smartgen
|
|
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
|
|
Optional-addtional parts :800 kw diesel generator price
|
Engine
|
Fuel System
|
Cooling system
|
Exhaust system
|
|
Coolant Heater
Lube oil heater
Electronic governor
Engine oil temperature
|
External Tank
Water Separator
|
50-60 Radiator,
Remote radiator
Cooling tower
|
Heavy Duty air filter
Silencer Enclosures
|
|
Alternator
|
Control System
|
Others
|
Voltage Connections
|
|
Anti Condensation
Heater
Permanent
Magnet Generator-PMG
Drop CT-for paralleling
|
Remote Control Panel
Auto Transfer Switch
ATS-Control Panel
Paralleling System
Electricity Output Cabinet
|
Rainproof Type
Soundproof Type

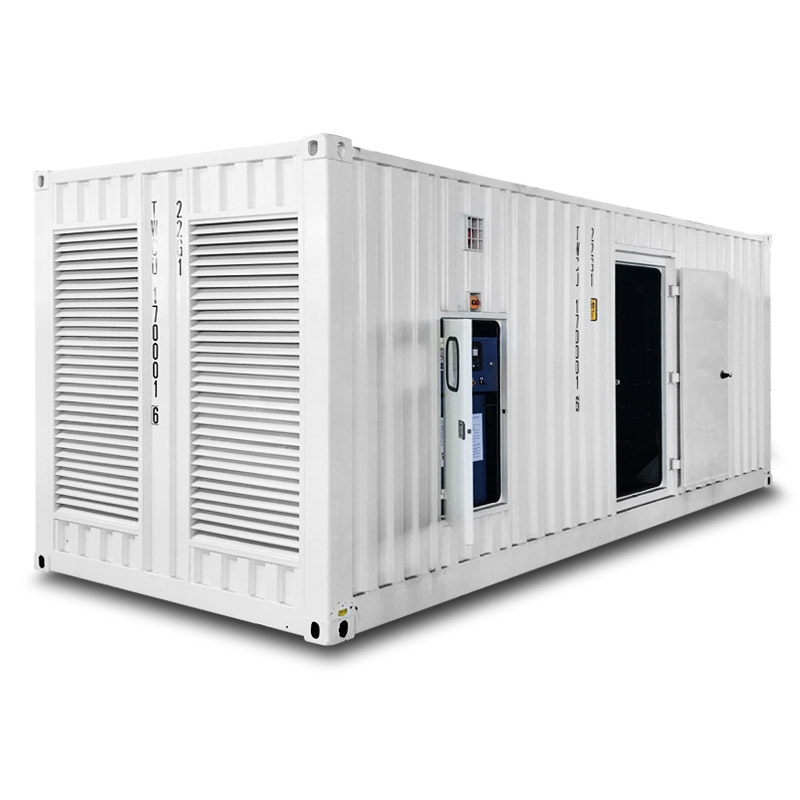

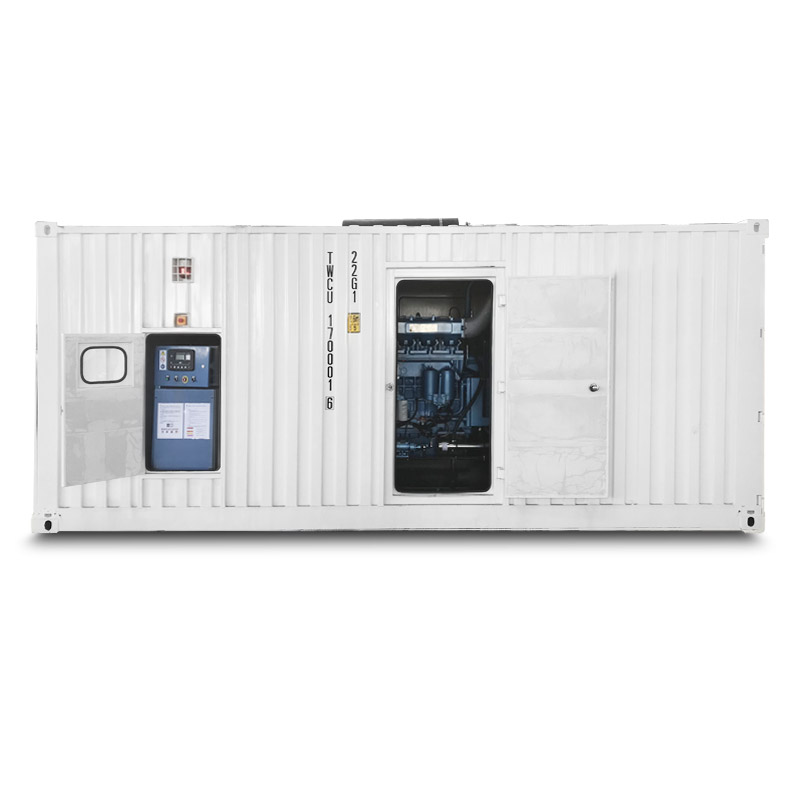

Containerized Type
Trailer Type
Spare Parts
|
480/277V
440/254V
416/240V
400/230V
380/220V
240/139V
220/12 V
208/120V
|
|
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available
|
About US

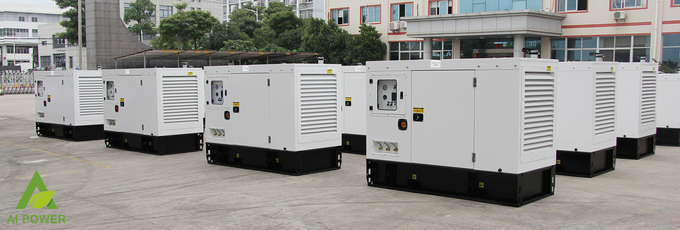

AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
