The bulk cement tanker trailer is also called bulk powder transport vehicle, it’s combined by special designed chassis, tanker, pneumatic piping system and discharging devices. It’s commonly used in the transportation of bulk cement, coal powder, lime powder and other dry powder material with diameter no more than 0.1mm. It’s most used in cement factory, cement warehouse and construction sites for the reduction of packaging and discharging cost.

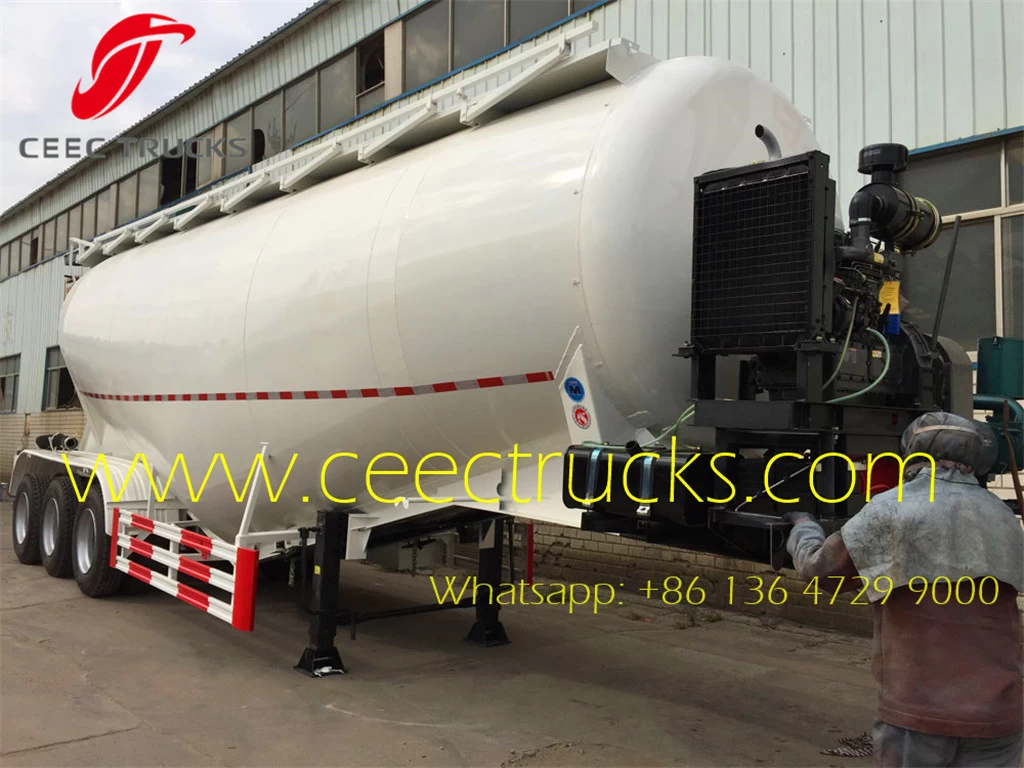

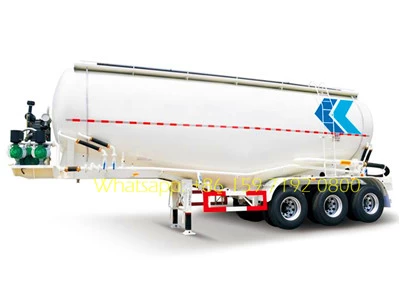

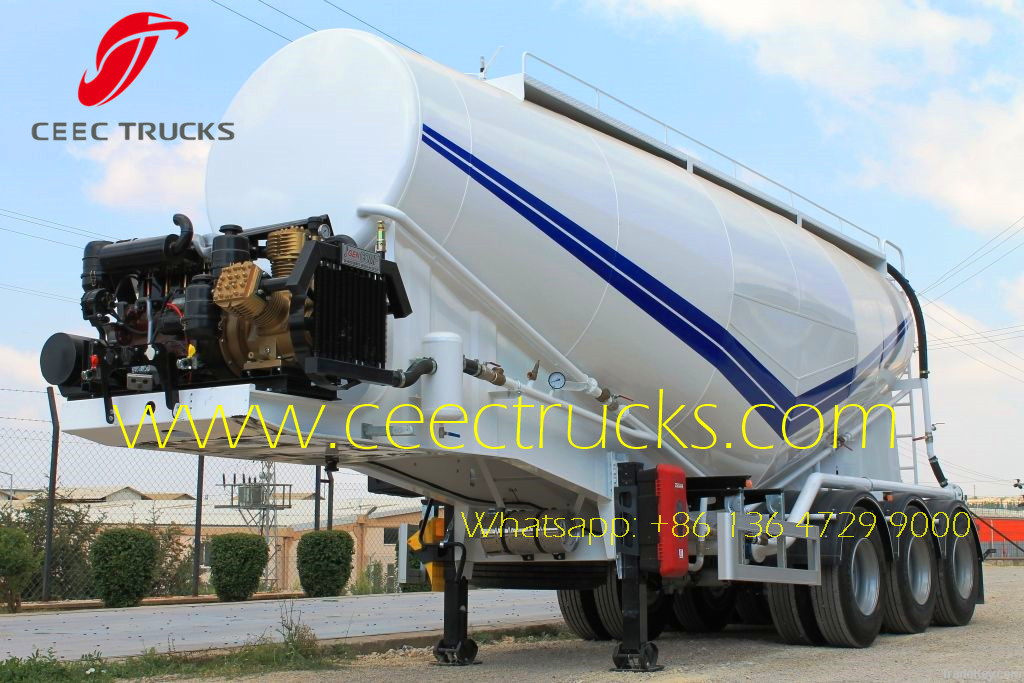

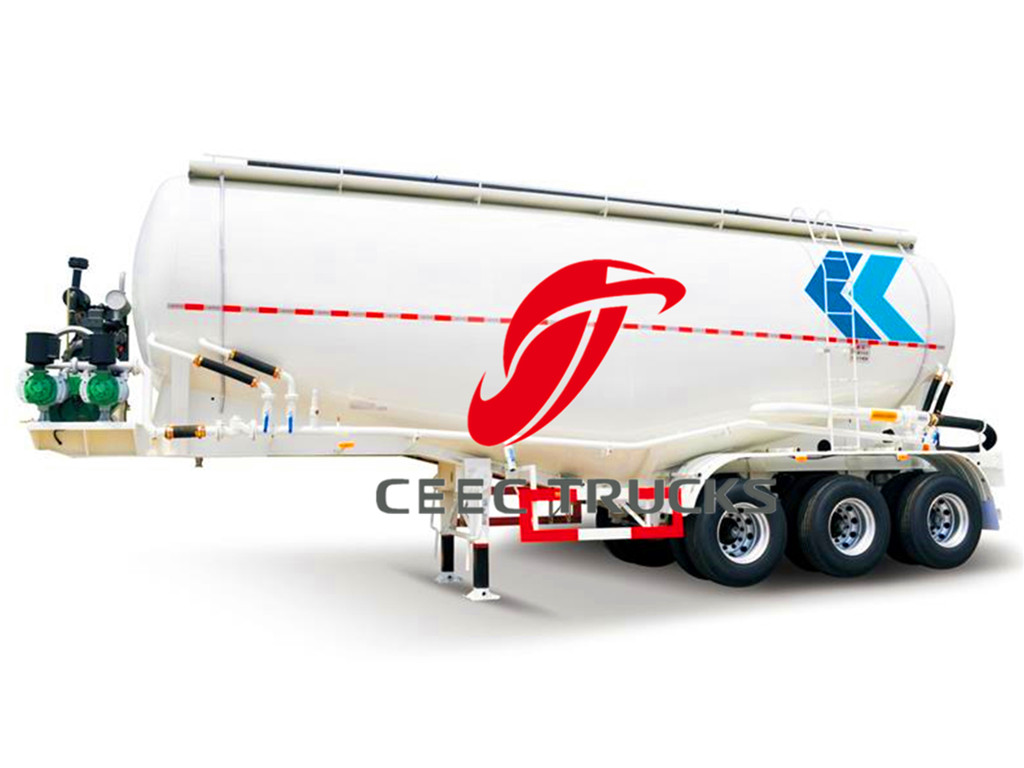

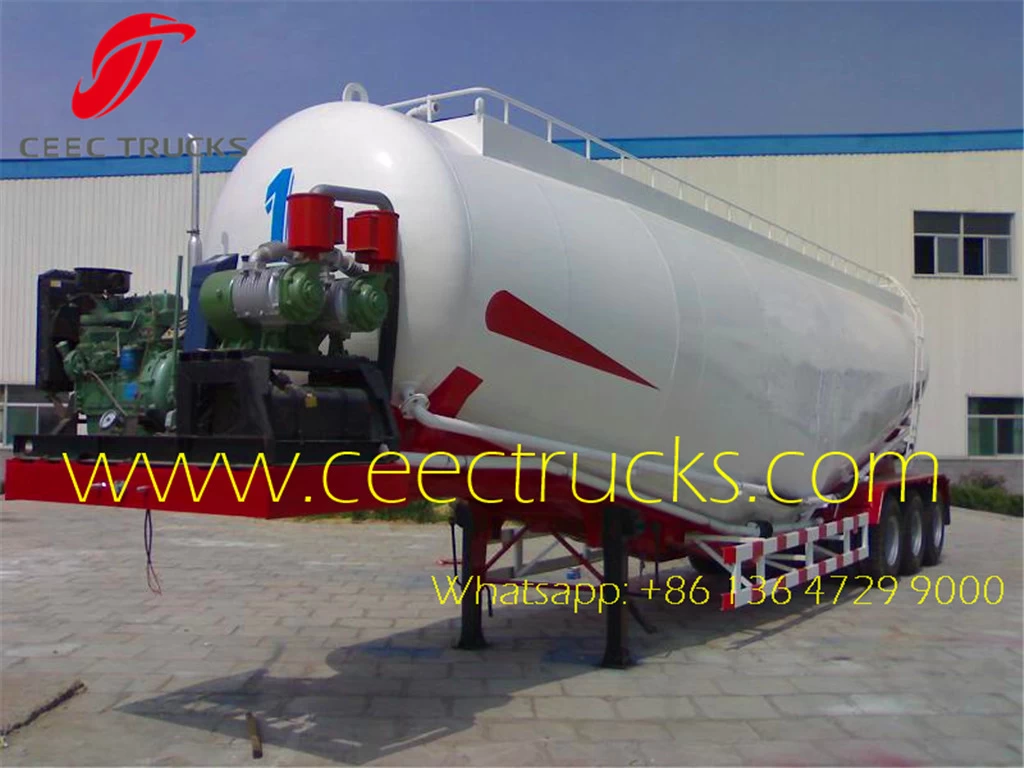

Heavy 50 m³ Bulk Cement Trailer Manufacturer
Africa Client choose 50CBM bulk cement tanker semitrailer from CEEC TRUCKS:
1> Buying from stated approved factory (original leading manufacturer) without the worry of business fraud.
2> CEEC 50cbm cement trailer has got the CCC certificate.
3> The average discharging speed of CEEC cement bulker trailer over 1.3tons/min and the residual volume is less 50kg, which is outstanding performance compared with others.
4> 2 years quality guarantee is the basic promise to our customers.
5> CEEC is a large manufacturer factory and has clients from all over the world.
6> As the most professional manufacturer we can provide CAD for all semi-trailer.
Being the professional 2-axle / 3-axle bulk powder tanker semitrailer manufacturer and supplier in China, we CEEC TRUCKS export nearly one hundred units 30-70 CBM cement tanker trailers to Asia Phillippine, Myanmar, etc; Africa Kenya, Nigeria, Tanzania, Algeria, Cameroon, Togo, Ivory Coast etc every year.
Similar Key Works: heavy 50 m³ Bulk cement tanker semitrailer, 50CBM powder tanker
semitrailer, Cement flour tanker semitrailer, 3 axle cement tanker
semitrailer, 3-axle powder semitrailer, 50 CBM bulk powder transport
semitrailer, Africa 50 CBM bulk cement trailer
| 50 CBM concrete bulk semitrailer wholesale
|
| Tank Body
|
| Shape
|
Optional ( One Silo with V type or Two ,Three Silos Design)
|
| Dimension
|
12000mm*2490mm*3990mm ( Exact size depends on the final design)
|
| Tare weight
|
About 7500KGS-15000KGS
|
| Total Volume（m3）
|
25m3-68 m3
|
| Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|
| Diesel Engine
|
WEICHAI ，Tianhe 4100/4102 or other brand
|
| Compressor
|
BOHAI 10m3/12 m3or other brand
|
| Manhole Cover
|
Carbon steel or Aluminum∮500mm
|
| Discharging Valve
|
Diameter is 3 or 4 inch （Material: Aluminum ）
|
| Discharging Pipe
|
3 or 4 inch rubber hose, 1pcs, 6m/each
|
| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|
Welding Design ,Q345 carbon steel
|
| Axle
|
2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
|

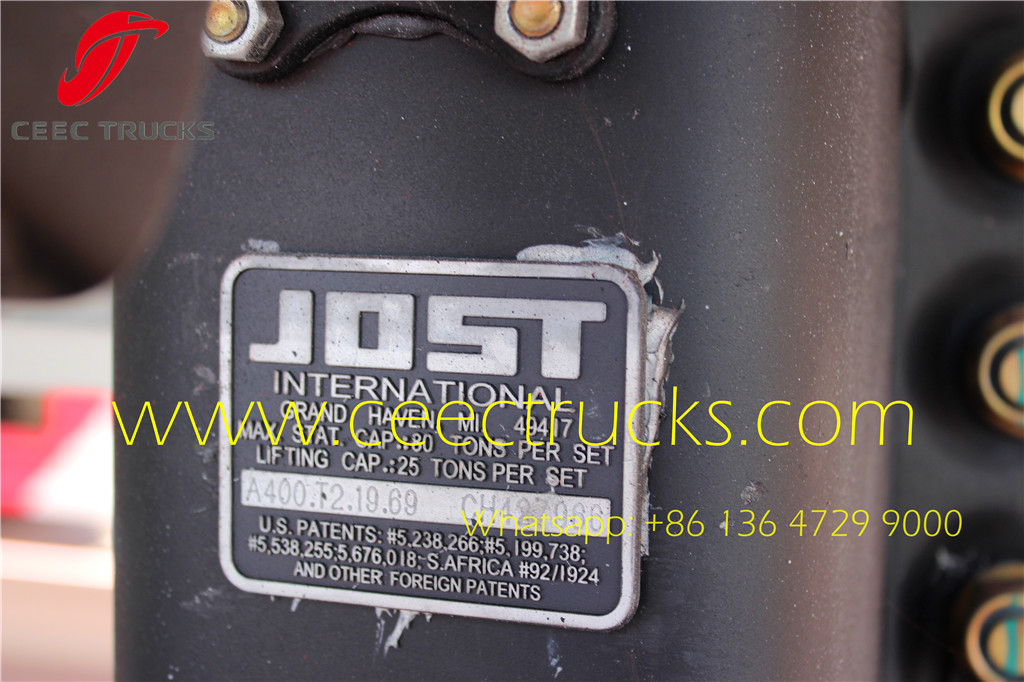

| Landing Gear
|
JOST (D200T）or CHINA BRAND 28T
|

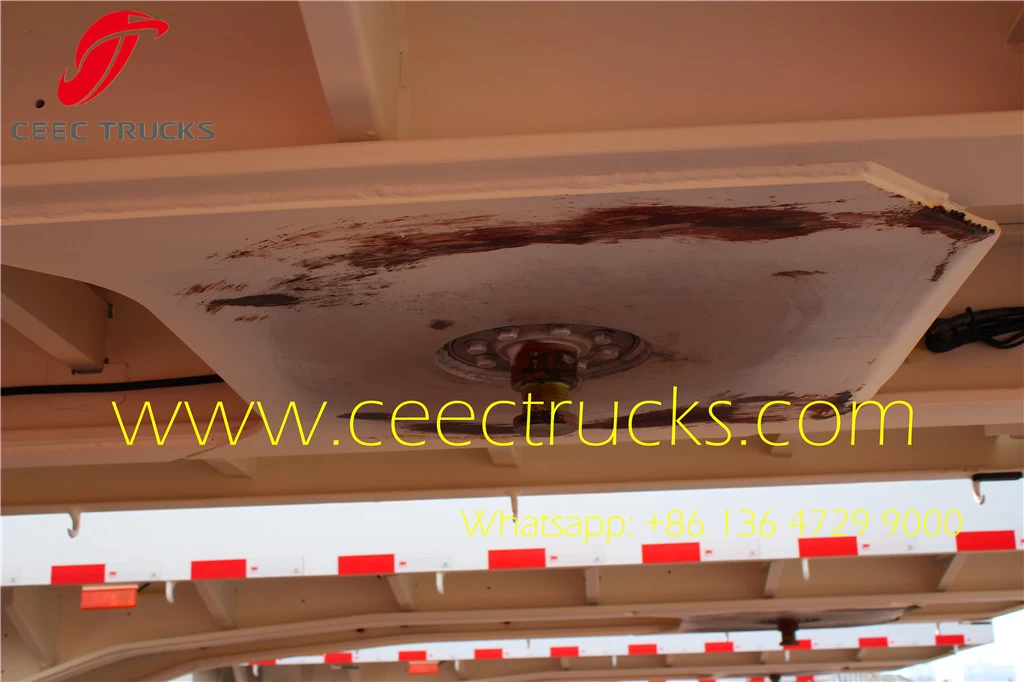

| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension/Germany or America type /Air Suspension
|
| Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
|

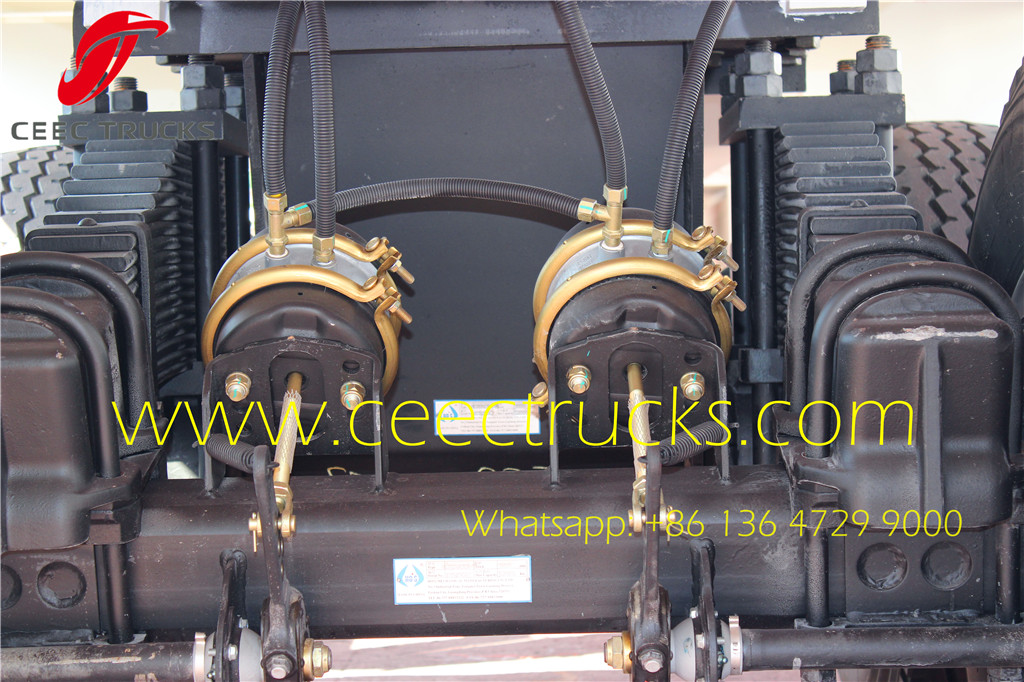

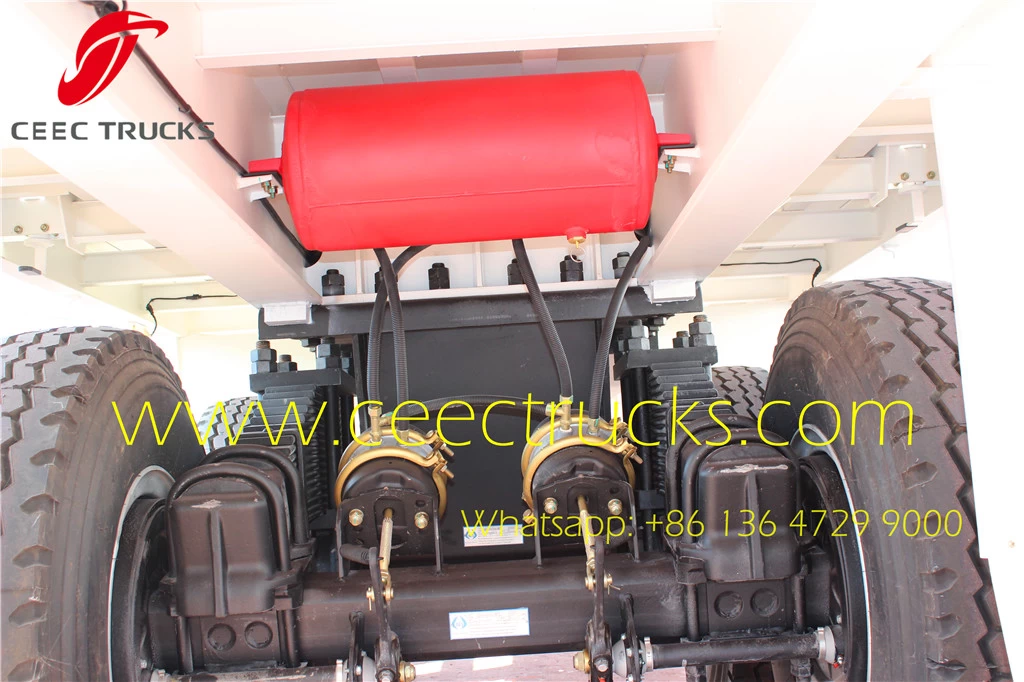

| Pneumatic Braking System
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; 45L air tanks.
|
| Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|

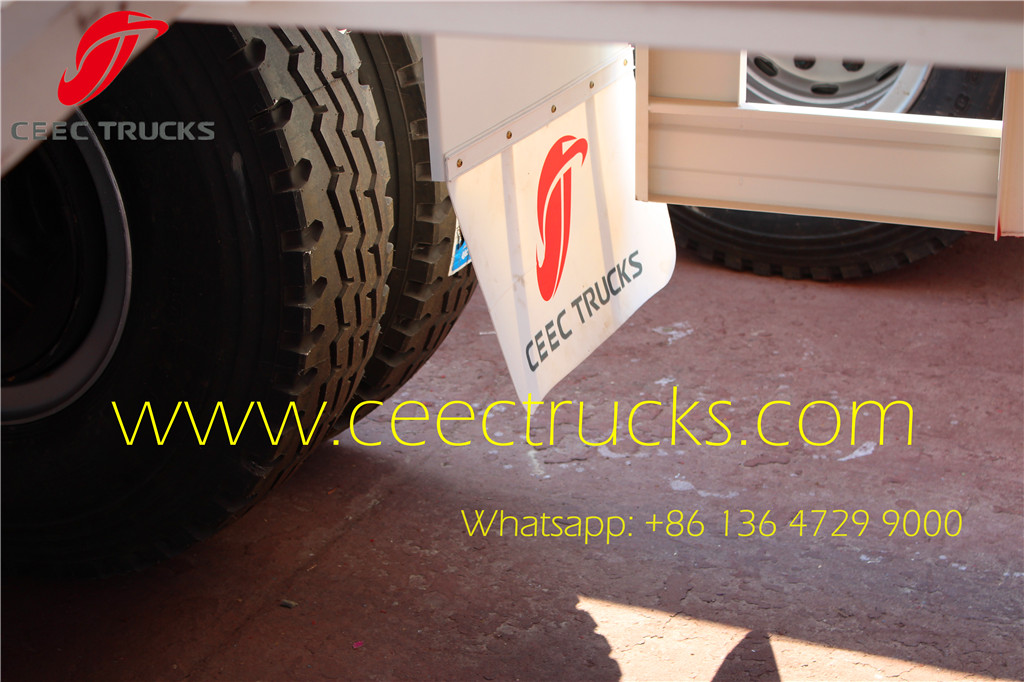

| Tire
|
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
| ABS
|
Optional
|
| Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
| Accessories
|
One standard tool box
|
| Shipping Terms
|
By Bulk Cargo ,RORO
|
