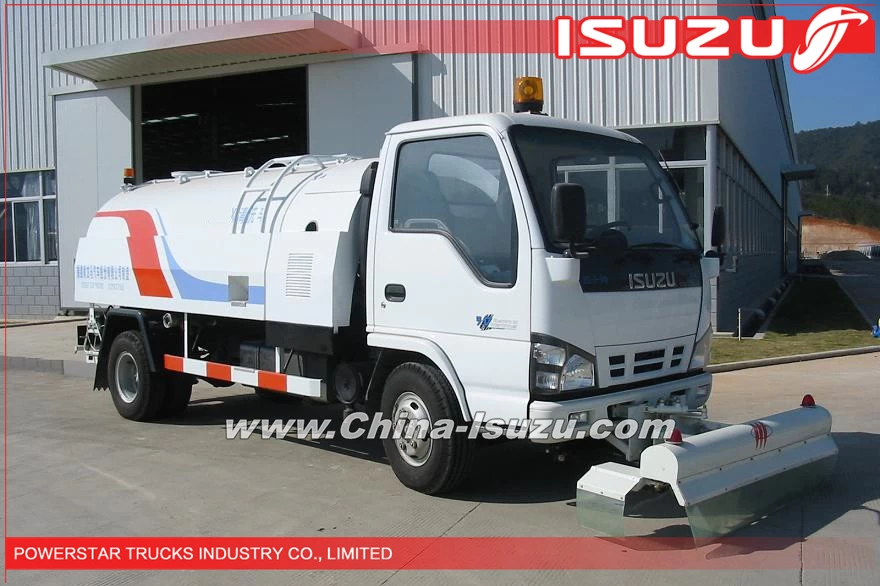

5000L high pressure manufacture sewer washing truck ISUZU

Multifunctional jetting water truck isuzu High-pressure Road Washer,Road Washer,Multifunctional ISUZU 16000L jetting water truck,2015 Factory Supply ISUZU 10M3 high pressure water jet cleaning truck,Factory Sale 2015 ISUZU 4X2 5000Lites jetting water truck,jetting water truck 5CBM

jet water flushing truck for sale,6000l ISUZU 6 wheel high pressure water jet sewage suction tanker truck

3000L sewer jetting water tank trucks,5000L ISUZU 4X2 vacuum high pressure jetting water truck

new arrival ISUZU 145 4*2 jetting water truck,8000L vacuum water jet sewer cleaning truck

Water jet inertial apparatus plastic model fire trucks



5000L high pressure manufacture sewer washing truck ISUZU


 5000L high pressure manufacture sewer washing truck ISUZU

Isuzu high pressure sewer jetting truck works by flushing and thrusting actions of high pressurized water which is transmitted to the clogged sewer line with a high pressure water hose and a sewer jetting nozzle. Destroying with high pressured water jet, remaining waste material is either naturally eliminated by sewer flow or carried to the manhole opening for collecting with a vacuum loader (suction truck). All its duty is keeping municipal sewers, sanitary and storm sewer lines, laterals, and drainage lines clean and frees flowing.



Areas of Application and Use

  Hydrodynamic sewer and pipeline cleaning of diameters from 200 to 1100 mm

  Tanker size: 3000 L up to 15,000 Liters

  English control panel is simple and easy to use

  Carbon Steel, Stainless Steel, and Aluminum Tanks Available

  Hydrodynamic drain line cleaning.

  High pressure surface cleaning.

  High pressure industrial cleaning.



Main specifications:



Model

PT5075GQX

Driving Type

4x2    (Left hand drive)

Wheelbase

3360 mm

Engine

88 kw (120hp)

Tyre

7.00-16

Water Tank

Capacity

4,000 L~5000 L

Material

Q345weathering steel

Shell thickness

4mm

Water level protection

1, Too high; 2, Too low; 3, No water

High pressure water pump

Pump type

As option

Three-plunger pump, PRATISSOLI brand, Italy top brand

Flow

122 L/min

Max working pressure

Pressure can be freely adjusted between0-160 bar

Safety devices

1, Low water level protection

2, Water particles protection

Hose Reel

Jetting hose

Inner diameter 3/4", length 80m. With 3/4"BSP-F coupling on both ends, which allows hose direction changing.

Horizontal rotation

160°

Parts

3/4" rotation shaft,  3/4" high pressure ball valve

Reel control

By the control unit on the panel on the hose reel

Hose retract & wind

Hydraulic operated, with adjustable speed

Color

As option



Customers build examples:
