5000L Water Truck Tank ISUZU
Description:
ISUZU Water tanker truck (also called water delivery truck Isuzu, Isuzu water transport truck, Isuzu chassis water lorry, water tank lorry, mobile water truck, water carring truck, clean water truck, water transport truck ) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.
Areas of Application and Use
- Transportation and distrubition of drinking water
- Transportation and distrubition of industrial water

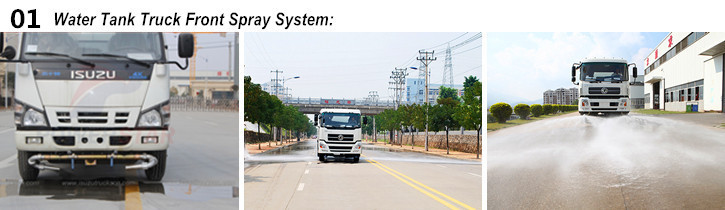

- Pressurized street and road cleaning
- Pressurized tunnel cleaning
- Dust and environmental control
- Fire fighting service
Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
Model
|
PT5070GJY
|
Driving Type
|
4x2 (Left hand drive)
|
Wheelbase
|
3360 mm
|
Engine
|
88 kw (120hp)
|
Tyre
|
7.00-16
|
Tank
|
Material:
|
Carbon steel(Q345)
|
Shell Body
|
4 mm nominal thickness
|
Head
|
5 mm nominal thickness
|
Tank shape
|
Ellipse
|
Capacity
|
Full capacity 3000L~5000L
|
Compartment
|
No
|
Shell Finish
|
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
|
Testing Pressure
|
36kPa, Water pressure test
|
Tank Accessories
|
Ladder:
|
Stainless Steel ladder fixed at rear of tank
|

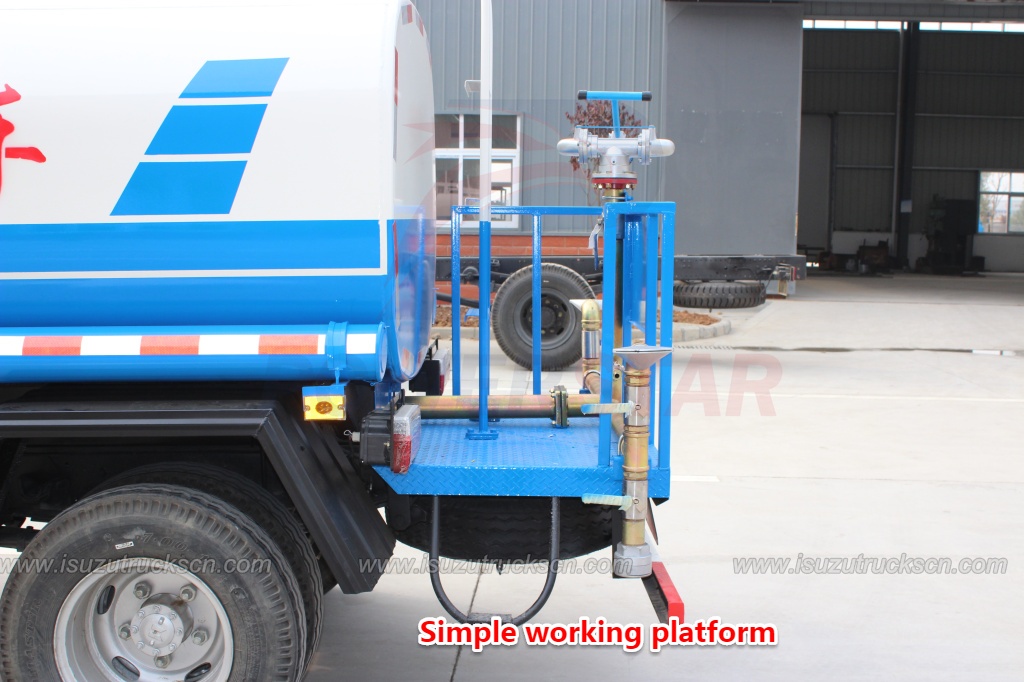

Walkway Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
Handrail:
|
No
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|

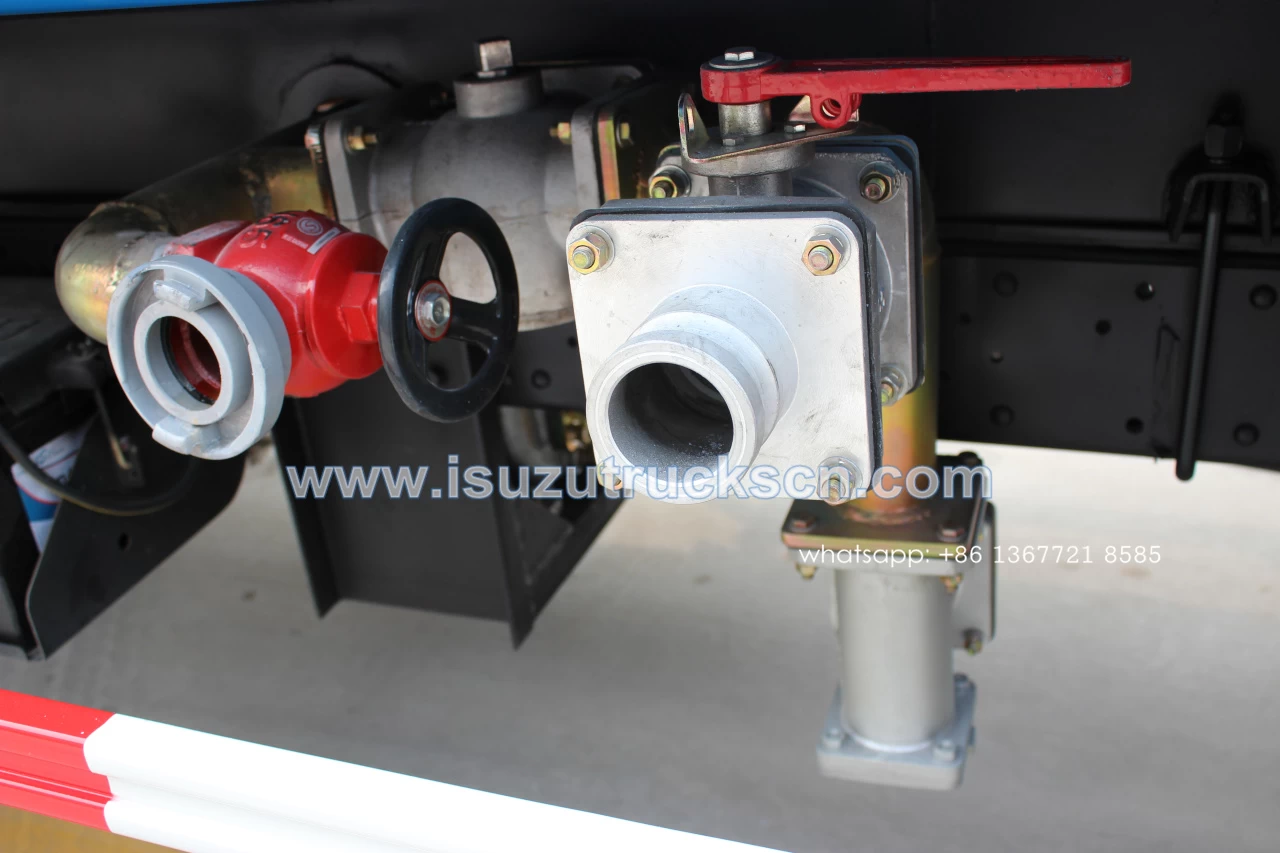

Pump Device
|
Yes
|
Flow meter
|
Yes
|
Tool box
|
Small box
|
Color
|
As option
|

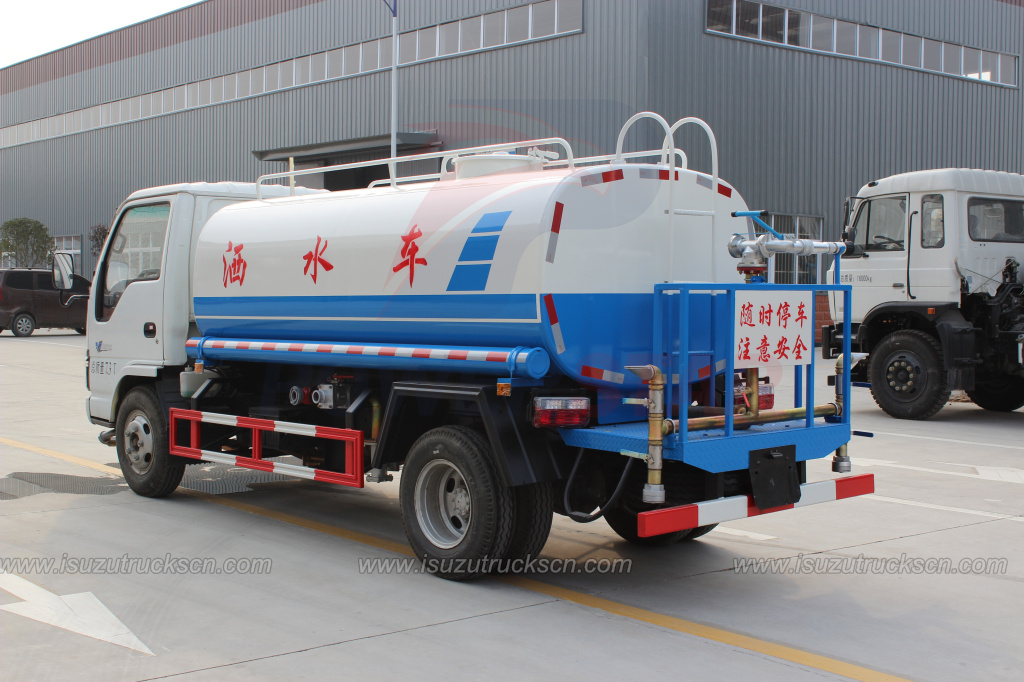

Recently Built Water Tank Truck:
 |
|

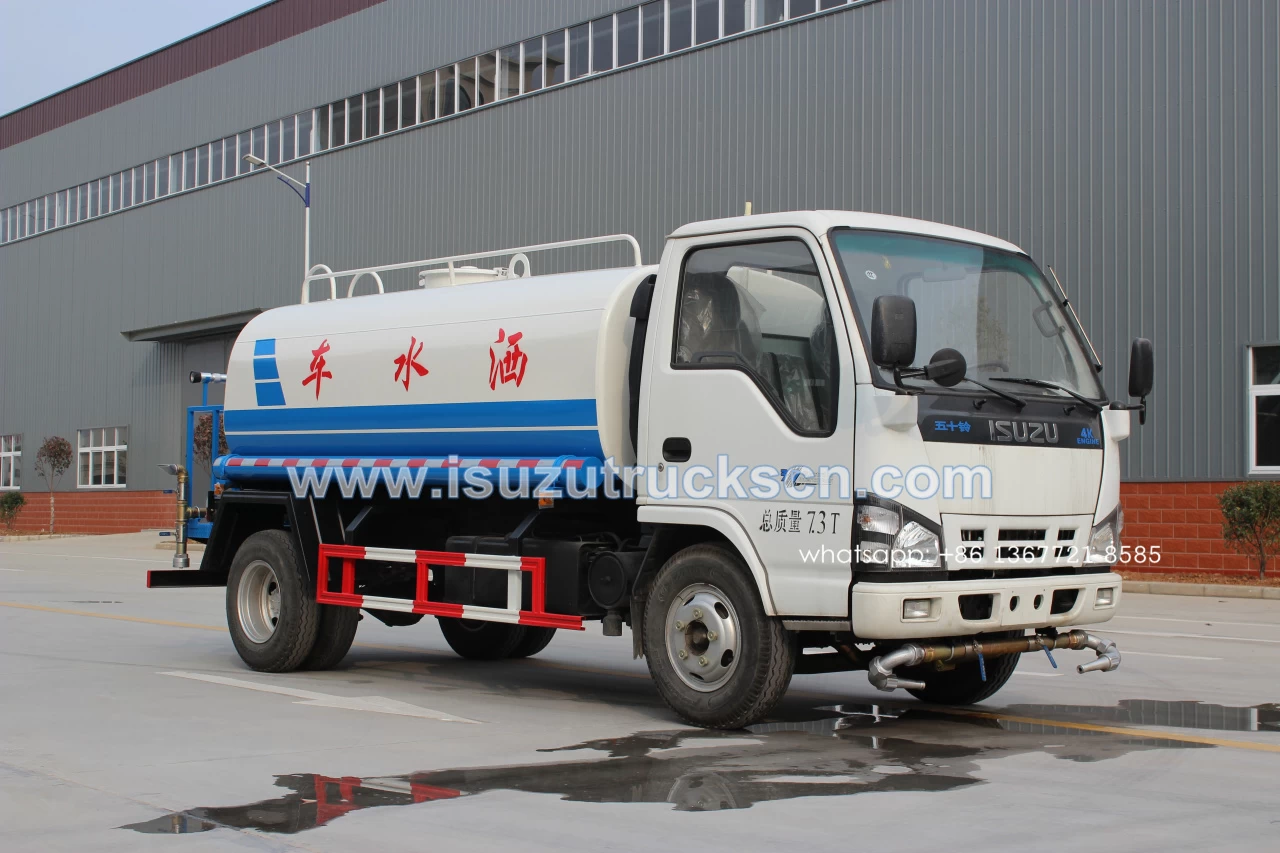

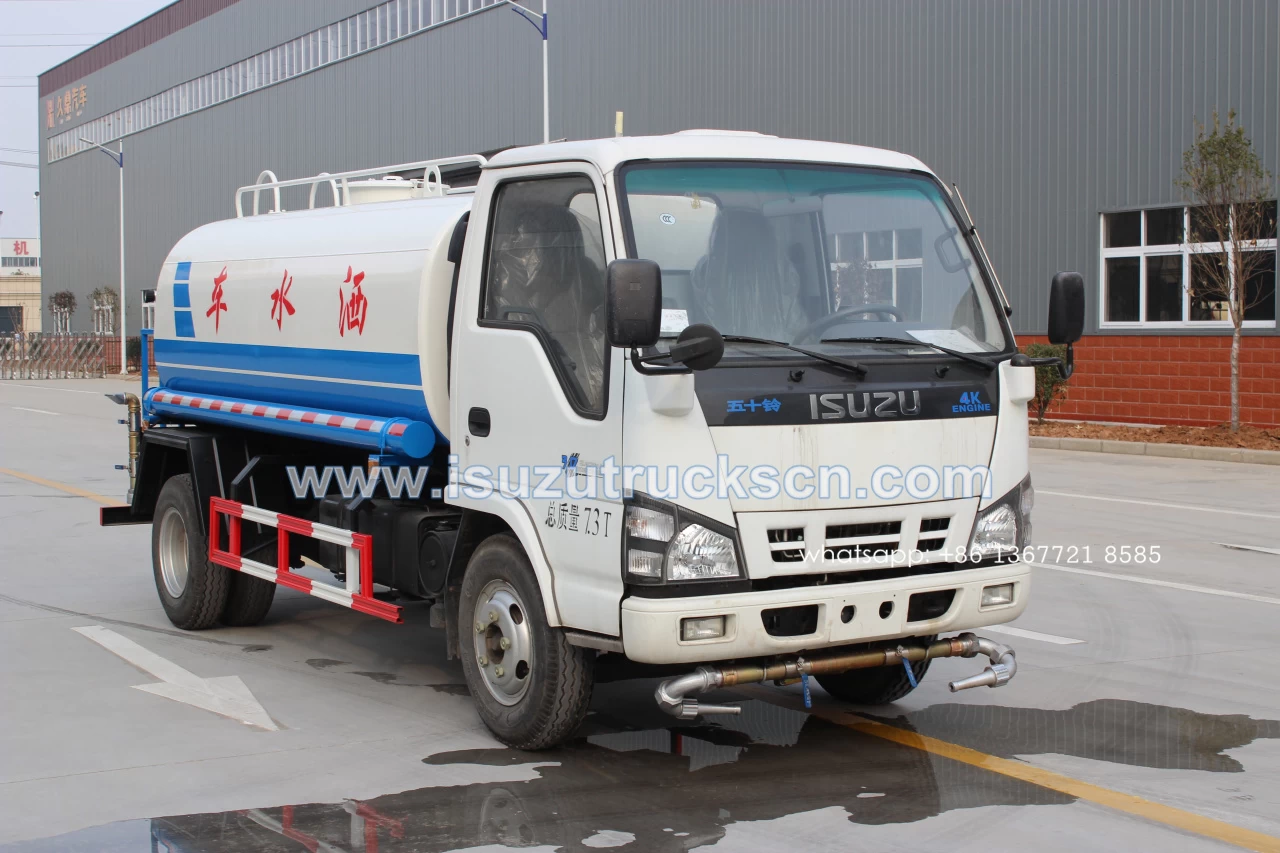

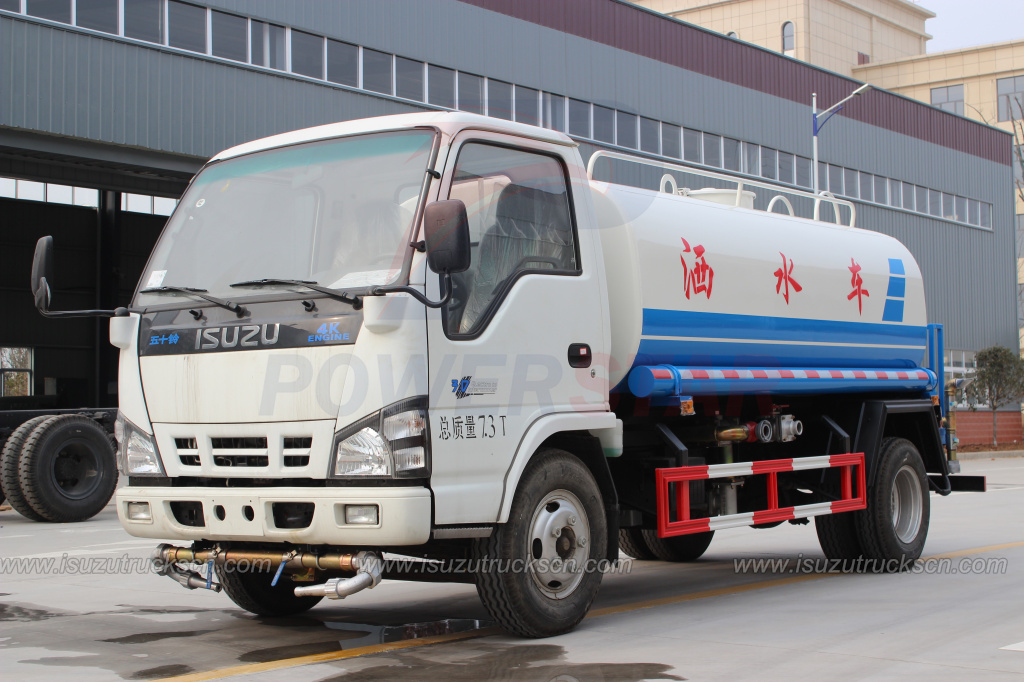

Front right view
|

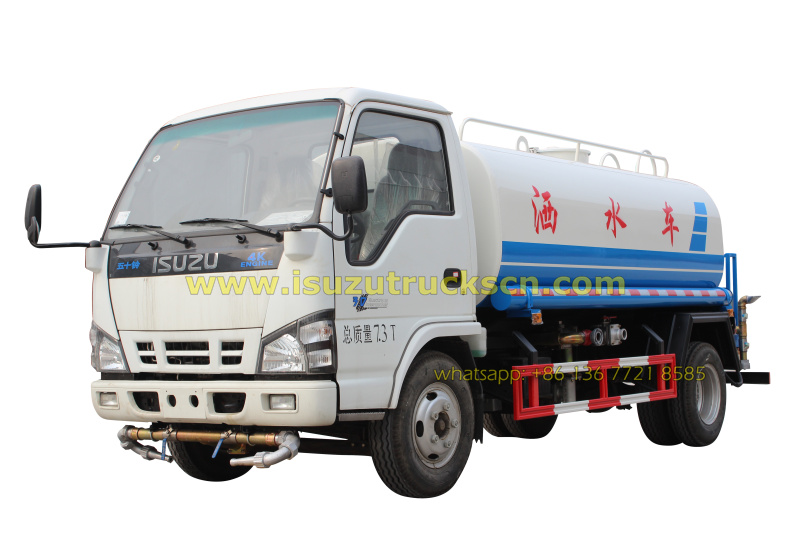

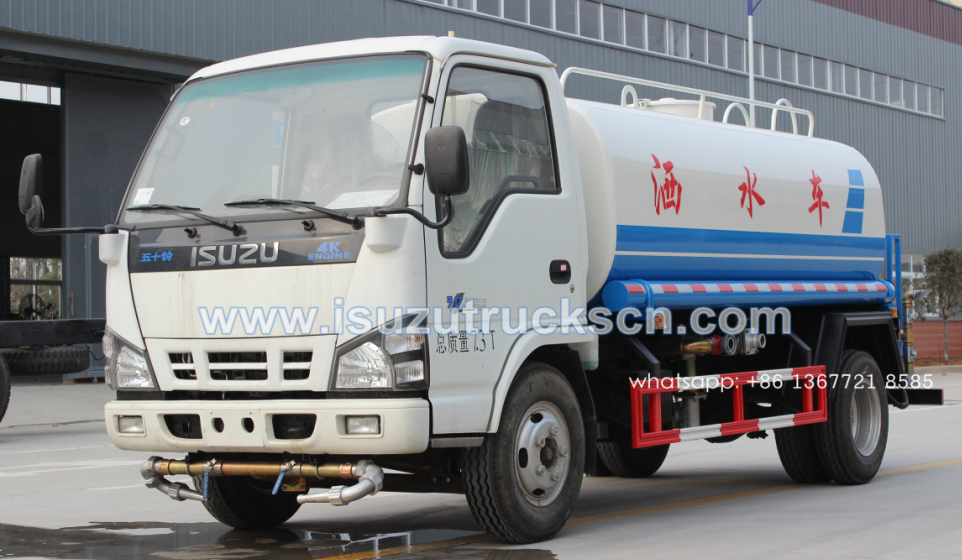

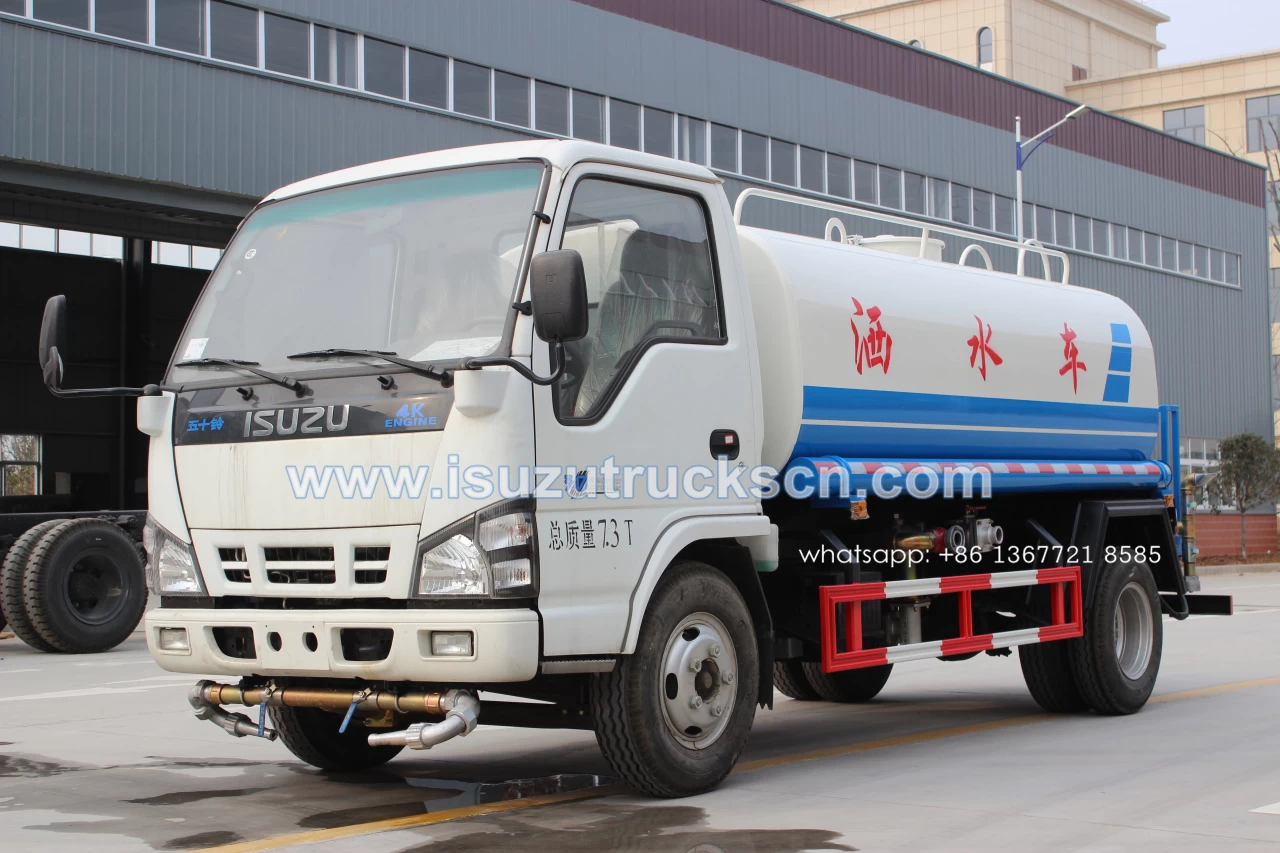

Front left view
|
 |
 |

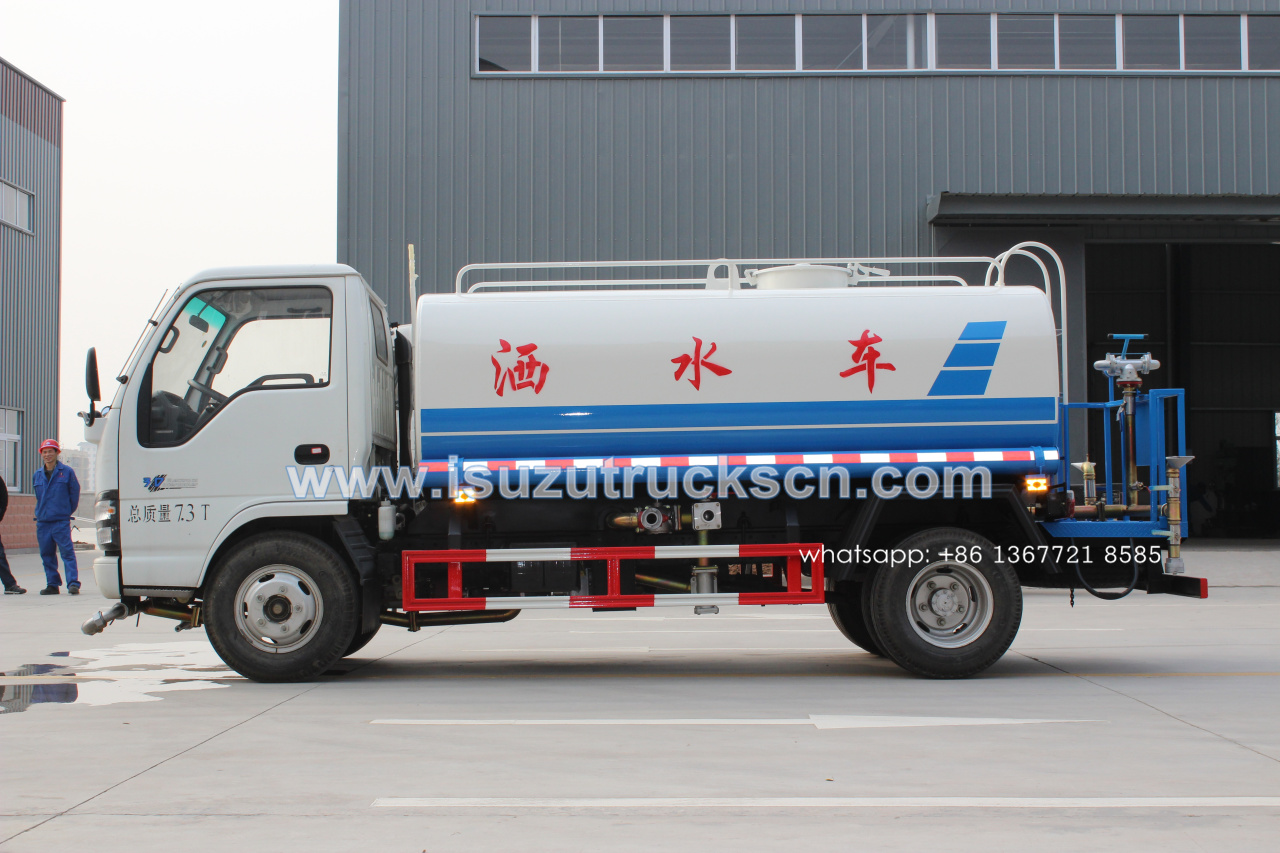

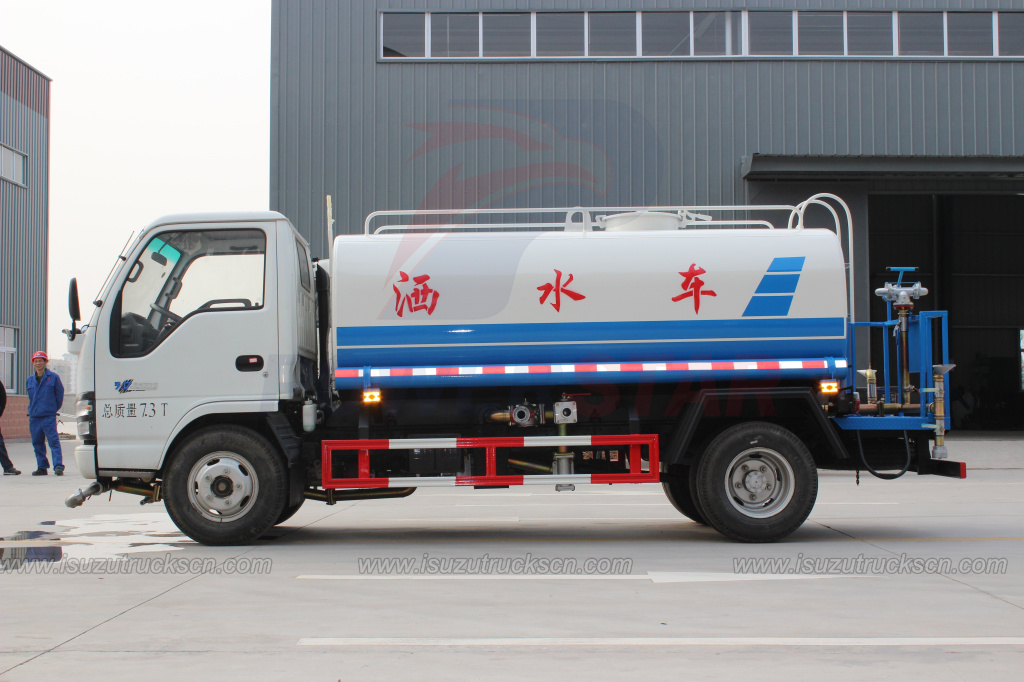

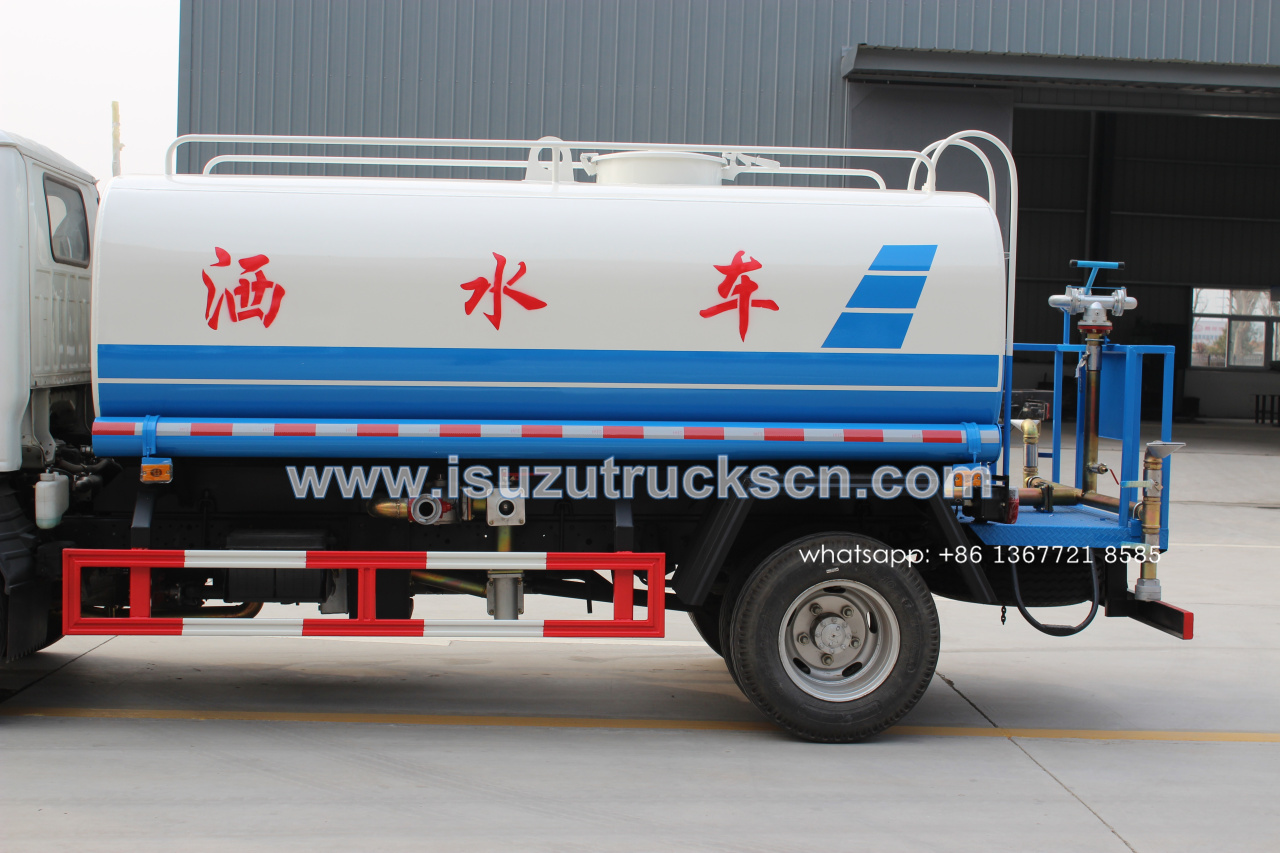

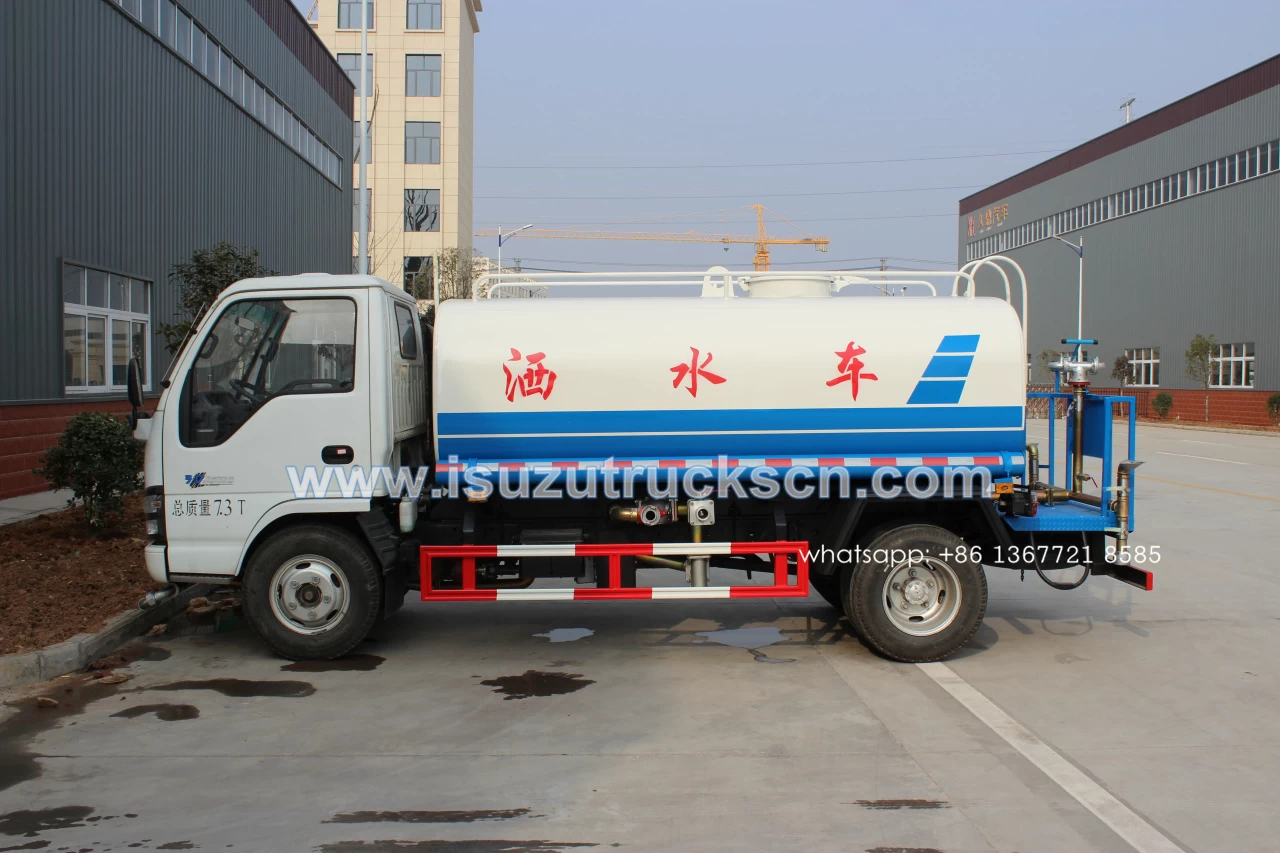

Left side view
|

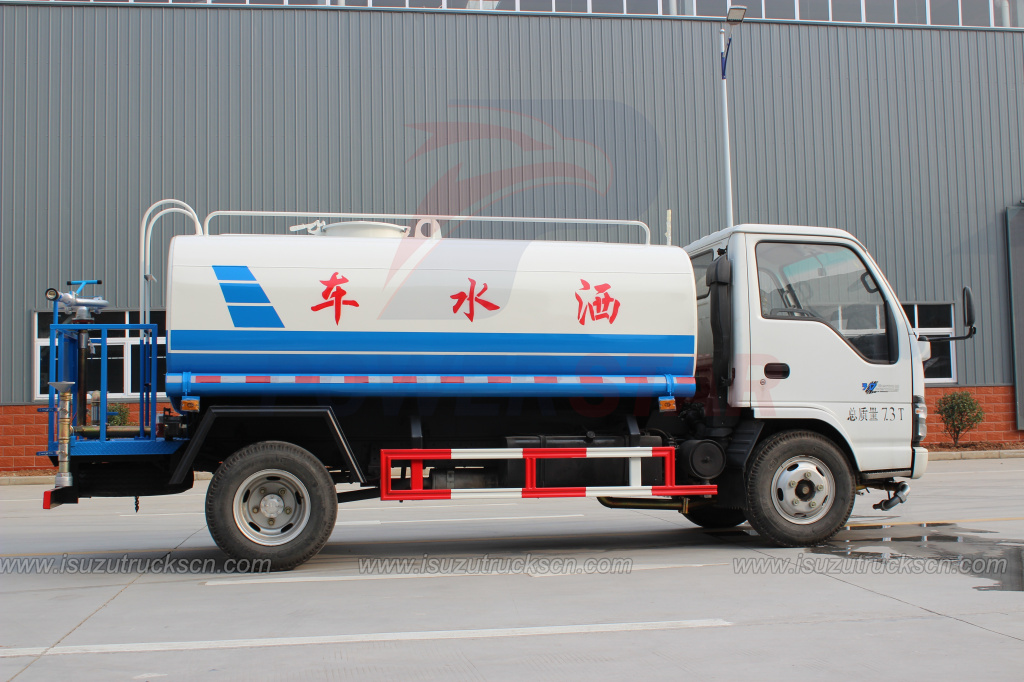

Right side view
|
 |
 |

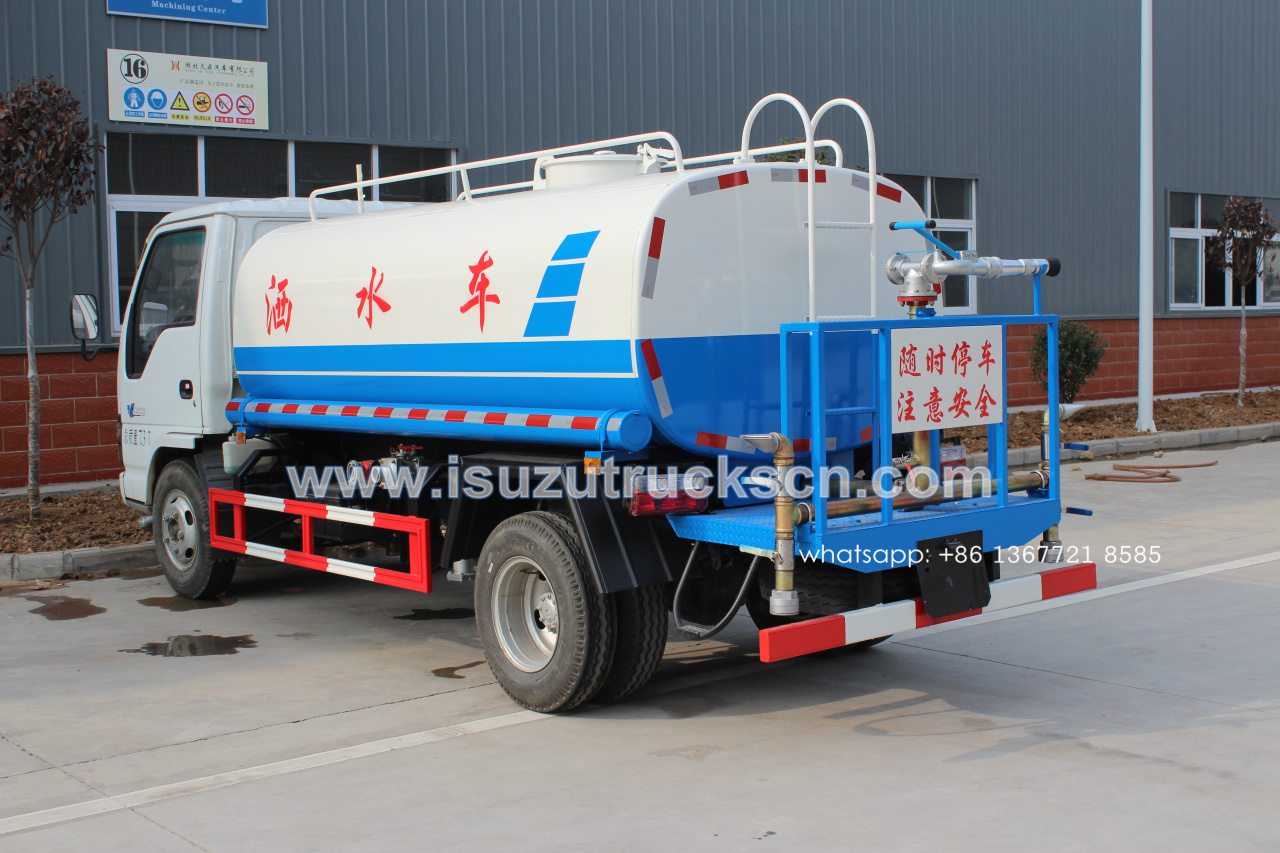

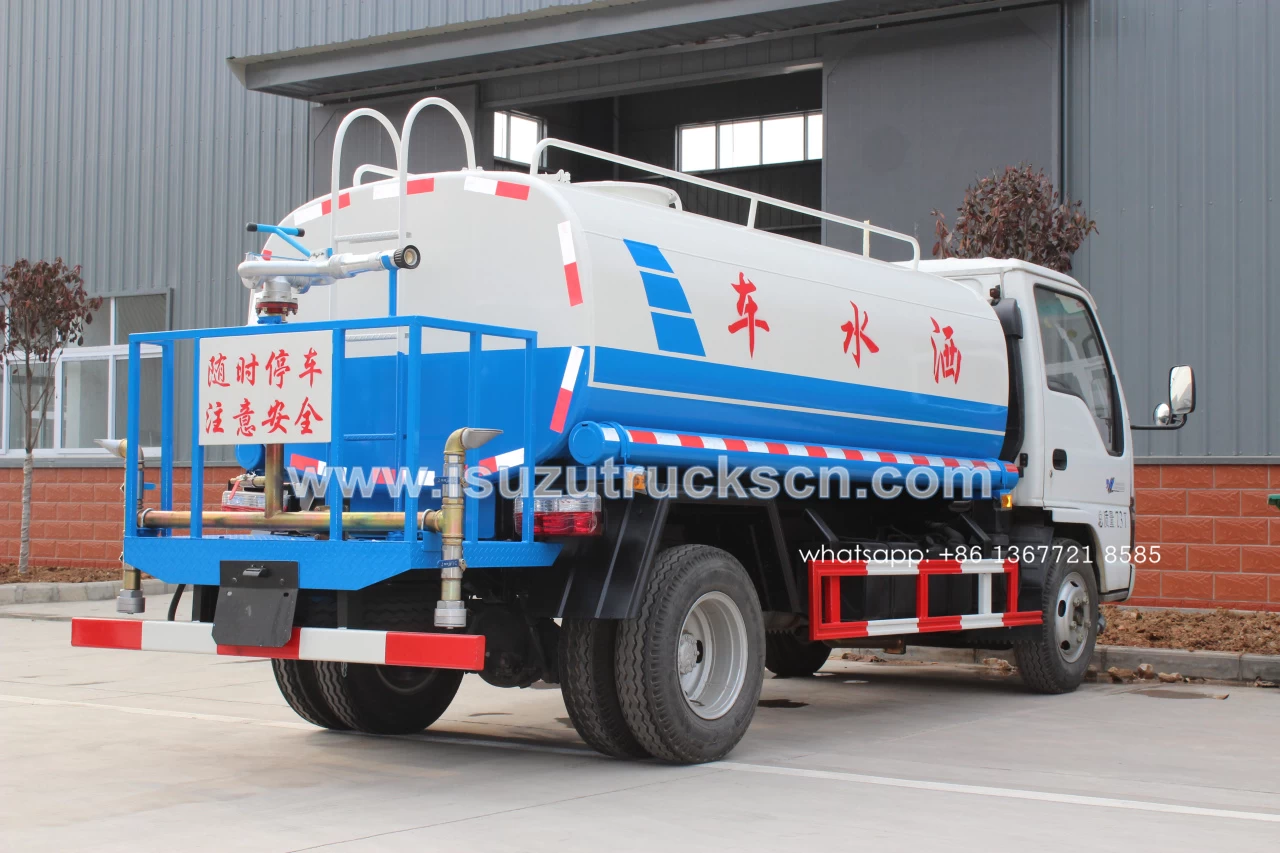

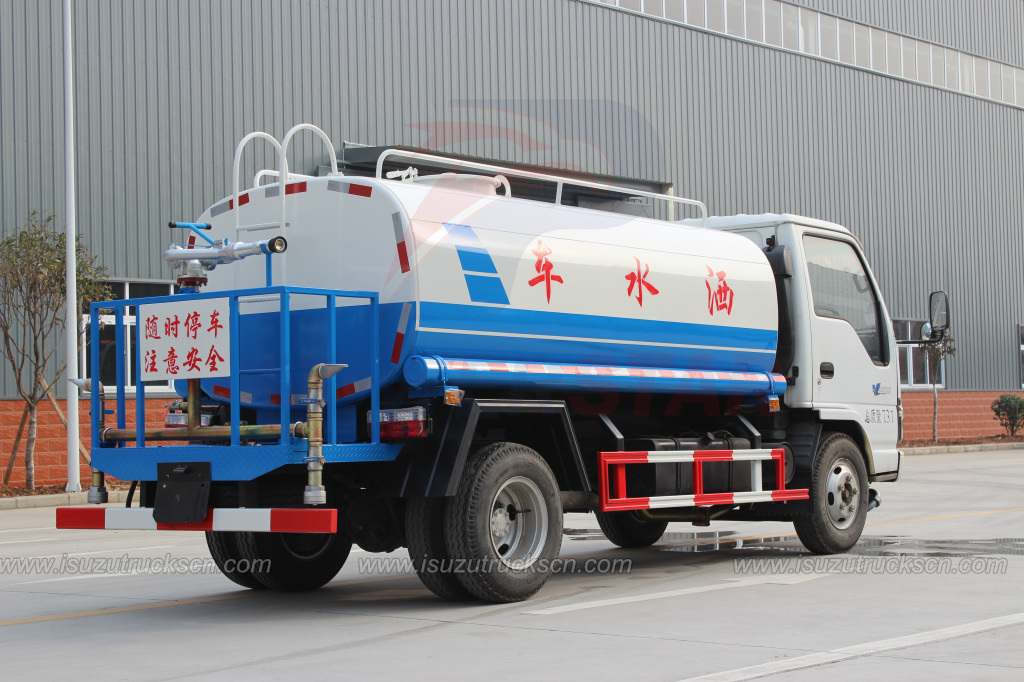

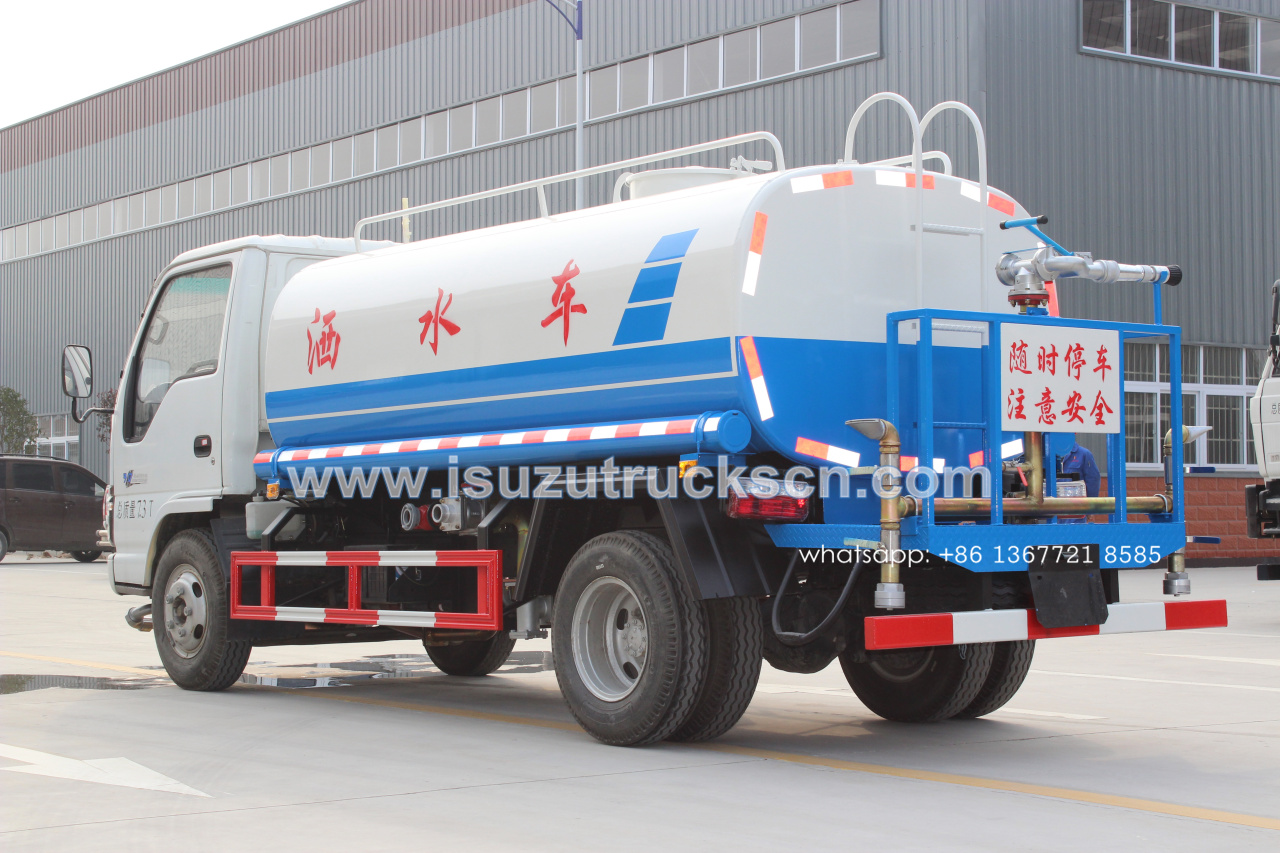

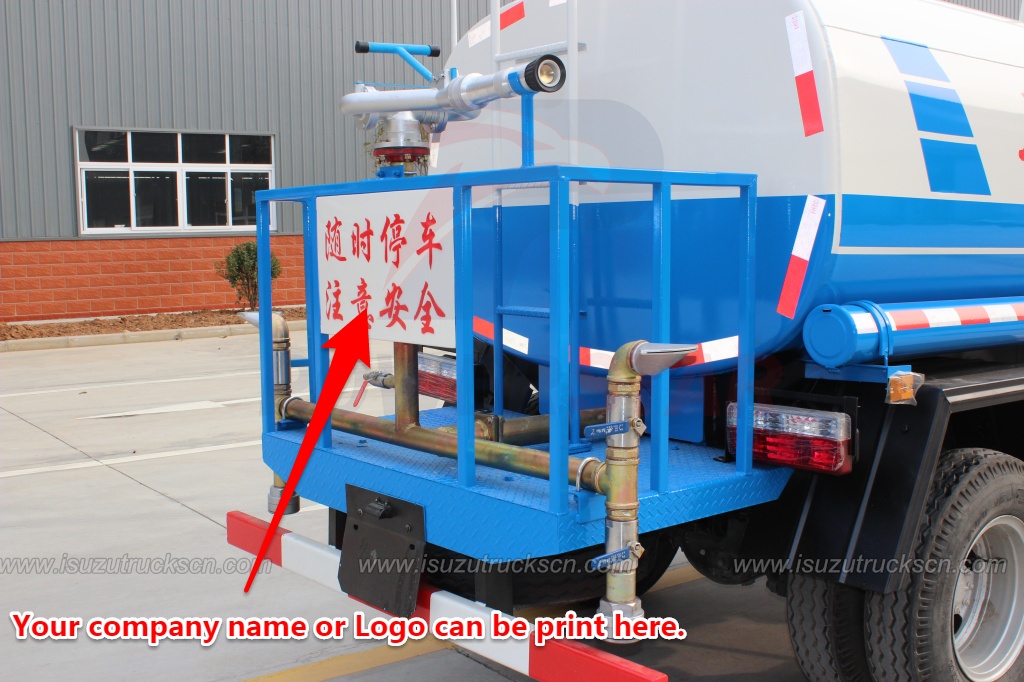

Rear left view
|
Rear right view
|
 |
 |

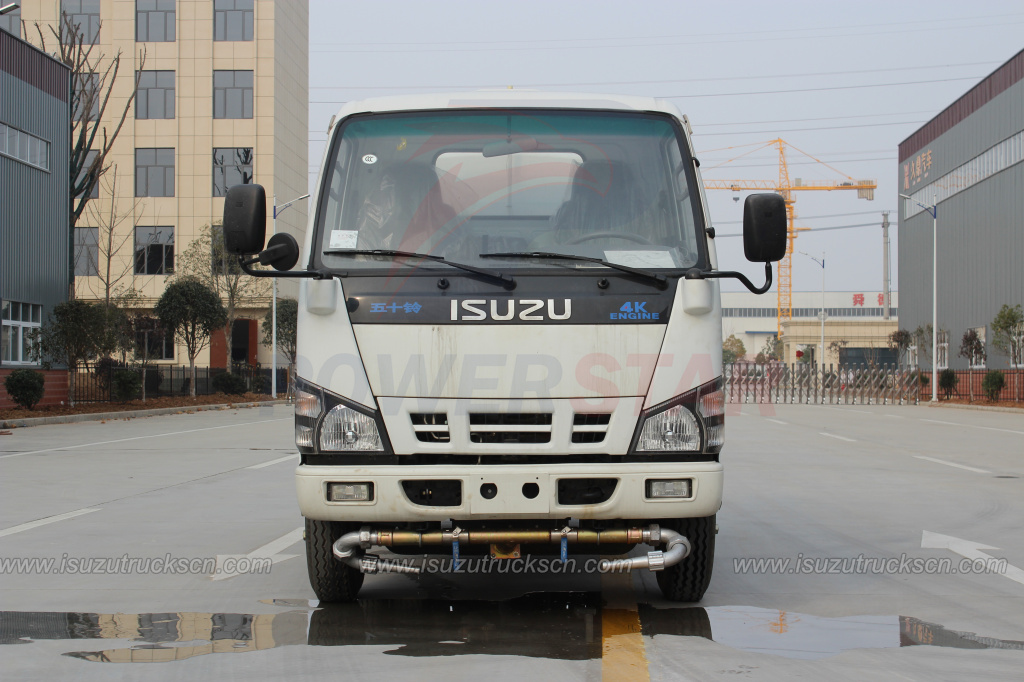

Front view
|

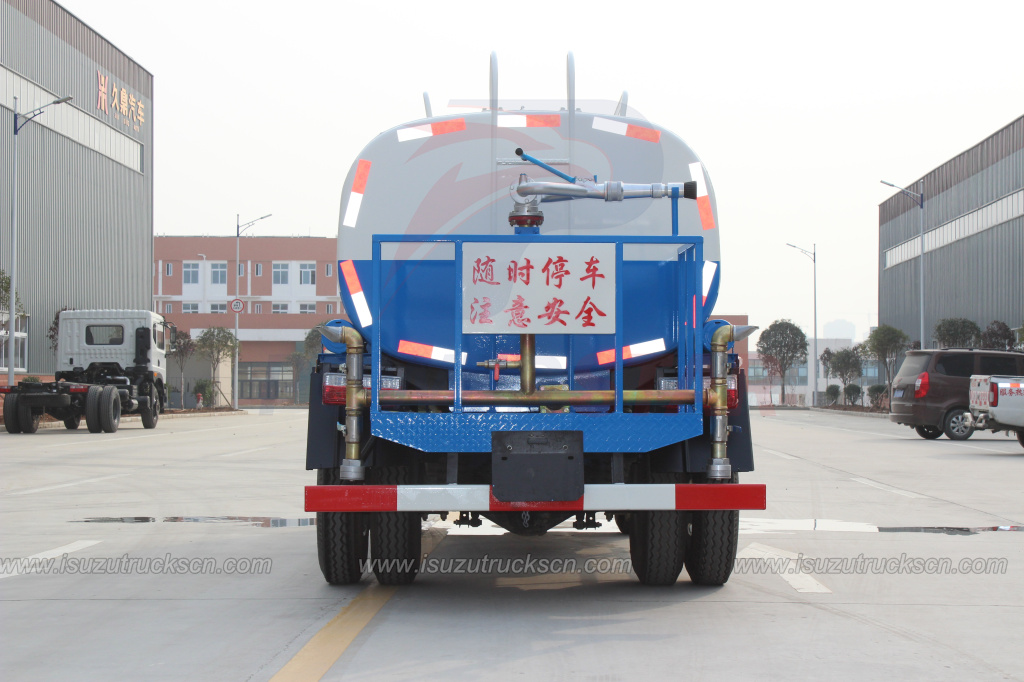

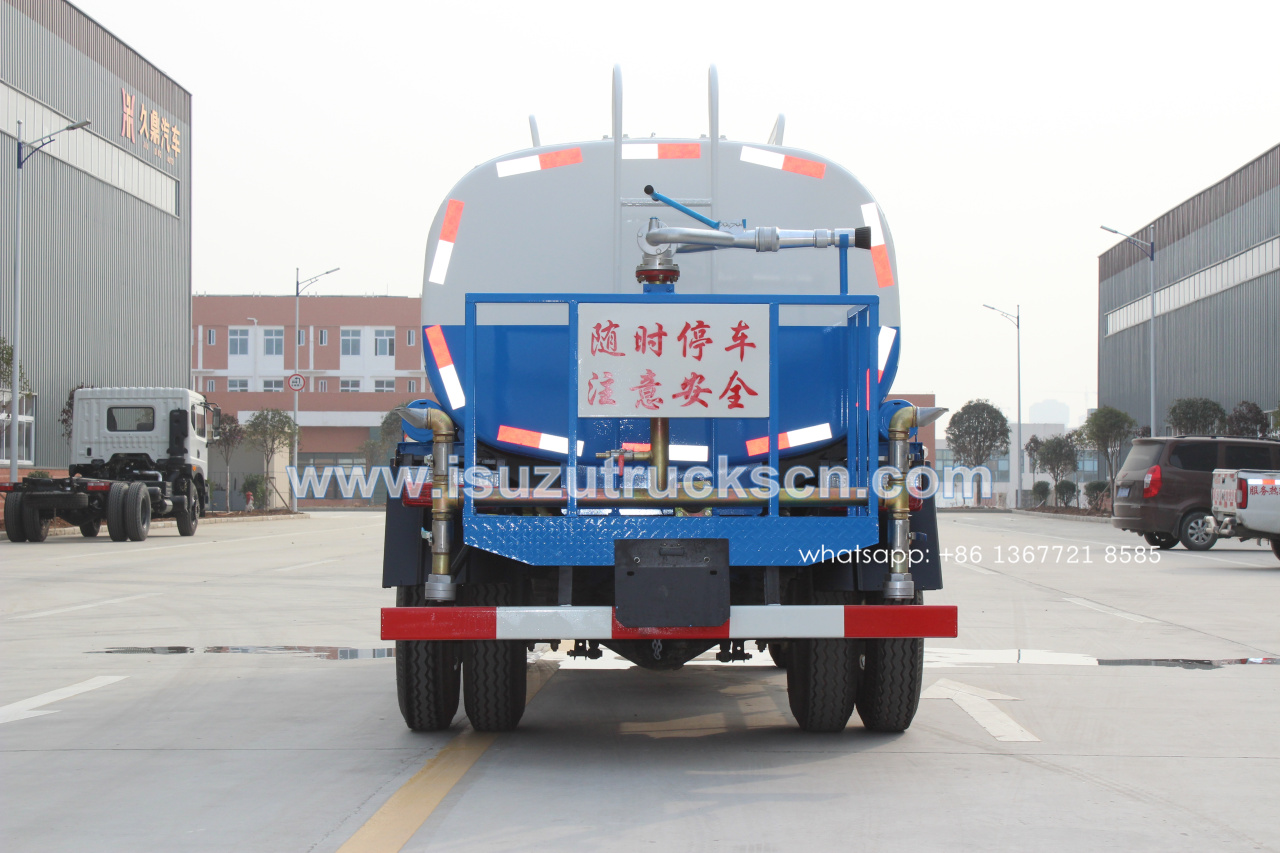

Rear view
|

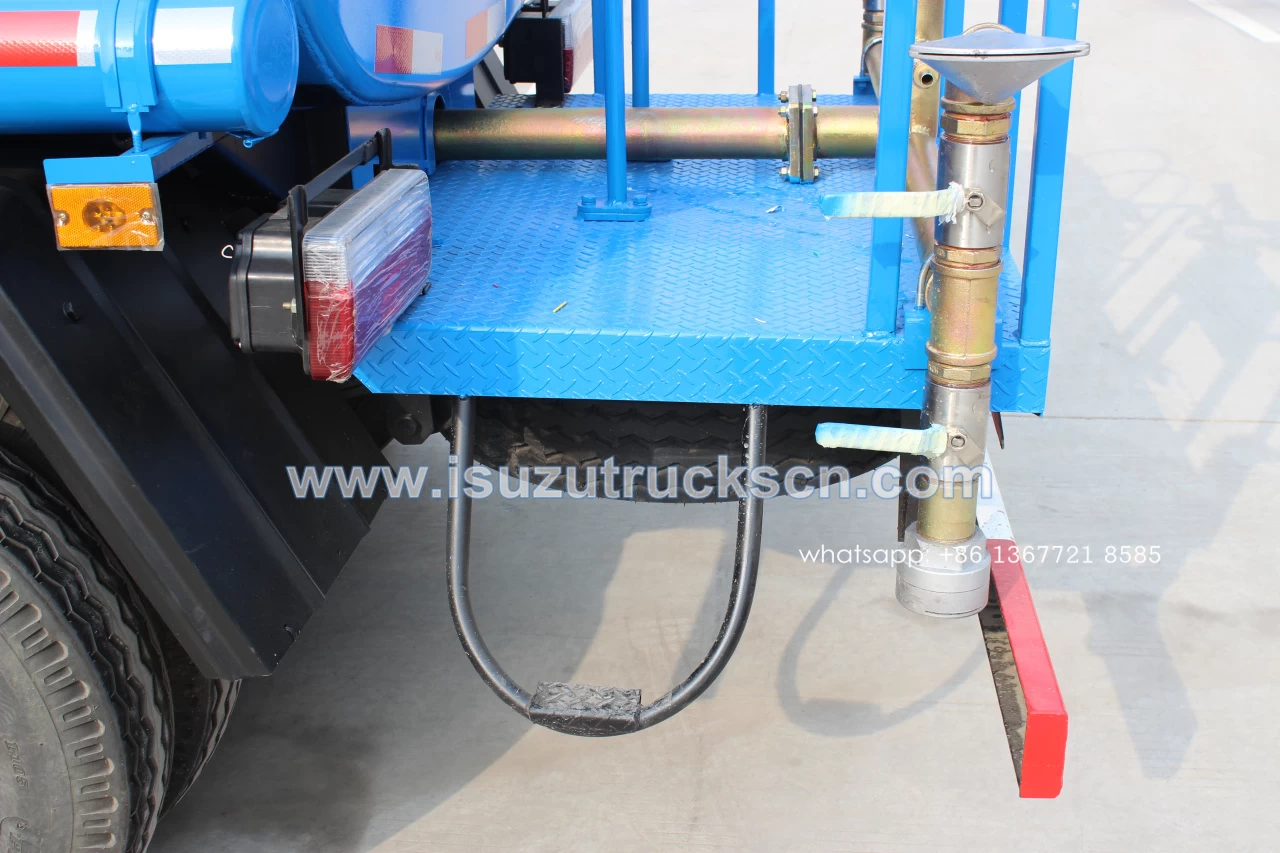

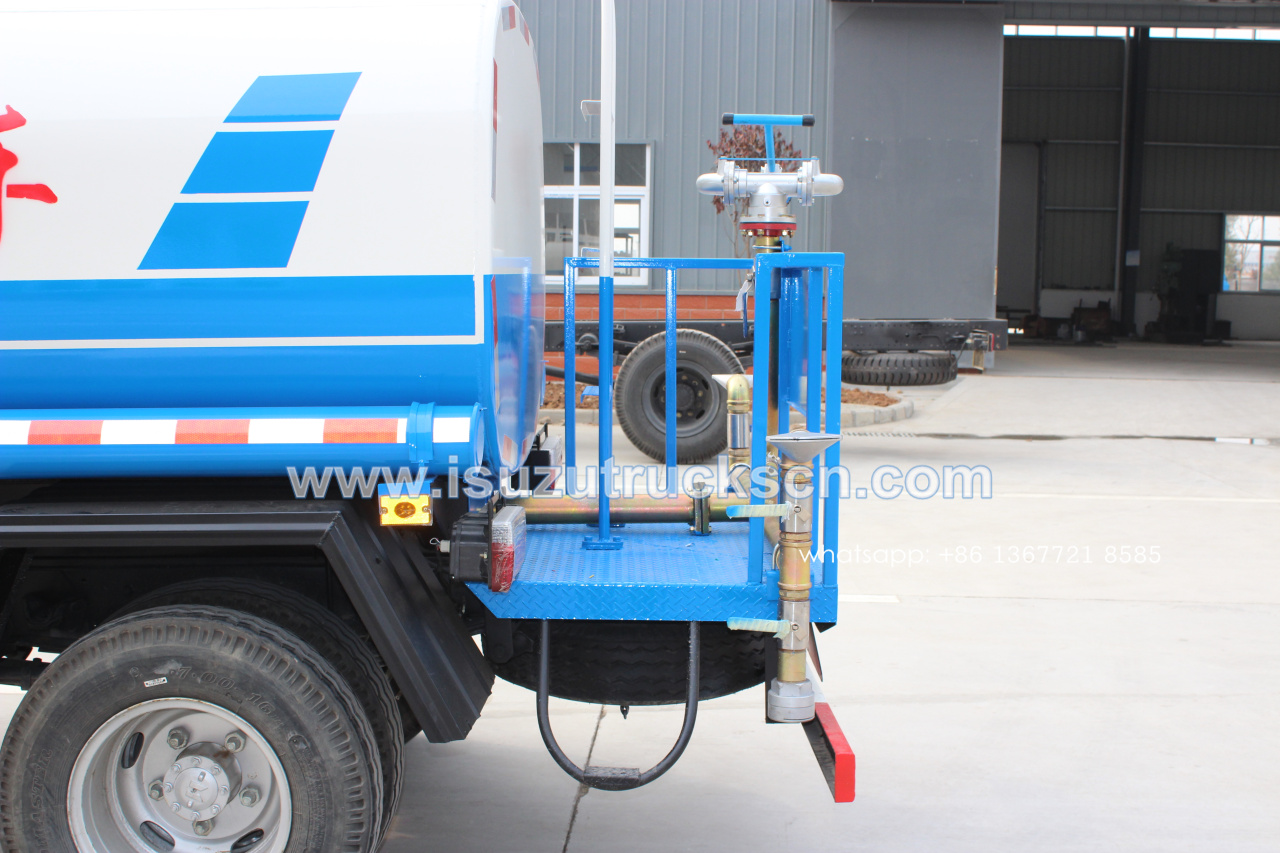

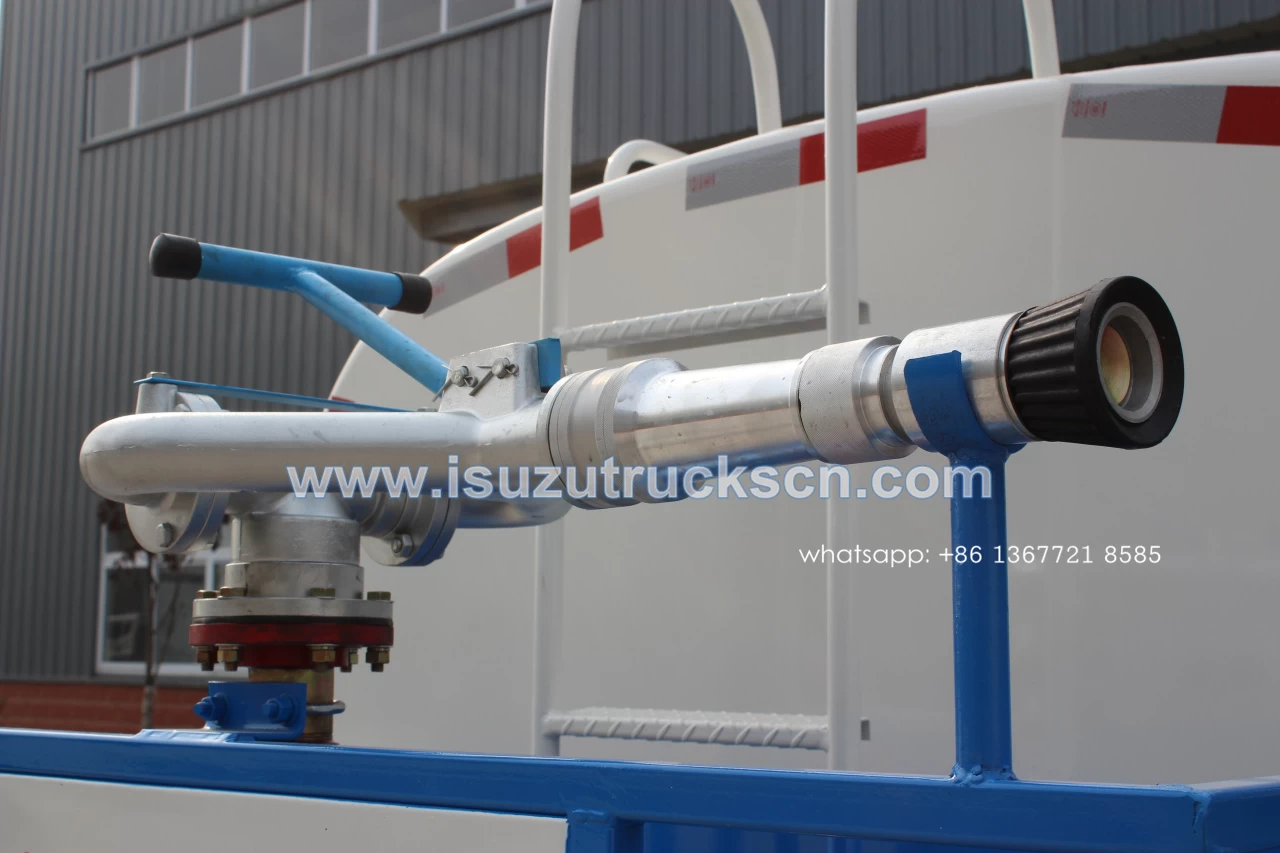

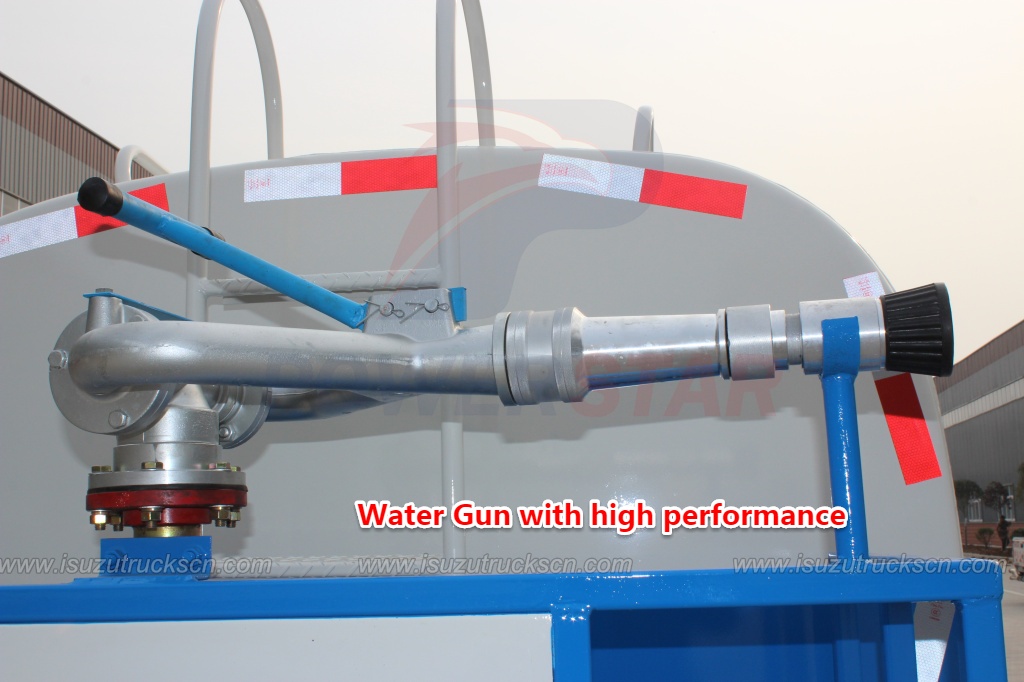

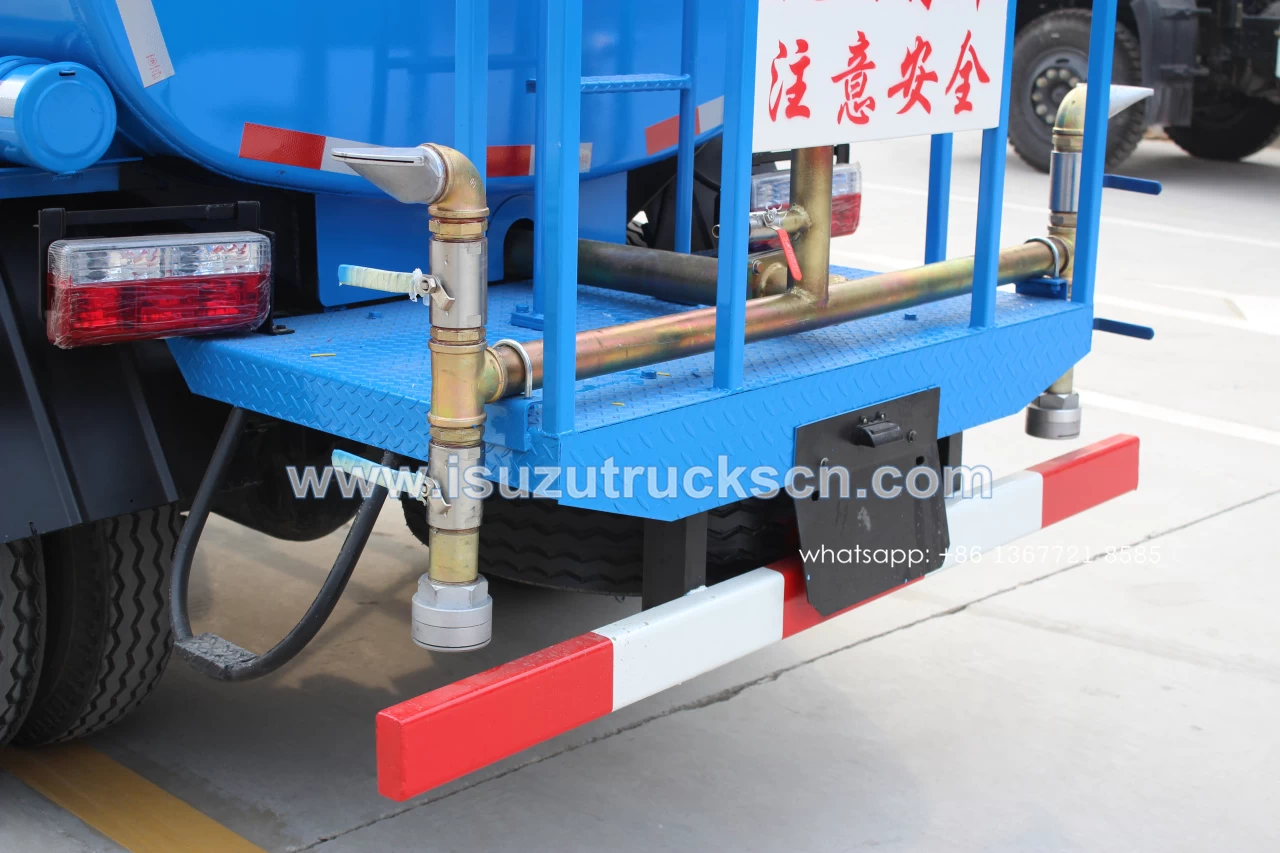

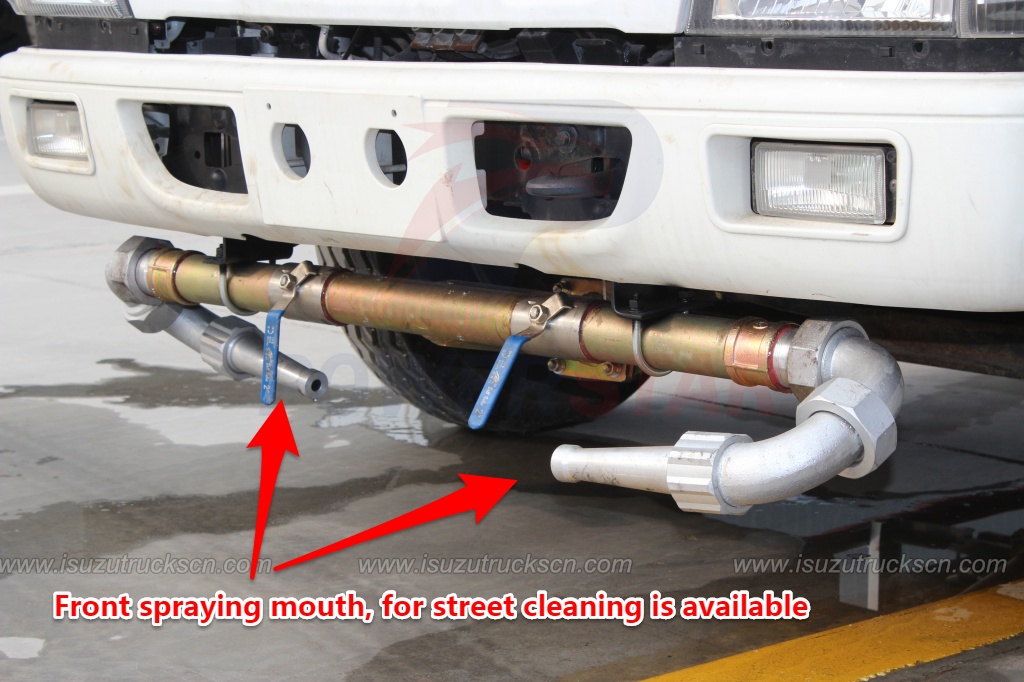

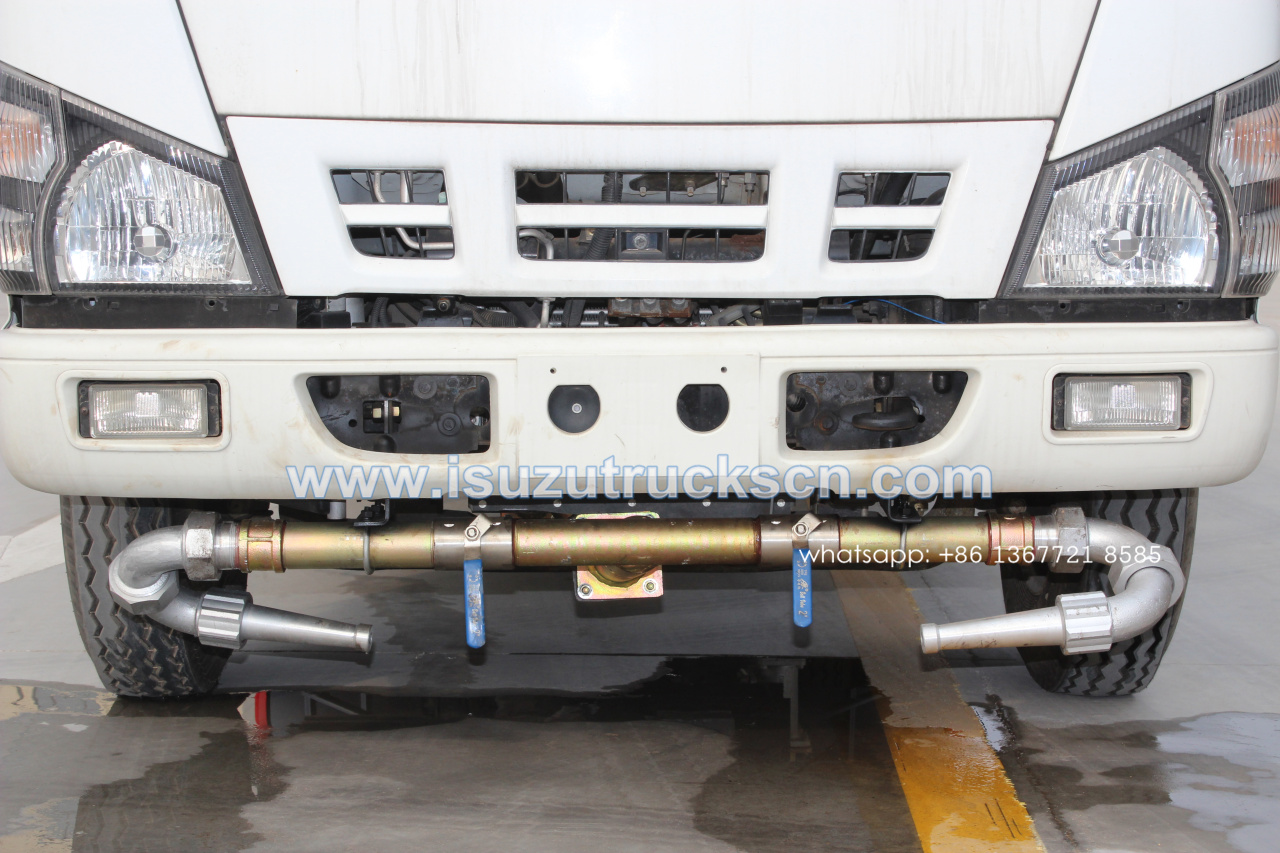

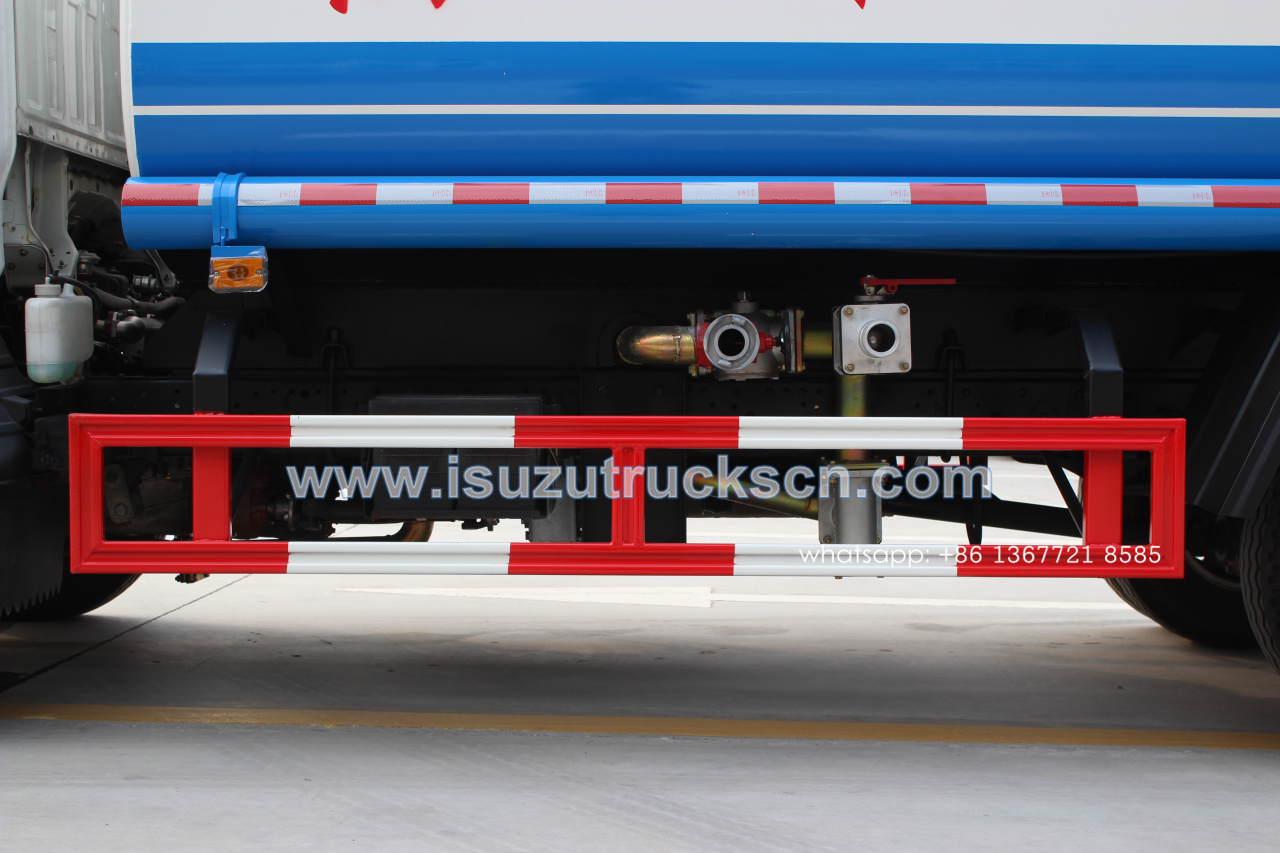

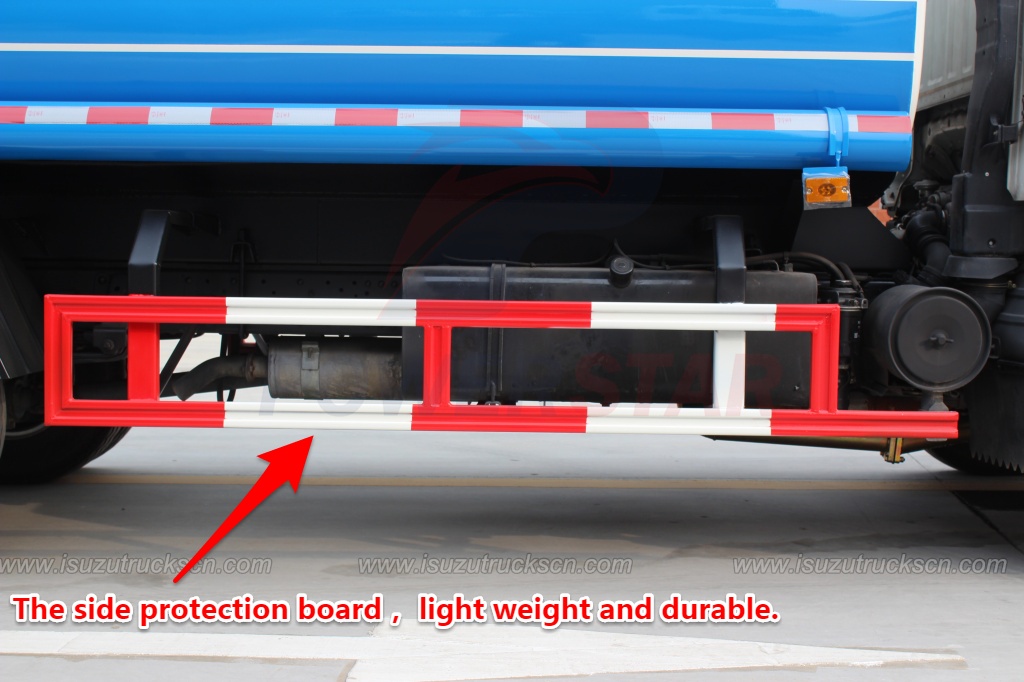

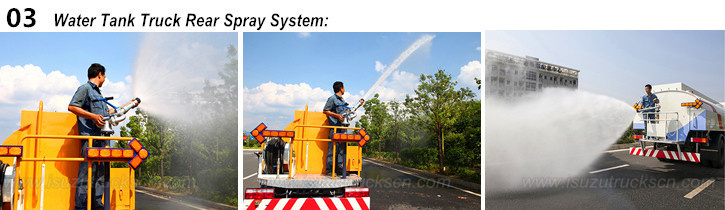

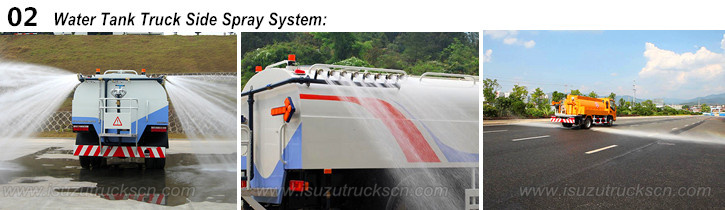

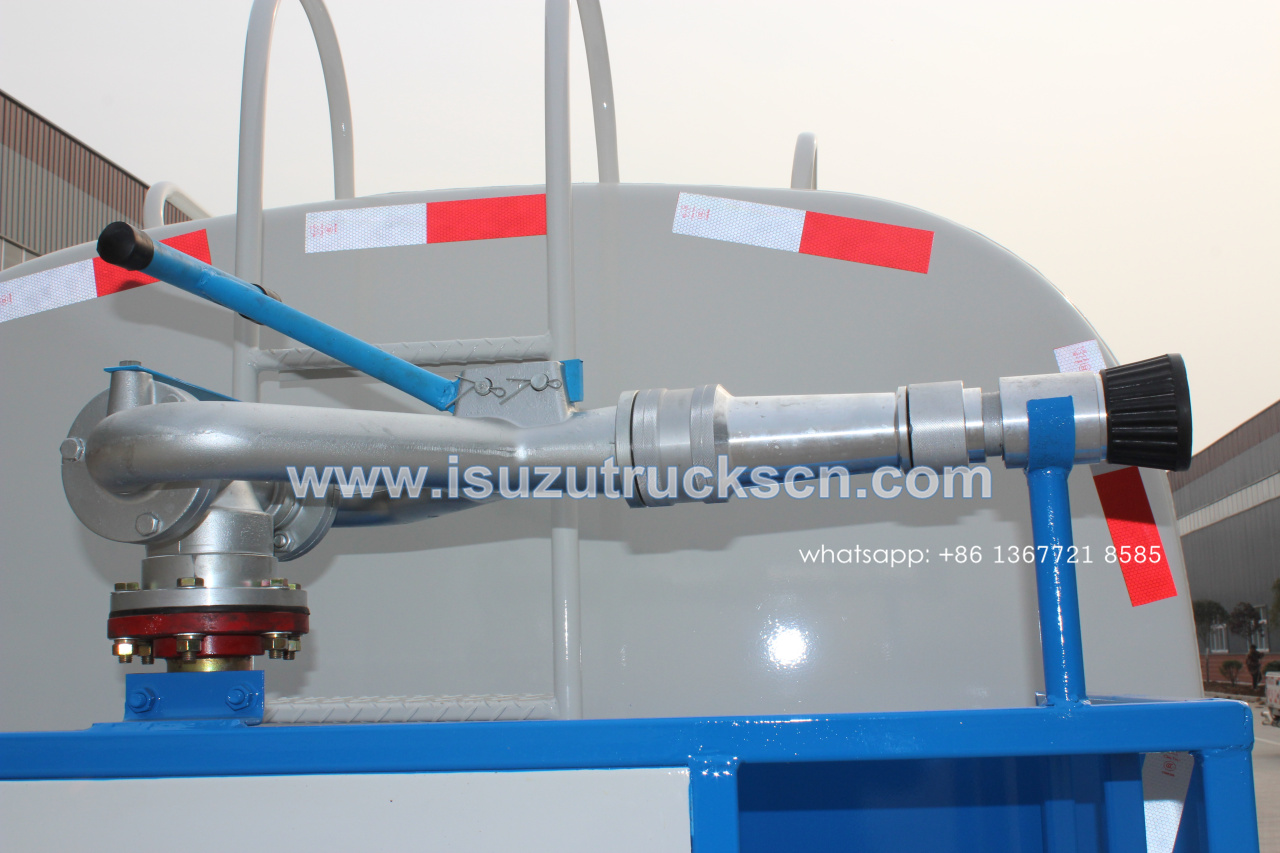

Other details pictures of 3000L 5000L ISUZU NKR Water Truck Tanker for sale
