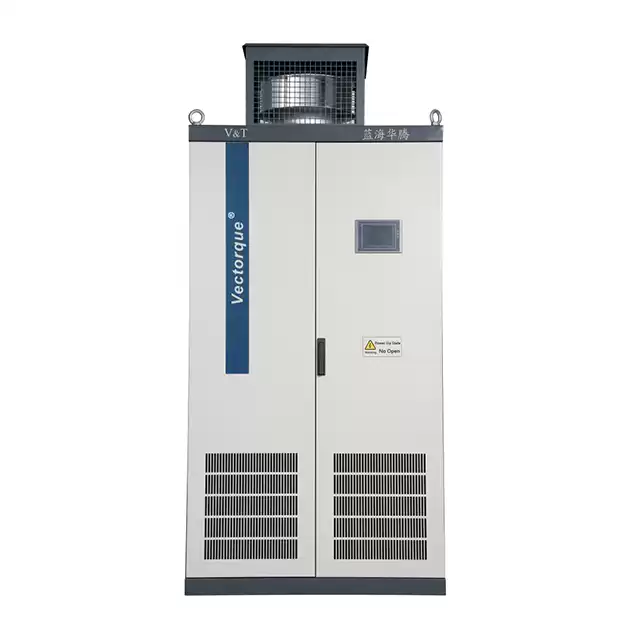

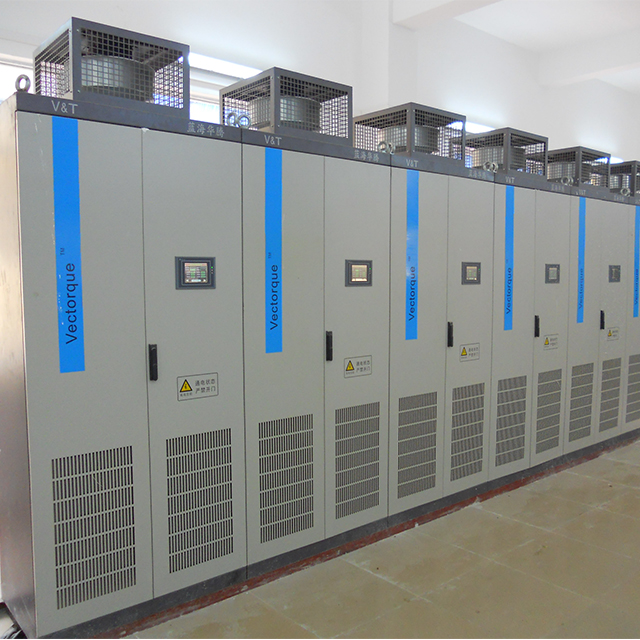

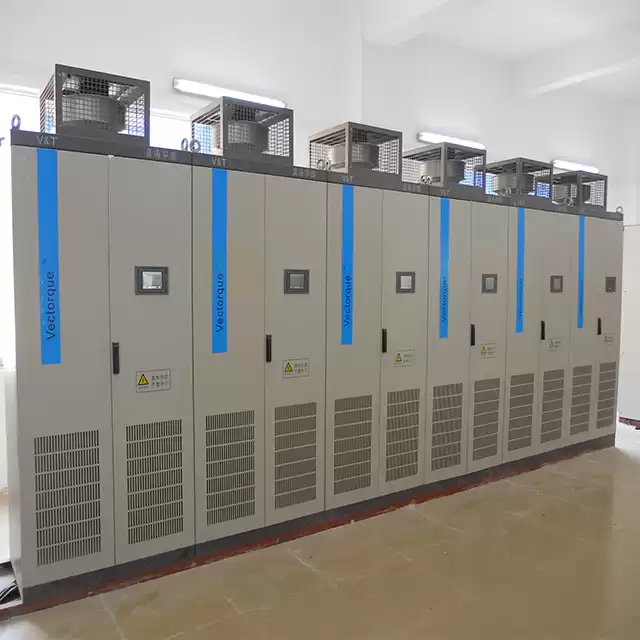

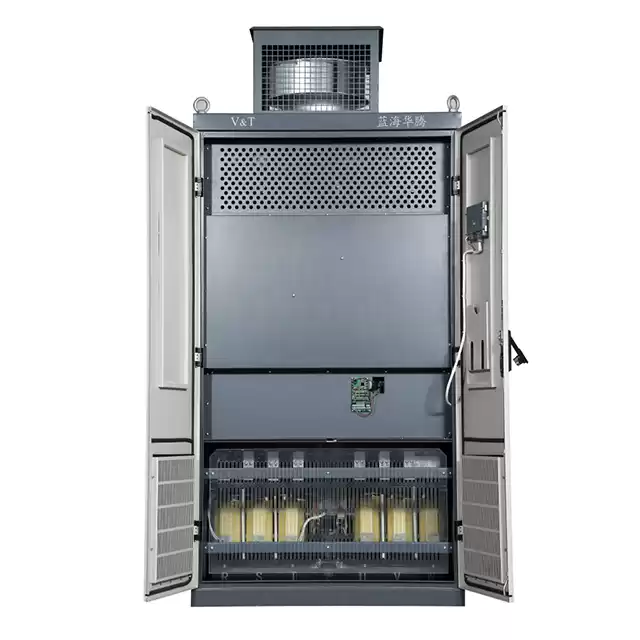

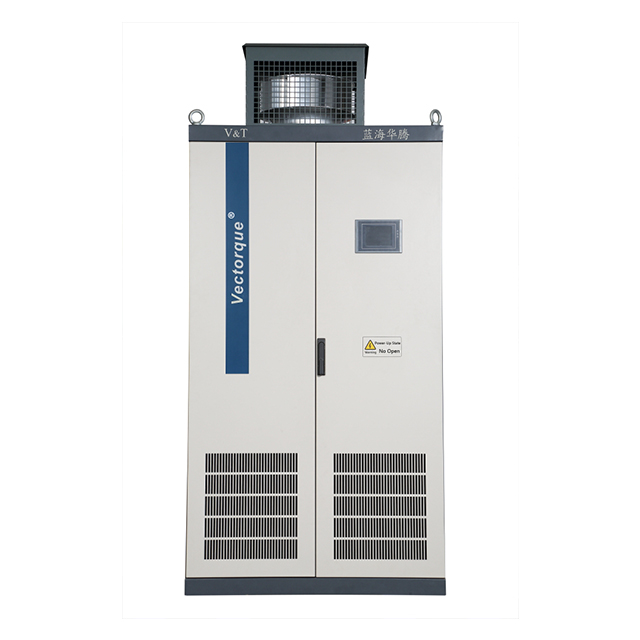

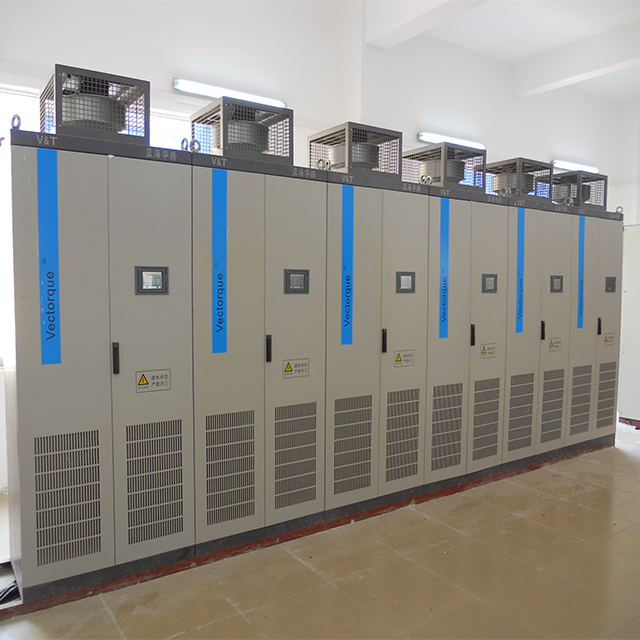

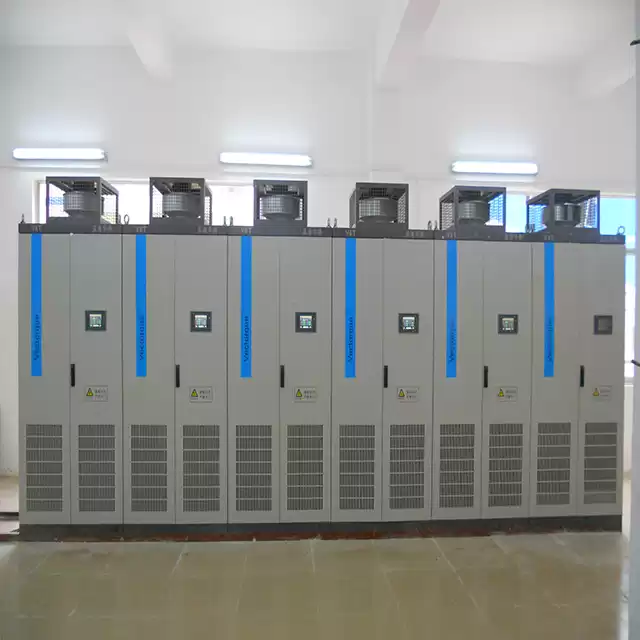

500kW Above V9 Series High Performance Universal Speed AC Drive

As the VFD manufacturer in china, V&T V9−H Series General Purpose Inverter is a high-performance vector control and torque controlled frequency drive. Vector control technology and torque control technology are employed. It can better meet the needs of various transmission applications.Voltage range covers 200V, 400V, 690V, and 1140V. The product power range covers 0.4kW to 3MW.


  • AvailabilityOEM/ODM, Minmum Order Request
  • PackageStandard Export Package Carton/Wood
  • TransportationExpress · Sea freight · Land freight · Air freight
  • Warranty18 Months
  • Delivery Time5-7 working days for standard series; 7-14 working days for customized AC drives
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • Place of OriginChina
  • Shipping PortShenzhen
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

Product Overview

Item Description
Product Name Frequency Inverter/ AC Drive
Model Number V9-H-4TxxG/xxL
Power Range 0.75kW-630kW
Rated Input Voltage 3 phase 380V/480V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor, Synchronous Motor
Control Mode V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control, Vector Torque Control
Communication Modbus 485 RTU, CANOpen, Profibus-DP, Profinet
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)

Feature

Fast and accurate motor parameter self-learning, suitable for a variety of motors: synchronous/asynchronous/reluctance/high-speed/torque motor, VF vector encoder closed loop integrated

Asynchronous and non-inductive VF control, 200% torque output at 0.25Hz in electric state, 200% torque output at 1Hz in power generation state

Good voltage and current control, high speed, high frequency, deep field weakening, wave-by-wave current limiting, multiple protections

Modular compact structure design, high power density

Support multiple encoders and multiple high-speed communication protocols

Integrated drive and control, expandable PLC and motion control card

Multiple language keyboard, friendly interface, reliable and easy to use

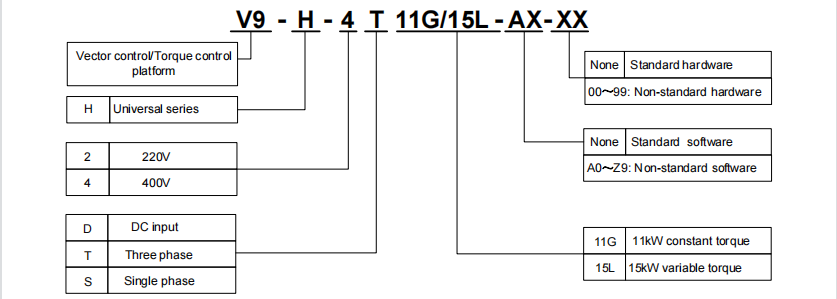

Model Explanation


Product Catalogue

V9−H−4T□□□G ;Three-phase 400V constant torque / heavy duty Application

Power(kW) 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110
Motor power (kW) 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110
Output Voltage (V) 3-phase 0 -rated input voltage
Rated current (A) 2.5 3.8 5.5 9 13 17 24 30 39 45 60 75 91 112 150 176 210
Overloa capability 150% 1min,180% 10s, 200% 0.5s,10min interval (Inverse-time characteristic)
Input Rated voltage / frequency 3-phase 380V-480V;50Hz/60Hz
Allowabl voltage 323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
Rated current (A) 2.8 4.2 6.1 10 15 19 26 33 43 50 66 83 100 123 165 194 231
Brake unit Standard built-in Built-in brake unit is optional
Protection level IP20
Cooling method Self−cooling Forced cooling

Power(kW) 132 160 185 200 220 250 280 315 355 400 450 500 560 630
Motor power (kW) 132 160 185 200 220 250 280 315 355 400 450 500 560 630
Output Voltage (V) 3-phase 0 -rated input voltage
Rated current (A) 253 304 350 380 426 470 520 600 650 690 775 860 950 1100
Overload
capability
150% 1min,180% 10s, 200% 0.5s,10min interval (Inverse-time characteristic)
Input Rated voltage / frequency 3-phase 380V-480V;50Hz/60Hz
Allowable voltage 323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
Rated current (A) 232 282 326 352 385 437 491 580 624 670 755 840 920 1050
Brake unit External braking unit needed
Protection level IP20
Cooling method Forced cooling

Note:* 0.75kW15kWno built-in DC reactor ;

18.5kW110kWoptional DC reactor ;

132kW160kWstandard built-in DC reactor ;

185kW500kWstandard external DC reactor

560kW630kWstandard built-in AC input reactor

Higher power level product can be customized

220V, 690V, 1140V and other voltage level inverters can be customized



V9−H−4T□□□L ;Three−phase 400V Variable torque/light−duty Application

Power(kW) 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132
Motor power (kW) 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132
Output Voltage(V) 3-phase 0 -rated input voltage
Rated current (A) 3.3 5 7.5 11 17 22 29 35 45 57 70 91 110 144 180 216 242
Overload capability 120% 1min,160% 0.5s,10min interval (Inverse-time characteristic)
Input Rated voltage /frequency 3-phase 380V-480V;50Hz/60Hz
Allowable
voltage
323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
Rated current (A) 3.6 5.5 8.3 12 19 25 32 39 50 61 77 100 121 158 198 238 266
Brake unit Standard built-in Built-in brake unit is optional
Protection level IP20
Cooling method Self−cooling Forced cooling

Power(kW) 160 185 200 220 250 280 315 355 400 450 500 560 630 710
Motor power (kW) 160 185 200 220 250 280 315 355 400 450 500 560 630 710
Output Voltage (V) 3-phase 0 -rated input voltage
Rated current
(A)
325 365 405 440 495 547 610 695 770 866 950 1100 1200 1300
Overload capability 120% 1min,160% 0.5s,10min interval (Inverse-time characteristic)
Input Rated voltage /frequency 3-phase 380V-480V;50Hz/60Hz
Allowabl
voltage
323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
Rated current (A) 282 326 352 385 437 491 580 670 755 840 920 1050 1150 1250
Brake unit External braking unit needed
Protection level IP20
Cooling method Forced cooling

Note: * 1.5kW - 18.5kW: no built-in DC reactor ;

200kW560kW: standard external DC reactor ;

22kW132kW: optional DC reactor ;

160kW185kW: standard built-in DC reactor ;

630kW710kW: standard built-in AC input reactor

Higher power level product can be customized ;

220V, 690V, 1140V and other voltage level inverters can be customized


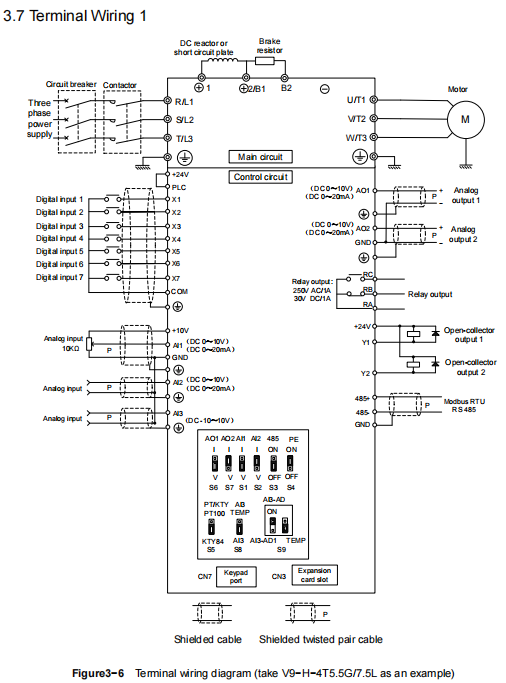

Technical Specification

Control characteristics

Control mode

Sensor-less control

Sensor control

Applicable motor type

Synchronous motor

Asynchronous motor

Synchronous motor

Asynchronous motor

Starting torque

Asynchronous ;motor:

200% of rated torque at 0.25Hz

Synchronous ;motor:

150% of rated torque at 1.5% of rated speed

200% of rated torque at 0 speed

Speed regulation range

1:200

1:5000

Steady speed precision

± 0.5%

± 0.02%

Maximum speed

VF control: 600Hz

Vector control: ;600 Hz ;

Note: Higher frequency products can be customized

600Hz

Note: Higher ;frequency ;products can be customized

Torque control

Y

Y

Torque control precision

±5%

±3%

Torque response time

<20ms

<10ms

Positioning control

N

Y

Positioning ;precision

N

±1 ;pulse

Product function

Key function

Torque limit, speed control, positioning control, motor ;auto tune, ;deep ;flux-weakening ;control, current limit control, over-voltage control, under-voltage control, ;motor ;speed tracing function, droop control, oscillation suppression, random carrier frequency, inertia auto-tune, etc.

Speed reference source

Modbus communication, Keypad, ;external digital input, analog ;AI1/AI2/AI3, ;high speed pulse input, ;simple PLC, PID, ;CAN, PROFIBUS DP, PROFINET, ;etc.

Dynamic brake

Brake unit action voltage: 650 ~ 750V.

The brake unit can be built-in for ;110kW ;and below equipment

;0.75~15kW: brake unit is built- in as standard.

;18.5~110kW: brake unit is built- in as optional.

Communication

Built-in ;Modbus-RTU communication, the maximum distance up to 500 meters.

Keypad

LED Keypad and LCD Keypad are optional

the Keypad can be used as ;remote-control box ;via straight-through wired cable. ;

Common DC bus

Support common DC bus ;directly

Independent air duct

All series product adopts independent duct design

Protection function

Power supply under-voltage, over-current protection, over-voltage protection, ;auto-tune fault, module protection, heat-sink overtemperature ;protection, drive overload protection, motor overload protection, peripheral protection, current ;abnormal ;detection, output short-circuit ;to ;ground protection, EEPROM abnormal detection, temperature sampling disconnection, encoder disconnection, analog input abnormal detection, motor overtemperature, communication ;fault, hardware overload protection, etc.

Efficiency

At rating condition:

;0.75kW to ;7.5kW: ;≥93%

;11kW to ;45kW: ;≥95%

;55kW and ;higher ;power class: ;≥98%

Environment

Operating site

;Install vertically in a well-ventilated electrical cabinet. Horizontal or other installation methods are not allowed.

;The cooling medium is air.

● Installed in an environment free from direct sunlight, dust, corrosive gases, flammable gases, no oil mist, no steam, no dripping.

Ambient temperature

;−10+40℃

;Derating use when the temperature between 40 to 50, the rated output current is reduced by 1% for every 1 °C increasing.

Humidity

595%, ;no condensation is allowed.

Altitude

;02000 ;meters

;Derating use when the altitude over 1000 meters, the rated output current is reduced by 1% for every 100-meter rising.

Vibration

;3.5 m/s2, ;29Hz

;10 m/s2, ;9200Hz

;15 m/s2, ;200500Hz

Storage temperature

−40+70℃.





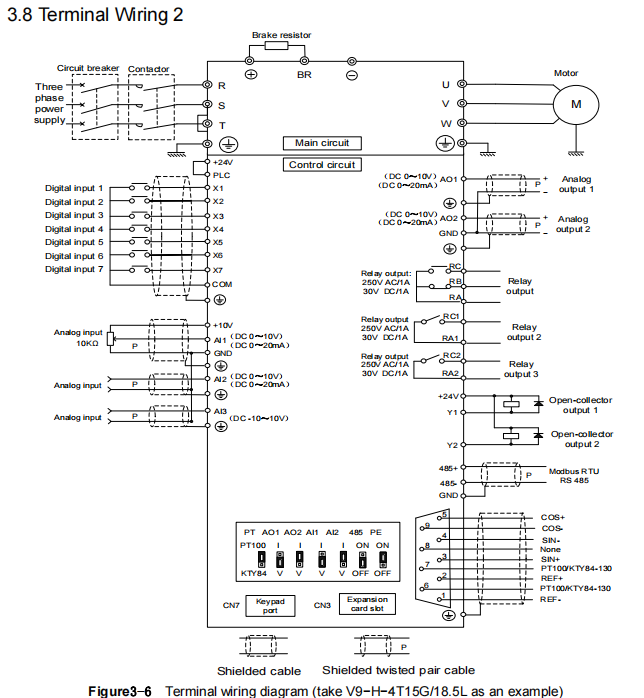

Installation dimension



V9−H−4T7.5G/11L and below power class



V9−H−4T11G/15L and above power class


Voltage

Model

Outline and mounting dimension (mm)

Weight

(kg)

W

H

D

W1

H1

T1

Mounting hole

diameter ;d

400V

V9−H−4T0.75G/1.5L

118

190

155

105

173

3

5.5

1.5

V9−H−4T1.5G/2.2L

118

190

175

105

173

4

5.5

2.6

V9−H−4T2.2G/3.7L

V9−H−4T3.7G/5.5L

V9−H−4T5.5G/7.5L

155

249

185

136

232

8

5.5

3

V9−H−4T7.5G/11L

V9−H−4T11G/15L

198

299

190

160

283

1.2

6

8

V9−H−4T15G/18.5L

V9−H−4T18.5G/22L

223

348

208

195

335

1.5

6

10

V9−H−4T22G/30L

V9−H−4T30G/37L

264

430

235

230

418

1.5

7

18

V9−H−4T37G/45L

V9−H−4T45G/55L

305

545

270

245

523

1.5

10

35

V9−H−4T55G/75L

V9−H−4T75G/90L

338

580

310

270

560

1.5

10

52

V9−H−4T90G/110L

V9−H−4T110G/132L

V9H−4T132G/160L

400

917

323

320

890

3.0

12

75

V9H−4T160G/185L

V9H−4T185G/200L

540

890

385

370

855

4.0

14

85

V9H−4T200G/220L

V9H−4T220G/250L

540

890

416

370

855

4.0

14

85

V9H−4T250G/280L

700

1010

385

520

977

4.0

14

125

V9H−4T280G/315L

V9H−4T315G/355L

700

1010

418.5

520

977

4.0

14

125

V9H−4T355G/400L

810

1358

425

520

1300

4.0

14

215

V9H−4T400G/450L

810

1358

425

520

1300

4.0

14

215

V9H−4T450G/500L

V9H−4T500G/560L


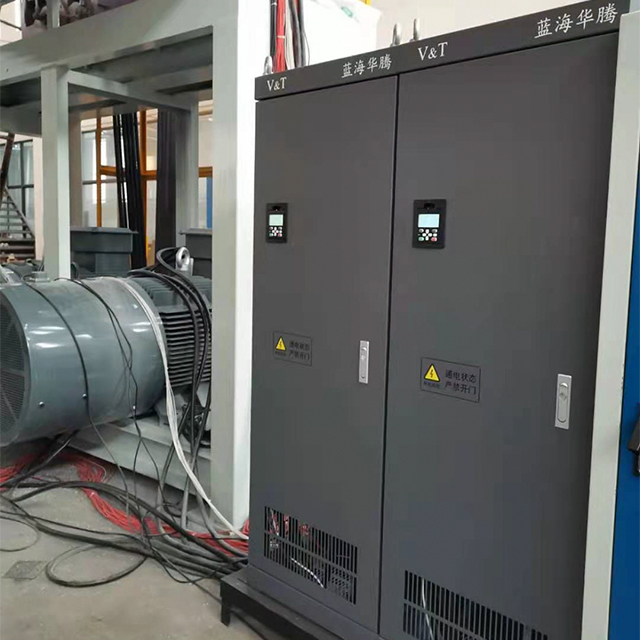

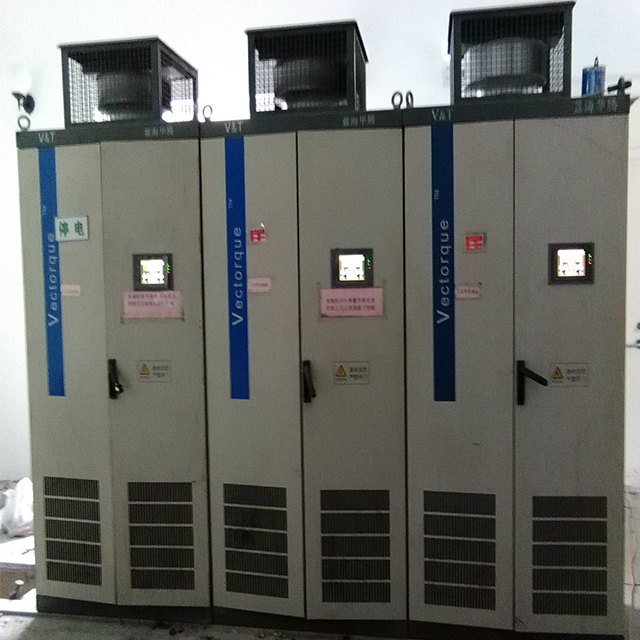

Applications











Representative Industry

Our universal speed AC drive is suitable for Printing Packaging, Petrochemical, Textile, Cable Machinery, Food Packaging, Electric Vehicles, Plastic Machinery, Metal ;Products Equipment, Centrifuges and High-end applications requiring closed-loop vector or torque control.
