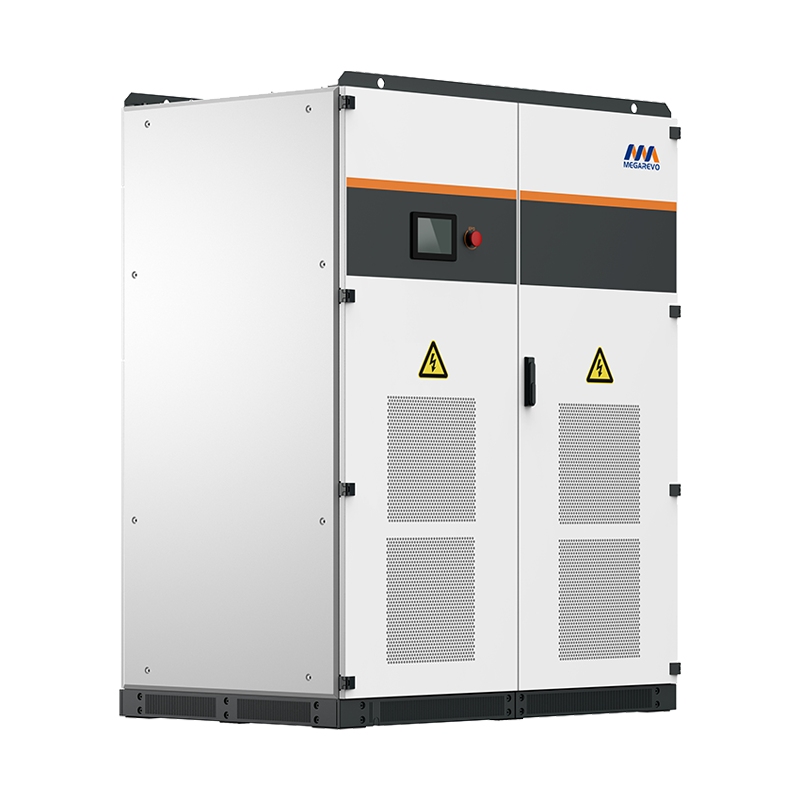

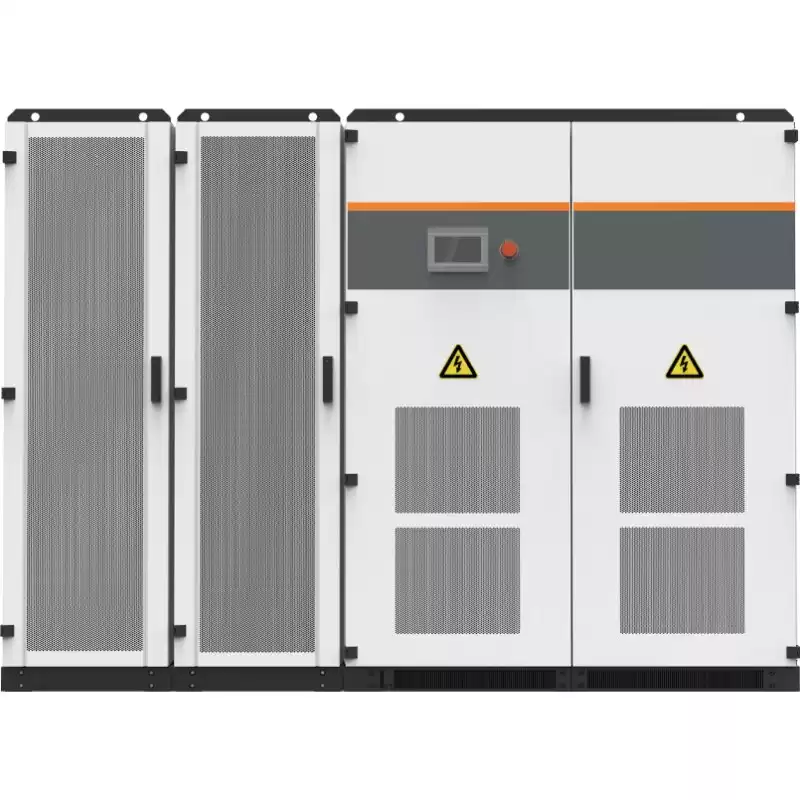

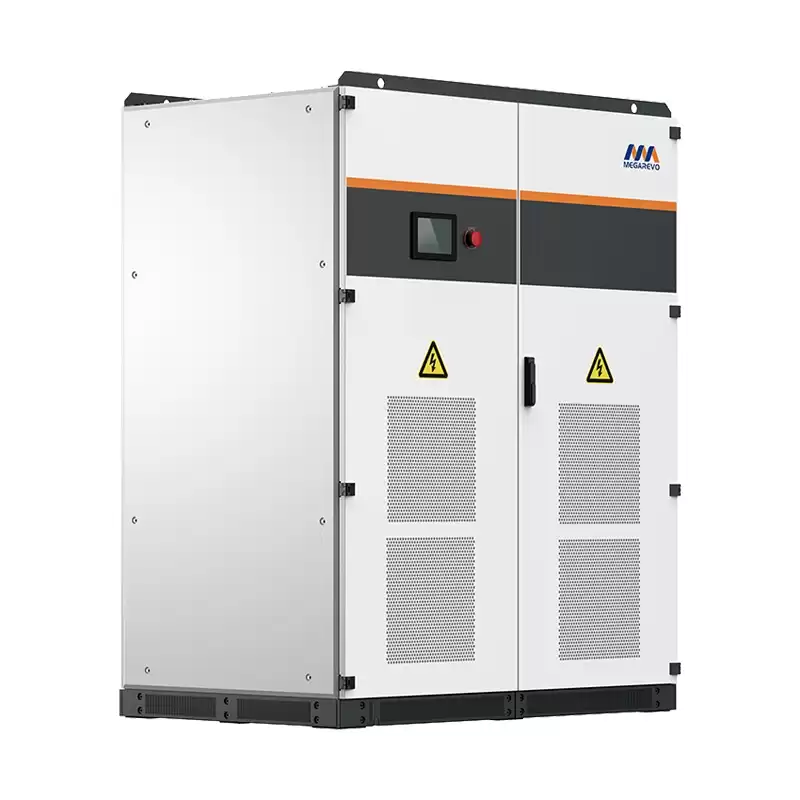

500KW Power conversion system (with isolation transformer)

500KW Power conversion system (with isolation transformer)



Model: MEGA30-0500TS
Voltage range(V): 500-850
Rated output power(kW): 500
Grid type: 3W+N+PE
Ingress protection: IP21
Dimension W*D*H(mm): 1,600*1050*2,050
Weight(kg): 2665





Product Highlights


  • Safe and reliable
    Passed EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 test certification;

  • Flexible configuration
    Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly;

  • Convenient operation and maintenance
    Supports unattended operation , with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management.

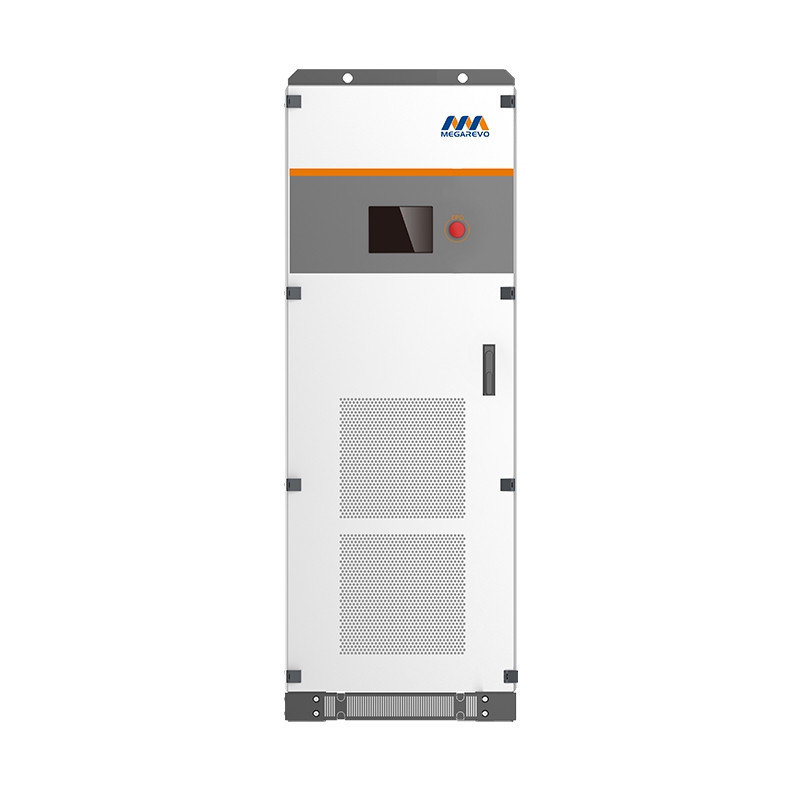

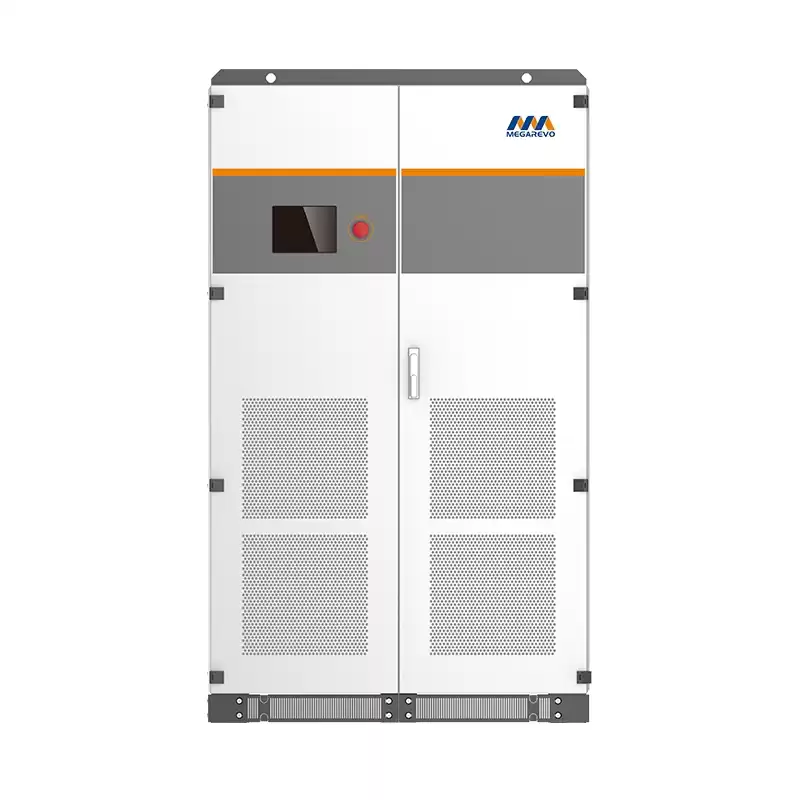

Model MEGA0030TS MEGA0050TS MEGA0100TS MEGA0150TS MEGA0250TS MEGA0500TS
DC(battery)
Voltage range(V) 250-850 320-850 420-850 420-850 420-850 500-850
Max.current(A) 137  178  270  405  673  1,128
AC(on-grid)
Max.output power(kW) 33  55  110  165  275  550
Rated output power(kW) 30  50  100  150  250  500
Rated voltage (V) 400
Voltage range(V) 320-460
Rated current(A) 43  72  144  216  361  722
Max.output current(A) 48  80  159  238  397  794
Rated frequency(Hz) 50/60
Frequency range(Hz) 45-55/55-65
THDi <3%
Power factor 1leading-1lagging(settable)
Grid type 3W+N+PE
AC(off-grid)
Rated voltage(V) 400
THDu <1%Linear<5%nonlinear
Rated frequency(Hz) 50/60
Overload capacity 110%long-term
General data
Max.efficiency 96.3% 96.5% 97.1% 97.1% 97.3% 97.5%
ngress protection IP21
Noise emission(dB) <70
Operating temperature(℃) -30~+55
Cooling Forced air
Relative humidity 0~95%non-condensing
Max.operating altitude(m) 5,000(>3,000 derating)
Dimension W*D*H(mm) 800*800*1,900 800*800*1,900 800*800*1,900 800*800*1,900 1,200*800*2,050 1,600*1050*2,050
Weight(kg) 621  712  936  1,057 1,582 2,665
Self-consumption <0.5%
On/off grid switching Automatic
Display and communication
Display LCD touch-screen
BMS communication RS485,CAN
EMS communication RS485,TCP/IP
Certificates IEC/EN 62109-1-2,EN62477-1,IEC/EN 61000-6-2/-6-4,EN 50549-1/-10,NRS 097-2-1:2017 ASGC,GB/T 34120,GB/T 34133,CGC-R46103:2018A,PTPIREE REV1.2:2024 TYPE B

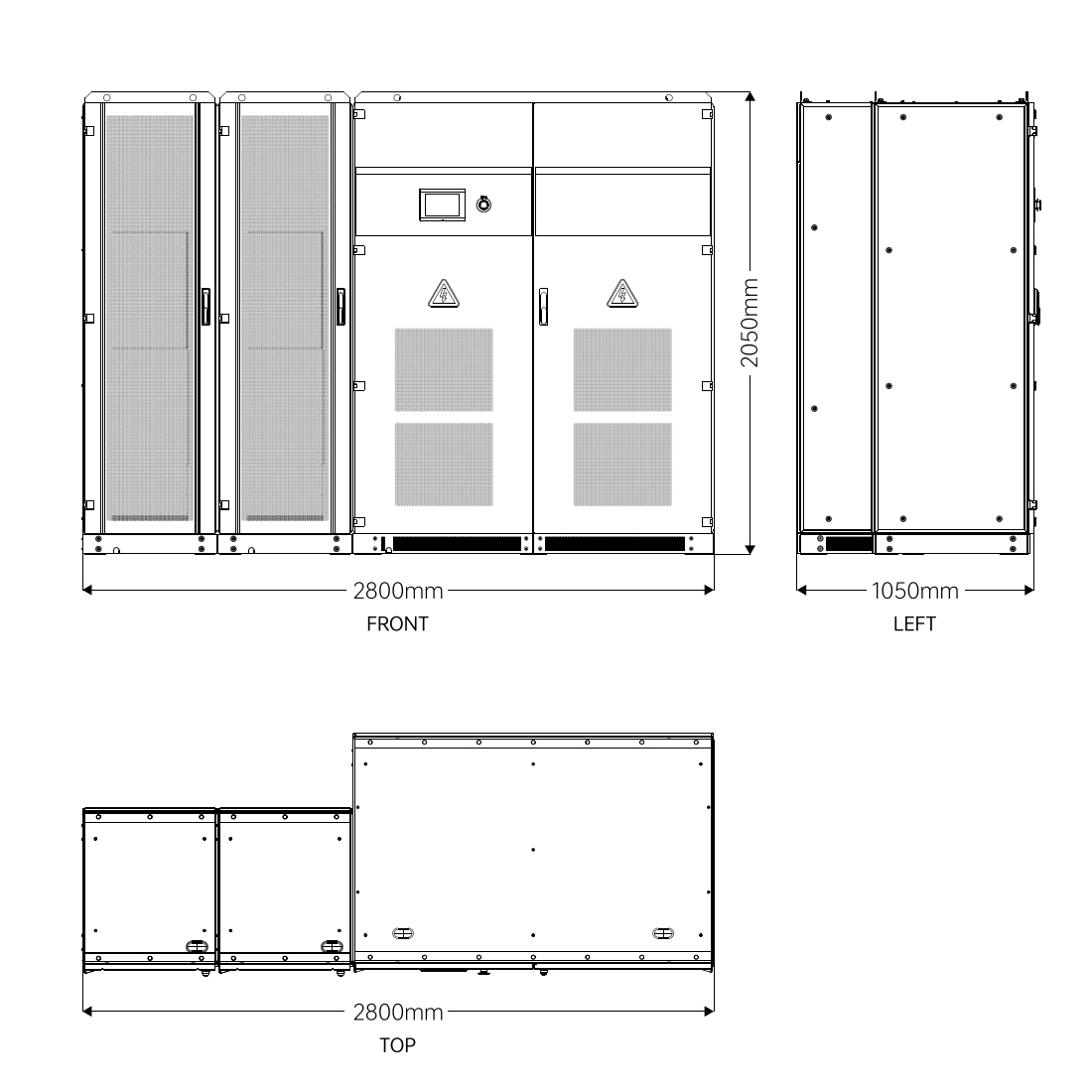

Dimension figure

Sunrange 500KW Hybrid Inverter Dimension figure

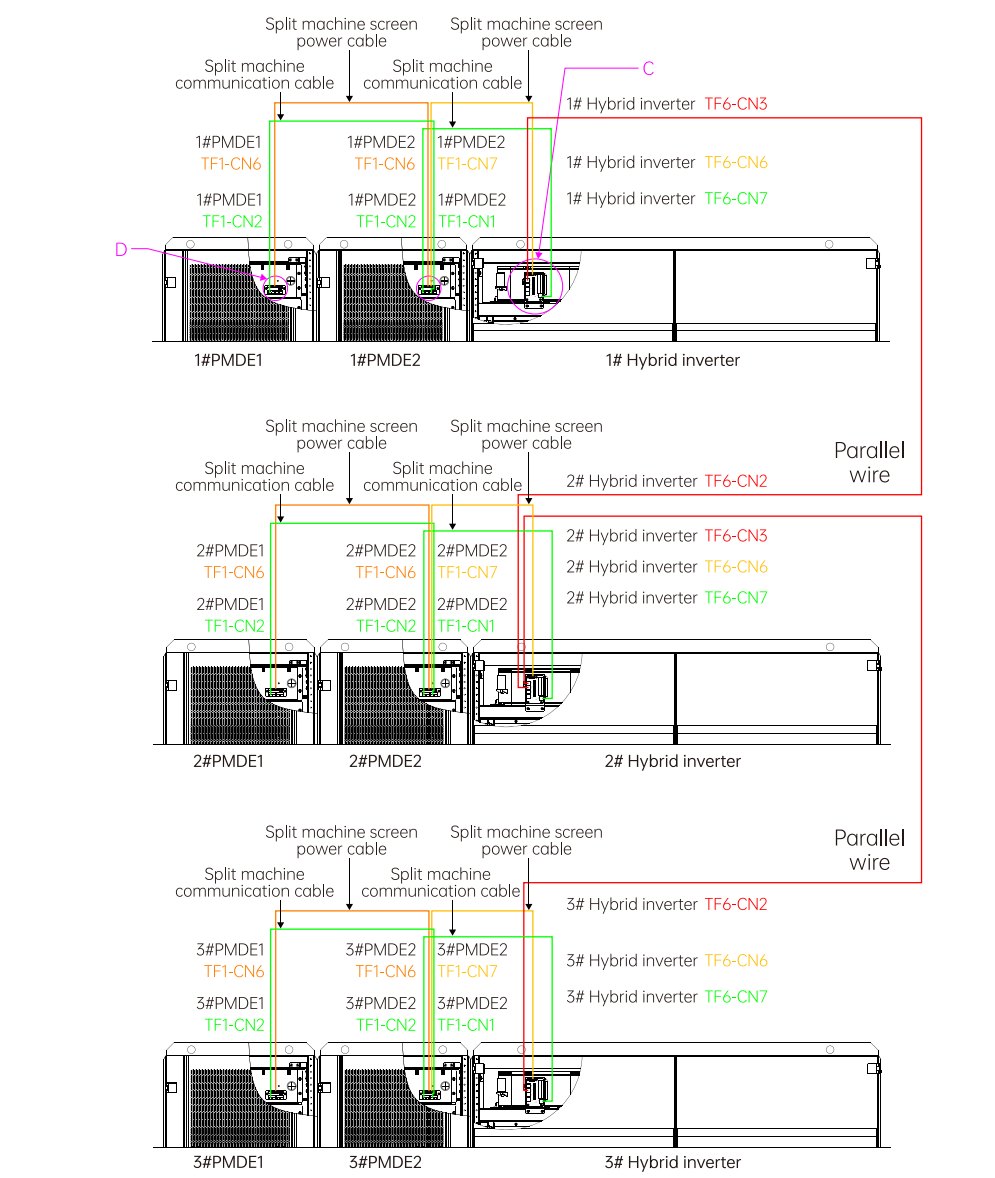

Parallel wiring

Sunrange 500KW Hybrid Inverter Parallel wiring

Compatible Inverters List

Sunrange Compatible Inverters List

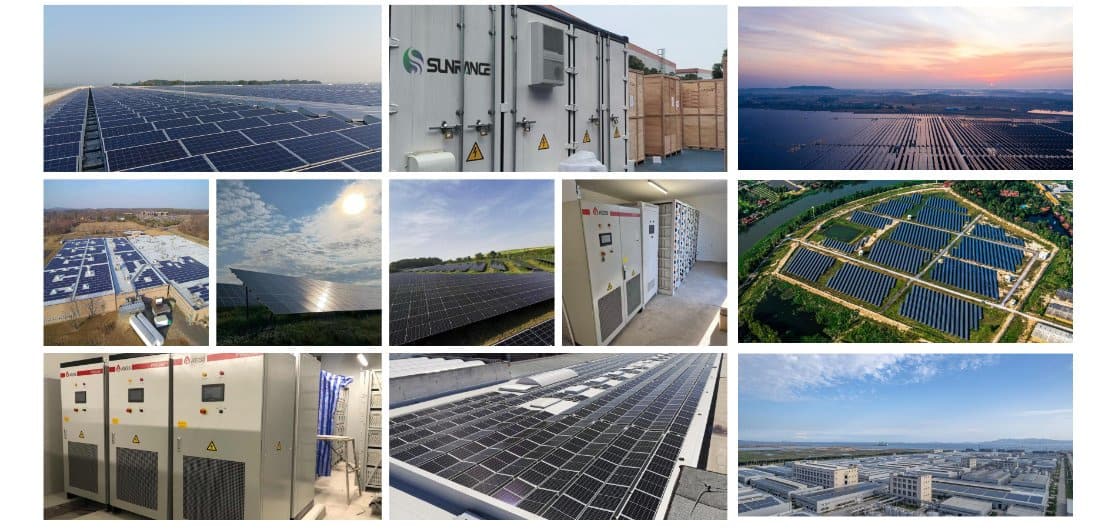

Project Case

Sunrange Project Case

FAQ

1. Are you a factory or a trading company?

We are the manufacturer of Lithium battery. Such as solar panel; inverter, brackets and accessories from our long term partners. Full certificates with competitive price.



2.How about the delivery time?

Usually need 10-15 days to prepare. We will update the info for you during our production.



3.Can i install them by myself?

Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.



4.What is the payment method?

We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.



5.How about the after sales?

Damage in transit will be resolved according to the contract terms.During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.



6.Can we visit your factory?

A: Yes,you can visit the factory at any time.
