Product Description:
Cosmetic Mixer Machine means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The product mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizers, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

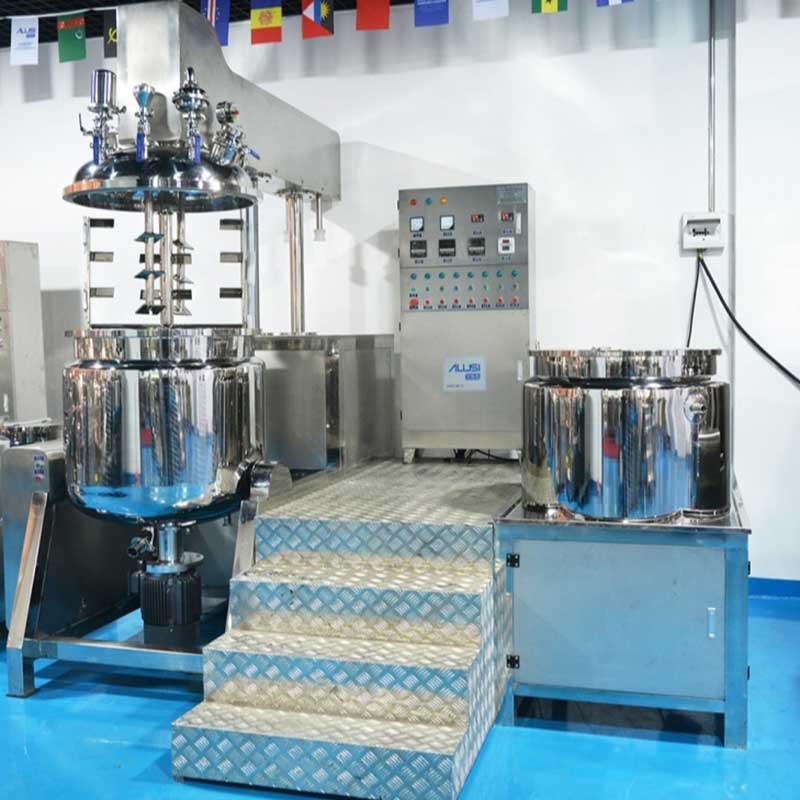

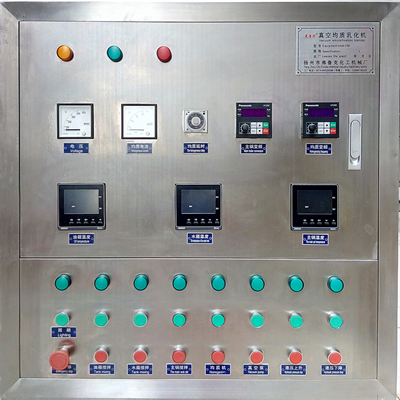

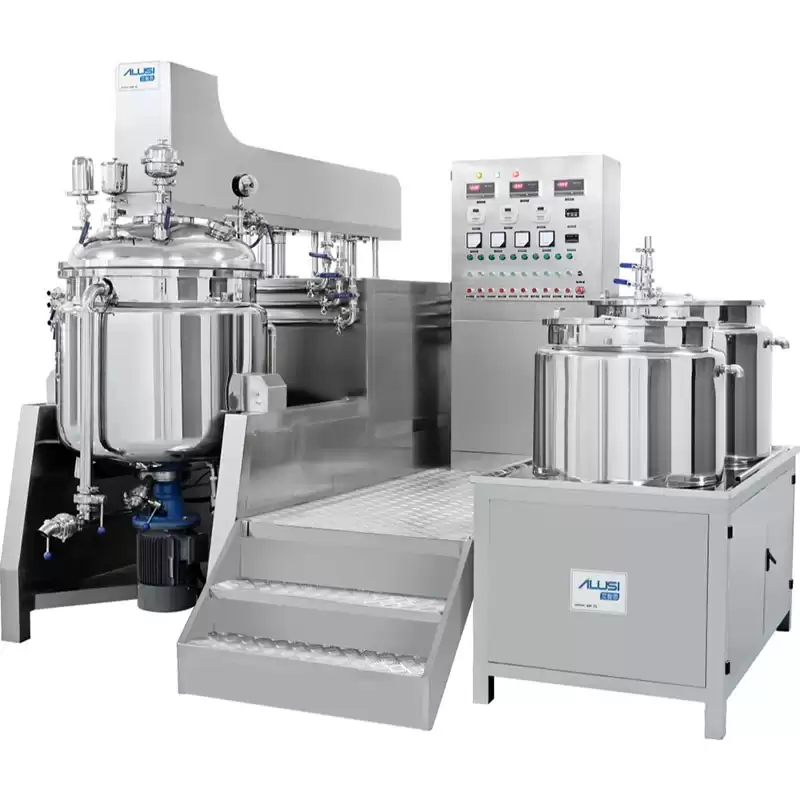

Homogenizer Mixer Type and Liquid Application electric cosmetic cream mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.
Technical Parameters:
|
Working capacity (L)
|
Agitator power (kw)
|
Speed (rpm)
|
Homogenizer power (kw)
|
Speed (rpm)
|
Oil/Water tank (L)
|
Agitator power (kw)
|
Speed (rpm)
|
Hydraulic (KW)
|
|
50
|
1.5
|
0~75
|
2
|
0~3600
|
20/45
|
0.37/0.37
|
0~1440
|
0.75kw
|
|
100
|
2.2
|
0~75
|
3
|
0~3600
|
40/90
|
0.55/0.55
|
0~1440
|
0.75kw
|
|
200
|
3
|
0~75
|
5.5
|
0~3600
|
80/180
|
0.75/0.75
|
0~1440
|
1.1kw
|
|
300
|
4
|
0~75
|
5.5
|
0~3600
|
120/270
|
1.1/1.1
|
0~1440
|
1.5kw
|
|
500
|
4
|
0~75
|
7.5
|
0~3600
|
200/450
|
1.5/1.5
|
0~1440
|
1.5kw
|
|
1000
|
5.5
|
0~75
|
11
|
0~3600
|
400/900
|
2.2/2.2
|
0~1440
|
2.2kw
|
|
2000
|
7.5
|
0~75
|
15
|
0~3600
|
800/1800
|
2.2/2.2
|
0~1440
|
-
|
|
3000
|
11
|
0~75
|
18.5
|
0~3600
|
1200/2700
|
3/3
|
0~1440
|
-
|
Main features:

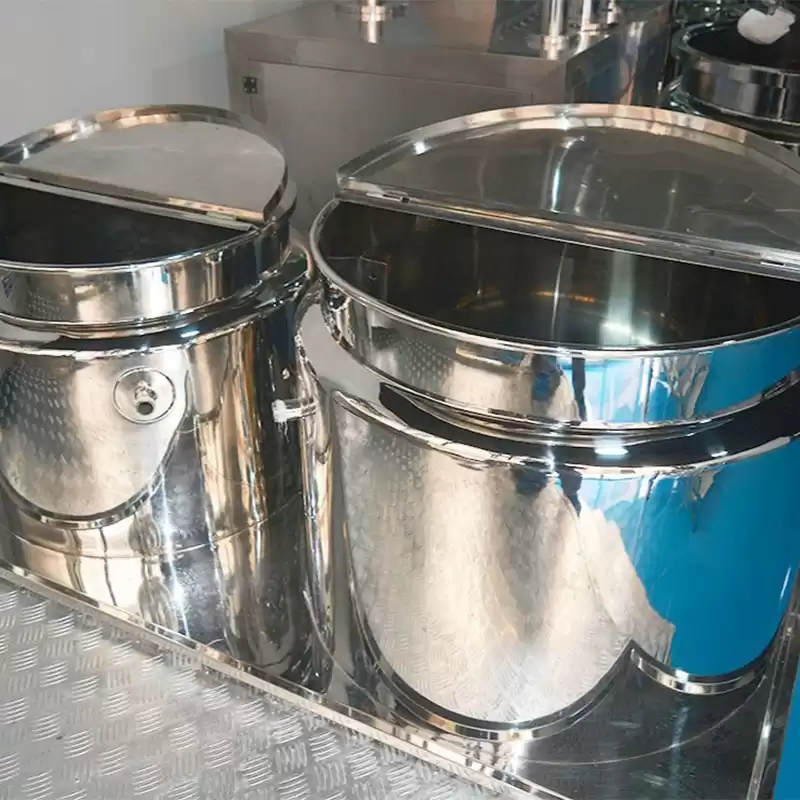

1) Consist of main emulsifying mixer, water pot, oil pot, vacuum pump etc
2) Oitment making machine adopts advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High quality SUS304&316L material, internal and external mirror polish of homogenizer mixer.
4) High effection homogenizer, 2μm smooth finish
5) Vacuum emulsifying mixer machine applys to cosmetics, pharmaceutical, food etc industries
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
