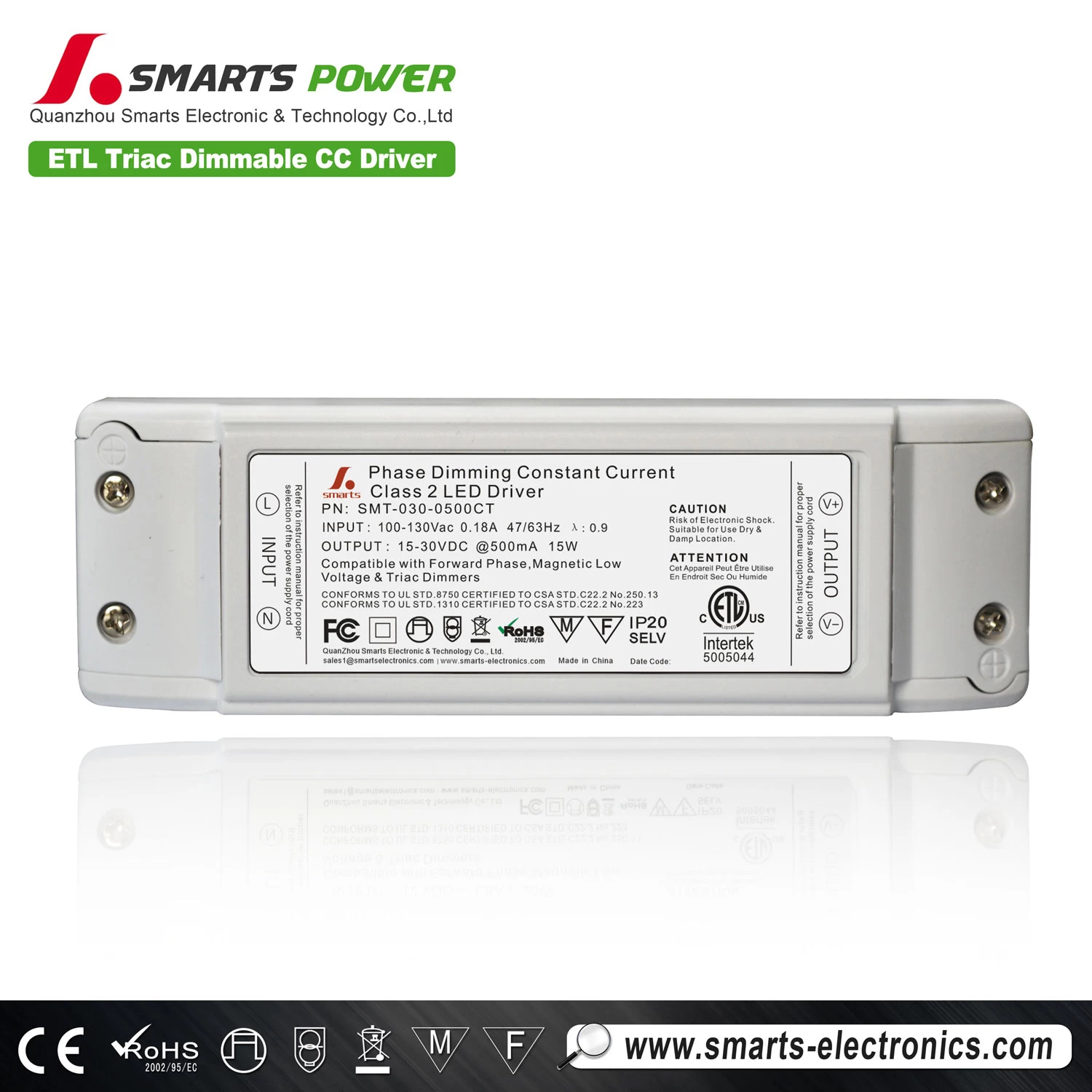

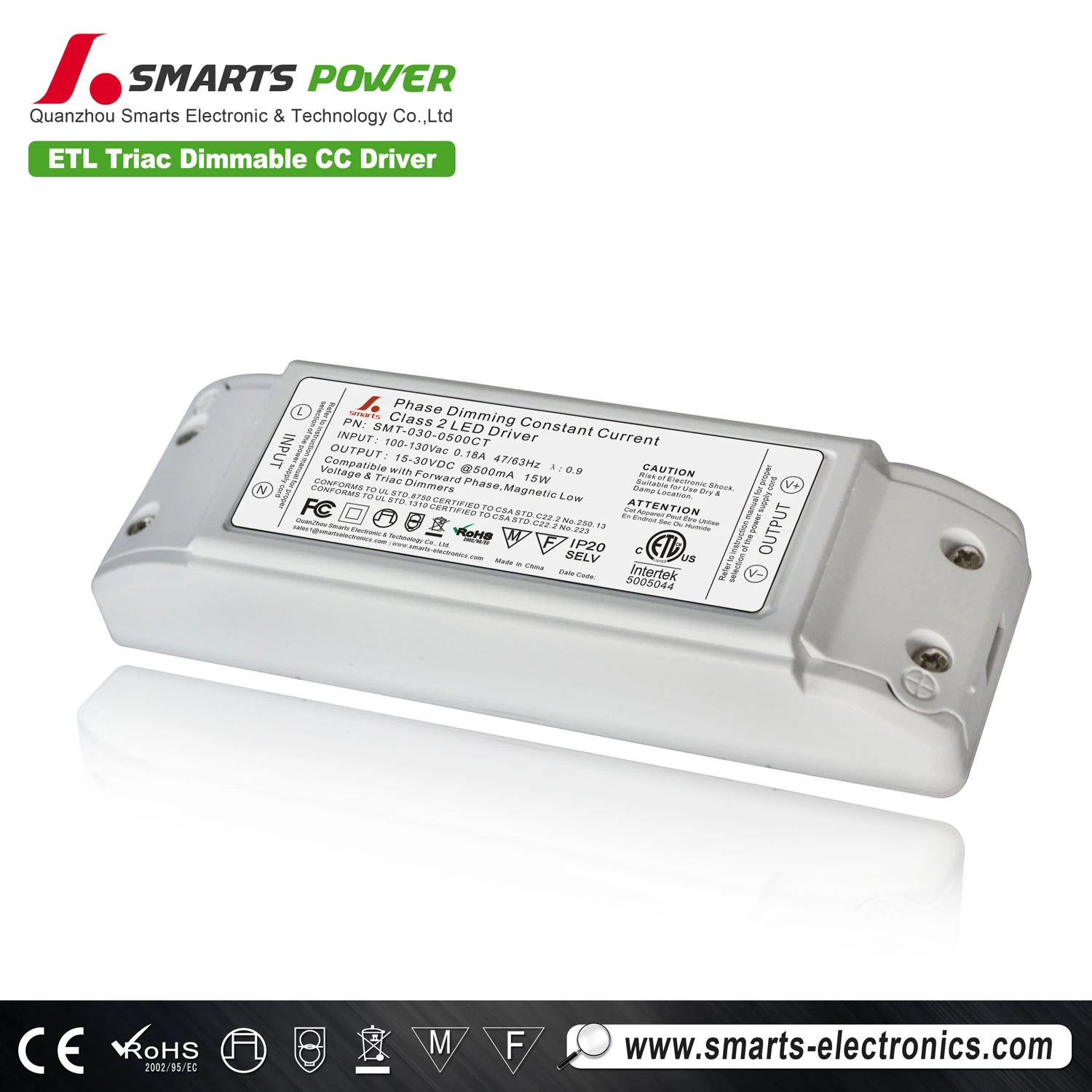

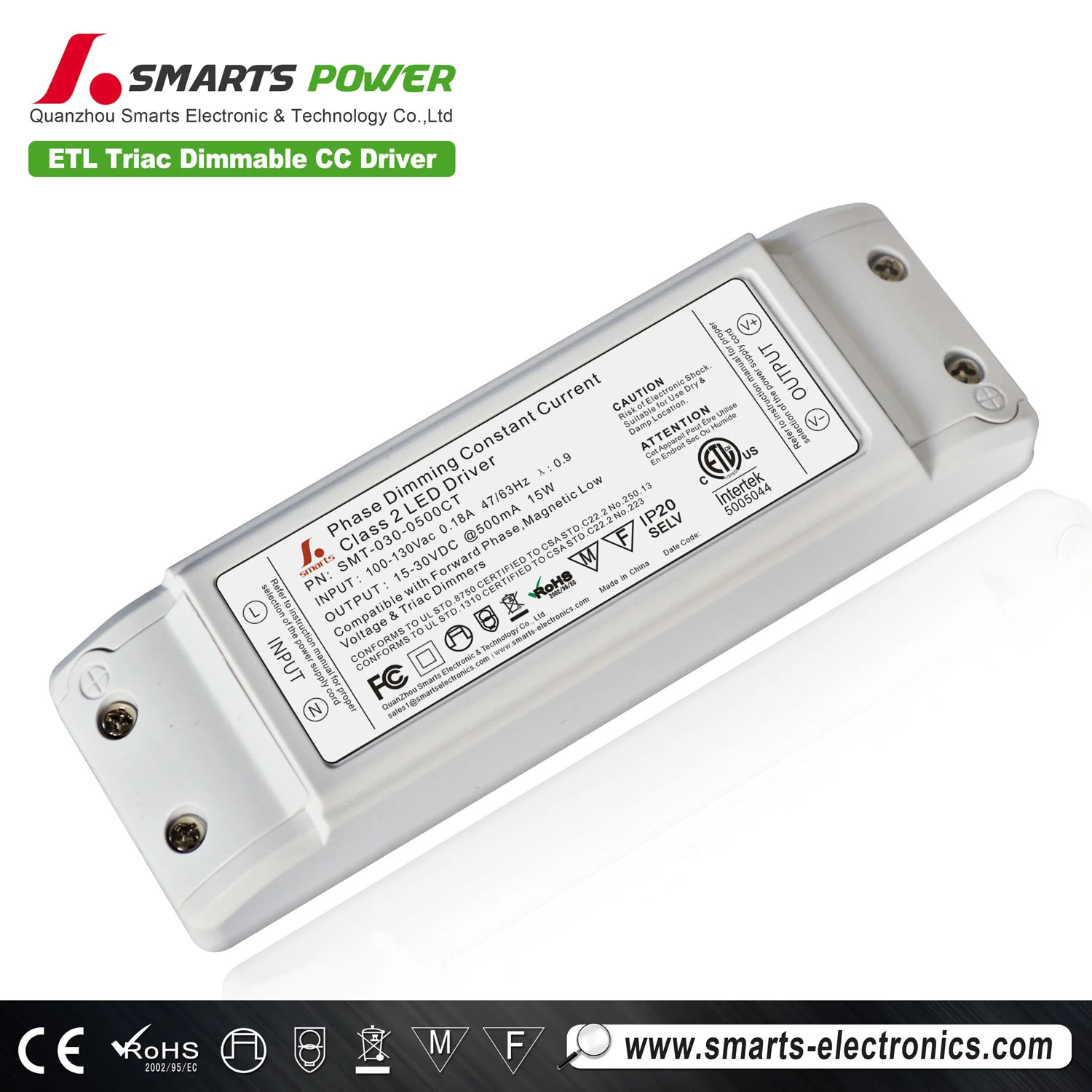

500mA 15w triac dimmable LED power supply

triac dimmable led driver ; constant current led driver ; 500mA 15w triac dimmable LED power supply



500mA 15w triac dimmable LED power supply

Product Description
Product parameters:

Model

Input voltage(vAC)

Working Frequency (Hz)

Output voltage

(vDC)

Output Current (A)

Output power (W)

Working Temp.

Protection grade

SMT-060-0320CT

90-135V/

170-265V

47~63Hz

45-60vDC

320mA

19W

-25~50°C

IP40

SMT-030-0500CT

90-135V/

170-265V

47~63Hz

15-30vDC

500mA

15W

-25~50°C

IP40

SMT-050-0350CT

90-135V/

170-265V

47~63Hz

30-50vDC

350mA

17.5W

-25~50°C

IP40

SMT-040-0500CT

90-135V/

170-265V

47~63Hz

20-40vDC

500mA

20W

-25~50°C

IP40

SMT-025-0700CT

90-135V/

170-265V

47~63Hz

10-25vDC

700mA

17.5W

-25~50°C

IP40

 SMT-020-0900CT

90-135V/

170-265V

47~63Hz

10-20vDC

900mA

 18W

-25~50°C

IP40

Specifications:

  • Working mode: Constant current
  • Energy transfer: AC-DC
  • Dimming mode: Triac dimmable
  • PF:>0.90
  • Efficiency: 88%
  • RippleI & Noise (max.) : 150mVp-p
  • Voltage Tolerance : ±5%
  • Line Regulation : ±1%
  • Load Regulation : ±2%
  • Case material:  Plastic housing
  • Waterproof rate:  IP40
  • 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting
  • Brand electrotronic components.
  • ROHS material.

Environment:

  • Working temp: -30~+50℃ (Refer to output load derating curve)
  • Working humidity: 20~99% RH non-condensing(Waterproof)
  • Storage temp. humidity:  -40~+80℃,10~99%RH

Safety:

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

15-30vDC 15w 500mA triac dimmable led driver
