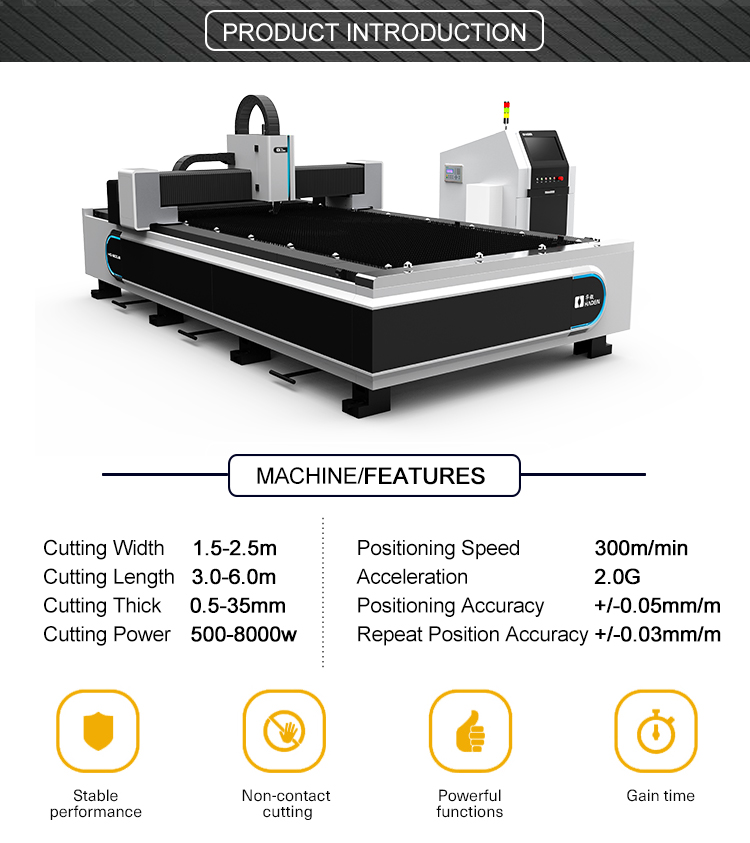

500w CNC Fiber Laser 0.5 to 7mmMetal Cutting Machine

• Machine bed with 600℃ high temperature heat treatment,24 hours with furnace cooling, ensure machine  out of share.
• 500w fiber laser cutting machine can optional welding machine body

• 500w fiber laser cutting machine can optional IPG Fiber Laser Source

• Haden manufacturer half an hour from Nanjing city, Jiangsu province, welcome visit

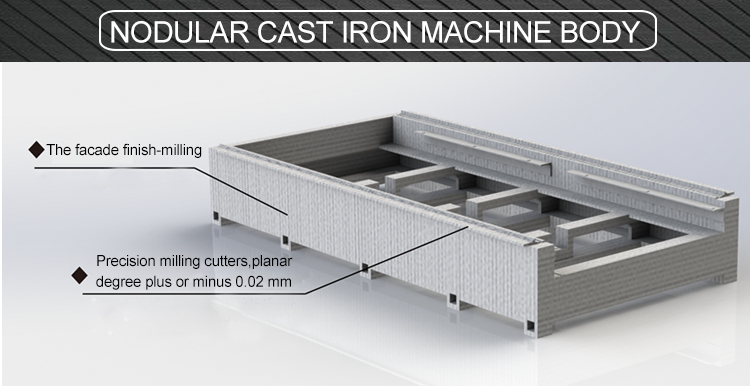

Nodular cast iron machine body, ductile cast iron casting structure, good impact toughness, fatigue strength and vibration damping. After the overall natural elimination of internal stress, a precision machining process was completed with a large scale 5 axis machining center.With high rigidity, the precision and stability of machine tool in high speed operation are guaranteed. Many customer will choose cast iron body DIY 500w fiber laser cutting machine.

Cast iron bed can be machined to higher accuracy

Cast iron bed has better stability

Cast iron of cast iron bed because of its material properties cast iron bed strength, stiffness are very high, small plastic deformation, not easy to produce deformation. The precision of casting bed is guaranteed for about 15-20 years.

Cast iron bed has lower thermal sensitivity

Due to the high carbon content of cast iron, it is not easy to be subjected to thermal deformation. Laser cutting, as a kind of hot processing, produces more heat. The low thermal sensitivity of cast iron bed makes it not easy to affect the precision of machine tool due to thermal deformation.

The casting bed is easy to form into oil film, which is convenient for customers to maintain.

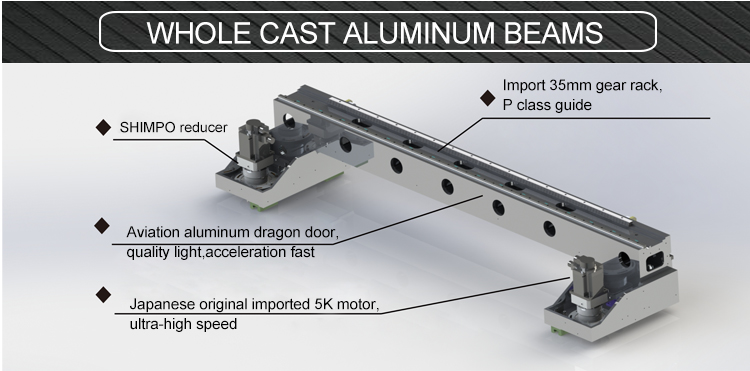

Whole Cast Aluminum Beams, cantilever beam adopts the integral casting aluminum alloy, which ensure the high intensity and reduce the weight of the machine, reduced the Y axis of inertia in running at a high speed, which guarantees the machine in motion have a very high acceleration.

When you choice cheaper fiber laser cutting machine must check if cast aluminum beams.

Single  Module CW Fiber Lasers

Haden 500W CNC Fiber Laser Cutting Machine use The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 2000W, the new lasers has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages

Technical Feature

The single module CW Fiber Lasers product is completely researched，developed and produced by Raycus independently. Raycus has an efficient and professional R&D and production team. The single module CW fiber laser series not only can  meet diversified demands of customers to the greatest extent，but also provide personal customization service. Now laser output connector is QBH，with multiple control modes. Its good compatibility has been widely recognized by the market. The product has been well sold domestically and abroad.

High Electrial-optical Conversion Efficiency

Altitude Stress-resisting Capacity

Sheet Cutting Efficiency

Customized Output Fiber Length

Optional Air Cooling or Water Cooling

Maintenance-free Operation

Wide Modulation Frequency Range
