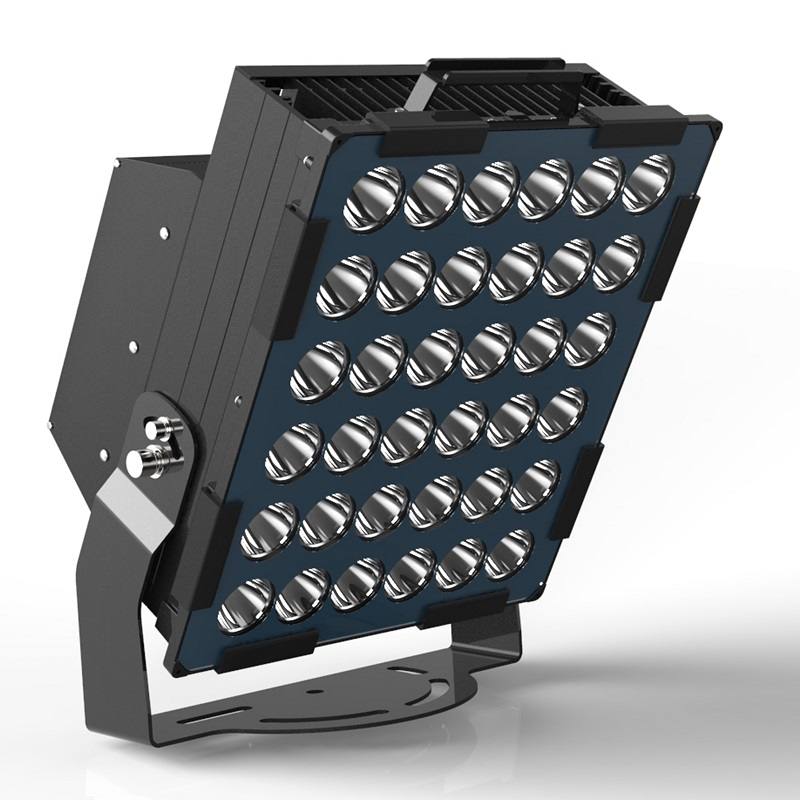

Product Item: 500W Compact High Mast Lighting LED Stadium Lights With High Lumen Output
Overview:
This range of high-mast LED stadium light provides an efficient replacement for traditional floodlight fixtures for sports fields lighting. It can replace metal halide lamps 800W to 2500W for all kinds of stadiums, sports arenas and other places like squares, railway intersections, factories, warehouses' exteriors, etc.
Adopting most powerful CREE high power LED and powerful lens, the lumen output of this LED high-mast system is above 120-135 lumen/W, unlike SMD type of LED, the high power CREE LED offer you unparalleled performance under rainy or foggy weather, with same power and same lumen output, CREE XTE series or CREE XHP series light can go farther than SMT type of light source.
The compact but powerful highly ventilated maintenance-free LED high-mast lighting fixture lamp body design ensures very good heat dissipation, whilst maintaining high lumen output performance.
Specifications:
|
Model
|
SR-HMC-500W
|
Power
|
500W
|
Lumen Output
|
67,500lm
|
Light Source
|
CREE/LUMILEDS/OSRAM, etc.
|
Beam Angle
|
10°/15°/20°/36°/60°/90°/70x140°/80x135°
|
Driver
|
INVENTRONICS/MEAN WELL/PHILIPS, etc.
|
Input Voltage
|
AC 100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP66
|
|
IK Rating
|
IK08
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, Tempered Glass
|
Dimension
|
489x347x211mm
|
Warranty
|
5 years warranty
|
Features:
• Super compact heat sink, smaller lamp size compared with same power high-mast luminaire, wind resistance much less, withstand Scale 17 hurricane.
• World top class LED chip CREE XTE series or CREE XHP series with better performance under high temperature long-time working and with less luminous decay. Compared with SMD type of LED, this high mast lighting fixture with CREE or XTEE XHP has stronger light beam and can reach farther under extreme rainy, foggy, or snowy weather.
• 500W LED high mast light system luminous efficacy 120-135lm/W (Lumileds, Osram, and other LED light source available)
• Wattage: 400W, 500W, 600W, 800W, 1000W, 1200W.
• Inventronics driver with 5 years warranty adopted. The greatest advantage of high voltage driver is that the current on PCB will be lower, so the heat given off will be less during working, then the lamp temperature will be lower, thus to prolong lifespan. (Mean Well and other brands driver available)
• Multiple Beam Angles Available: 10°/15°/20°/36°/60°/90°/70x140°/80x135°, meet various lighting applications' requirements.
• Black/dark grey powder-coated finish ADC12# die-casting aluminum lamp body, strong bracket with stainless screws.
• Highly ventilated lamp body with deep fins, accelerating heat dissipation and minimize light decay in future long-time working.

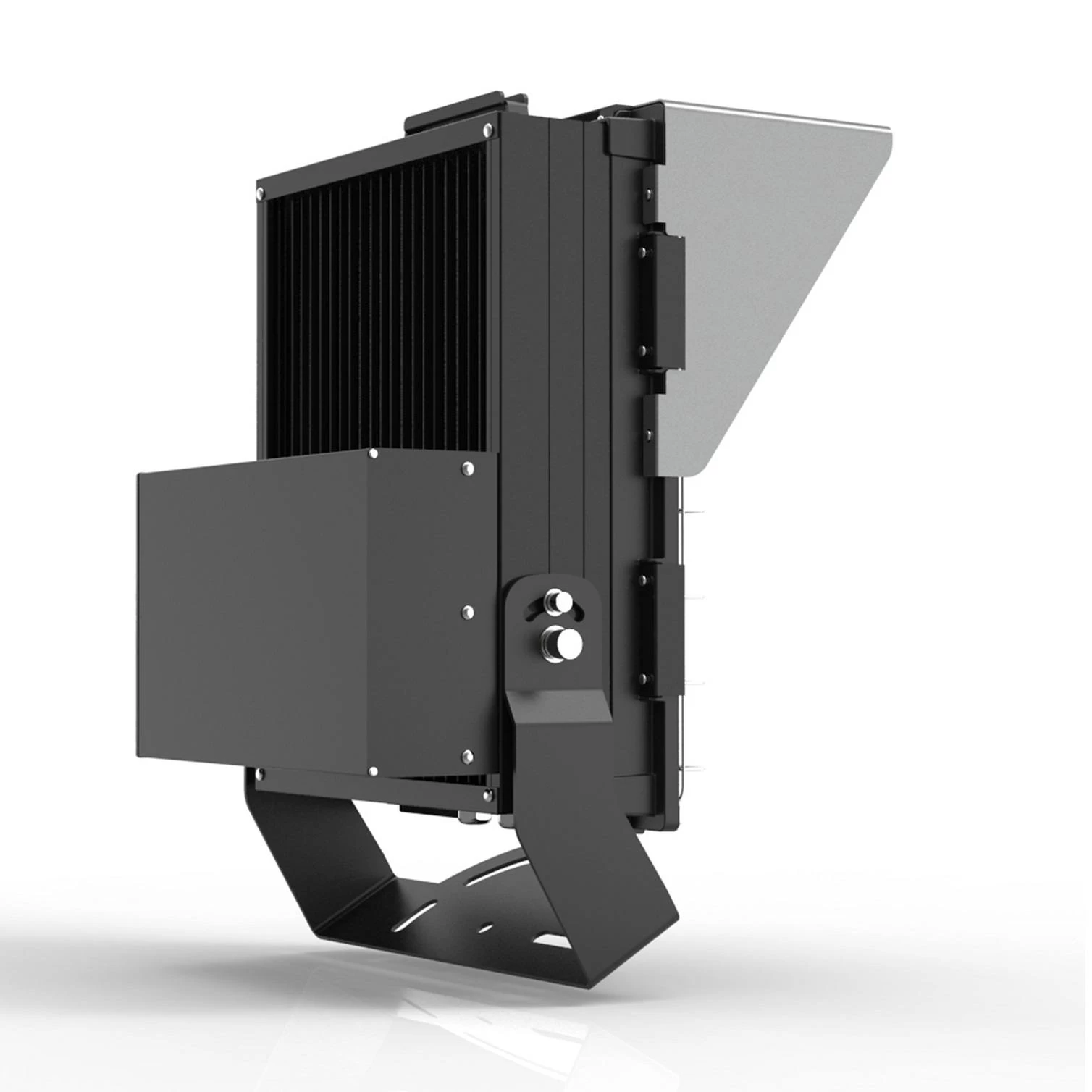

• Separate exterior driver box attached at the back.
• IK08, high light transmittance tempered glass for better protection.
• Intelligent dimming available: 1-10V dimming, DALI dimming, ZigBee wireless control.

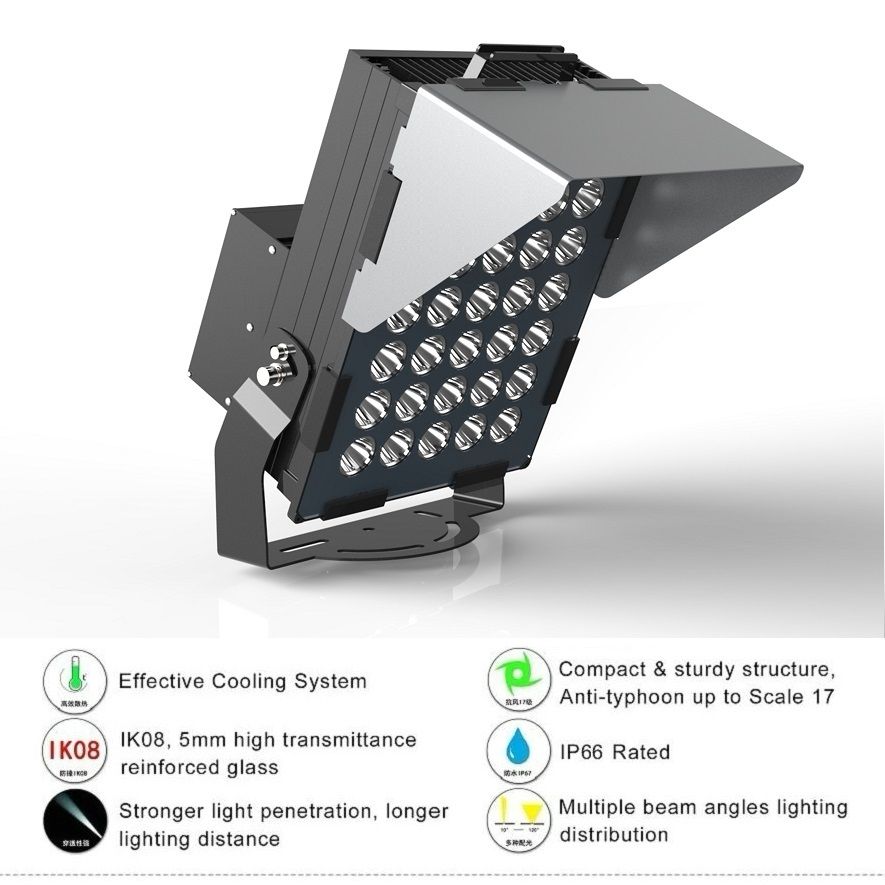

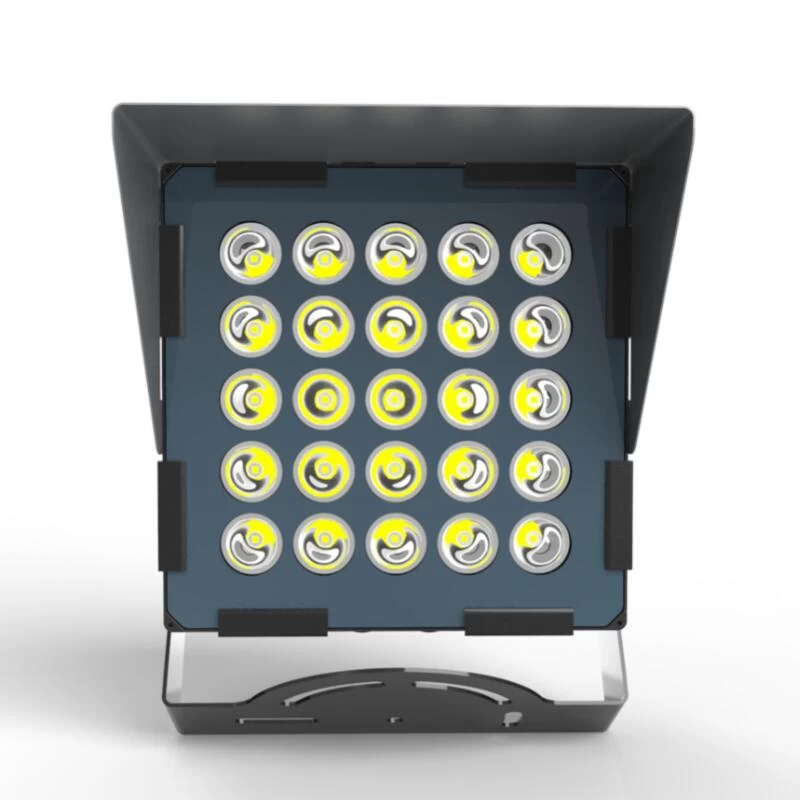

• Light spill shield, anti-collision wire guard, and laser aiming tool kits available.
• IP66, waterproof, durable even under extreme weather.
• Applications: stadiums illumination, harbors illumination, crossroads illumination, car parks illumination, ski resorts illumination, sports arenas illumination, golf courts illumination, football pitches illumination, basketball courts illumination, etc.
