5050 RGB Chasing LED Strip 60LEDs/m with 1903 IC
Colorful as you like: RGB free color mixing, delicate presentation of rainbow gradient, breathing rhythm, etc., easily switch the space atmosphere.
Intelligent dynamic light effect: built-in high-precision control chip, one-click triggering of 100+ dynamic modes such as flowing water, horse racing, star chasing, etc., light and shadow flow like natural rhythm.
High-density uniform light emission: 60 5050 high-power LEDs/meter, full light without dark areas
Flexible installation and durable choice: Every 3 lamp beads can be cut and designed, free splicing of creative shapes, cutting without breaking the line.
Optional IP65 waterproof version, no fear of outdoor wind and rain; with aluminum slot heat dissipation, long-term use of lower light decay.
Main Features with Visuals:
-

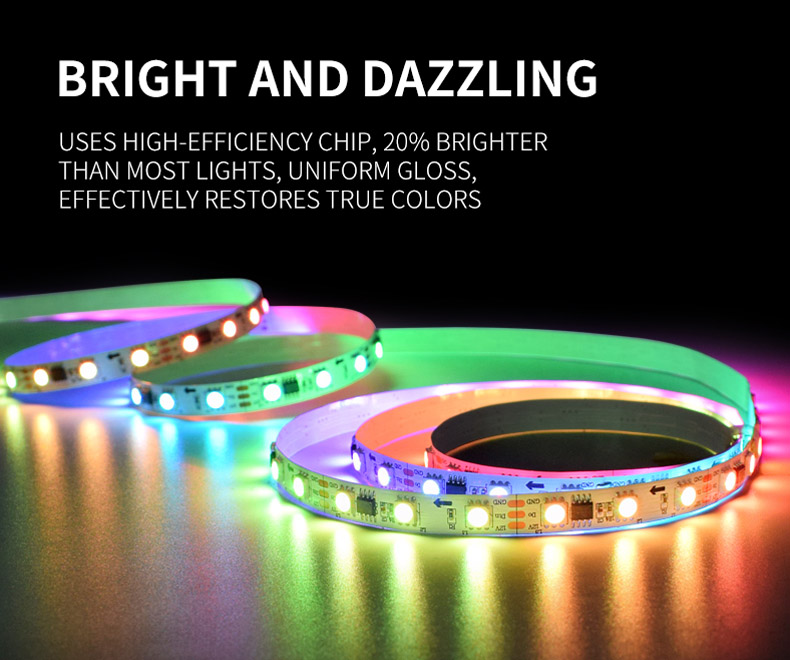

Bright And Dazzling
Uses high-efficiency chip, 20% brighter than most lights, uniform gloss, effectively restores true colors
-
-

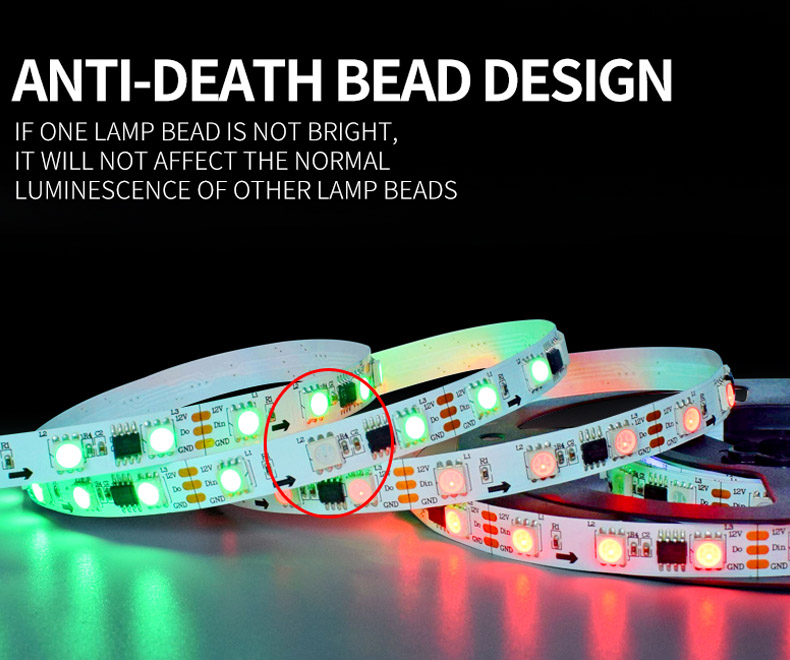

Anti-Death Bead Design
If one l amp bead is not bright,it will not affect the normal luminescence of other lamp beads
|Technical Specifications:
|
Model
|
Input Voltage
|
LED Type
|
LEDs per Meter
|
Color
|
IC
|
Cutting length (mm)
|
PCB Width（mm）
|
|
GM-D5050IC-60-X-IPX
|
12V/24V
|
5050
|
60
|
RGB
|
External IC
|
50/100
|
8
|
LED Strip Quality Inspection:
Lamp Beads: GM mostlyuse Epistar brand led chips. We can do other brand chips according to customer' Srequest, for example,Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
Weld: Manual welding,Improve circuit board Firmness ,electrical conductivity, reduce false welding,reducing false welding and missing welding, Laid a solid foundation for the High-efficient use of products.
Cut: Cut Free to cut the length you want,12V 3 leds/cut, 24v leds/cut,to avoid wasting
Connector: Led strips connector is 3PIN SM pair connector,which is convenient for power supply
Application Scenario:
This RGB chasing LED strip delivers smooth color transitions and chasing effects, ideal for:
Building outlines & architectural lighting
Retail displays & signage
Bars, clubs & entertainment spaces
Events, exhibitions & weddings
Home ambient lighting (TV backlight, ceiling edges)
Gaming setups & streaming backgrounds
Car interiors & DIY projects
Easy to install, flexible, and supports custom programming for dynamic lighting effects.
5050 RGB Chasing LED Strip Quick Setup Essentials
- Power off before install | Use IP65+ for wet areas
- Match voltage (12V/24V) | Segment power supply if >5m
- Clean surface + Aluminum channel (critical for high brightness)
- Cut only at marks (every 3-6 LEDs) | Seal cut ends
- 1903 IC controller required | Correct +/- polarity
- Test before fixing | Avoid coiling/enclosed spaces
FAQ：
|
Q: Why do some segments of the LED strip not light up after installation?
A:
Check if cuts were made only at marked points (every 3-6 LEDs).
Ensure cut ends are properly soldered and sealed (use waterproof胶 for outdoor use).
Verify power connections (+/- polarity) and voltage stability.
|
Q: Why does the chasing effect desynchronize or look chaotic?
A:
Use the dedicated 1903 IC controller (non-compatible controllers disrupt signal sync).
Avoid signal interference by keeping controller/wiring away from high-voltage devices.
If you connect multiple light strips in series, make sure the total length does not exceed the load capacity of the controller (refer to the manual).
|
Why Choose US?
- Expertise & Experience: 12+ years, leading manufacturer.

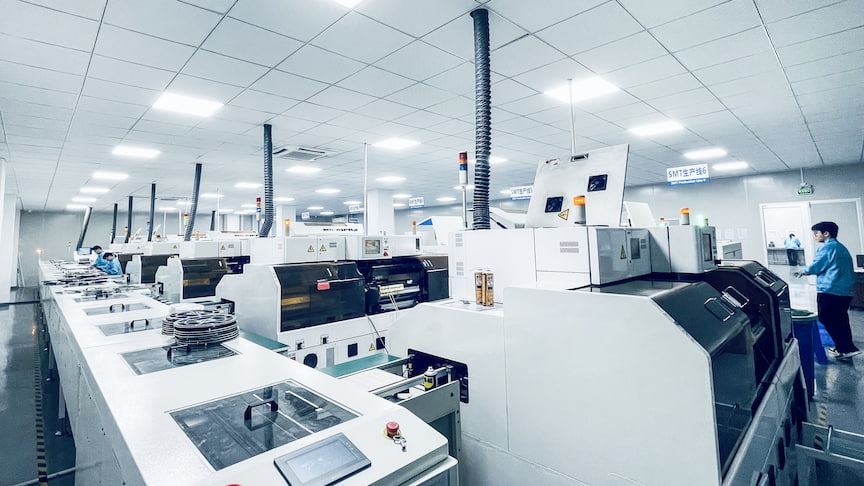

- Advanced Manufacturing: 8000+ sqm facility, 3 million meters/month.
