50A Plug Lipo Battery Anderson-style Connector

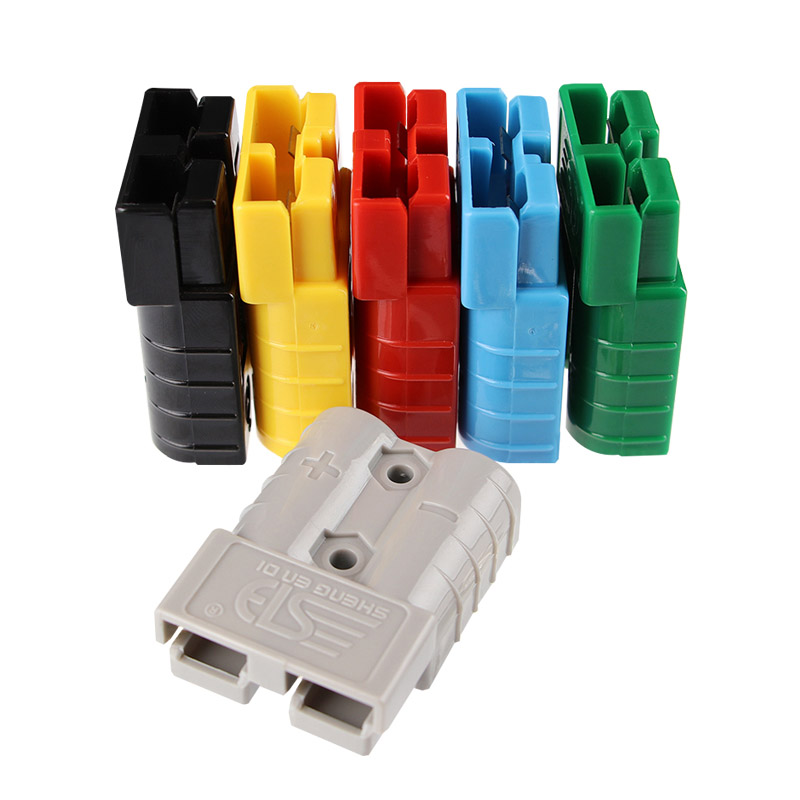

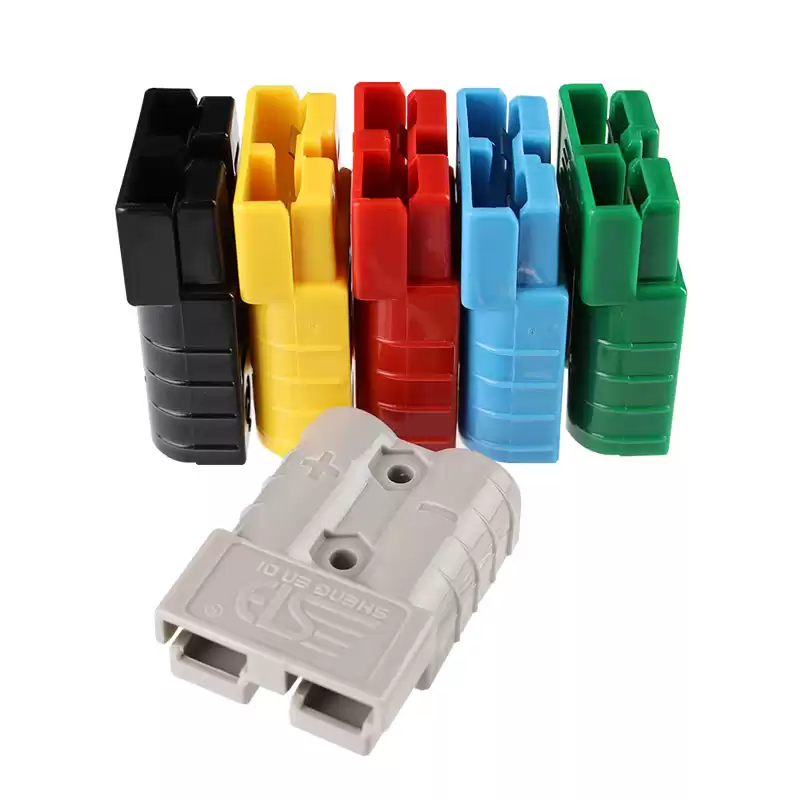

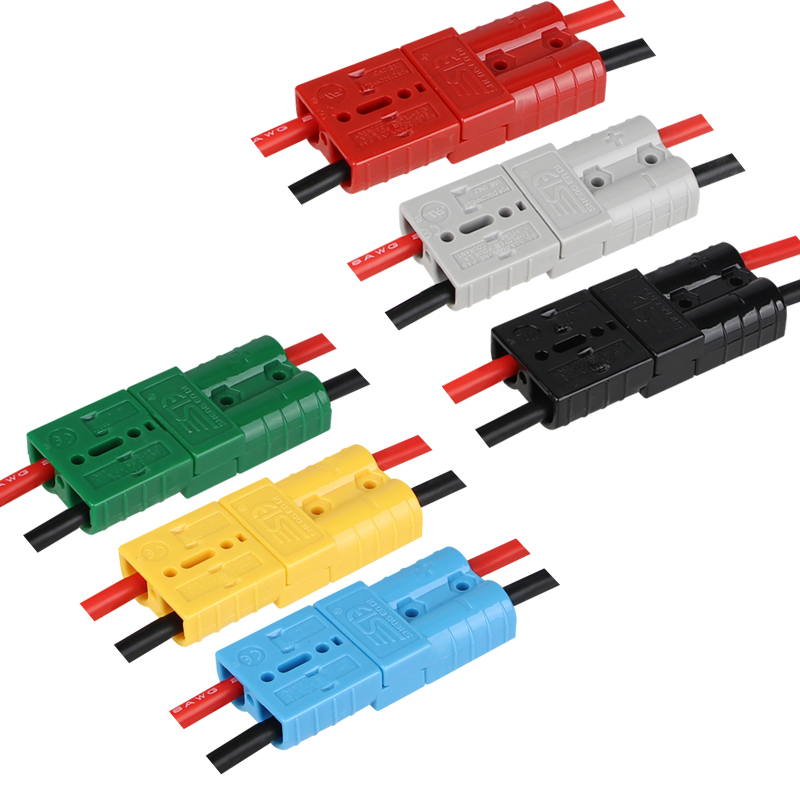

Featuring a sleek and stylish design available in 7 vibrant colors, this connector boasts state-of-the-art mechanical interface, allowing for seamless compatibility and easy installation.

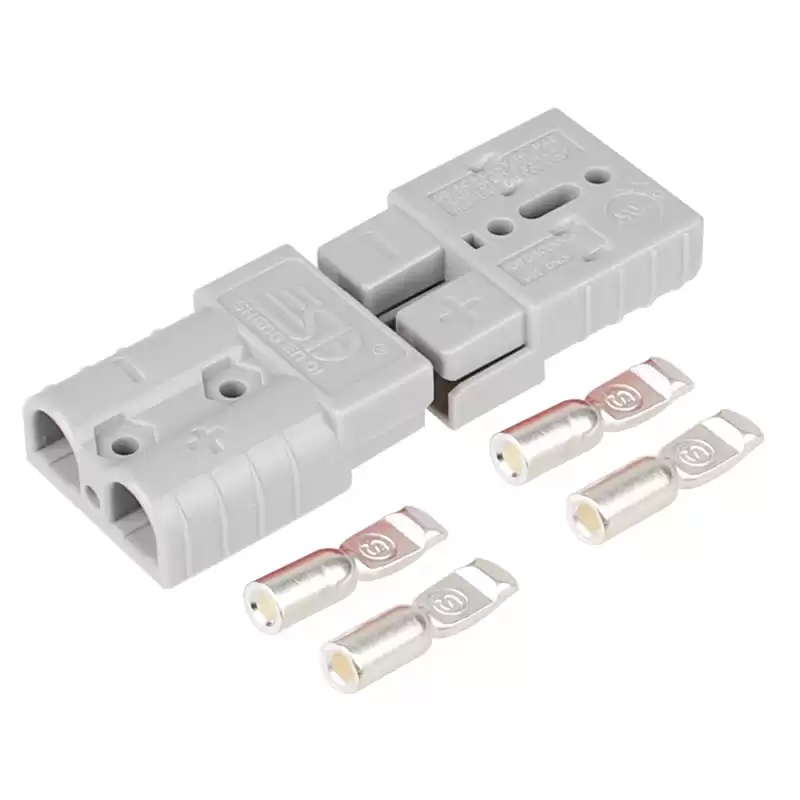

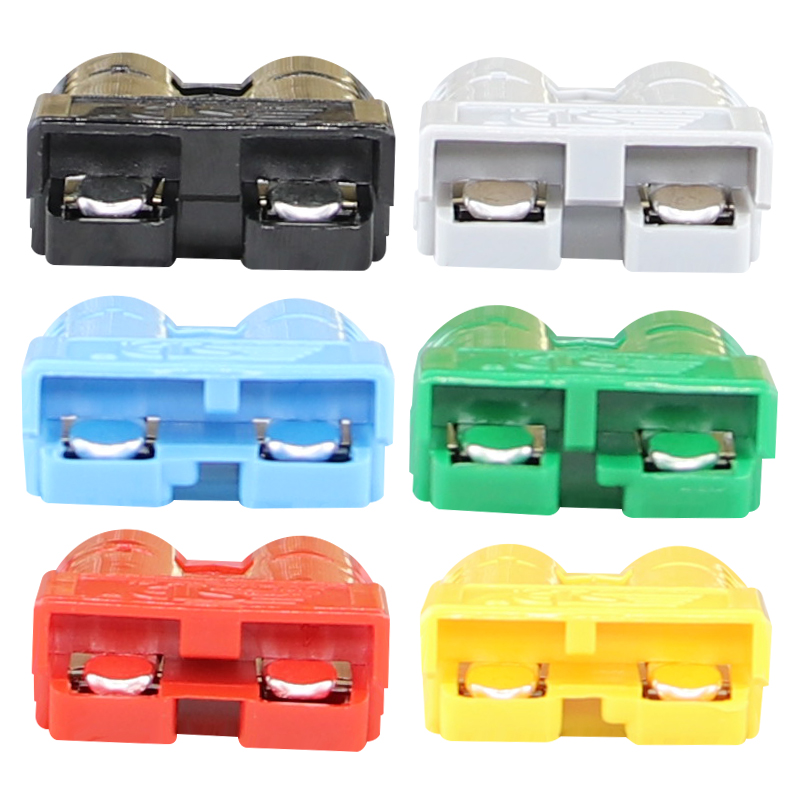

With its highly advanced design, the 50A Connector features a same-color mating feature, eliminating confusion and streamlining the process of power connection.

What's more, this innovative connector does not have male or female components, ensuring a hassle-free user experience.





SG50A 600V Power Connector Battery Plug





1.Product Introduction:

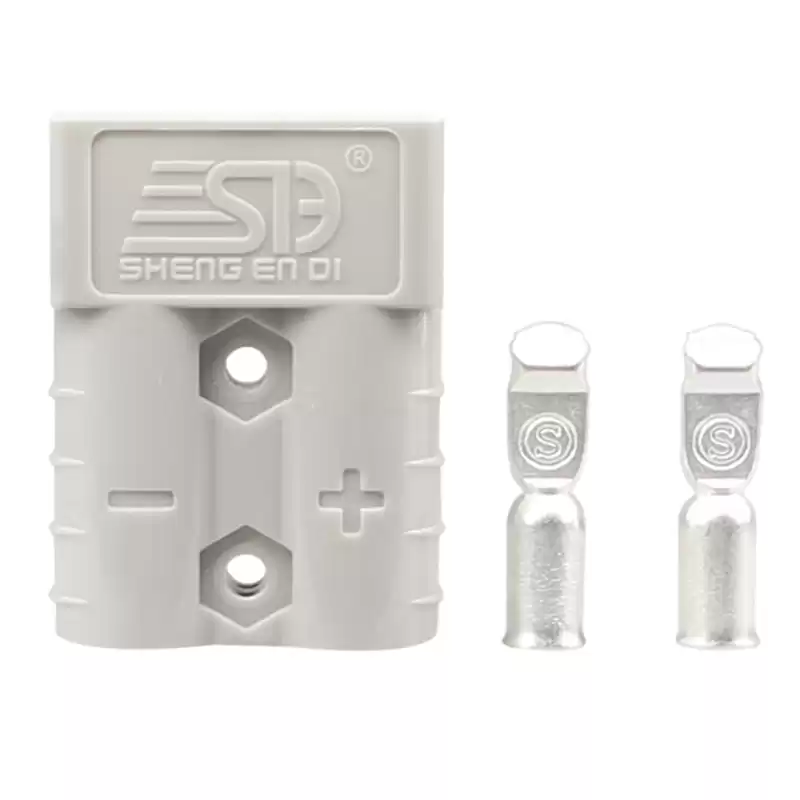

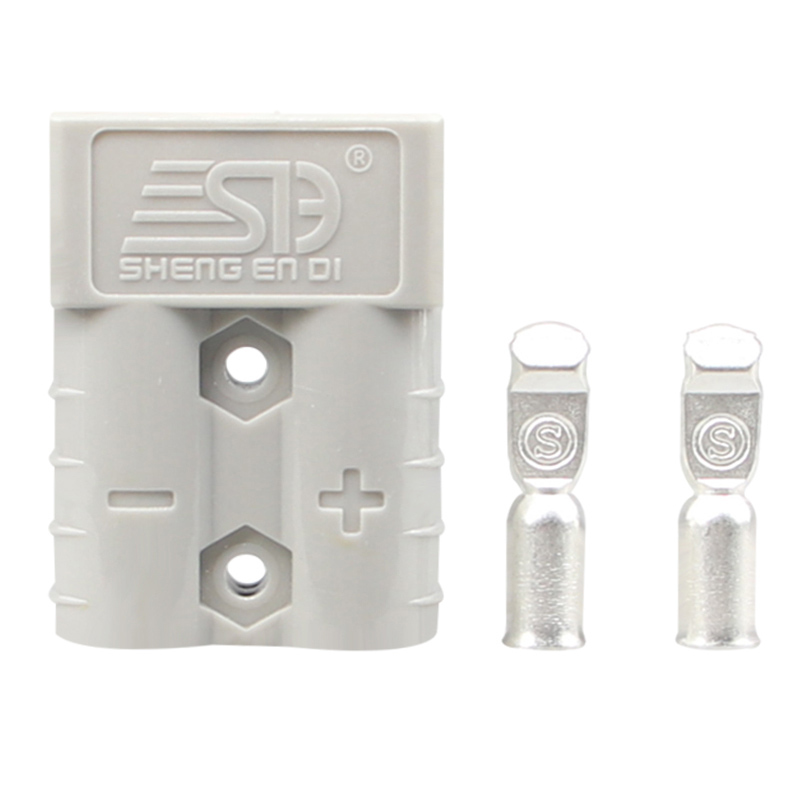

Crafted from high-quality, silver-plated copper terminal blocks, this connector boasts unparalleled conductivity and durability.

The SG50A is engineered with 3 different wire aperture sizes, providing flexibility in power management and compatibility with various wire diameters.

Experience the ultimate in power connectivity with the SG50A 600V Power Connector - the perfect choice for quality-conscious customers.

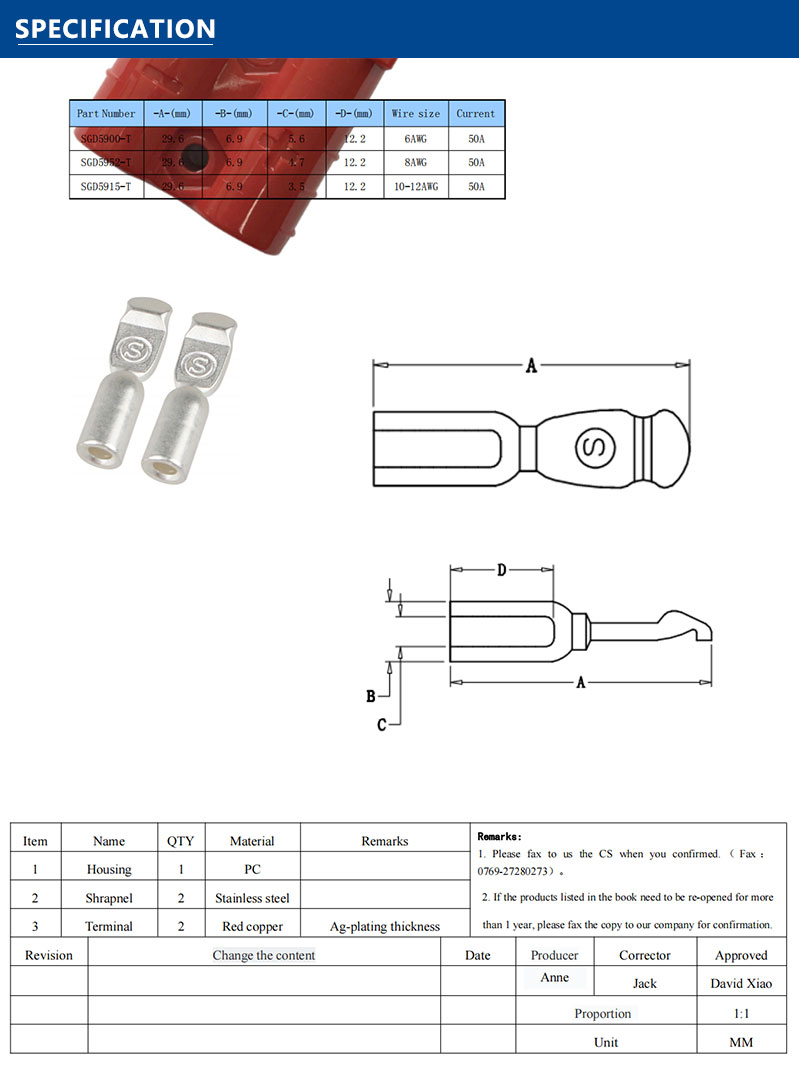

2.Technical Parameters:

Rated current(Amperes) 50A
Rated voltage(Volts) 600V
Insulation Resistance 9900MΩ
Without load(Contact/Disconnect Cycles) To 5000
Flammability UL94 V-0
Average. Connection/disconnect(N) 90±8
The insertion force of finished products ≥9kgf
The pullout force of finished products ≥10kgf
(AWG)Contact Barrel Wire Size(AWG)
6~12AWG
Environment Temperatures(℃) -20℃---75℃
Material of terminal Red copper
Process of production Precision punching
Fully Ag-plating on surface, it’s Ag-plating thickness  0.5μm
Shrapnel
Stainless steel304
Process of production Precision punching  Plastic Injection

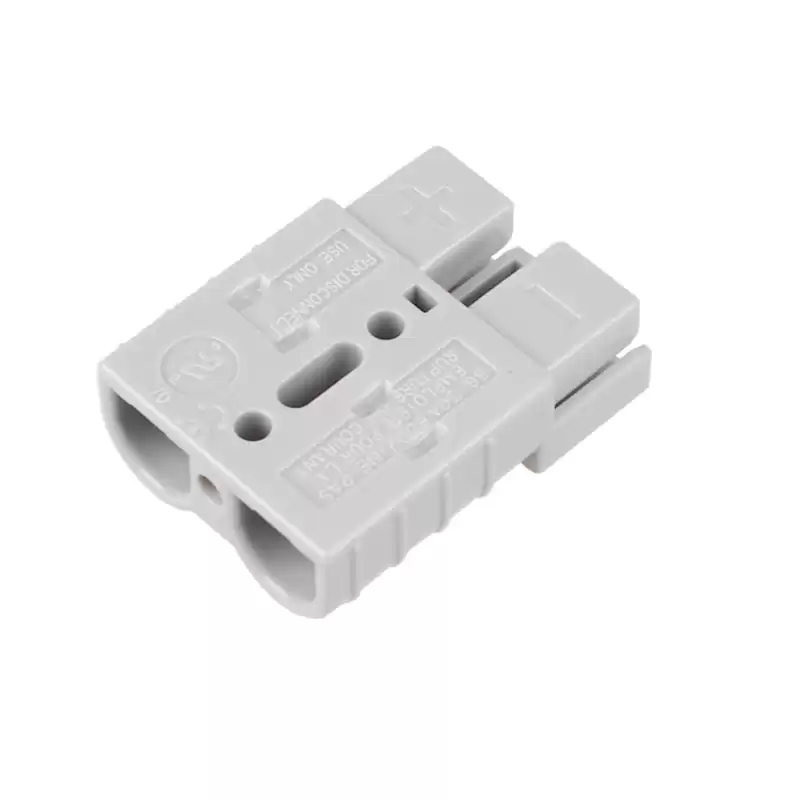

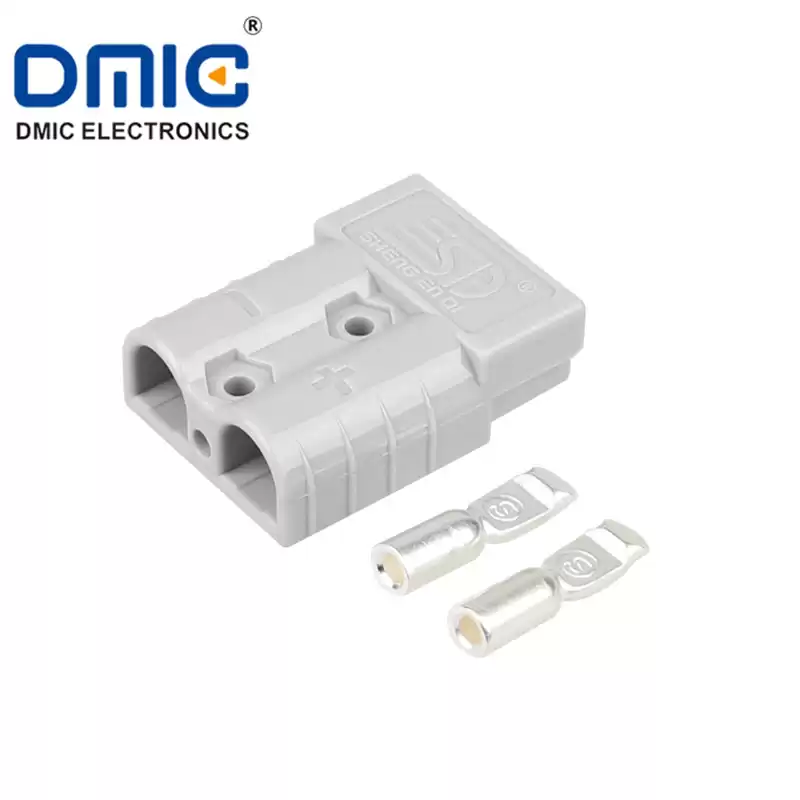

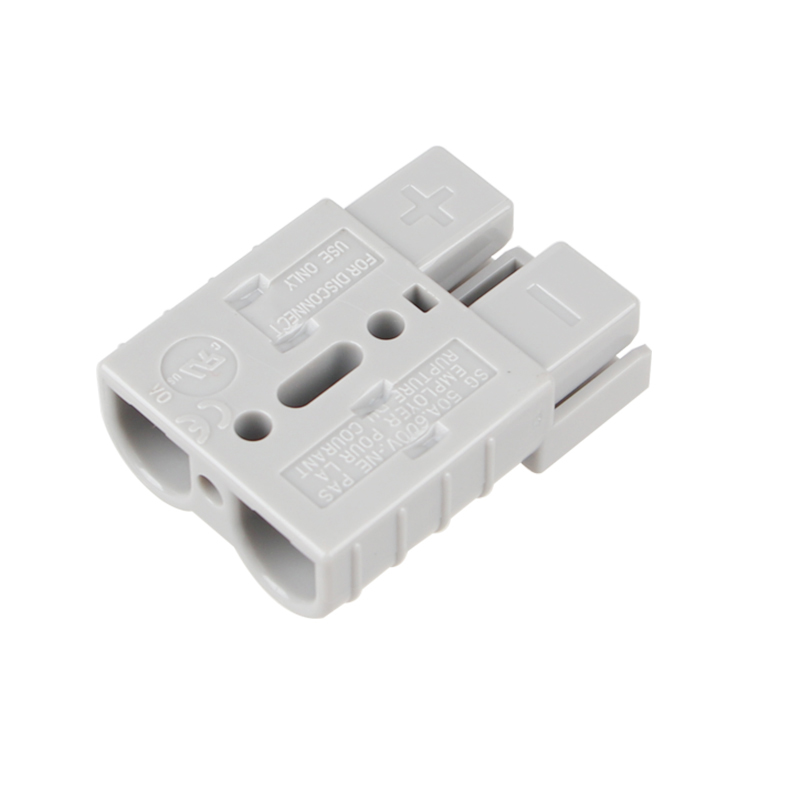

3.Picture Introduction:

4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.



5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.



6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
