Design Features

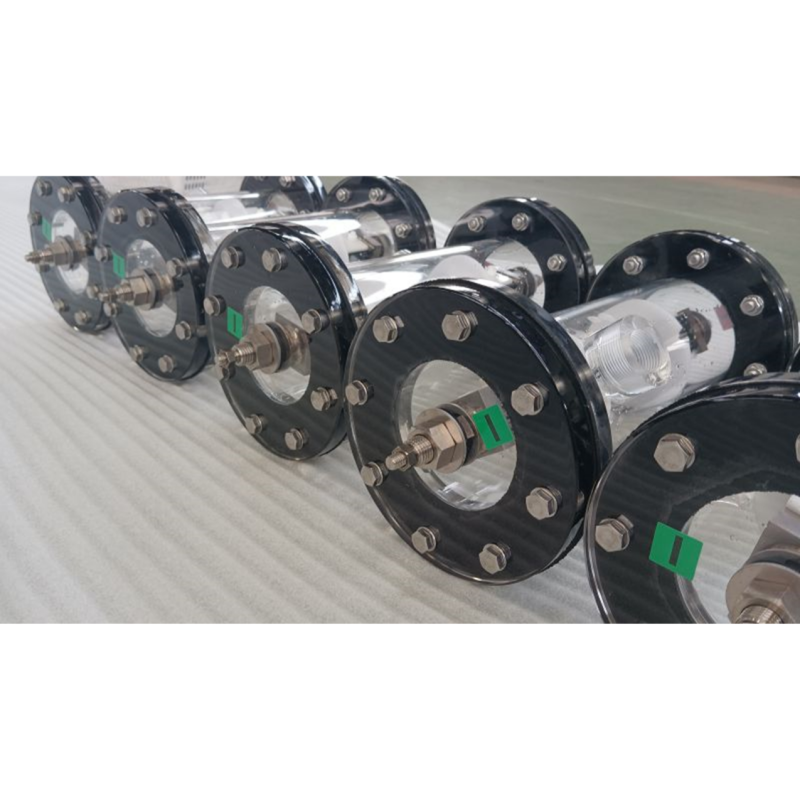

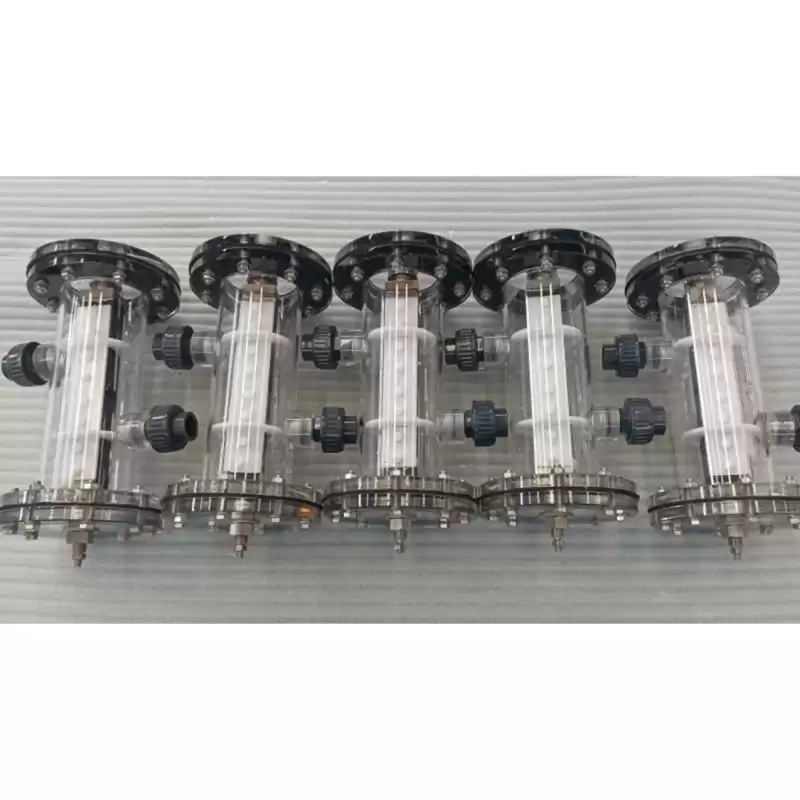

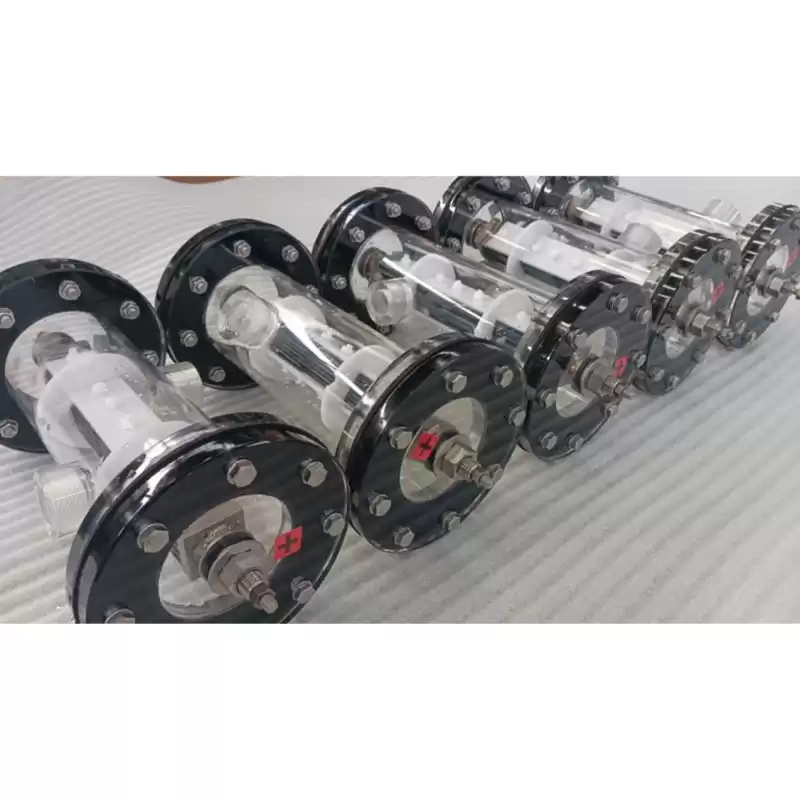

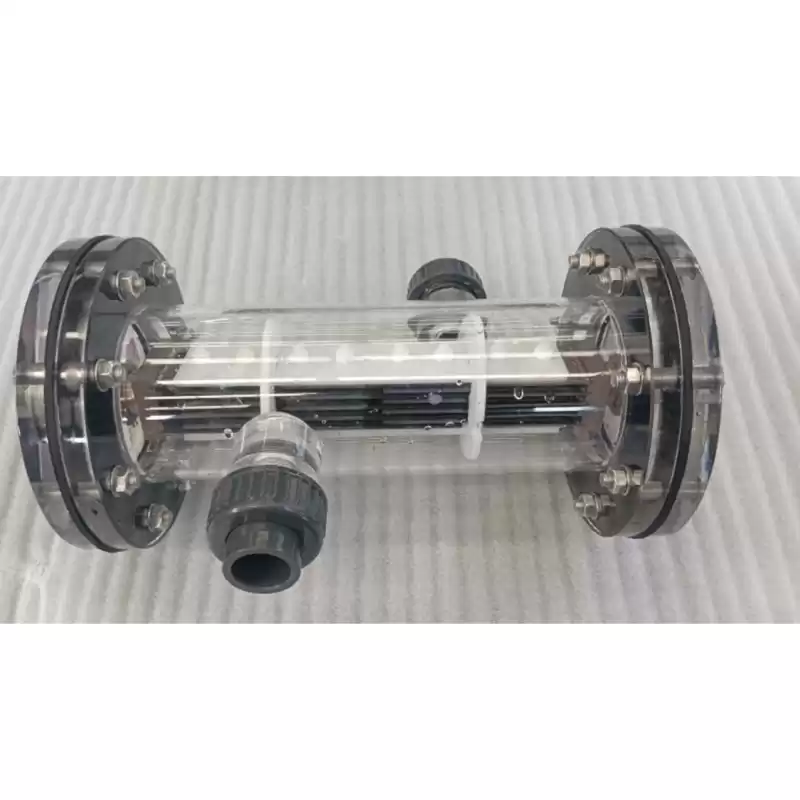

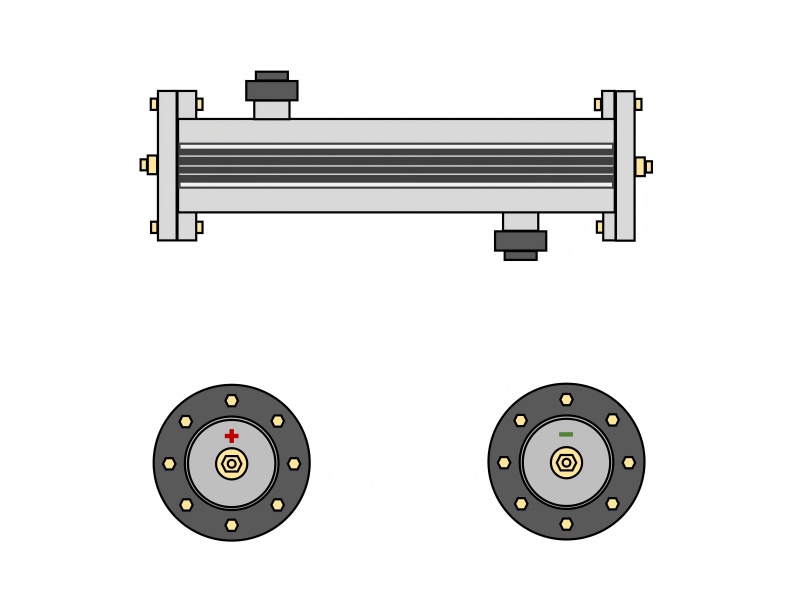

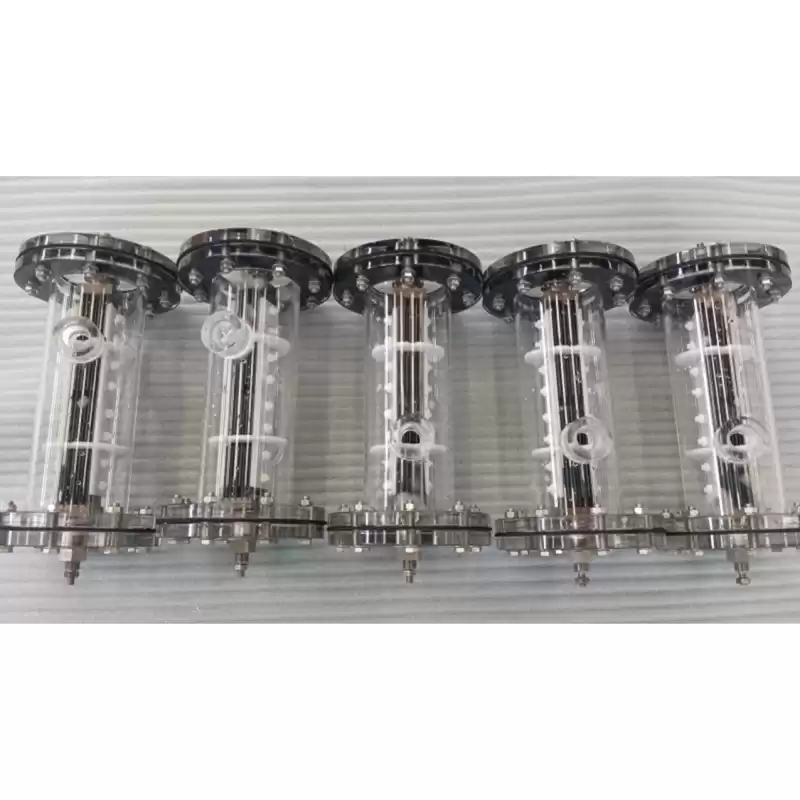

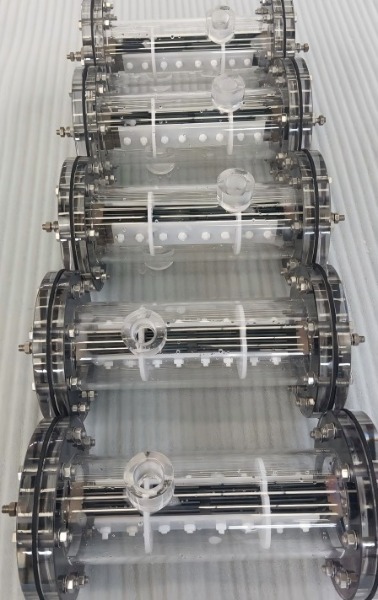

50g/h DSA Coating Horizontal Titanium Electrolytic cell for Sodium Hypochlorite Generator features a tubular tank design with multiple built-in polar chambers. This design has a compact structure in each polar chamber, which helps disperse the influence of stray currents during electrolysis and significantly improves the electrolysis efficiency. Additionally, it has a plate-type bipolar structure electrode group and an optimized electrode plate coating formula.
Each tank and electrode plate is equipped with a production batch and material identification number. This enables us to track the usage of each component, ensuring quality control and easy maintenance. The tank body, flange, water inlet, and outlet are all made of thickened acrylic material. This not only makes the equipment sturdier but also gives it a more aesthetically pleasing appearance compared to normal materials.
With cooling holes and heat exchange packing rings, the electrolyte flow path is further increased. This allows the effective chlorine concentration to exceed 8500 ppm, ensuring a highly effective sodium hypochlorite solution.
The electrode coating is a nano-scale refined grain ruthenium-iridium mixed oxide coating suitable for the chlorine evolution environment. This coating has stronger corrosion resistance and a longer service life.
