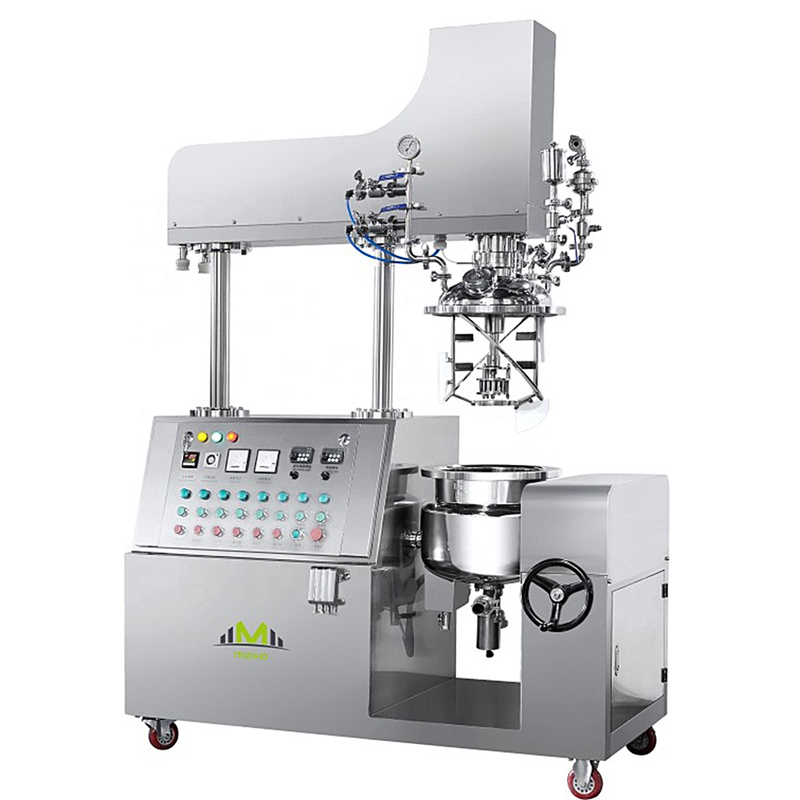

50L Cosmetic cream making machine vacuum emulsifying mixer

MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc.



50L Cosmetic cream making machine Vacuum Emulsifying mixer

Customized And OEM Service Available


Vacuum Emulsifying Mixer Machine


Machinery Introduction:

MZH Vacuum Emulsifier Machine is a vacuum deoxygenation, mixing, homogenization, heating, electric control and other functions in one, the equipment is composed of vacuum homogenization emulsifier, vacuum system, lifting system.The vacuum emulsifier can also be matched with oil and water kettles according to the production process requirements.

Work Elements:

Material after hot water boiler, oil boiler heating and mixing and then draw lots to the emulsion boiler by vacuum pump, intermediate (fixed) agitator and ptfe scraper residue agitator emulsion boiler sweep boiler wall residue, according to high shear wheel and cutting box for strong cut, impact, no rules of mobility.The material is quickly cut into 200nm-2um particles in the cutting gap. As the emulsifying boiler is in a vacuum state, the material generated in the stirring process seems to disappear in time.



Features:
1.Cosmetic emulsifying mixerinclude three pot: emulsifying mixer pot , water pot, oil pot

2. The contact material is SUS316L/SUS304 and others are SUS304 stainless steel

3.Vacuum mixing machineinclude: Homogenizer (high speed stirrer), sweep wall stirrer(slowly stirrer), vacuum pump, hydraulic up cover, heating and cooling

4. It has intuitive and convenient operation, measuring accurate, positioning precision

5. Fully in accordance with the GMP standard production and passed CE certification


Detail display:

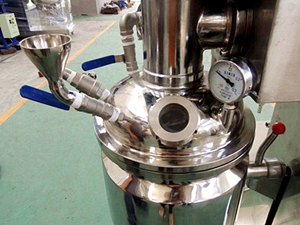

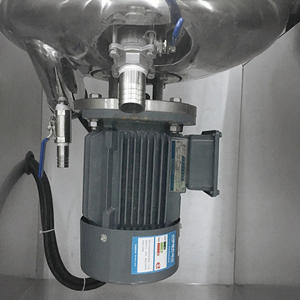

Main pot                                                                            Motor

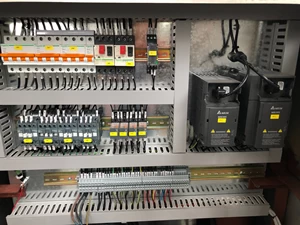

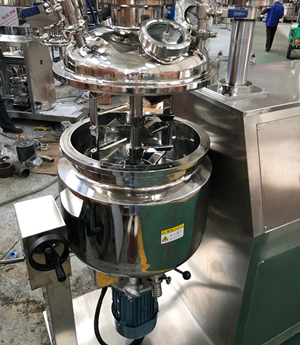

Homogenizer+slow strrier                                                        Electrical control system


Appilcation:
Cosmetic cream making mixer,Vacuum Emulsifying mixeris suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory.



Technical Parameters:

Model

MZH-30L

MZH-50L

Main Boiler

37L

62L

Water Tank Volume

24L

40L

Oil Tank Volume

15L

25L

Main Boiler Jacket Material &

Thickness

Inside:316L(5mm) Mid:304(5mm)



Outside:304(3mm)

Water Tank Volume & Thickness

Inside:316L(3mm) Mid:304(3mm)



Outside:304(2mm)

Oil Tank Power Volume & Thickness



Blender Material & Thickness

SUS316L(thickness : 6mm)

Platform Material & Thickness

304(thickness : 4mm)

Safty Guardrail Material & Thickness

304(thickness: 1.5mm round pipe)

Speed of Scraping Plate Blender

0-83r/min

Speed of Homogenizer

0-3040 r/min

Temperature of Emulsifying Pot

≤180 ℃

Blender Motor

0.75KW

1.1KW

Homogenizer Power

3KW

4KW

Water Tank Power

0.37KW

0.37KW

Oil Tank Power

0.37KW

0.37KW

Vacuum Pump Power

0.75KW

0.75KW

Heating Pipe Power

3KW

6KW

Vacuum of Emulsifying Pot

-0.09Mpa

Pressure of Jacket

normal pressures

Voltage

50-60Hz 380V±10%-15%

Grass Weight

about 250KG

about 300KG

Overall Dimension

1.24*0.65*1.35 m

1.25*0.75*1.35M


Company overview





We are leading manufacturer in China which specialized in  Cosmetic machinery, Food machinery and Pharmacy machinery products supplying for over 15 years; good quality and professional service help us gain many good reputation all over the world;

we hope you can join us in the future.


Package: Plywood Case Packing


Our Service

Pre-Sales Service                                                             After-Sales Service

1. Inquiry and consulting support.                                      1. Training how to instal the machine, training how to use the
 2.Sample testing support.                                                  2. Engineers available to service machinery overseas.
  3.View our Factory.
