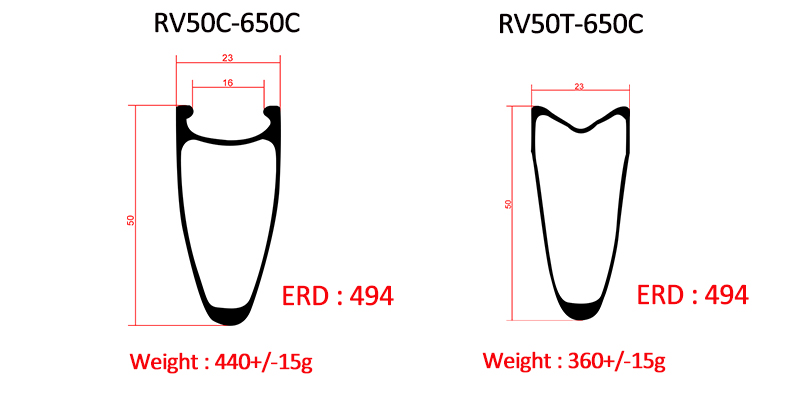

50mm 650C carbon rims geometric:
|
Model
|
RV50C-650
|
RV50T-650
|
|
Material
|
Toray T700
|
Toray T700
|
|
Use
|
Road/Handcycle
|
Road/Handcycle
|
|
Inner/Out Width
|
16mm/23mm
|
23mm/-
|
|
Depth
|
50mm
|
50mm
|
|
Rim Type
|
Clincher
|
Tubular
|
|
Brake System
|
Rim Brake
|
Rim Brake
|
|
Weight
|
440+/-15g
|
350+/-15g
|
|
ERD
|
494
|
494
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
|
Spoke Hole
|
16/18/20/21/24/28H
|
16/18/20/21/24/28H
|
|
Max Spokes Tension
|
130 kgf
|
130 kgf
|
|
Max Tyre Pressure
|
125 Psi/8.5 Bars
|
125 Psi/8.5 Bars
|
|
Max Rider Weight
|
140 Kg
|
140 Kg
|
|
Warranty
|
2 Years
|
2 Years
|
In fact,650C carbon rims has almost faded out of road bicycle market.More and more rider built 700 carbon road bike now.Superroad focus on build carbon handcycle wheels with 50mm 650C carbon rims.Don't forget,superroad will provide full disc wheels for handcycle rear wheels.With the some years development,handcycle has contined to grow in popularity.Superoad offer 650C carbon clincher rims and 650C tubular rim at the moment.With the development of handbike,superroad will provide more profiles for handcycle rider.If you are interested in handcycle business,glad to receive more ideas from you.
Although the maximum spoke tension of our rims is 150kgf, we do not recommend to lace your wheelset so intense. Generally, 3 of charging tension are involved in wheel building. Riding comfortability and performance are supposed to be considered while choosing charging tension.
