50mm Double Cleanroom Windows For Pharmaceutical Laboratory

All window units of the Wiskind Modular Cleanroom System are double cleanroom windows and flush with the two surfaces of the clean room panel system. They are beautiful and easy to clean. Each unit consists of two 5 + 5 mm double layers and laminated safety glass.Factory can be customized.


  • ApplicationPharmaceutical Cleanroom,Electronic Cleanroom,Food Cleanroom,etc.
  • Side ColorWhite,Black
  • Frame ShapeRound Corner Window, Right Angle Window
  • Window TCK50mm,75mm,100mm
  • Fill inMolecular Sieve Desiccant
  • Window FrameAluminum Alloy
  • Specifications980mmx1200mm,1963mmx1200mm Customize
  • Glass5mm TCK Double Glass

Wiskind's modular cleanroom windows are double-glazed, installed flush with the surface of cleanroom wall panels, beautiful and easy to clean. Each unit consists of two 5 + 5 mm laminated safety glasses. Aluminum alloy reinforced keel, internal hollow processing, built-in 3A molecular sieve, optional argon filling, to prevent internal fogging.


Specification

980mmx1200mm,980mmx1500mm,980mmx1800mm,1963mmx1200mm  Factory Can Be Customized.

Glass

"5mm+5mm" TCK Glass

Window Frame

Aluminum Alloy

Fill in

Molecular Sieve Desiccant

Frame Shape

Round Corner Window, Right Angle Window

Window TCK

50mm,75mm,100mm

Side Color

White,Black

Application

Pharmaceutical Cleanroom,Electronic Cleanroom,Food Cleanroom,etc.

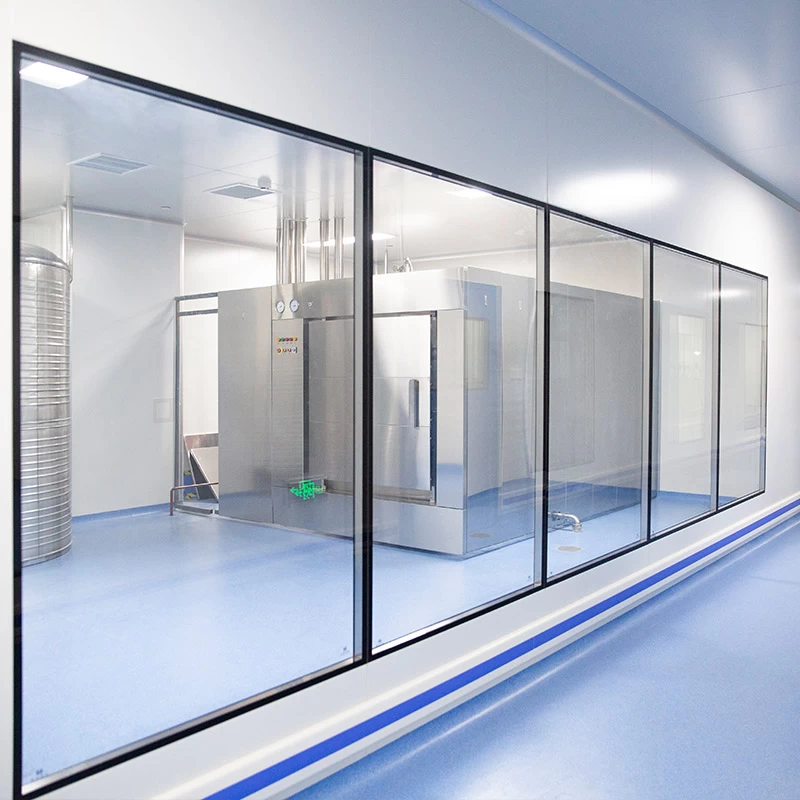

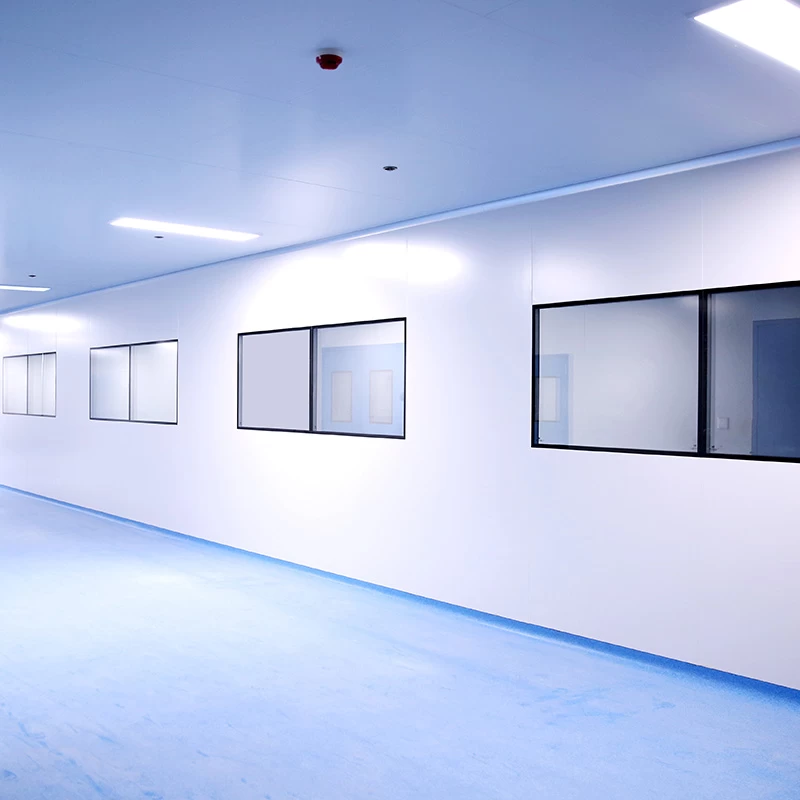

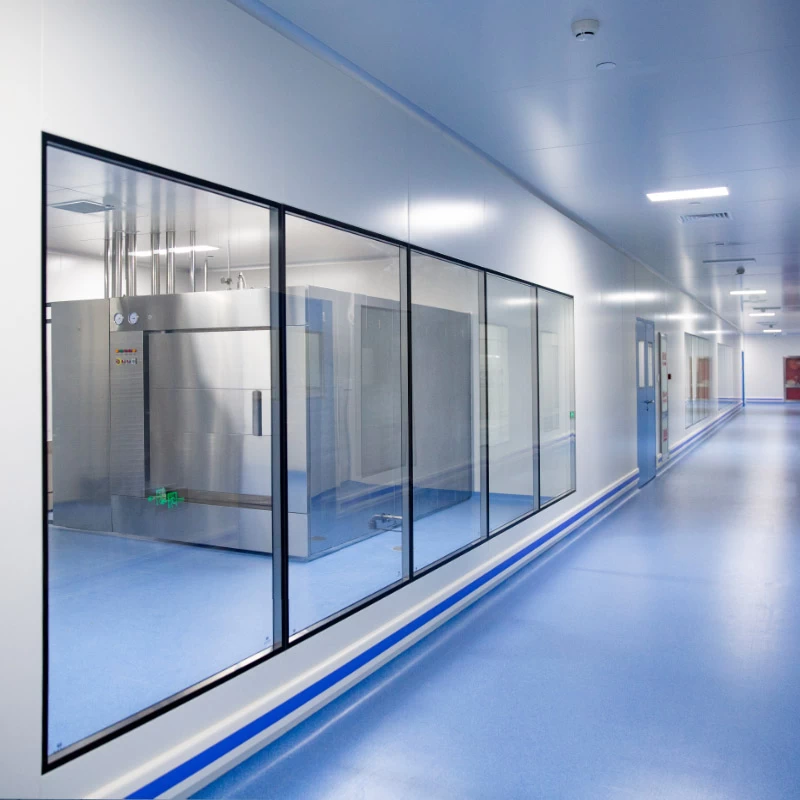

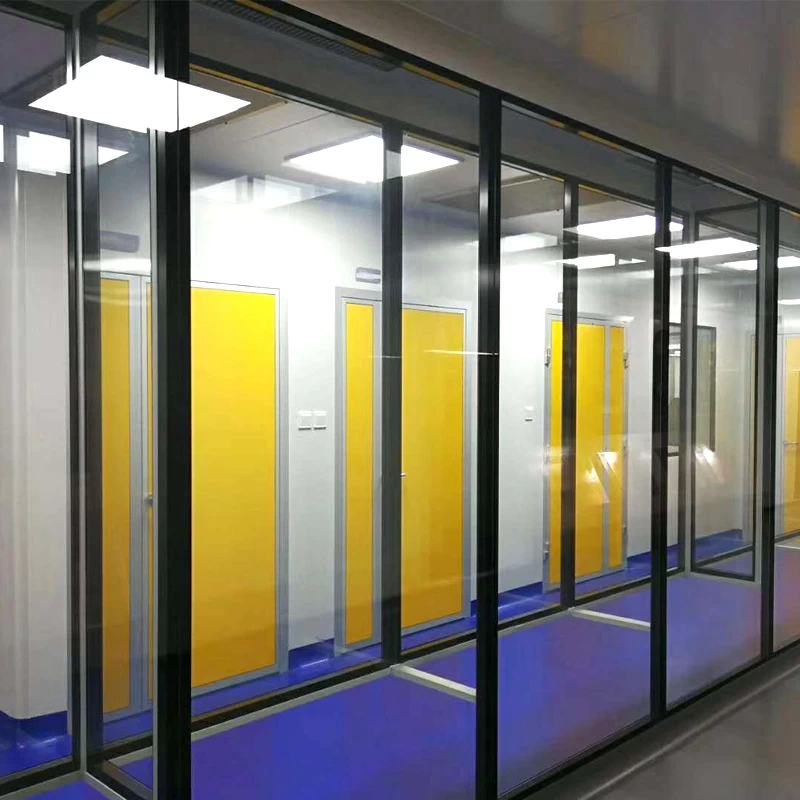

Cleanroom Window


1. The glass used by Wiskind's cleanroom window comes from a well-known glass manufacturing company in the country. Its manufacturing experience is advanced, its production equipment is advanced, and its glass products are selling well at home and abroad with excellent quality.


2.The ultra-white clean window produced by Wiskind is made of double-layer 5mm ultra-white tempered glass. The transmittance of ultra-white tempered glass can reach 91%, and the self-explosion rate is one ten thousandth.


3. There are two colors of black and white on the printed window printed edge. The printed edge is processed with high-temperature color glaze above 700 ℃, and the color is smooth and even. The installation of cleanroom windows and cleanroom doors is completely flush, seamless, beautiful, and easy to clean and disinfect.

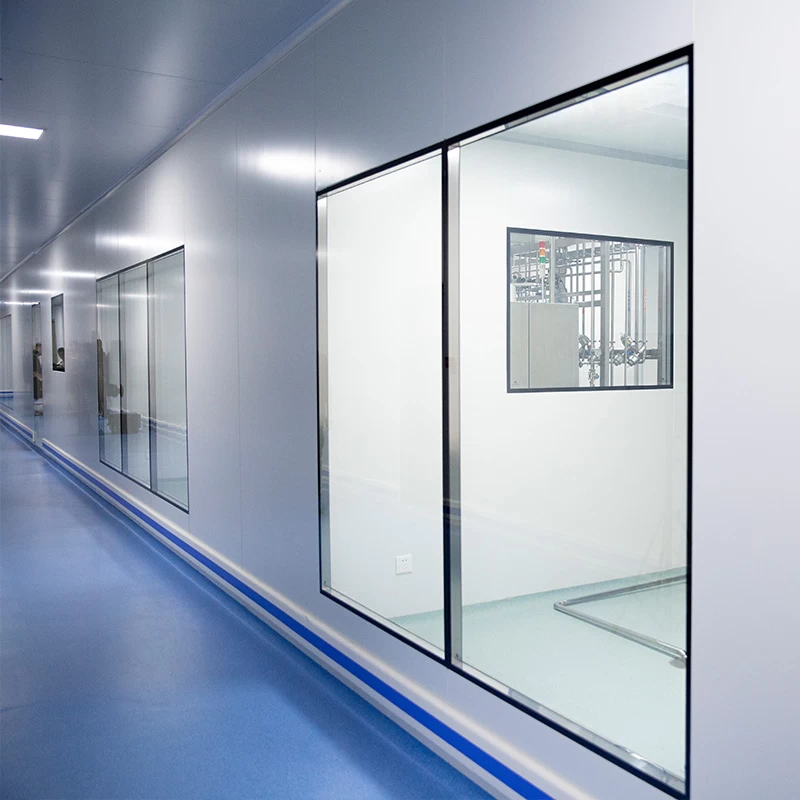

Cleanroom Window


Cleanroom window in a professional clean room production environment, full automatic control of temperature and humidity, three seals, smooth transition of the folds at the arc position, so as to ensure no dead angle sealing performance around the window, prevent the interior of the window from appearing in environments with high humidity and temperature Condensation.


Using patented cleanroom window keel, 3A molecular sieve reacts with the air in the clean window through the gaps on both sides, thereby ensuring the anti-fogging performance of the cleanroom window.


The patented design of the shrapnel clip can realize the installation of the cleanrom panels first and then the clean window, with long and flexible connections around it, thereby increasing the connection strength of the window and the cleanroom wall panels and increasing air tightness.

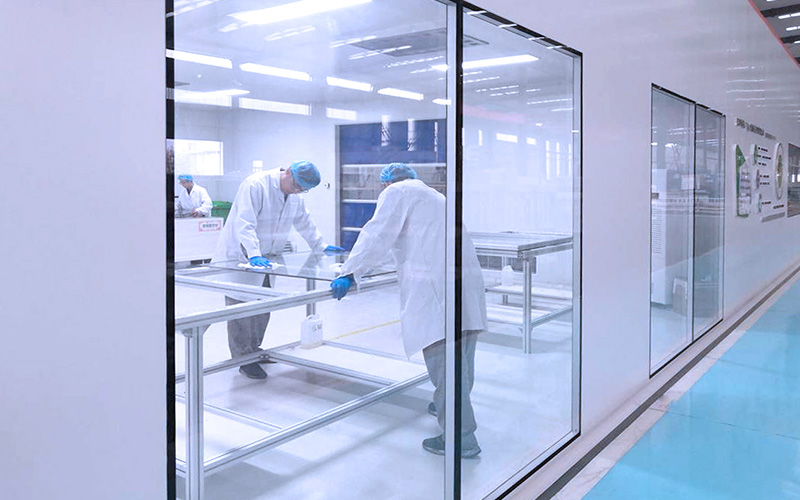

Wiskind Cleanroom Window Production Environment


Cleanroom Window Fog Test


In the production process, due to the difference of temperature difference, humidity and sealing treatment, the produced cleanroom window will have corresponding problems during the use, such as condensation, affecting the cleanroom windows effect and use. Condensation is one of the most concerned issues and concerns of the entire clean industry.


Wiskind for better customer service to ensure product quality and provide customers with the most satisfactory products, we conducted condensation testing on clean windows. Condensation test standards refer to British Standard BS5713: 1979 "Insulating Glass Technical Requirements", ASTM E546-88 "Insulated Glass Dew Point Testing Method" and JIS R3209-1998 "Insulated Glass" standard.


The experimental results: Wiskind clean window has no condensation at -60 °C.


Wiskind cleanroom window
