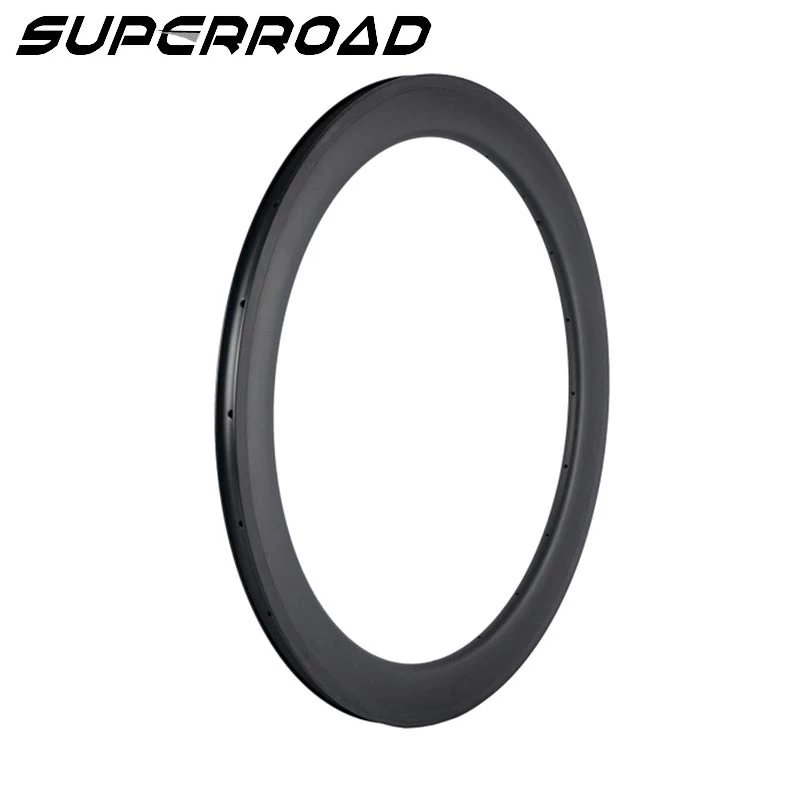

Model:WC50C
|
Size:700C
|
|
Material: Full Carbon T700
|
Brand Name:Superroad
|
|
Brade Track Width: 25mm
|
Drilling:Traditional/Internal
|
|
Inner Width:18mm
|
Spoke Hole:16/18/20/21/24/28H
|
|
Max Width:28mm
|
Brake Track:Carbon,Basalt,Disc Brake
|
|
Rim Depth:50mm
|
Weave: UD/3K/12K,3K Twill,12K Twill,3K+Kevlar
|
|
Rim Type:Clincher
|
Finish: Matte/Glossy
|
|
Weight:515+/-15g
|
Max Tyre Pressure: 125Psi/8.5Bars
|
|
ERD:544mm
|
Roundness:<0.25mm
|
|
Max Spokes Tension:130kgf
|
Max Rider Weight: 125kg
|
|
Brake Track Flatness:<0.15mm
|
Standard: EN
|
|
Decal: Customized
|
Warranty: 2 Years
|
|
Business:OEM&ODM
|
Port:Xiamen
|
|
Customized bicycle wheel rims/ wheels are available, please message us
|
1. TI Flange Design
Rim flange incl circle titanium,stronger and stabilized structure.
2. Basalt Brake Track
High temperature resistance,brake system is important for riding,more safer for cyclist.
3. How much spoke tension should I use?
Although the maximum spoke tension of our rims is 150kgf, we do not recommend to lace your
wheelset so intense. Generally, 3 of charging tension are involved in wheel building.
Riding comfortability and performance are supposed to be considered while choosing charging
tension.
A. Tension for "transportation riders" (Comfortability)
80-90kgf are ideal for regular transportation riders or exercise on a regular basis.
B. Tension for "enthusiast riders" (Balance)
100-110kgf are good for people with enjoyful and training purpose.
C. Tension for "professional riders" (Performance)
120-130kgf are charged for riders who are expertized in riding or competition.
