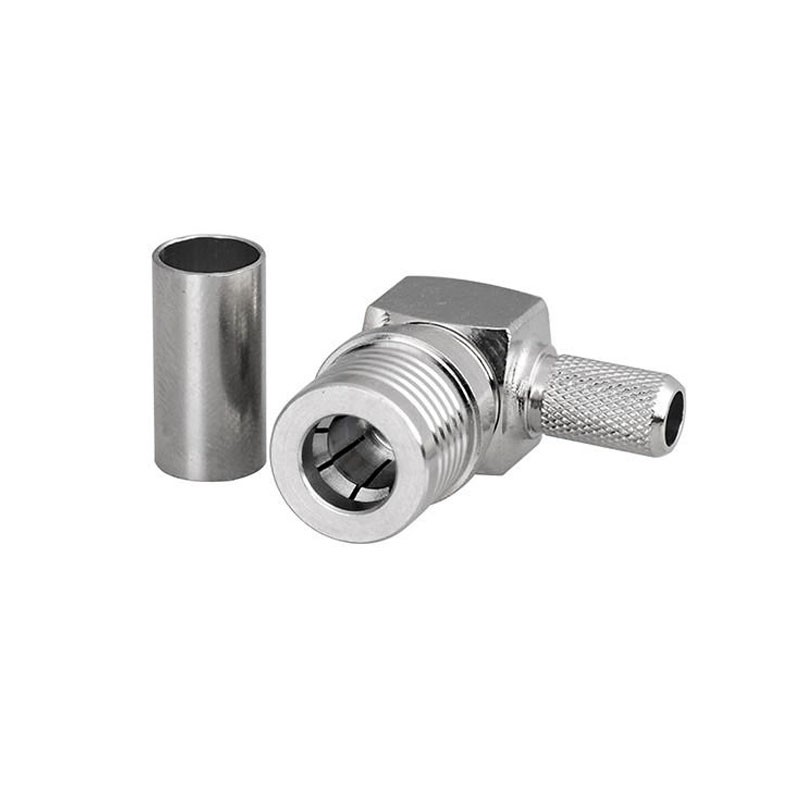

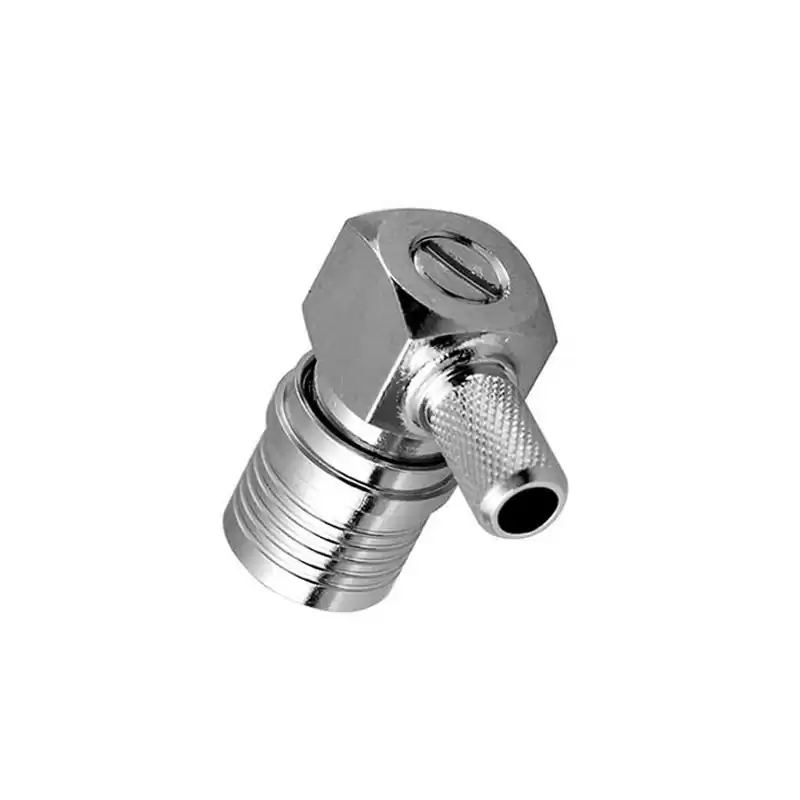

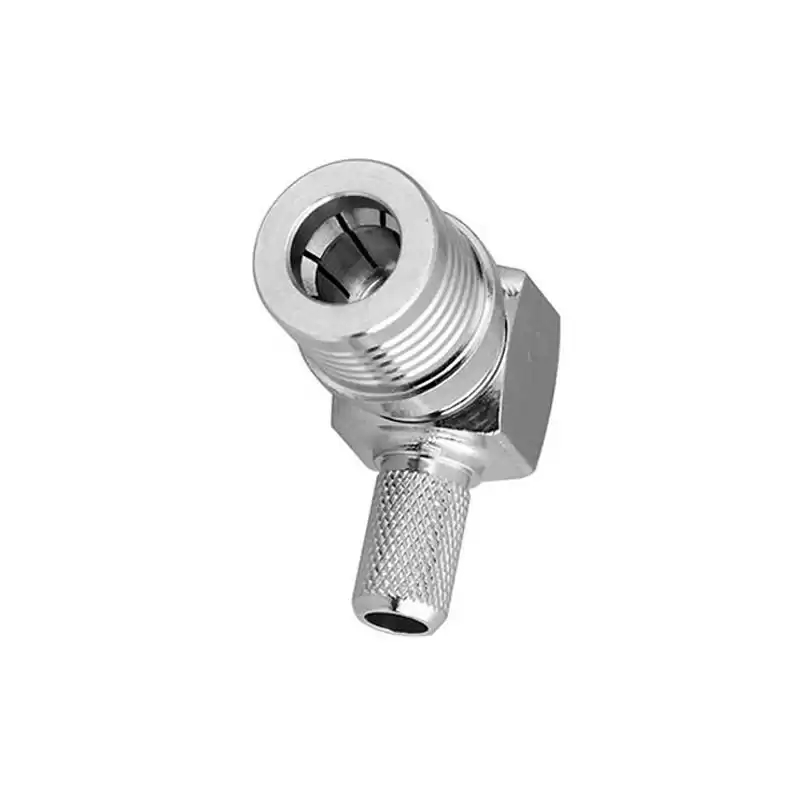

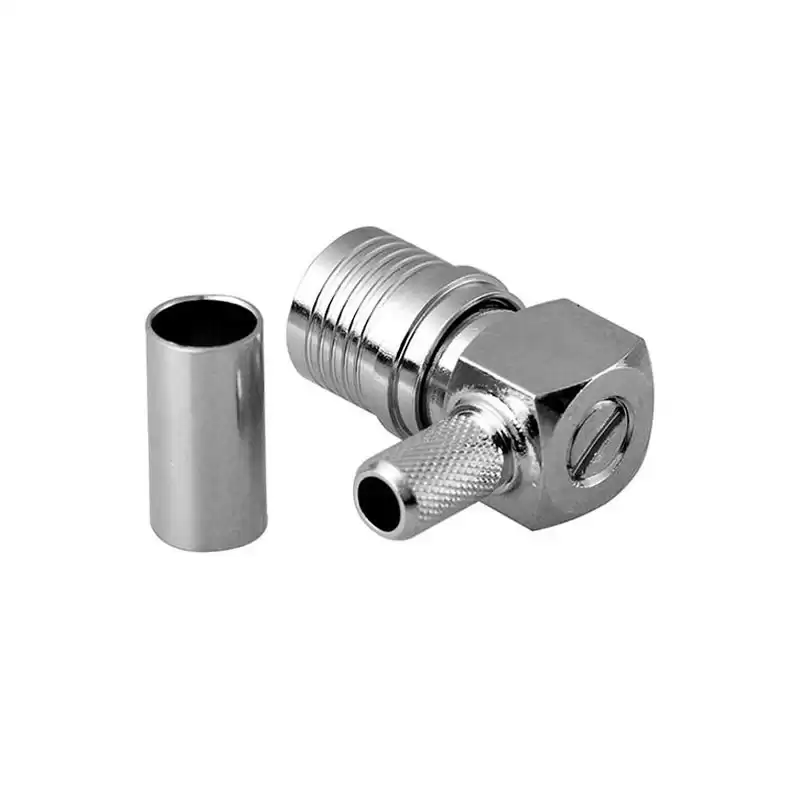

50ohm QMA RF Connector Plug Right Angle Crimp for LMR195/RG58/RG142/RG400 Cable

Features:

  • High power handling capability;
  • Rotatable 360° after connection for flexibility with installation;
  • Snap-on interface for quick and easy installation.



50ohm QMA RF Connector Plug Right Angle Crimp for LMR195/RG58/RG142/RG400 Cable



The QMA connector is a quick disconnect version of the SMA connector and shares the same internal construction, which allows the connector to have excellent performance up to 18 GHz. Because of the innovative coupling mechanism, a 360-degree butt joint is maintained resulting in low RF leakage. Since the RF line is identical to the SMA series, the QMA connectors also offer the same high power handling capability. This gives the series significant advantages over other quick disconnect connectors;Mechanically, the QMA series offers a more convenient installation than SMA connectors. Because the interface mates with a snap-on instead of a threaded coupling, there is a significant time advantage.



Specifications

ELECTRICAL DATA
Impedance                                                                   50Ω
Frequency range DC-6GHz optimized / DC-18GHz working range(interface)
Dielectric withstanding voltage (at sea level) 1000Vrms,50Hz
Working voltage 480Vrms,50Hz
Contact resistance Inner conductor: 3mΩ
Outer conductor: 2.5mΩ
RF leakage 0-3GHz  -80dB / 3-6GHz  -70dB
Reture loss (typical) DC -3GHz 32dB / 3-6GHz  25dB
MECHANICAL DATA
Engagement force 25N
Disengagement force 20N
Retention force for interface 60N
Durability (matings) 100
Distance between connectors 12.4mm
ENVIRONMENTAL DATA
Temperature range -55°C  to +155°C
MATERIAL DATA
Bodies Brass--Ternary alloy plating
Solder bodies Brass--Ternary alloy plating
Pin contacts Brass--Ternary alloy plating
Socket contacts Spring bronze--Ternary alloy plating
Outer contacts Spring bronze--Ternary alloy plating
Insulator PTFE
Crimp ferrules Copper--Ternary alloy plating



Applications

  • Base Stations
  • GPS
  • Antennas
