50w CCD camera co2 laser marking machine with conveyor

50w CCD camera co2 laser marking machine with conveyor is with ccd camera and conveyor, can position the printed pattern contour, with small laser capacity metal tube and mirror foucs, ingergrated machine structure. With marking area from 110*110mm-300*300mm.Suitable for marking and engraving non metal materials such as printed pattern、wood、acylic、paper、denim jeans、sole 、leather、EVA、slipper、PU 、PVC、invitation card,etc.



0086-18815980123  0086-13599259031  Boming laser


50w CCD camera co2 laser marking machine with conveyor is with CCD camera for positioning the workpieces, so it can mark the logo, words, pattern inside the workpieces, the converyor can achieve the continours marking to achieve the high working efficiency.

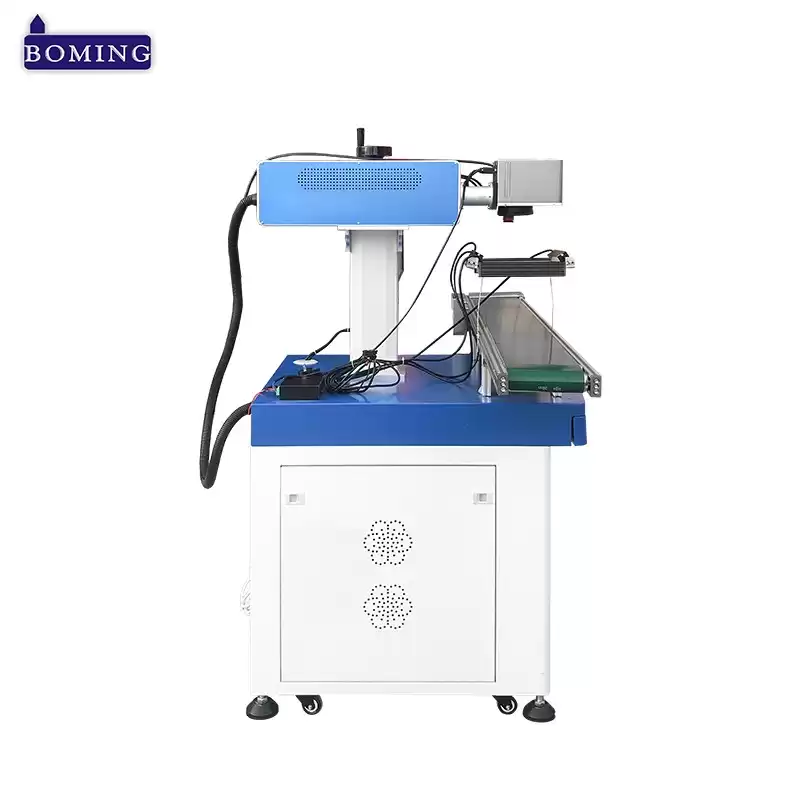

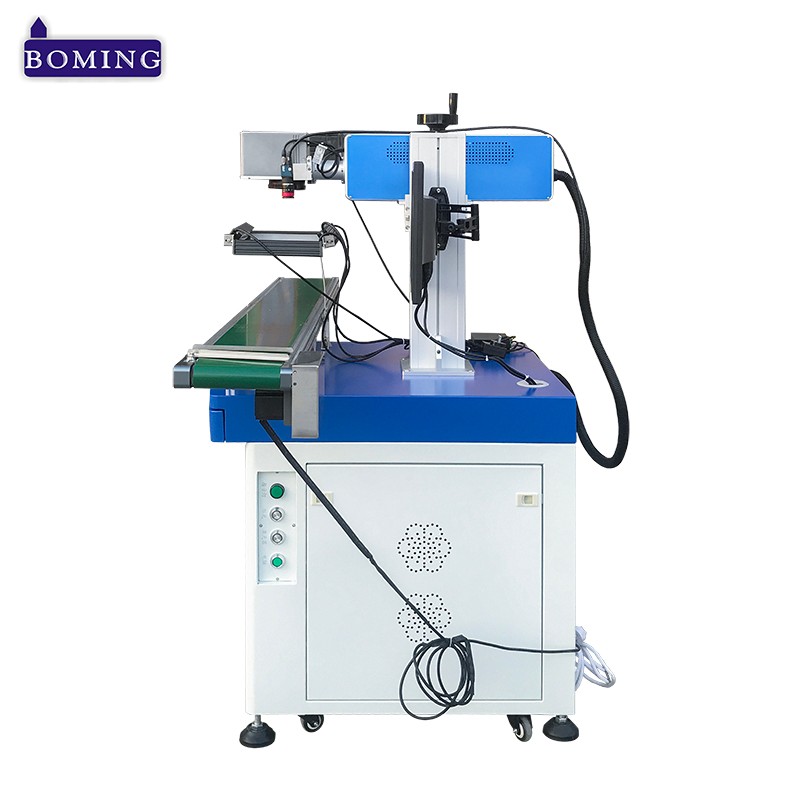

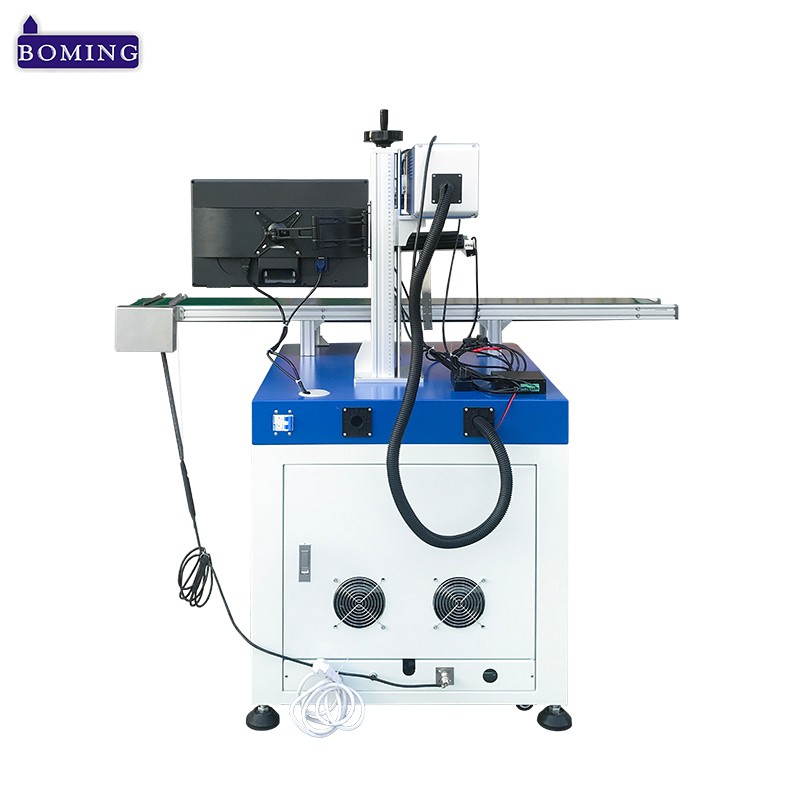

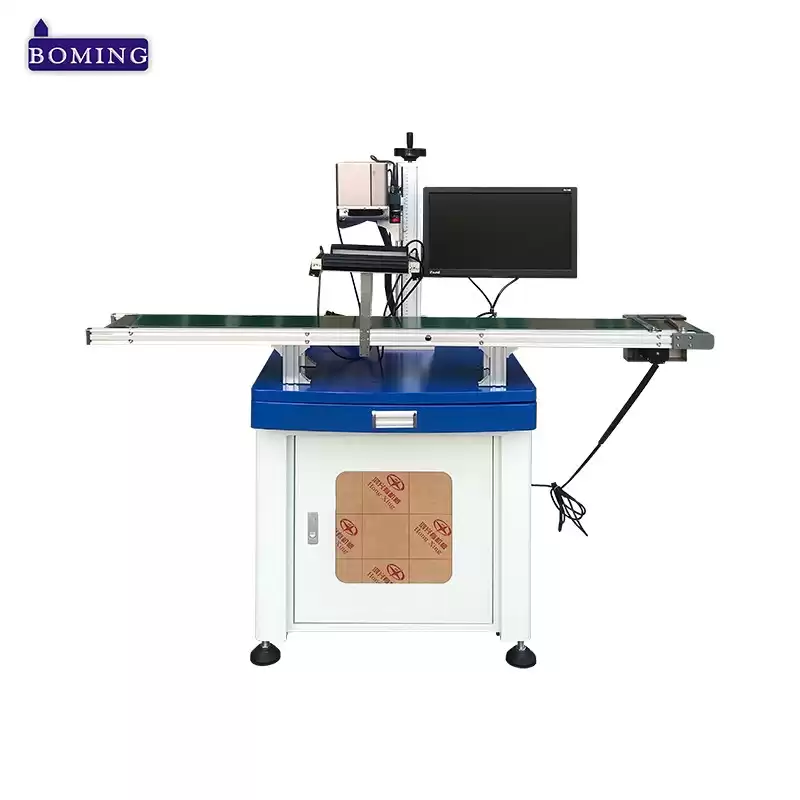

Machine pictures:

laser marking machine with auto conveyor

3d laser marking machine

conveyor laser marker with camera

ccd laser mark machine with conveyor




Features:of laser marking machine with camera

1、Laser marking machine has high accuracy、 fast speed、 long continuous working time and free maintenance,  the engraving depth can be controlled.

2、Can choose the imported or China CO2 RF laser which has good light beam and uniform density of optical power.

3、It adopts red light positioning system to make the position more accurate, avoiding the waste.

4、The industrial high precision temperature control chiller effectively ensures the stable output of laser and long life time.

5、The light seat can be manually adjusted up and down meeting the requirement of processing 110mm-300mm working area.

6、CCD camera can position the workpiece, so the logo, word, pattern etc. can be marked inside the workpiece.

7、Conveyor can make the continous marking to achieve the high working efficiency.




Advantage: of laser marking machine 50w

1、The laser marking is non-toxic, non-deformation, non-polluting, wear-resistant;

2、Stable performance, moderate price, the marking depth can be controlled at will, and it can work for a long time.

3、It adopts an integrated design structure and a new light path sealing method, which is generally stable and reliable, and has a beautiful and high-grade appearance.

4、Inherit the maturity and practicability of previous generations of solid-state laser marking machines, and further improve the stability of the whole machine by upgrading the software and control system.

5、 It can mark any information such as graphic logos and texts, and has the characteristics of fine and beautiful marking patterns and wear-resistant.





Applicable Industries:of laser marking machine with conveyor

Craft gift, furniture, leather and garment, Advertising signs, model making, food packaging,

electronic components, medical packaging, plate making and printing, nameplates, etc.




Applicable Materials: of desktop laser marking machine

Non-metallic materials, such as leather、wood、bamboo ware、organic glass、ceramics、acrylic、stone、denim jeans、sole、EVA、PU、PVC、plastic、marble、jade、crystal、paper、slipper、invitation card, etc.





Technical Parameters:of ccd camera co2 laser marking machine

Technical Parameters


Laser

From China

Laser Capacity

20w 30w 40W 50W 60W

Laser wave length

1064nm

Optical quality

M2<1.5

Laser repetition frequency

≤100KHZ

Standard marking area(mm)

110*110

Optional marking area(mm)

110*110-300*300mm

Marking depth

≤1.2mm

Engraving speed

≤7000mm/s

Marking Speed

600-1000 character/min

Min line width

0.01mm

Min character

0.05mm

Repeated accuracy

±0.001

Operating environment

Clean, without dust or less dust

Total power

≤3KW

Power supply

AC220±10%,50HZ,10A

Cooling way

Water cooling

Working temperature

0~45

Working humidity

5~95%


Sample show:

jewelry printing machine laser marking




Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.




Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.


5. Machines sold to Southeast Asia, South Asia, South America......




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

laser marking machines unit
