Product Name

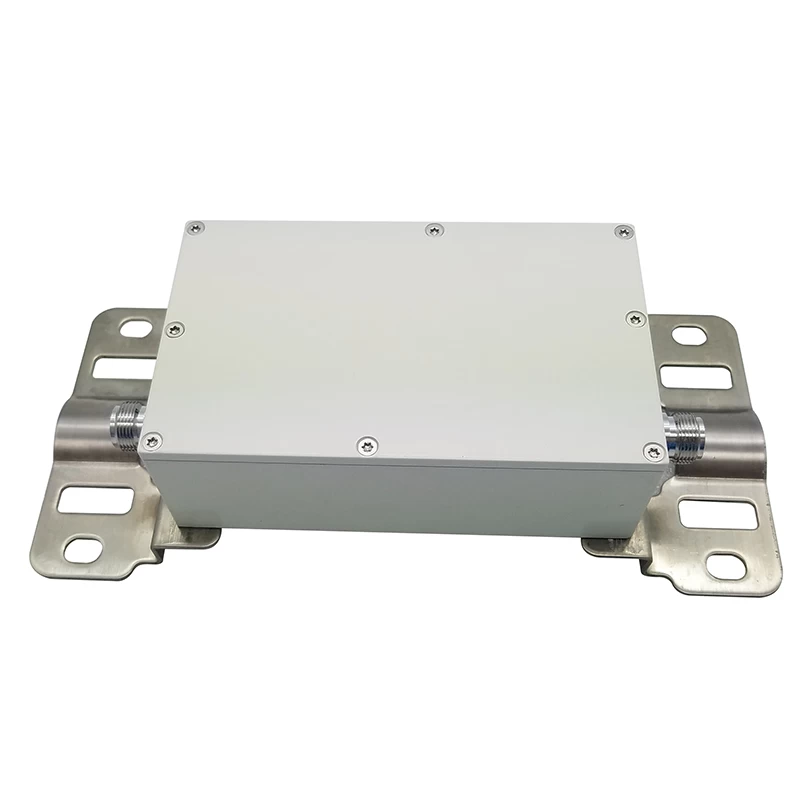

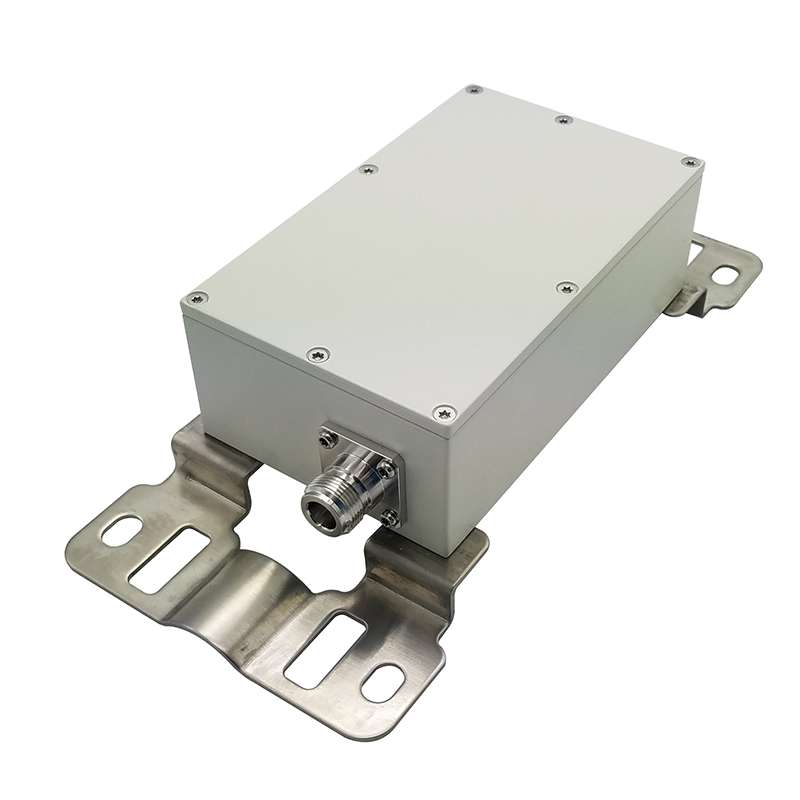

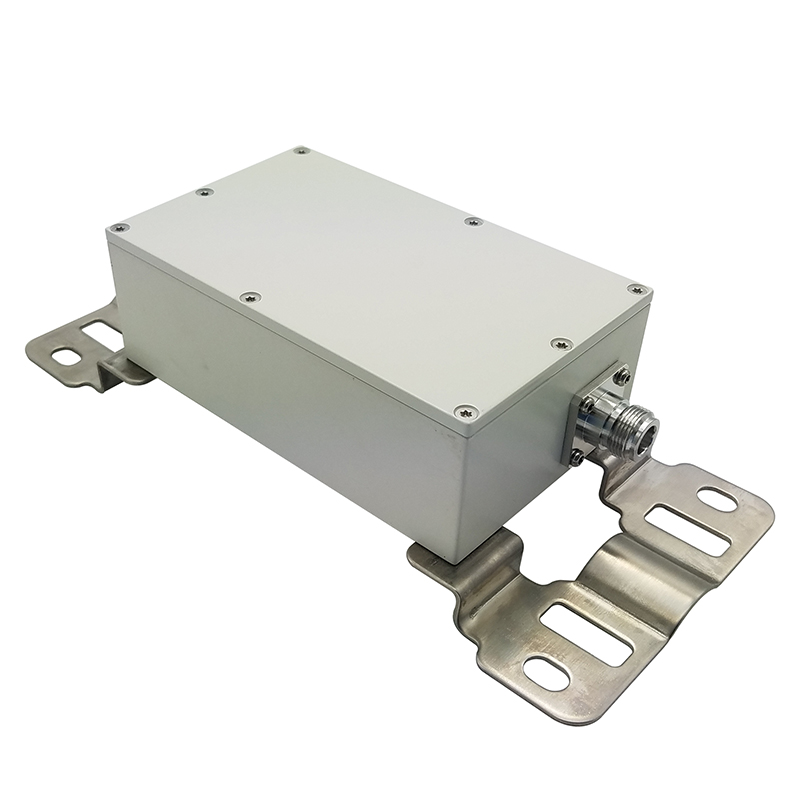

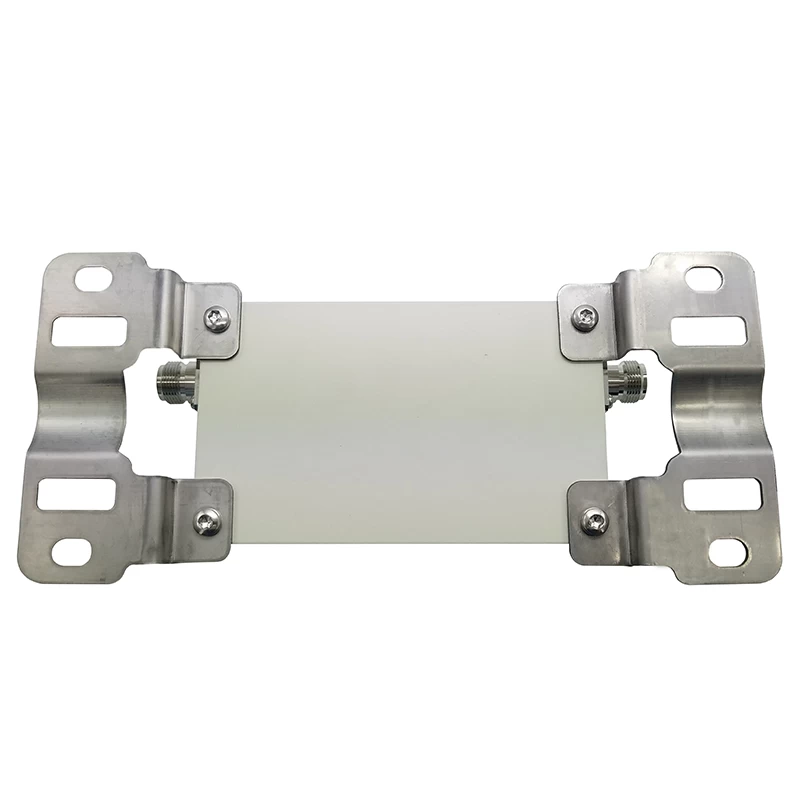

50W RF Bandpass Filter (920.1-822.8MHz, N-Female/Female, IP67)
RF Bandpass Filter is can improve the input selectivity of receivers and amplifiers &increase the isolation of transmitters, whose re-spective antennas are mounted close together
50W RF Filters are Narrow pass band range with low insertion loss, high stop band attenuation.
Product Features
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ High reliability
◆ Compact,Low weight
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MFR1-RU900-NF/F
|
|
Frequency Range(MHz)
|
920.1-922.8MHz
|
|
Insertion Loss(dB)
|
≤4.0dB
|
|
Return Loss
|
≥18dB
|
|
Out of band Rejection(dB)
|
≥50dB@915MHz
|
|
Out of band Rejection(dB)
|
≥50dB@925MHz
|
|
Impedance(ohms)
|
50
|
|
Input power(W)
|
50 max
|
|
Temperature Range
|
-10℃to +55℃
|
|
Storage Temperature Range
|
-40℃to +85℃
|
|
Relative humidity
|
5%-95%
|
|
Barometric pressure
|
55KPa-106KPa
|
|
Input Connector
|
N-Female
|
|
Output connector
|
N-Female
|
|
Waterproof Grade
|
IP67
|
|
Outer Dimension(mm)
|
140*84*47
|
|
Finish
|
As your Requirement
|
|
Packing
|
1 Pce in box
|

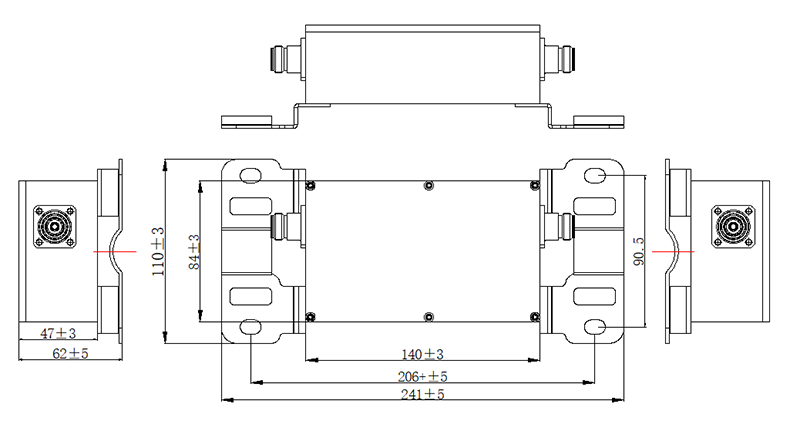

Mechanical Drawing
