50W RF Coaxial Fixed Attenuator 4.3-10 Male to N Type Female 3-40dB DC-3GHz/4GHz

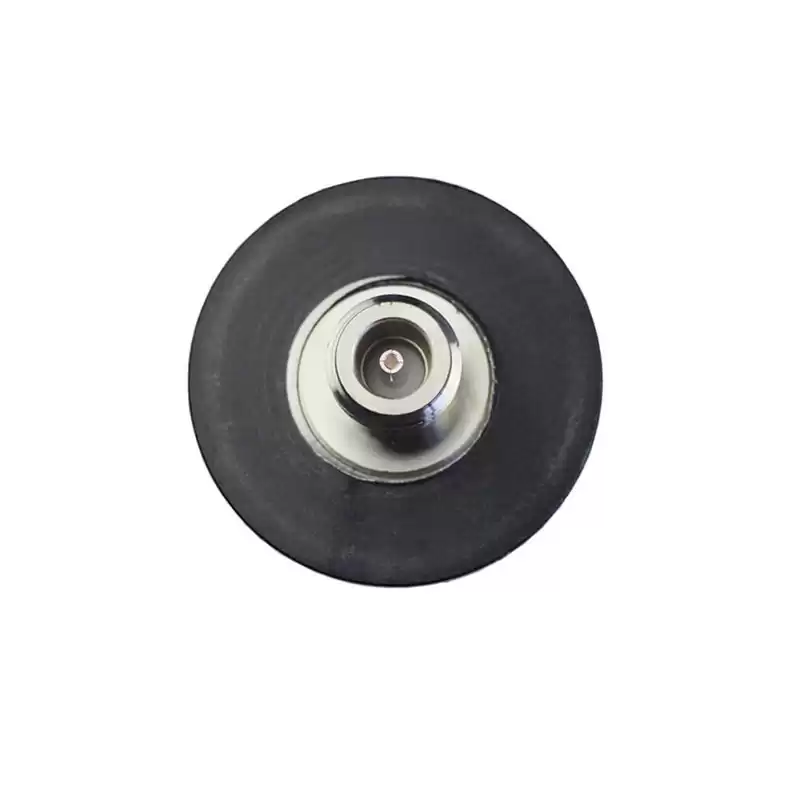

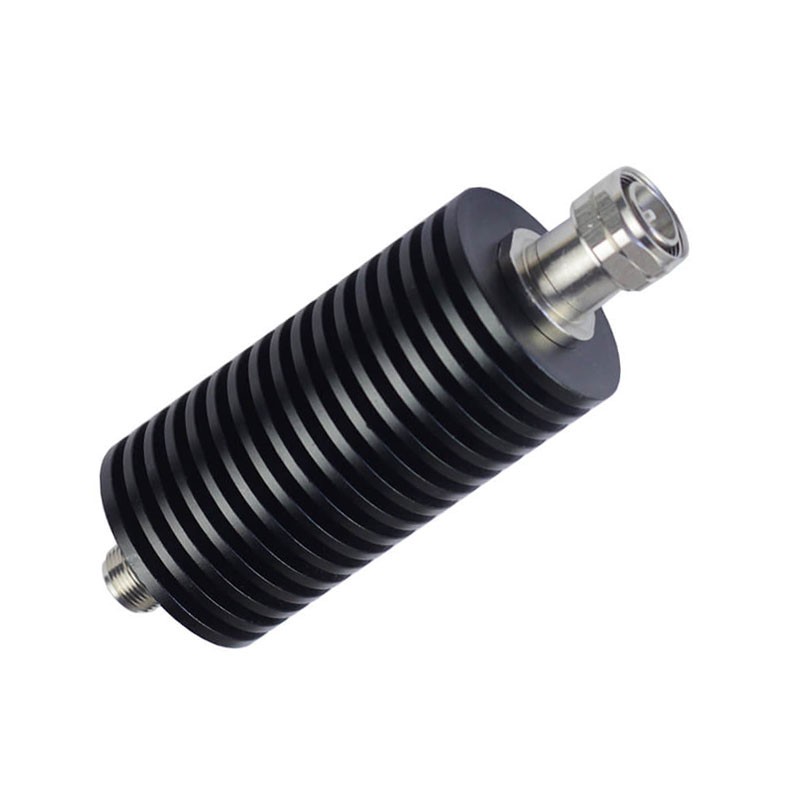

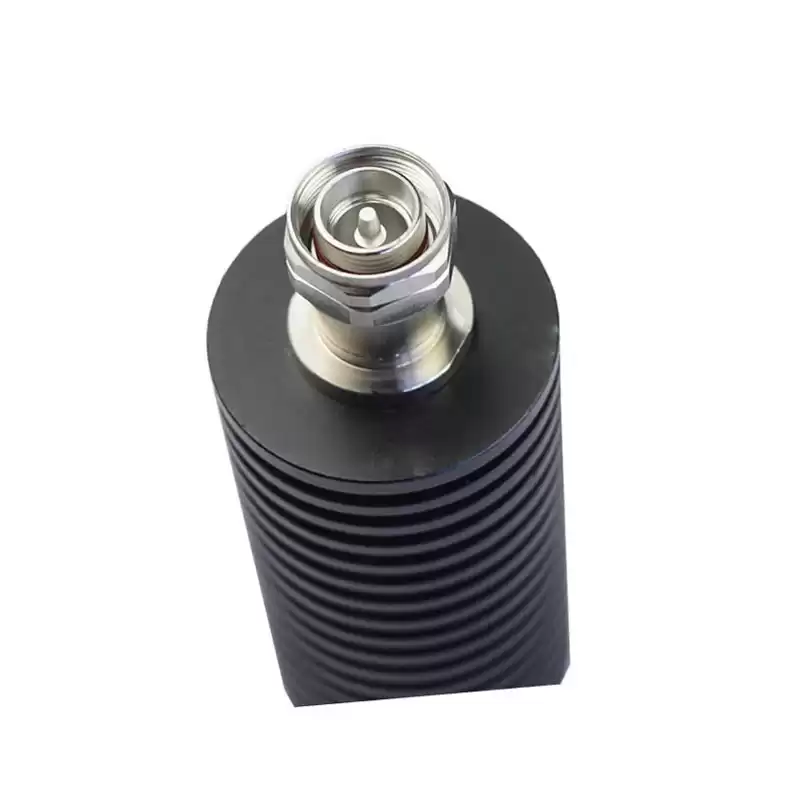

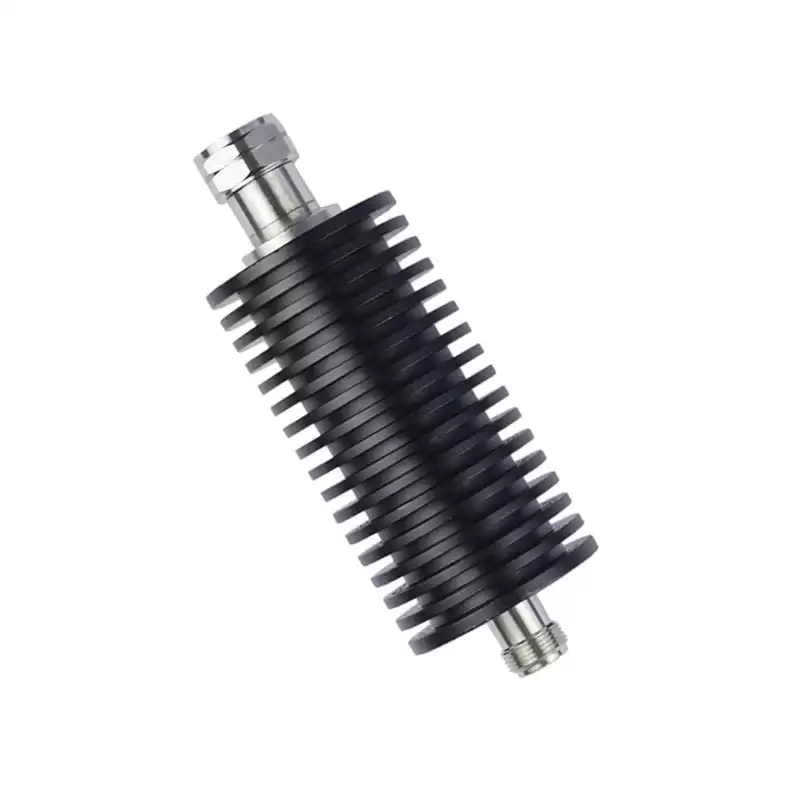

The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 4.3-10 Attenautor is a High Power Coaxial Attenuator from 1 to 50W, and we offer 50ohm loads terminations male and female type. This 50W 4.3-10 to N Attenuator has a 4.3-10 male gender on side 1 and a N female connector on side 2. attenuation Max value is 40dB, frequency Max is 18GHz.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz/4GHz |
| Connector |
4.3-10 Male to N Female |
| VSWR |
≤1.2 |
| Power |
50W |
| Impedance |
50Ω |
| Attenuation value |
1-20dB |
| Attenuation |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Mobile Communication
- Network Optimization
- In-door distribution system
- Satellite communication
- Shortwave communication
- Hopping radio
