This pump boasts a huge 5.0GPM capacity. This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray gun handle. With 70 PSI cutoff, this has the pressure to get rid of stubborn debris. Suitable for fresh, saltwater and chemical applications
About this item
Voltage：12V/24V
Open Flow：5.0GPM / 18.9LPM
Shut-off Pressure：70PSI / 4.8BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：Quick Attach
Specification
| Type |
5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type |
Pressure switch/ bypass |
| Max Recommended Temperature |
60° C（140° F） |
| Priming Capabilities |
6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 70 PSI ：56 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports |
QUICK ATTACH |
| Weight |
5.9 lbs (2.7 kg) |
| Leads |
14 AWG, 13" (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle |
Continuous |
| Max.Amp Draw |
18.0 A |
| Fuse |
27.0 A |
|
Item
Number
|
Item
Description
|
Technical Specifications
(Material, Color, Finish, & Dimensions)
|
|
NMWP51-G50-70-12
|
DC 12 VOLT
5.0 GPM/ 18.9 LPM open flow
70 PSI / 4.8 Bar Max shut-off pressure
18.0 Max Draw (A)
|
Valve: EPDM
Diaphragm: Santoprene
Ports: 3/4"QUICK ATTACH
Max. 140°F (60°C)
Suction Lift: 6 feet (1.8m)
Head: 42m
Thermally protected
Intermittent
|
|
NMWP51-G50-70-24
|
DC 24 VOLT
5.0 GPM/ 18.9 LPM open flow
70 PSI / 4.8 Bar Max shut-off pressure
9.0 Max Draw (A)
|
Valve: EPDM
Diaphragm: Santoprene
Ports: 3/4"QUICK ATTACH
Max. 140°F (60°C)
Suction Lift: 6 feet (1.8m)
Head: 42m
Thermally protected
Intermittent
|

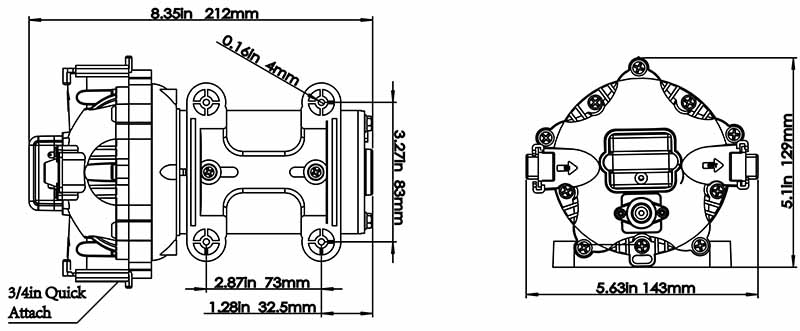

Dimensions
