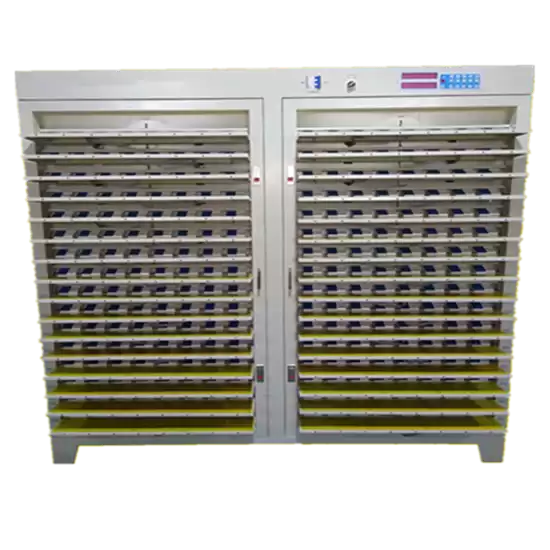

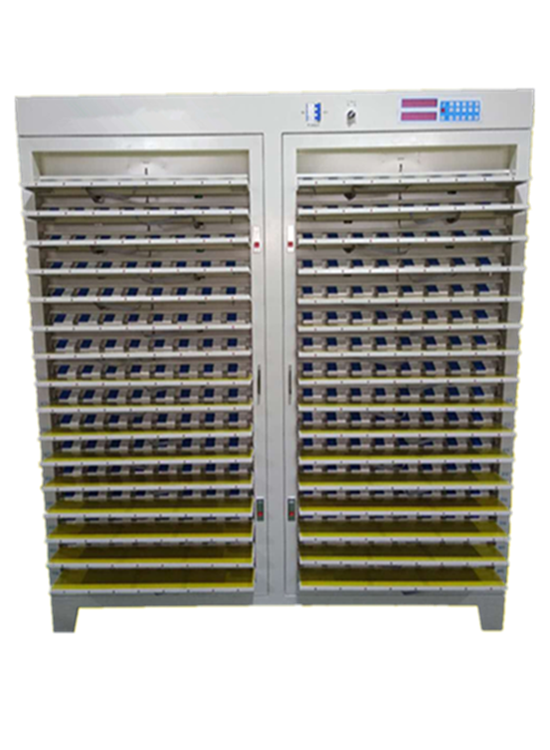

512 Channel Battery Tester for Battery Charge and Discharge Testing Lithium Ion Battery Experiment




This equipment mainly constitute by the computer system and control software, communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.



Features

1. It is pecially used for chemical and capacity separation of polymer lithium ion batteries.

2. Per device consists of a set of completely independent MCU control system, using double-sided structure for our customers to save plant area, the whole equipment can test constant current charging and constant voltage of 512 monomer lithium ion battery;

3. The tester uses an unique constant current constant voltage power, constant current to constant voltage switch without impact, especially suitable for lithium ion battery charging and discharging requirements;

4. The device can control center by using P89C668 single chip computer, device can control by upper computer or break away it with the external sampling circuit to complete constant current constant voltage charging, constant current discharge test, capacity sorting work.

5. Each battery test station has independent constant current and constant voltage power.


Specifications

Number of device channels

A total of 512 channels

External size

Width 1660mm × Depth 550mm × Height 1840mm

Cabinet color

Standard off-white (customizable)

Fixture form

65 wide polymer snap-on fixture

Fixture spacing

85mm

Supporting battery specifications

Polymer, soft battery

Working power supply

Three-phase five-wire system AC380V ± 10%, 50HZ

Work power consumption

27KW

work environment

Temperature 0 ~ 40 , relative humidity80%

Heat dissipation mode

Natural air intake, upward air exhaust

Voltage measurement range

0-5V, resolution 1mV

Battery voltage range

Charging 0-4.5V; discharging 4.5-2V

Constant voltage range

2.5-4.5V

Voltage accuracy

± (1 ‰ reading + 1 ‰ full scale)

Current range

Charge 60mA -6A; discharge 60mA -6A, resolution 1mA

Current accuracy

± (1 ‰ reading + 1 ‰ full scale)

control mode

The software installs the computer connection equipment to work, the entire cabinet controls

Communication mode

RS485, baud rate 57600

Process setting

Up to 32 working steps and 256 cycles can be set

Charging mode

Constant current, constant pressure

Cut off conditions for charging

Voltage, current, time, capacity

Discharge mode

Constant current

Discharge cut-off conditions

Voltage, time, capacity

Protection function

Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power failure protection, data breakpoint recovery

time frame

Arbitrarily set within 0-30000 minutes, time unit is min

Time accuracy

≤ ±

Sampling inspection cycle

8s

Minimum data recording frequency

8s

Battery sorting

Sort by (capacity, time, open circuit voltage, discharge platform, etc.)

Data processing

It can record voltage, current, time, capacity and other data, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data, provide data curve graph and cycle graph; can generate generated text, EXCEL, WORD Or MDB database format file
