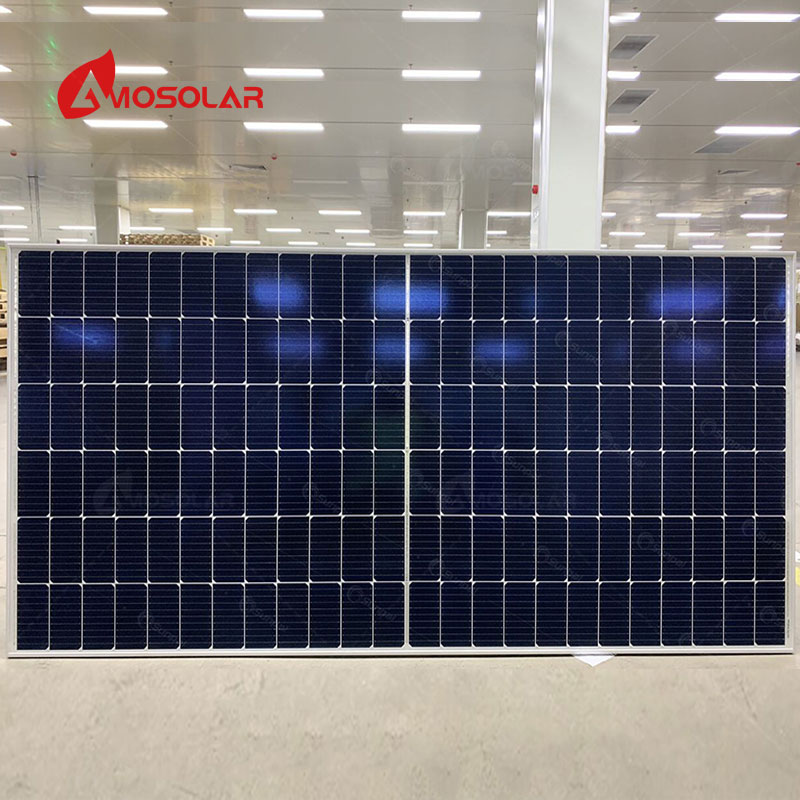

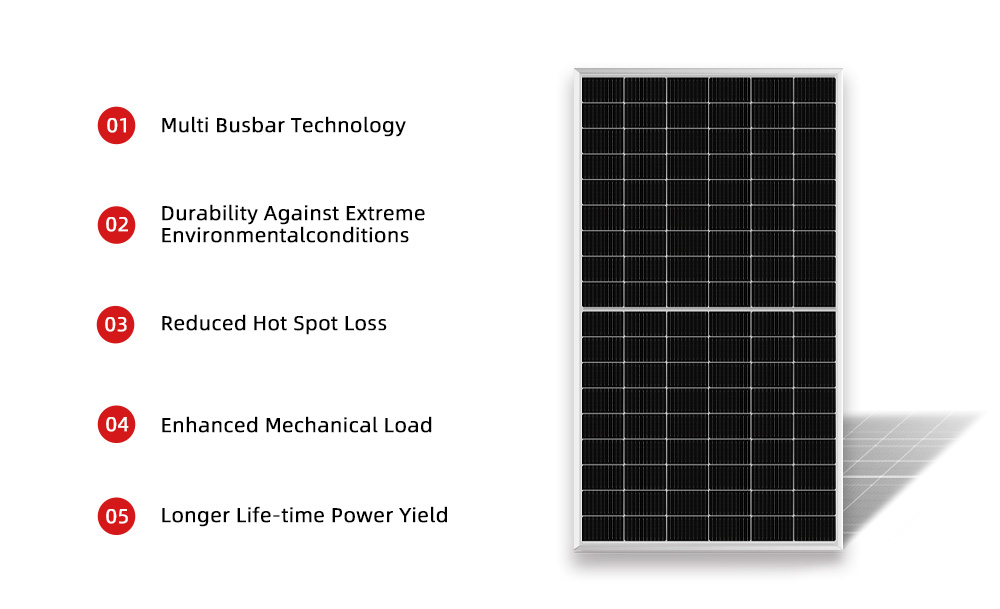

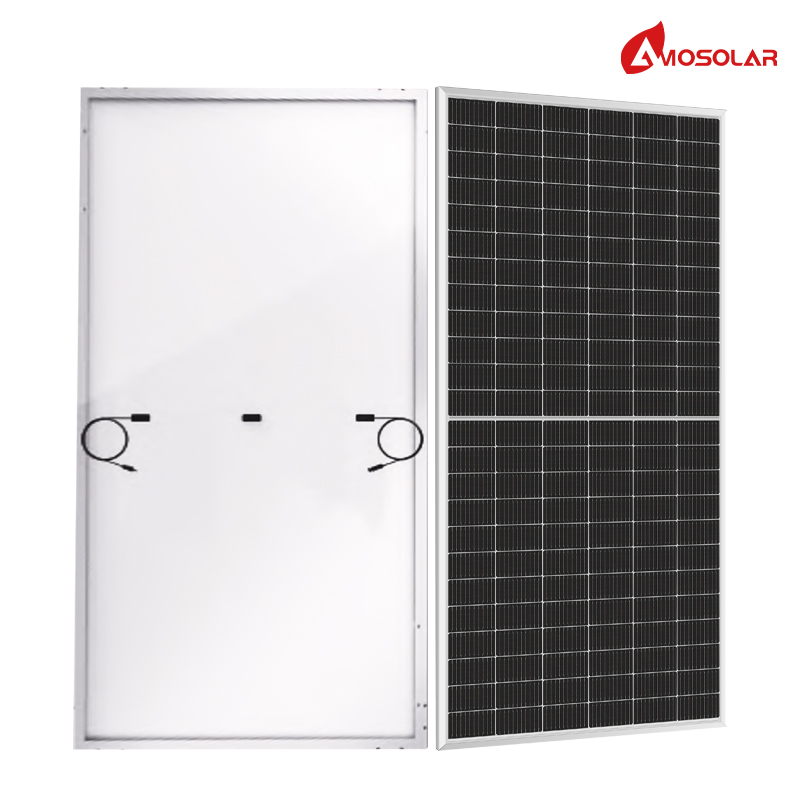

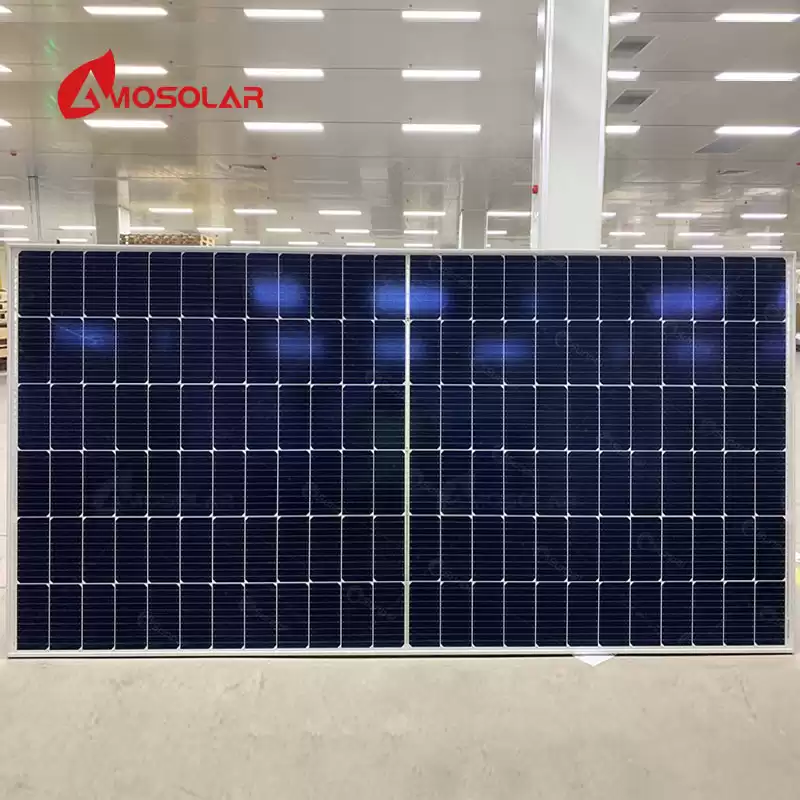

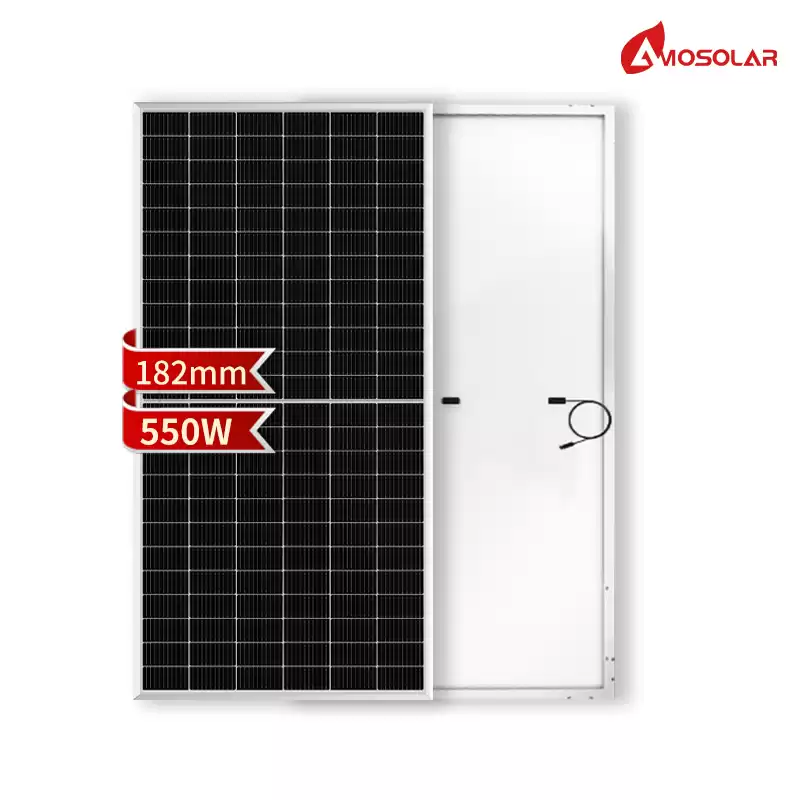

525W-550W Half Cut Mono PV Panel Chinese Manufactory : With latest multi-busbar PERC technology, 182mm half-cell solar panels with bigger power, higher efficiency, longer life, better performance.
Electrical Performance Parameters (STC Test)
Model
|
AS525M10-144
|
AS530M10-144
|
AS535M10-144
|
AS540M10-144
|
AS545M10-144
|
AS550M10-144
|
|
Rated Maximum Power at STC
|
525W
|
530W
|
535W
|
540W
|
545W
|
550W
|
|
Open Circuit Voltage (Voc)
|
49.15
|
49.30
|
49.45
|
49.60
|
49.75
|
49.90
|
|
Maximum Power Voltage (Vmp)
|
41.15
|
41.31
|
41.47
|
41.64
|
41.80
|
41.96
|
|
Short Circuit Current (Isc)
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
|
Maximum Power Current (Imp)
|
12.76
|
12.83
|
12.90
|
12.97
|
13.04
|
13.11
|
|
PV Module Efficiency (%)
|
20.31
|
20.51
|
20.70
|
20.89
|
21.09
|
21.28
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 144( 6 × 24 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 28.6KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

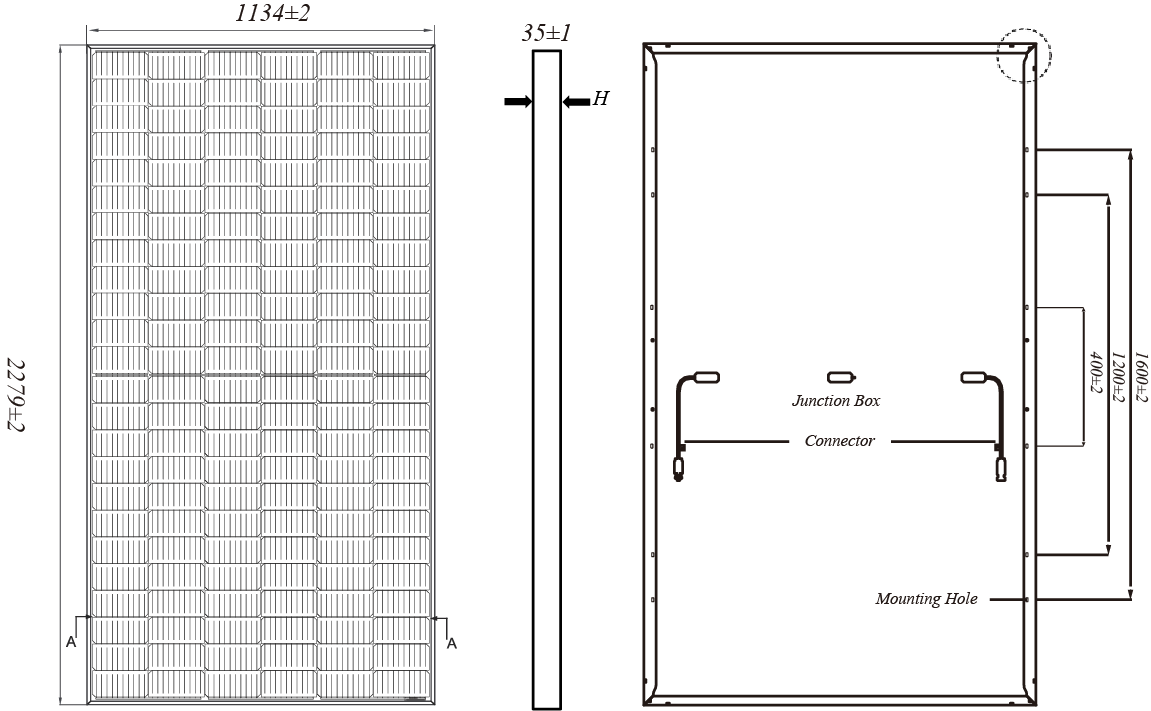

PV Size: 2279×1134×35mm
Packaging: 31 pcs / pallet
620 pcs / 40HQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
