55 Inch FHD 1920x1080 HD LCD Video Wall 3.8mm IPS Samsung LG Screen Panel
Advantages of BarcoLED LCD Video Wall
1. High reliable components and high heat dissipation body design, support 12 hours working days
2. Full HD LCD display, native resolution 1920x1080
3. The ultra thin and lightweighted design makes it easy to transport and install
4. High performance and high quality make it cost less.
5. Flat-fell seam between the non-display area is only 1.5mm
Parameters
Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD;
500its brightness, MEGA DCR contrast;
FHD physical resolution 1920x1080;
Only 3.5mm Ultra narrow bezel, high quality, practical, good vision effect;
Signal interface rich, RS232, HDMI, DVI, VGA, YPbPr, AV;
FHD video wall unit, high brightness, high contrast, high gamut;
Flexible structure design, easy installation, extensible, arbitrary combination;
Stable performance, suitable working for a long time;
LCD Video Wall Screen Datasheet Parameters:
|
Model No
|
BARCO-55 INCH LCD
|
|
LCD Technology
|
LG a-Si TFT-LCD
|
|
Active Screen Diagonal
|
55" (1168 mm)
|
|
Total Bezel Width
|
3.5mm
|
|
Aspect Ratio
|
16:9
|
|
Physical Resolution
|
1920x1080
|
|
Backight System
|
WLED
|
|
Luminance(nits)
|
500cd/sqm
|
|
Contrast
|
MEGA DCR
|
|
Viewing Angle
|
H 178°|V 178°
|
|
Pixel Pitch(WxH)
|
0.63×0.63mm
|
|
Panel Dimension(WxHxD)
|
1213.5x684.3mm
|
|
White Point
|
10,000 K
|
|
Display Colors
|
8Bit,16.7M
|
|
Refresh Rate
|
60Hz
|
|
Response Time
|
<=6ms
|
|
Life(hrs)
|
>60,000(hrs)
|
|
MTBF
|
> 100,000 h
|
|
Surface
|
Anti-glare
|
|
Standby Power Consumption
|
<3W
|
|
Maximum Power Consumption
|
lower than 250W
|
|
Power Supply
|
AC100~240V 50/60 HZ
|
|
Cooling
|
Low noise fans
|
|
Heat Dissipation
|
819 BTU/h (max)
|
|
Working Time Capacity
|
7x24x365hours
|
|
Application Area
|
Indoor/Semi Outdoor
|
|
Working Temperature
|
0°C~50°C
|
|
Working Humidity
|
0.85
|
|
Storage Temperature
|
-20-60°C | -4-140°F
|
|
Storage Humidity
|
85% non-condensing
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
CVBS IN
|
1
|
|
CVBS OUT
|
1
|
|
RS232 IN
|
1
|
|
RS232 OUT
|
1
|
|
ISP IN
|
1
|
|
IR IN
|
1
|
|
CODING BUTTON
|
1
|
|
AC IN
|
AC100-240V
|
|
Color System Support
|
PAL/NTSC/SECAM
|
|
Control Type
|
IR Remote &Software Control
|
|
Menu Language
|
English/Chinese(Multiple Language can be customized)
|
|
Vertical/Horizontal Display
|
Support
|
|

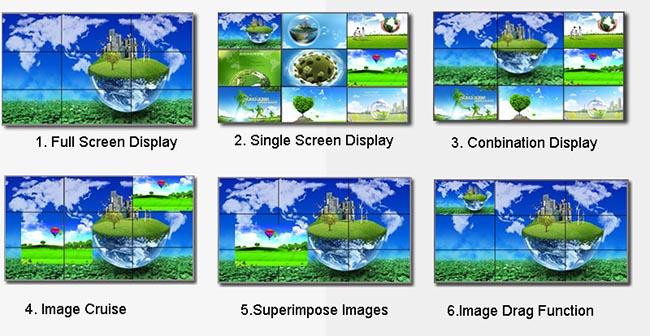

Combine Display
|
Support combine any horizontal &vertical numbers of screens and show display
|
|
Support combine all screens together to show 1image
|
|
Solid Display
|
Support each screen input with separate signal
|
|
PIP/Zoom/Roaming
|
Support open one window for each screen, each window can be zoomed &roaming internal freely
|
|
Multiple Interfaces
|
Support DVI,HDMI,VGA,AV &multiple signal inputs
|
|
Rich Resolution
|
Support 1080P,1080I,720P,480P &multiple resolution inputs
|
Applications:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
