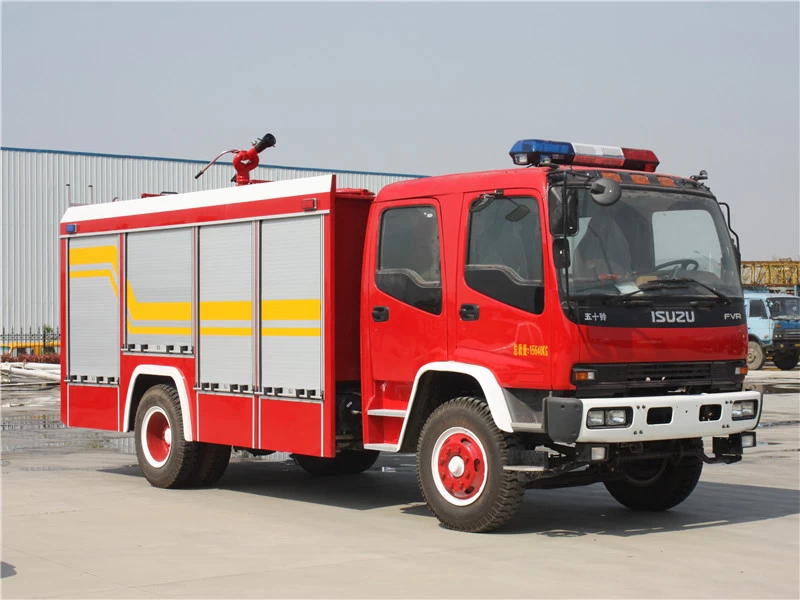

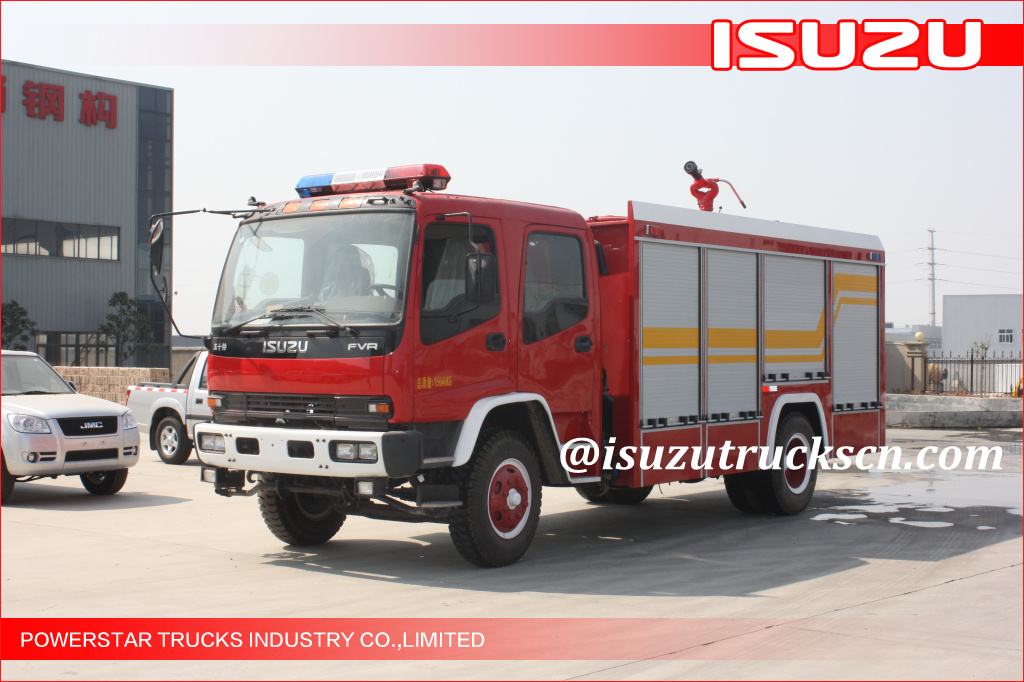

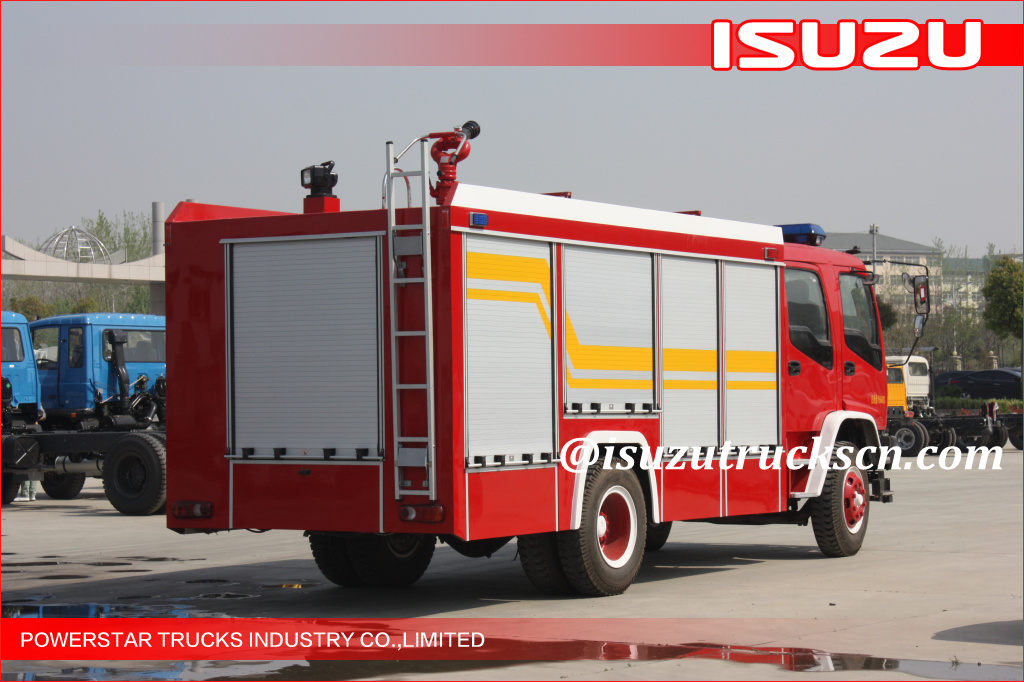

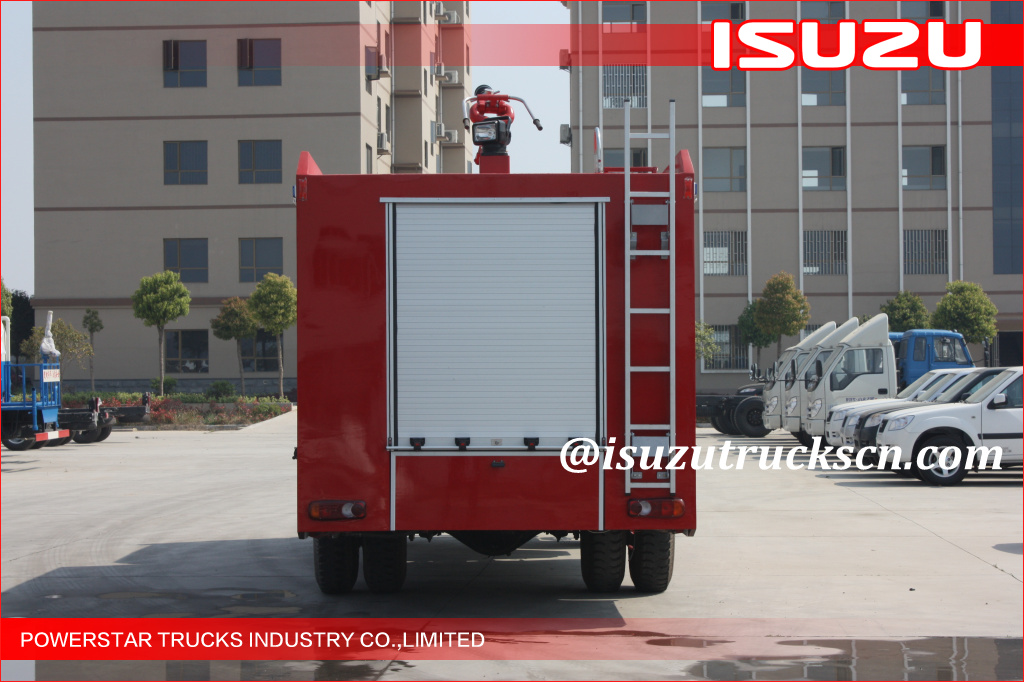

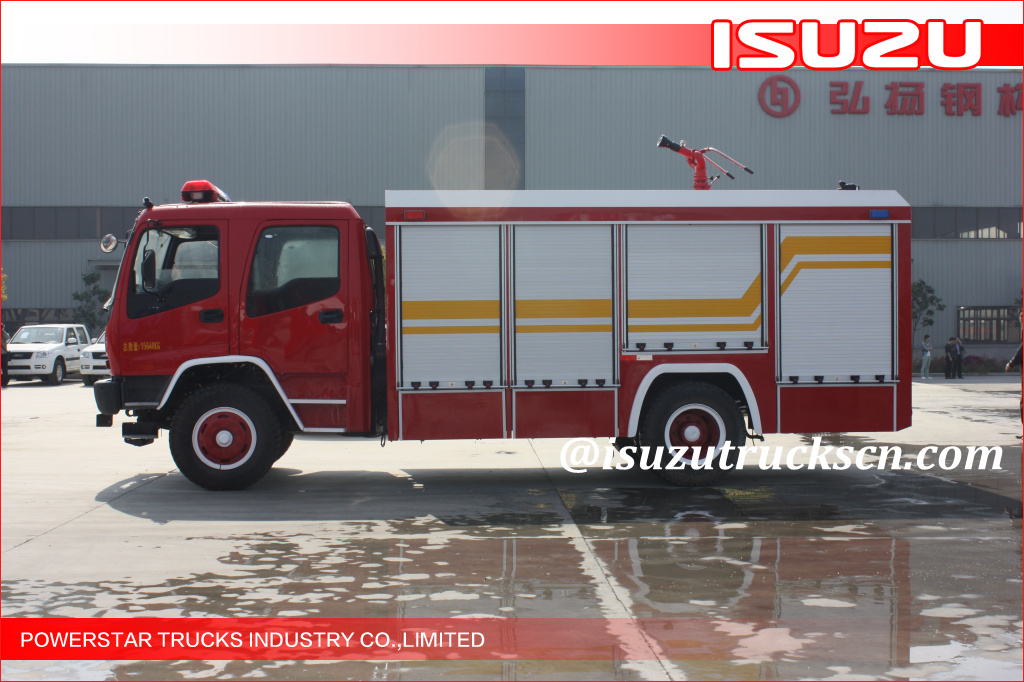

5500L Foam Fire Truck
Feature:
- Special for Urban public fire brigade
- Mines, ports, docks, forest and other departments
- Airport, station or Crowded areas
- More than 22 kind of fire-fighting equipment with fire truck
Main
specifications:
|
Chassis
|
FVR
Heavy-duty chassis for Fire-fighting application
|
|
Model
|
PT5160GXF
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4500
mm
|
|
Overall Dimension
|
8065×2500×3400 mm
|
|
Tank capacity
|
5000L water + 1000L foam
|
|
Fire Pump
|
Rated low
pressure:1.0MPa, Flow rate:40L/S. Rear-mounted，Water delivery time：≤35s
|
|
Fire Cannon
|
Rated
pressure≤1.0MPa,Rated Flow rate:30L/s, Throw
range≥50m, Rotation angle：360°,
|
|
Cab
|
Double cab with Four
doors, 6 seats with safe belts.
|
|
Engine
|
Model:
|
6HK1-TCNG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 6 cylinder
|
|
Max.
Power:
|
177
KW (240HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
10.00-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
90
km/h
|
Accessories List:
(With below equipment,
you can put into fire-fighting immediately)
