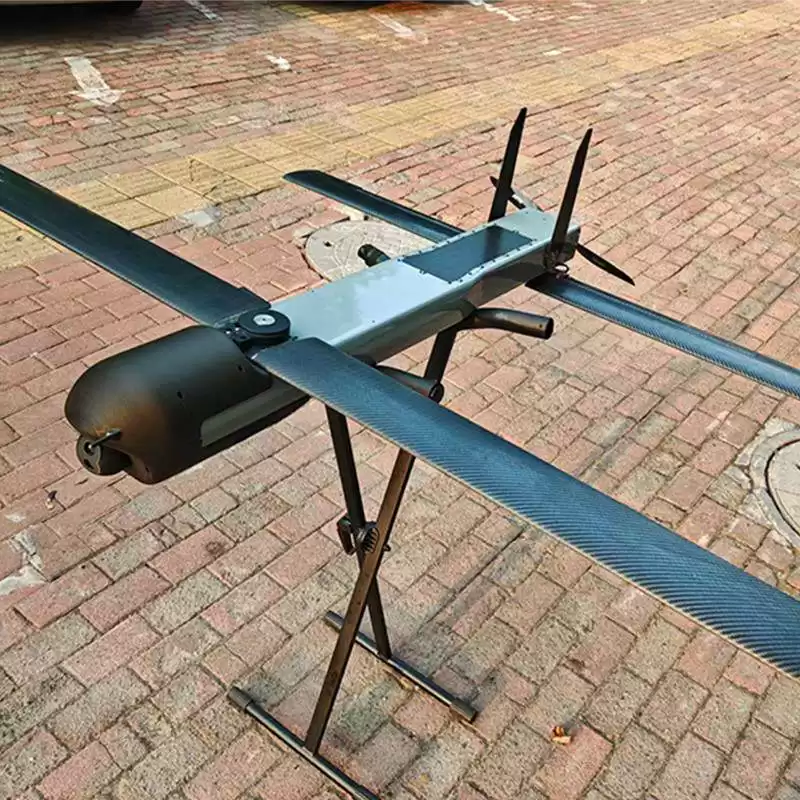

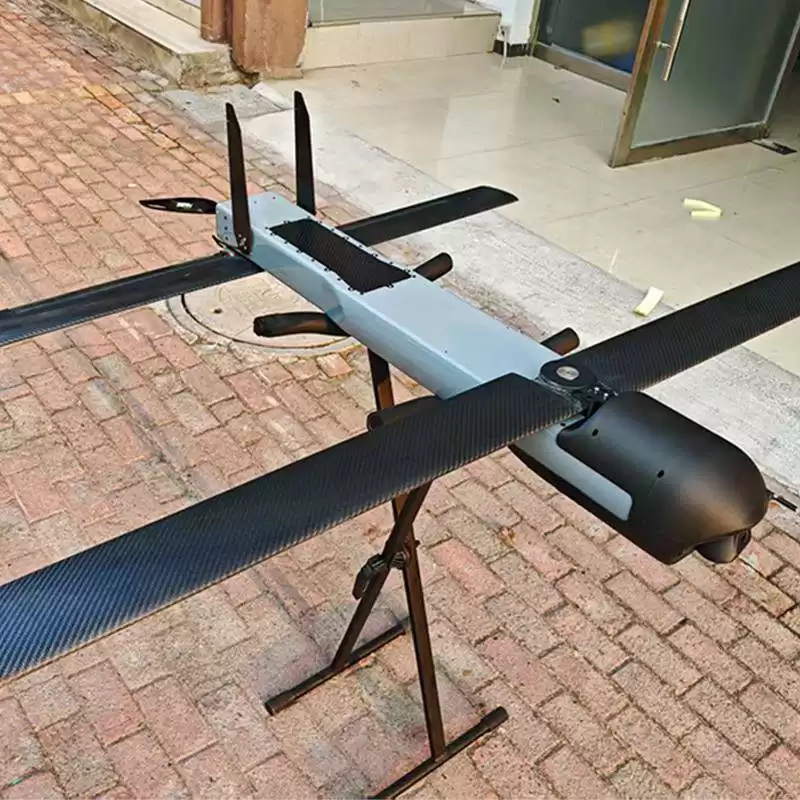

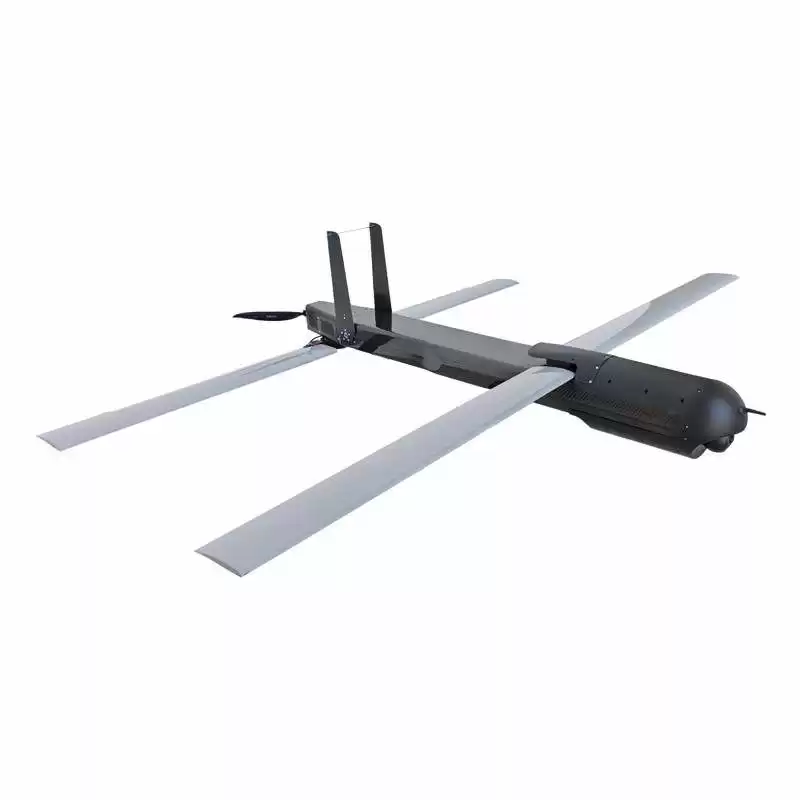

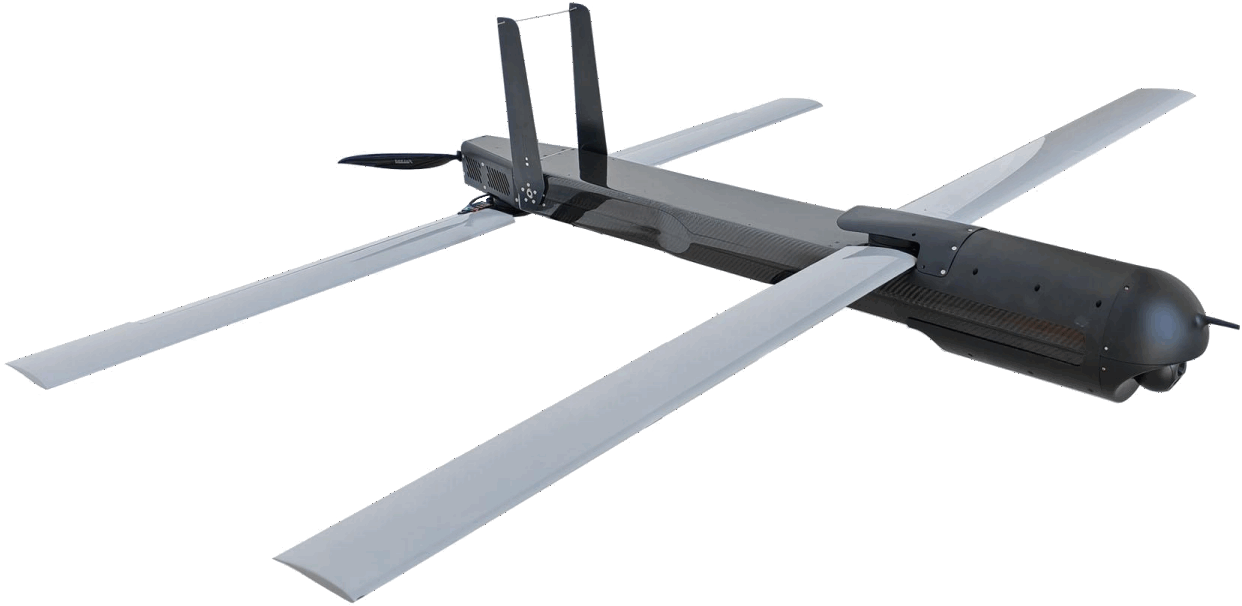

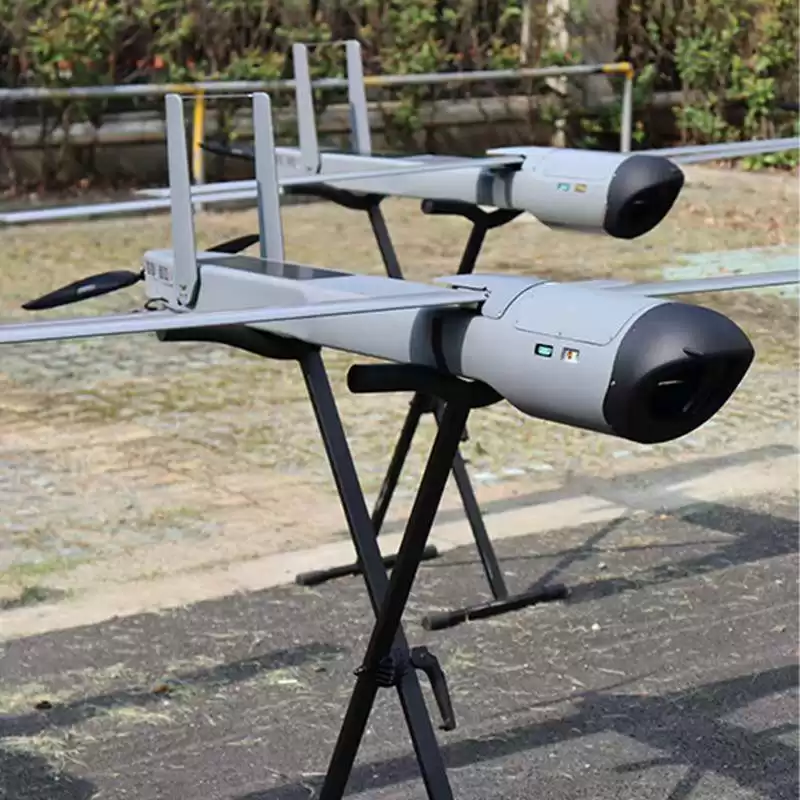

1、Product Schematic
The MK55's 55km range enables continuous pipeline inspection across 3,500-acre oil fields without signal loss, with real-time HD video helping engineers detect 2mm cracks
2、Main technical indicators
2.1 Functional indicators
Drones meet the following functions:
A) Manual control function
In manual control mode, the drone responds to remote commands from ground operators for flight and can be used for emergency purposes in case of malfunctions.
B) Umbrella descent recycling
The drone has a manual parachute descent and recovery function.
C) Automatic route function
By presetting the flight route through the ground station, the drone will fly according to the predetermined route.
2.2 Performance indicators
A) Maximum takeoff weight: ≥10kg
B) Maximum flight speed: 130~180km/h
C) Maximum range ≥ 100km
D) Usage height: 100m~3000m
E) Battery life: ≥50min
F) Communication distance 22/55/100km (optional)
G) Task load ≥ 2.5kg
H) Body length ≥ 1100mm
I) Wingspan ≥ 1500mm
2.3 Dimensional indicators
After folding, the overall size of the machine meets the following requirements:
A) Maximum diameter: ≤160mm
B) Maximum length: ≤1400mm
2.4 Environmental adaptability
A) Operating temperature: -20 ℃ to+70 ℃;
B) Storage temperature: -30 ℃ to+70 ℃;
C) Relative humidity: not exceeding 70%;
3、Product main accessories technical parameters indicators

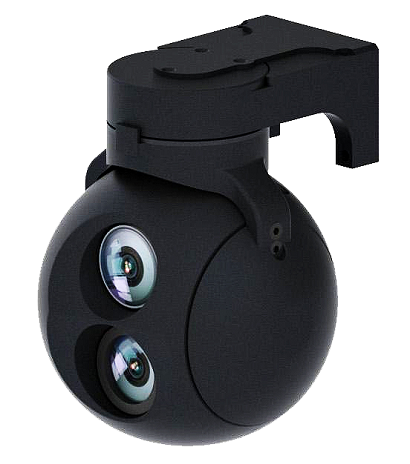

3.1 electronic optical pod
a) Extremely compact structure, weighing less than 240 grams
b) Anti launch impact, suitable for launching and launching unmanned aerial vehicles
c) Equipped with servo image stabilization function
d) Built in tracking function
e) Wide voltage 12-28V input, dynamic power consumption control
f) All electronic devices are integrated into metal casing packaging
g) Compliant with EMC design specifications
|
system description
|
|
System type
|
Gyroscopic stability
|
|
weight
|
≤ 280g
|
|
System characteristics
|
|
platform type
|
Two-axis
|
|
course
|
-110 ° to+110 °
|
|
pitch
|
-100 ° to+40 °
|
|
Maximum angular velocity
|
≥ 100 °/s
|
|
Stable accuracy
|
0.1mrad (1°/2HZ)
|
|
Angular position accuracy
|
≤ 0.3
|
|
Visible light imaging (large field of view)
|
|
Resolution and frame rate
|
1920 × 1080@60fps
|
|
Field of view angle (focal length)
|
42.2 ° × 24.5 ° (7.2mm)
|
|
Visible light imaging (small field of view)
|
|
Resolution and frame rate
|
1920 × 1080@60fps
|
|
Field of view angle (focal length)
|
12.7 ° × 7.1 ° (25mm)
|
|
Tracking module
|
|
Frame rate
|
60Hz
|
|
tracking speed
|
± 48 pixels/frame
|
|
environmental condition
|
|
operation temperature
|
-40 ℃~+60 ℃
|
|
storage temperature
|
-50 ℃~+70 ℃
|
|
Maximum allowable overload
|
≥ 400g
|
Image data transmission data link

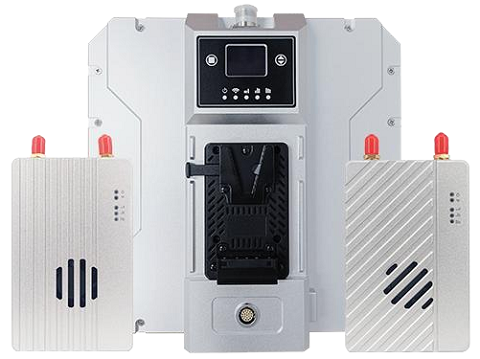

MK22/MK55 is an integrated drone data link system with powerful functions and high integration, capable of simultaneously transmitting high-definition video, data, and SBUS signals. The transmission distance can be selected as 22km or 55km, and the ground end has a 1/4 screw mouth that can be installed on a universal tripod. Users can connect the standard high-strength flexible cable to the ground station system to obtain the video and data of the drone.
|
Size
|
Air 10cm×6.3cm×2.2cm/150g; Ground 25.6cm×25.6cm×9.4cm/1.9kg
|
|
Operating frequency range
|
800MHz/1.4GHz/2.4GHz
|
|
Channel bandwidth
|
5MHz/10MHz/20MHz
|
|
Modulation mode
|
OFDM
|
|
Output power
|
MK22:30dBm±1dB;MK55:33dBm±1dB
|
|
Sensitivity
|
≤-92dBm
|
|
Communication distance
|
MK22:22km;MK55:55km
|
|
Air Bitrate
|
Max.30Mbps
|
|
Power supply range
|
DC9-28V(battery3S~6S)
|
|
Power consumption
|
≤8.5W
|
|
Serial port
|
1个RS232+1个TTL(Air);2个，RS232(Ground)
|
|
SBUS
|
SBUS_OUT*2(Air);SBUS_IN*2(Ground)
|
|
Network port
|
1, 4pin Ethernet port, equipped with 4pin open cable (Sky end Air) 4-PIN cable
|
|
1, RJ45 standard crystal head (ground end) RJ45 Etnernet port
|
|
Power
|
1个，4pin(Air);1个，XT60/V-Cut(Ground)V-Cut battery
|
|
Antenna type
|
|
|
Air:Glue stick,2.5dBi,Ground:flat antenna12dBi+fiberglass antenna5dBi
|
|
Temperature
|
Operating temperature:-40℃-+70℃; Storage Temperature:-40℃~+85℃
|
|
Humidity
|
5~95%, no condensation
|
