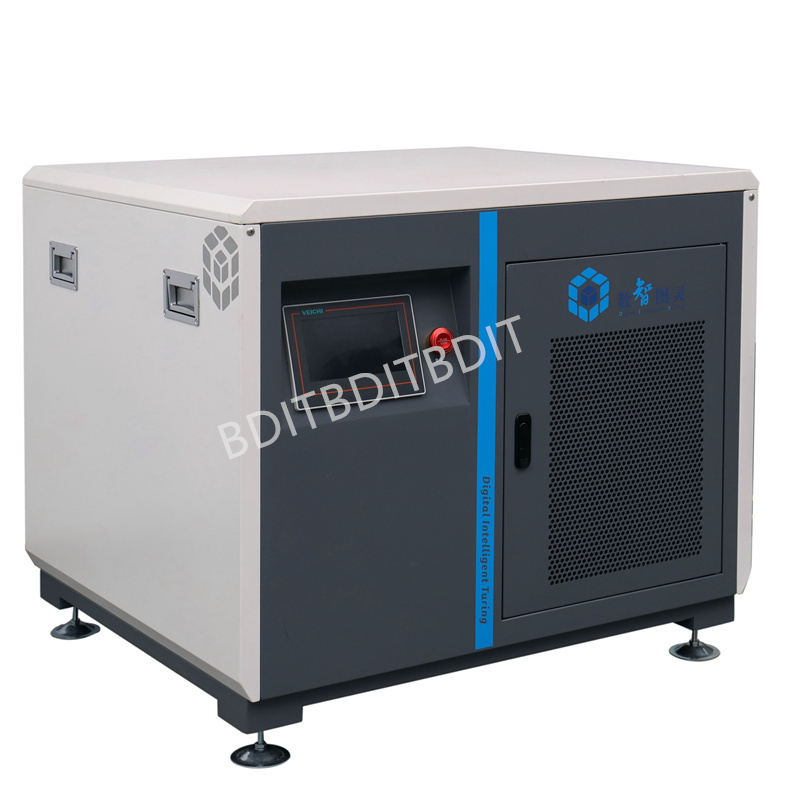

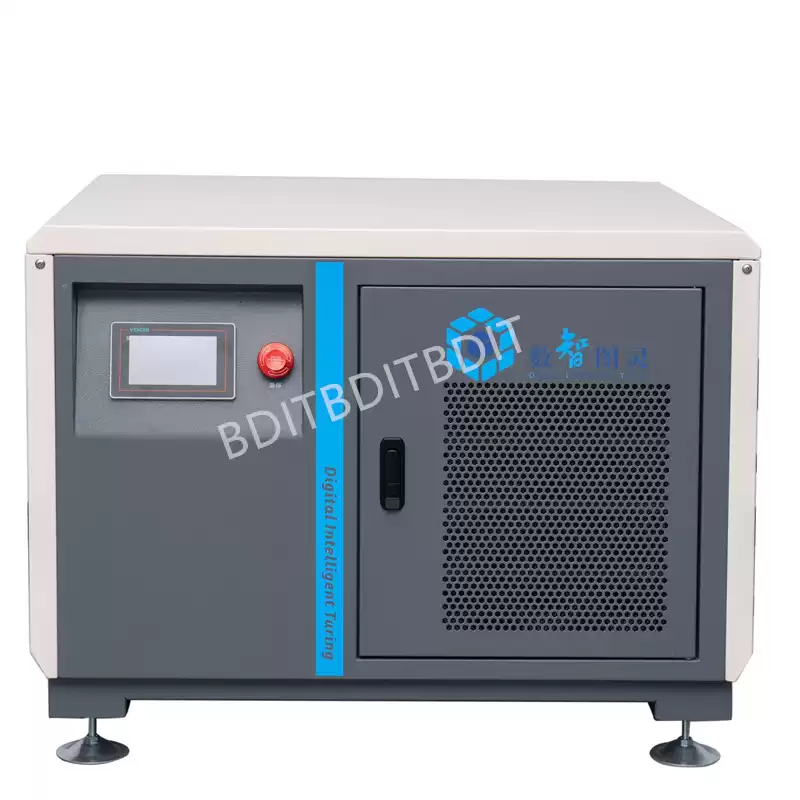

55kw High Speed High Pressure Turbo Blower

Beijing Intellegent Digit Turing Blower is a high speed centrifugal blower. We design and manufacture the blowers driven by high speed PMSM -permanent magnet synchronous motor, which can easily achieve rotation speed more than 20000 rpm. The blower is much more efficient than other type of blowers.


We can also tailer-made blowers for you if you have any special request.


  • Model NO.:DIN-INT-R15-P5-55

High Speed Energy Saving Centrifugal Blower

Both the air pressure and flow of the centrifugal blower have been greatly improved by orders of magnitude compared with the traditional blower. Not only our blower can supply much higher pressure and more flow, contrast against other types of blowers, we also saved approx. 25-40% energy cost according to on-site situation.


Product Feature

Customer also will have following advantages but not limit to-

A.the blower will have less on-site working noise.

B.less the energy consumption will be used.

C. the blower has less space and weight so it can be transported in one piece and is easy to be installed

D.The blower also has the self-learning and self-adjustment adaptive function;

E.the control platform is capable to be developed by the request of any input signals from IoT


Product Specifications

Name High Speed Centrifugal Blower
Model DIN-INT-R15-P5-55
Max.Power (kw) 55
Pressure (mmH2O) <=2500
Flow (m3H) 6600
Dimension (L*W*H mm) 900*900*950
Gross Weight (KG) 265
Flange Diameter DN200


Application Field

BDIT blowers have been designed specially to meet the harsh working condition (long term sustainable working/anti salty&humid condition). So the product can be worked 24*7 in the out-door conditions.

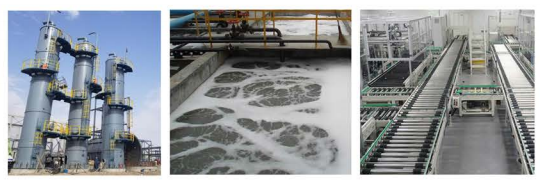

The blowers are widely be used by industrial  application, such as Electrolytic Tank, civil and industrial waste water all kinds of aeroic application.



In addition, our products have been widely accepted by aquaculture industries to:

· Clean the water

· Push air/oxygen into the water for aquatic animals

The customers are raising cod fish/shrimps/perch/epinephelus/abalone/sea cucumber etc.


Packaging
Composite wooden box or paper box are optional
