55mm 700C disc rim geometric,as below:
|
Model
|
DWU55TL-SL
|
DWU55WTL-SL
|
|
Material
|
Toray T800
|
Toray T800
|
|
Rim Width (Outer/inner)
|
28/18mm
|
29/21mm
|
|
Rim Depth
|
55mm
|
55mm
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
|
Rim Type
|
Tubeless Ready
|
Tubeless Ready
|
|
Use
|
Road/CX
|
Road/CX/Gravel
|
|
Brake System
|
Disc Brake
|
Disc Brake
|
|
ERD
|
533
|
533
|
|
Spoke Holes
|
24/28/32H
|
24/28/32H
|
|
Rim Weight
|
460+/-15g
|
460+/-15g
|
|
Angle
|
+/-5°
|
+/-5°
|
|
Max Spokes Tension
|
130kgf
|
130kgf
|
|
Max Tyre Pressure
|
120 Psi
|
120 Psi
|
|
Max Rider Weight
|
120 Kg
|
110 Kg
|
|
Tyre Size
|
25-42C
|
25-42c
|
|
Decals
|
Customized
|
Customized
|
|
Warranty
|
2 Years
|
2 Years
|

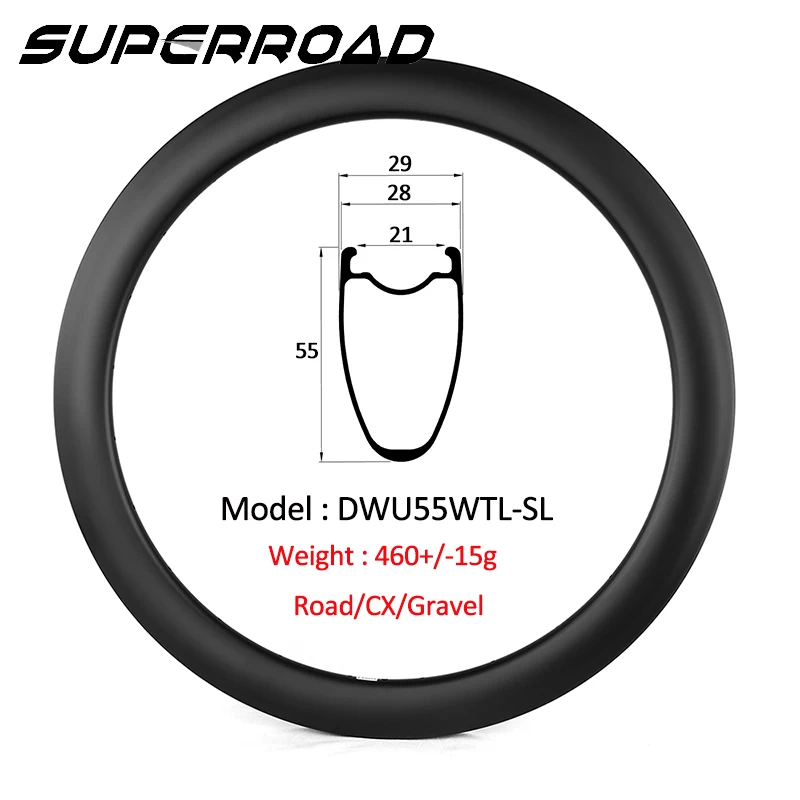

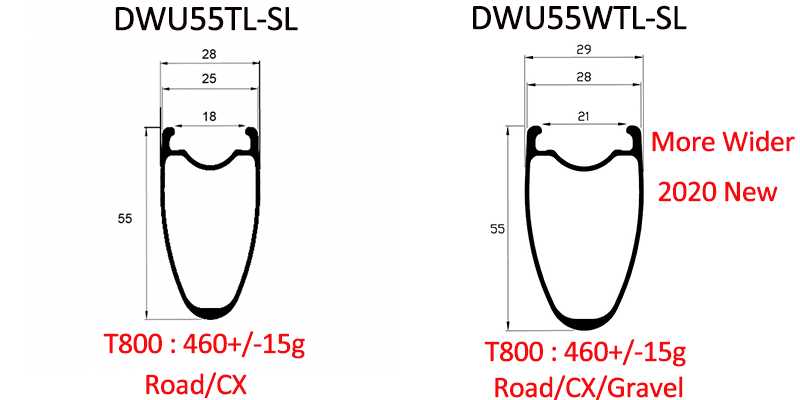

55mm carbon cyclocross rims (DWU55WTL-SL) is Superroad 2020 new carbon road rims disc brake design.We change the normal inner width to wider,different for the DWU55TL-SL.21mm inner width better mount for any thing from 25-42C tyres.U shape carbon rims get more stiffer and aero edge.55mm enough deep but ligher,460g for road disc brake.
Superroad in Xiamen China,Xiamen is a biggest carbon bicycle parts OEM/ODM production baseds.Xiamen carbon rims get acceptance from all over the world.
