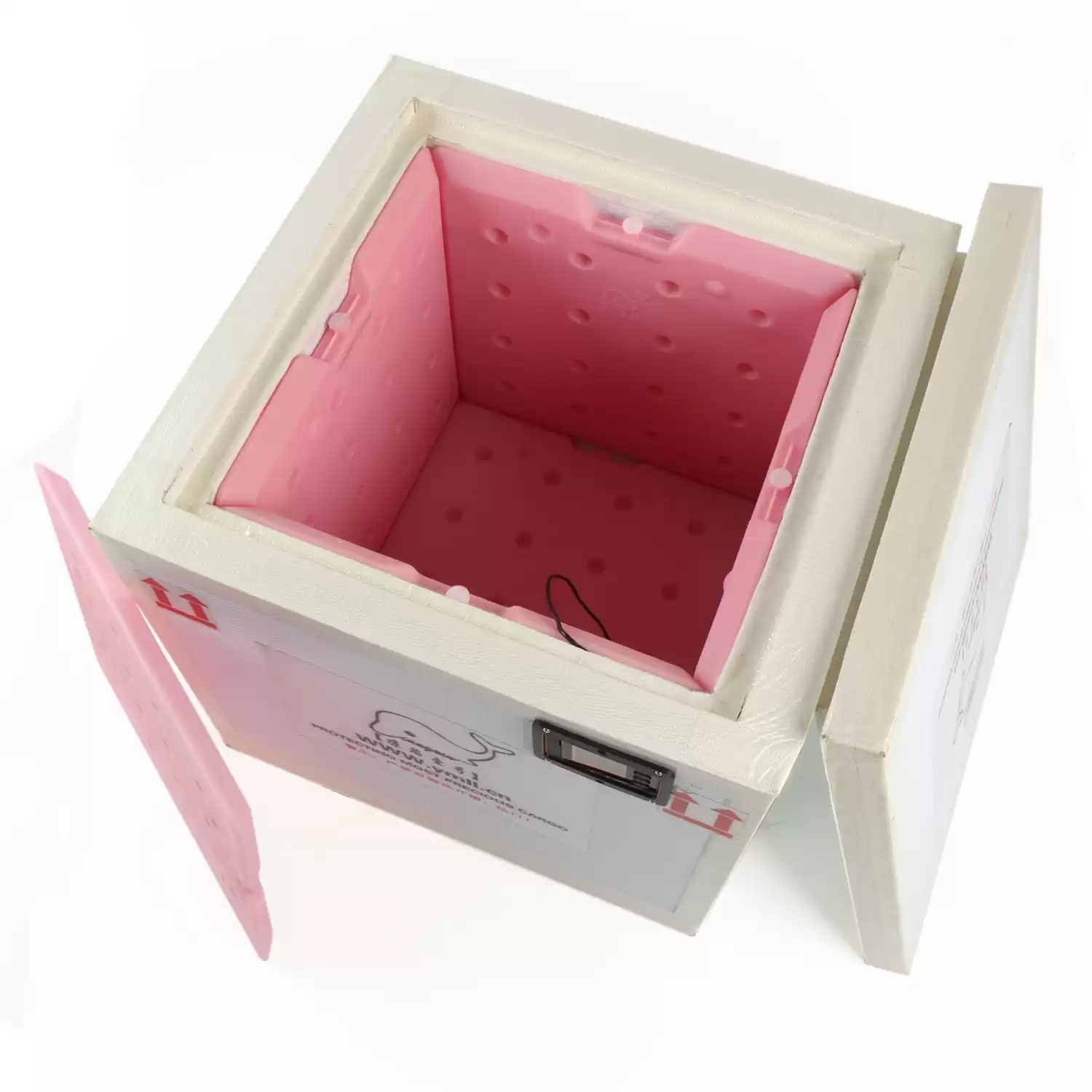

58L VPU insulation cold chain shipping box vaccine cooler box
PU-VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property. PU foam moulding, have super thermal insulation, the thermal conducitivity is lower than 0.0025w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, enterprises can flexibly choose and reasonable collocation shceme, this can greatly simplify operating, reduce lobor costs. For pharmaceutical logistics enterprises to solve transport problems.
|
Category
|
Medical cooler box
|
|
Main Material
|
VPU high performance insulation panel
|
|
Application
|
Medical, vaccine, blood storage and transport
|
|
Dimension
|
Outer Dimension:508x508x508mm
Inner Dimension:388x388x388mm
|
|
Capacity
|
Payload capacity:41L
|
|
Cold source
|

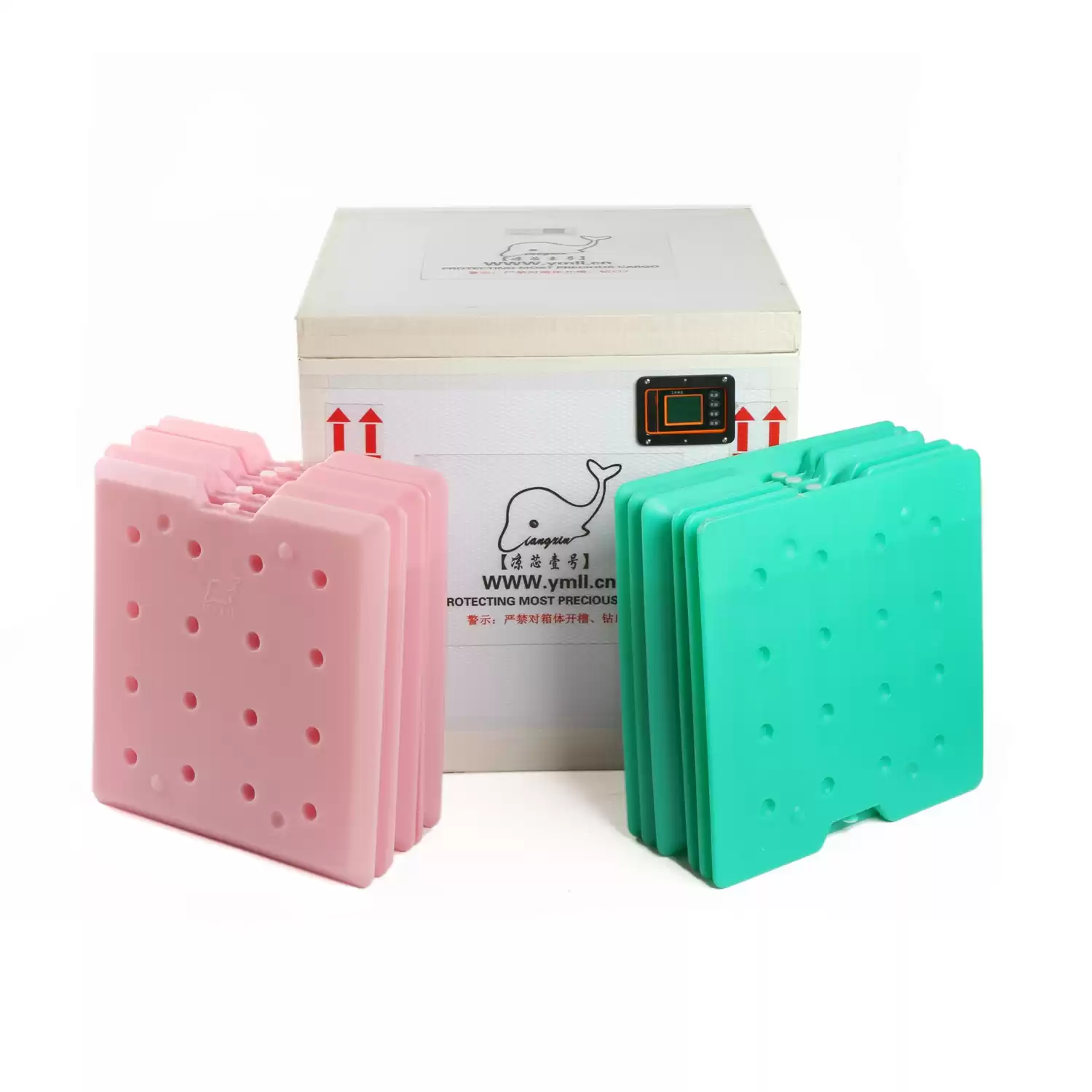

Ice Pack:6pcs combine cube: ice bricks size: 380*380*30mm
|
|
Cold life
|
keep 2 deg C to 8 deg C for more than 72 hours at ambient temperature of - 25deg C to +35 deg C.
|
Usage
1. Before using, wipe the non toxic sealed HT Ice Bricks dry, and place into a freezer until they are fully frozen (about 10 hours). If using HT Ice Packs, fill with clean fresh water, firmly replace the screw cap, then follow the same procedure.

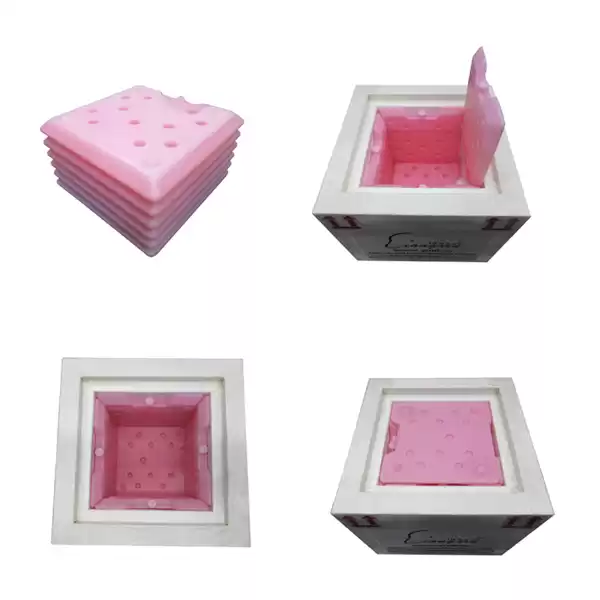

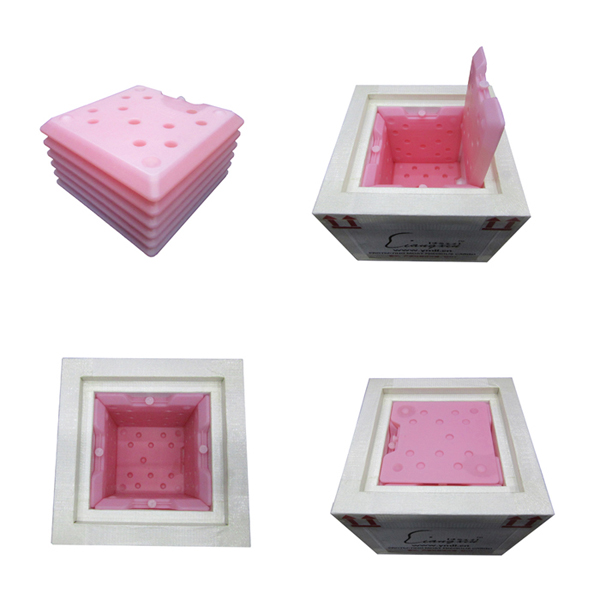

2. Remove the frozen packs from the freezer, and place every pack into the box in the positions indicated, and close the lid.
3. When the temperature of the box reduces to below 8oC, open the lid and place the contents to be kept cold in the Cold Chain Box. Close the lid.
Notes
When not using your Vaccine cooler box, store your sealed HT Ice Bricks and water filled Ice Packs in the freezer - then they will be ready for using just when you want them.
