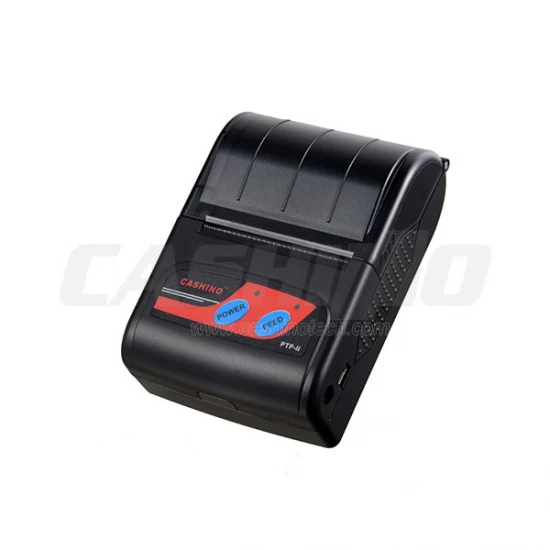

58mm portable mobile bluetooth thermal printer PTP-II
Cashino PTP-II is designed especially for those transaction applications where small size, fast printing and dependability while staying
in budget are vital. Delivering the key features and communication methods, the PTP-II has the flexibility to meet the unique, industry-specific receipt printing and ease of use required to keep up with the mobile worker's long and demanding shift.
Key features & Benefits:
1. Compact design. Mini size and light weight.
2. Auto sleep/auto start/Auto power off for power saving, extension use.
3. Multi-interfaces: RS232/USB/Bluetooth/Wifi/RAW-IR
4. 2000mAh li-ion battery, 8hrs of working time and 72hrs of standby time.
5. 1600mAh li-ion battery is available as option.
6. Support Powered by USB, reduce the cost for you
7. With protective case, can reach 1.2 meter drop resistance. Also easily and comfortably carry the printer.
8. A printer can be connected to 7 sets of mobile device via bluetooth.(optional function)
Specification:
| MODEL |
PTP-II |
| Print |
print mode |
Thermal line printing |
| Printing speed（Max.) |
90mm/s |
| Resolution |
203dpi(8dots/mm) |
| Effective printing width |
48mm |
| Paper spec. |
Paper Type |
Thermal paper roll |
| Paper Thickness |
0.055-0.01mm |
| Paper Width |
57.5mm±0.5mm |
| Paper Diameter |
40mm(Max.) |
| Roll Core Inner Diameter |
13mm(min) |
| Paper supply method |
Drop-in easy loading |
| Reliability |
TPH |
50km(12.5% print ratio) |
| Detection |
Paper ending |
| Barcode |
1D |
EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E |
| 2D |
QR CODE,PDF417 |
| Text and graphic support |
Figure, symbol, graph, curve, icon, multi-languages |
| Command set |
ESC/POS |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK |
| Interface |
Wire |
Raw-ir/RS232/Mini USB |
| Wireless |
Dual bluetooth/WIFI |
| Battery |
2000mAh |
| Recharge adapter |
12V ,1A |

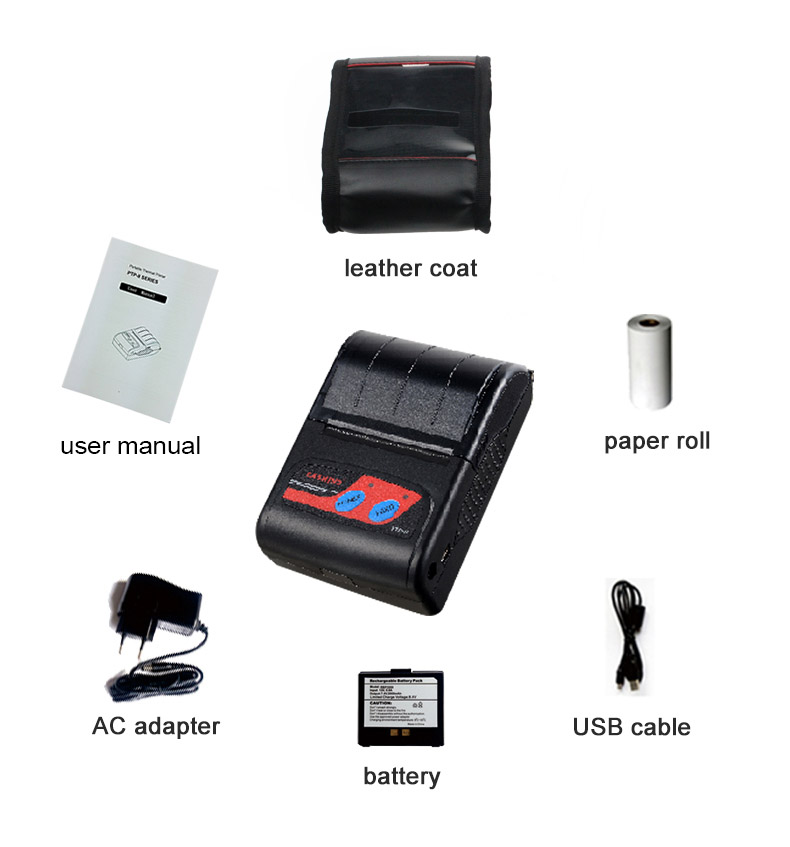

| Accessories |
Standard accessories |
Li-ion battery, AC adapter, USB cable,paper roll, user manual |
| Optional accessories |
Protective Case, CD,user manual,RS232 cable |
| Temperature |
Operating:0℃~50℃ |
| Storage:-20℃ ~ 60℃ |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
Applications:
1. Mobile POS/Retail
2. Parking lot
3. Logistics
4. Ship transport
5. On-site repair/Installation
6. Warehouse/Rear service
7. Utility billing/Meter reading
Company Information:
Xiamen Cashino Electronic Technology Co., Ltd. is a professional manufacturer of thermal printers since 2011, with the ISO9001, CE, RoHs and FCC certificates passed. Until now, We have developed many micro printers, such as mobile thermal printer, dot matrix portable printer, micro panel printer, kiosk printer, POS bill printer and thermal label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Certificates:
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
