Product name:
5G Power tapper 600-6000MHz, Low PIM , N type
Product features:
♦ Low Insertion Loss
♦ Low VSWR
♦ Low Passive Intermodulation
♦ Up to 200W Average Power
♦ High Reliability, IP65
Technical and Mechanical Specification:
|
Model No.
|
MNL-PT-XXdB-4F-161dBc
|
|
Freq(MHz)
|
600-960 MHz &1710-2700 MHz&3400-3800 MHz&5100-5850 MHz
|
|
Ratio.nom
|
2:1/3dB
|
3:1/4.8dB
|
4:1/6dB
|
6:1/8dB
|
10:1/10dB
|
20:1/3dB
|
30:1/15dB
|
100:1/20dB
|
1000:1/30dB
|
|
Coupling Values(dB)
|
4.8
|
6
|
7
|
8
|
10
|
13
|
15
|
20
|
30
|
|
Coupling(dB)
5100-5850 MHz
|
4.8 dB
±1.3 dB
|
5.8dB
±1.2dB
|
6.8 dB
±1.2 dB
|
8.0 dB
±1.2 dB
|
10.2 dB
±1.3 dB
|
13.2 dB
±1.4 dB
|
15.1 dB
±1.5dB
|
20.1 dB
±1.5 dB
|
30.1 dB
±1.5 dB
|
|
Coupling(dB)
3400-3800 MHz
|
4.8 dB
±1.3 dB
|
5.8dB
±1.2dB
|
6.8 dB
±1.2 dB
|
8.0 dB
±1.2 dB
|
10.2 dB
±1.3 dB
|
13.2 dB
±1.4 dB
|
15.1 dB
±1.5dB
|
20.1 dB
±1.5 dB
|
30.1 dB
±1.5 dB
|
|
Coupling(dB)
2170-2700 MHz
|
5.0 dB
±1.3 dB
|
6.3 dB
±1.2dB
|
7.2 dB
±1.2 dB
|
8.2 dB
±1.2 dB
|
10.2dB
±1.2 dB
|
13.2 dB
±1.4 dB
|
15.1 dB
±1.5dB
|
20.1 dB
±1.5 dB
|
30.1 dB
±1.5 dB
|
|
Coupling(dB)
600-960MHz
|
5.3 dB
±1.5 dB
|
6.3 dB
±1.3dB
|
7.3 dB
±1.3 dB
|
8.3 dB
±1.2 dB
|
10.3dB
±1.3 dB
|
13.2 dB
±1.4 dB
|
15.2dB
±1.5dB
|
20.2dB
±1.5 dB
|
30.2dB
±1.5 dB
|
|
Coupled loss
|
2.1 dB
|
1.35dB
|
1.0 dB
|
0.9dB
|
0.45dB
|
0.14dB
|
0.05dB
|
0.05dB
|
0.05dB
|
|
Dissapative Loss(dB)
|
0.35dB
|
0.35dB
|
0.35dB
|
0.35dB
|
0.35dB
|
0.35dB
|
0.35dB
|
0.35dB
|
0.35dB
|
|
Splitting ratio
|
1:0.33 :
0.67
|
1:0.25 :0.75
|
1: 0.2 :
0.8
|
1:0.16 :0.84
|
1 : 0.1
: 0.9
|
1: 0.05
: 0.95
|
1: 0.03
: 0.97
|
1: 0.01
: 0.99
|
1: 0.01
: 0.99
|
|
InputVSWR max
|
1.50
|
1.50
|
1.45
|
1.45
|
1.45
|
1.40
|
1.40
|
|
1.40
|
1.40
|
|
PIM(dBc)
|
≤ -161dBc @700-2700MHz
|
|
Average Power(W)
|
Average Power 300W (CW)
|
|
Impedance (ohm)
|
50
|
|
Connector
|
4.3-10 Female
|
|
Color
|
Black
|
|
Working Temperature (deg)
|
-35~+65
|
|
Application
|
Indoor &Outdoor, IP65
|
|
Relative Humidity
|
5%-95%
|
OUR SERVICES
1. Professional skills support for 600-6000MHz Low PIM-160dBc power tapper
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

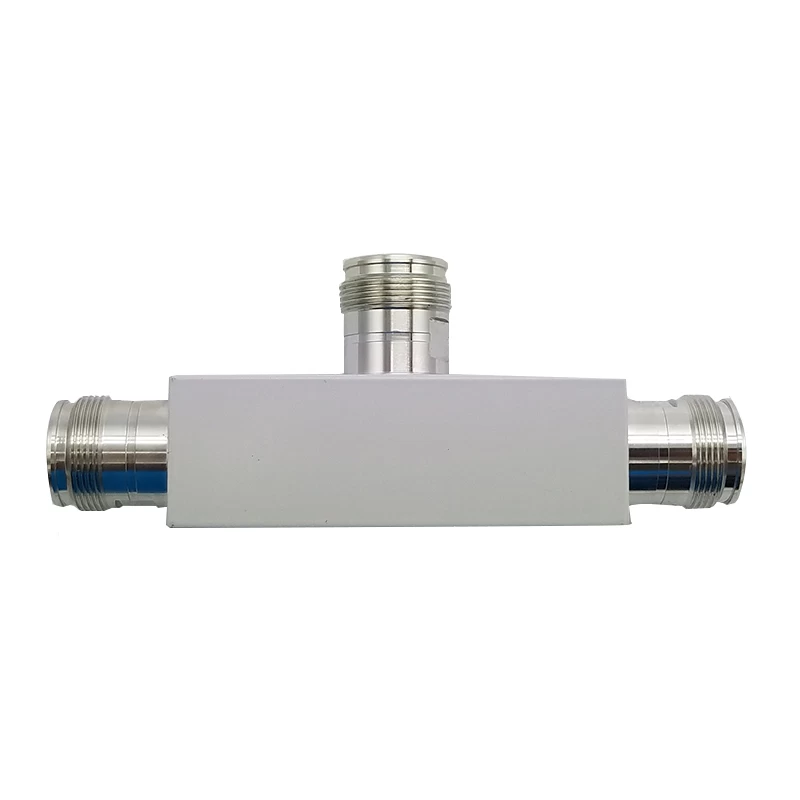

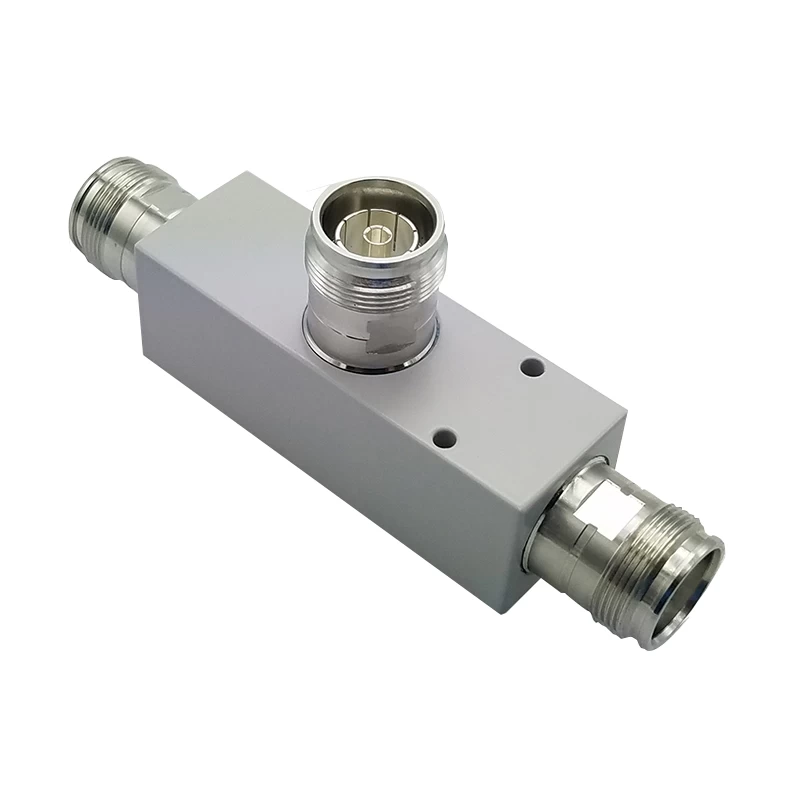

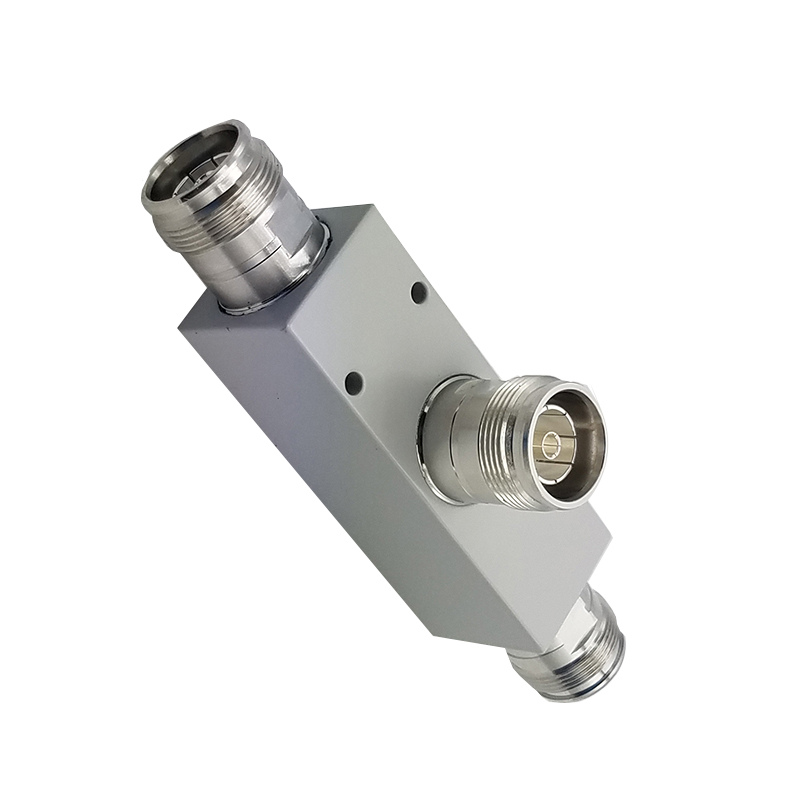

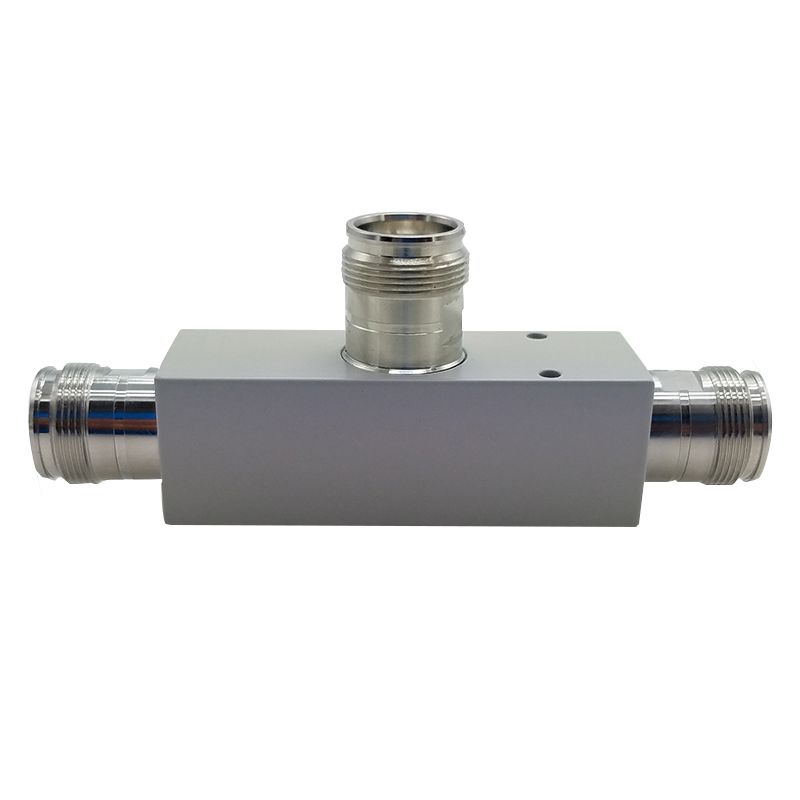

Image:
